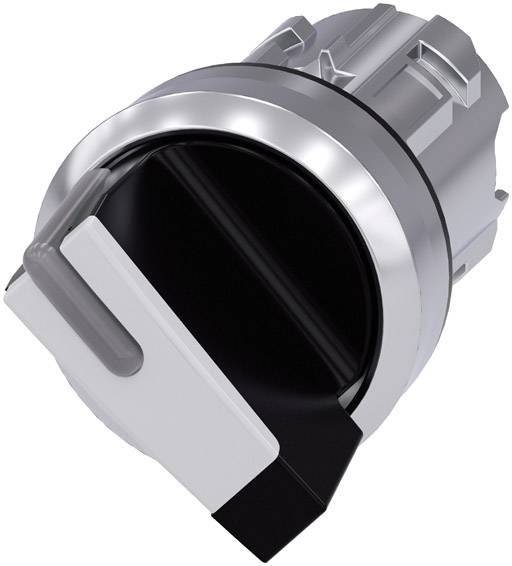

Siemens 3SU10522BF600AA0 3SU1052-2BF60-0AA0 Interruttore a levetta Anello frontale in metallo, Lucido Nero, Bianco 1 x 9
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Quantità (Pezzo(i))
Risparmio
Prezzo dell'imballaggio (IVA escl.)
1
-
18,02 €
3
5% = 0,89 €
17,13 €
5
7% = 1,25 €
16,77 €
10
8% = 1,49 €
16,53 €
25
10% = 1,75 €
16,27 €
50
11% = 2,05 €
15,97 €
I prezzi a scala possono variare a seconda del venditore
Risparmio 0,00 €
Numero
Totale (18,02 € / Pezzo)
€
Solo 10 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La selezione ottimale per la quantità inserita viene calcolata automaticamente, compresi il prezzo (escl. spedizione) e i tempi di consegna.
Dati tecnici
- Interruttore a levetta, illuminato, 22 mm, rotondo, metallo, lucido, bianco, a levetta, corto, 2 posizioni di commutazione O-I, aggancio, angolo di commutazione 90°, 10:30h/13:30h
- Tipo prodotto
Interruttore a levetta
- Caratteristiche
Anello frontale in metallo
Lucido
- Tipo di illuminazione
Illuminazione a punto
- Colore della luce
Bianco
- Colore
Nero
Bianco
- Serigrafia
Freccia
- Collegamento
Elemento di contatto esterno
Elemento di contatto a LED
- Formato
rotondo
- Funzioni
Permanente
- Durata meccanica
300000
- Ø Foro di montaggio
22 mm
IP66
IP67
IP69K
- Posizioni di commutazione
1 x 90 °
- Posizioni commutatore
1 x Off / On

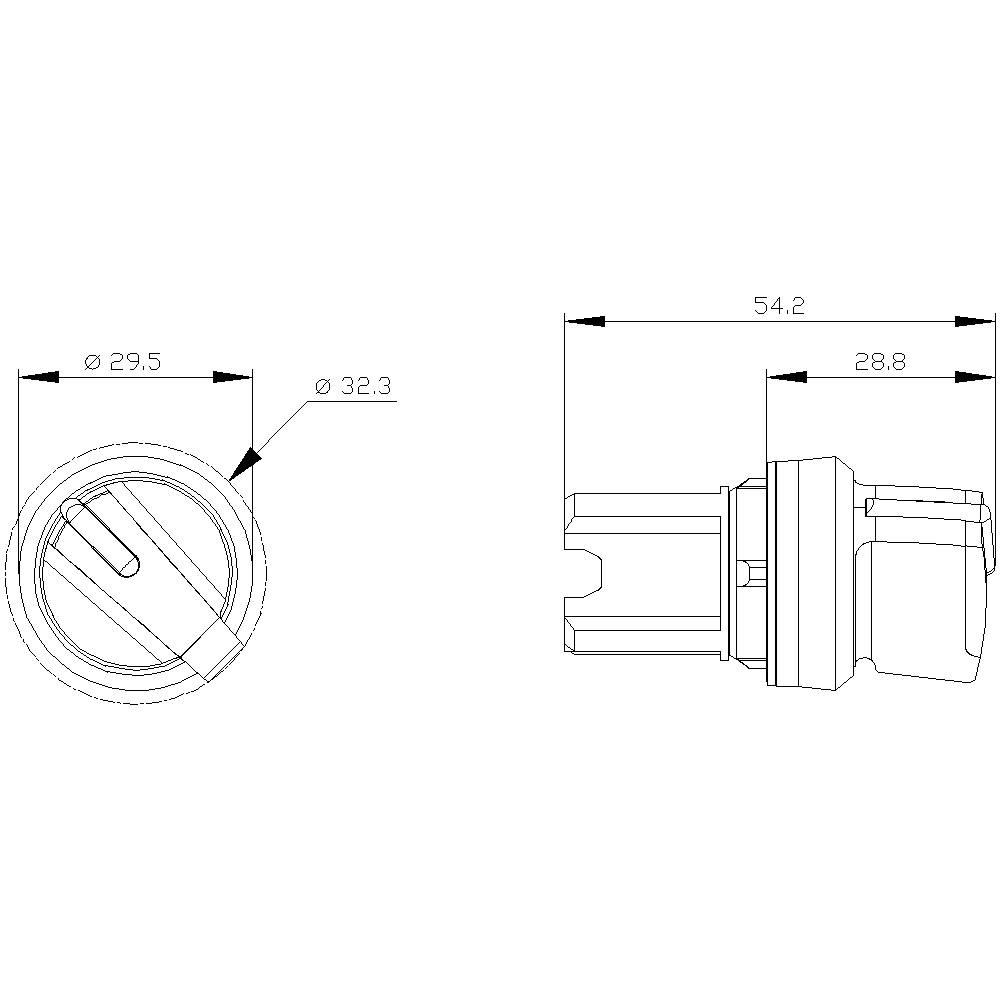

- Larghezza
32.3 mm
- Altezza
32.3 mm
- Contenuto
1 pz.
- Dim.
(L x A) 32.3 mm x 32.3 mm
- Compatibile RoHS
Sì
- Peso
0.0200 kg
- Tipo
3SU1052-2BF60-0AA0
22.3 mm
2
TRUE
FALSE
Other
IP67/IP69K
32.3 mm
28.8 mm
Metal
TRUE
Rectangular
Wing knob
White
White
TRUE
Documenti & Download
Scheda tecnica
Scheda tecnica 1379420 Siemens 3SU10522BF600AA0 3SU1052-2BF60-0AA0 Interruttore a levetta Anello frontale in metallo, Lucido Nero, Bianco 1 x 9
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1379420 Siemens 3SU10522BF600AA0 3SU1052-2BF60-0AA0 Interruttore a levetta Anello frontale in metallo, Lucido Nero, Bianco 1 x 9
Informazioni
Informazioni 1379420 Siemens 3SU10522BF600AA0 3SU1052-2BF60-0AA0 Interruttore a levetta Anello frontale in metallo, Lucido Nero, Bianco 1 x 9
Descrizione
Selector switch, illuminable, 22 mm, round, metal, shiny, white, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h Selector switches SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, 2-4 switching positions, short/long selector or rotary knob, illuminated/non-illuminated (lighting can also be retrofitted), latching/momentary contact operation.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
