Avviatore soft starter Siemens Potenza motore a 400 V 1.5 kW Potenza motore a 230 V 0.75 kW 400 V/AC Corrente nominale 3
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
2 Pezzo(i)
Vendita e spedizione:
spedizione gratuita a partire da 199,00 € valore dell'ordine con questo fornitore
Numero
Totale
120,00 €
Prodotto proveniente da altro paese EU (IVA 0%)
12,90 €
Solo 2 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Avviatore statico SIRIUS S00 3,6 A, 1,5 kW/400 V, 40 °C CA 200-480 V, CA/CC 110-230 V Terminali a vite
- Tipo prodotto
Avviatore soft starter
- Potenza motore a 230 V
0.75 kW
- Potenza motore a 400 V
1.5 kW
- Tensione nom.
400 V/AC
- Fasi operative
2
- Codice articolo produttore
3RW30131BB14
- Corrente nominale
3.6 A
- Corrente nominale
3.6 A
- Tipo
3RW3013-1BB14

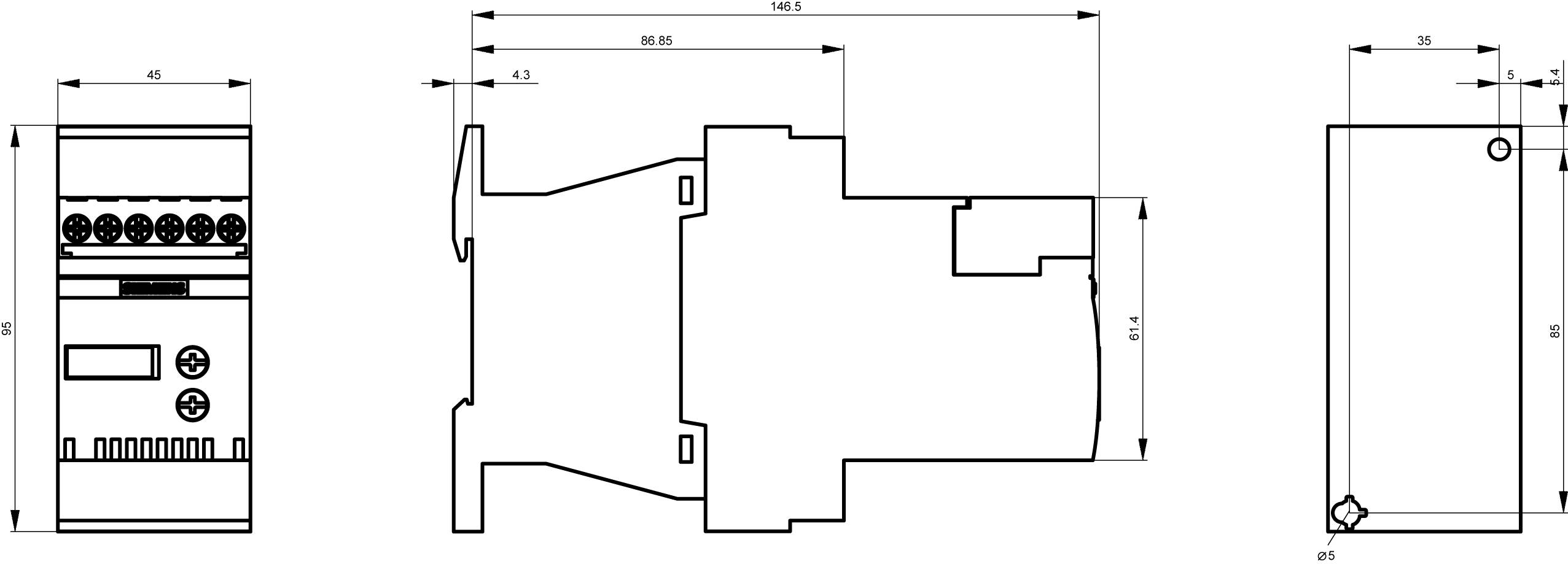

- Dim.
(L x L x A) 150 x 45 x 100 mm
- Larghezza
45 mm
- Altezza
100 mm
- Lunghezza
150 mm
- Profondità
150 mm
Single direction
110-230 V
110-230 V
110-230 V
IP20
Other
3.6 A
0.75 kW
1.5 kW
40 °C
FALSE
AC/DC
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 197535 Avviatore soft starter Siemens Potenza motore a 400 V 1.5 kW Potenza motore a 230 V 0.75 kW 400 V/AC Corrente nominale 3
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 197535 Avviatore soft starter Siemens Potenza motore a 400 V 1.5 kW Potenza motore a 230 V 0.75 kW 400 V/AC Corrente nominale 3
Descrizione
SIRIUS soft starter S00 3.6 A, 1.5 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

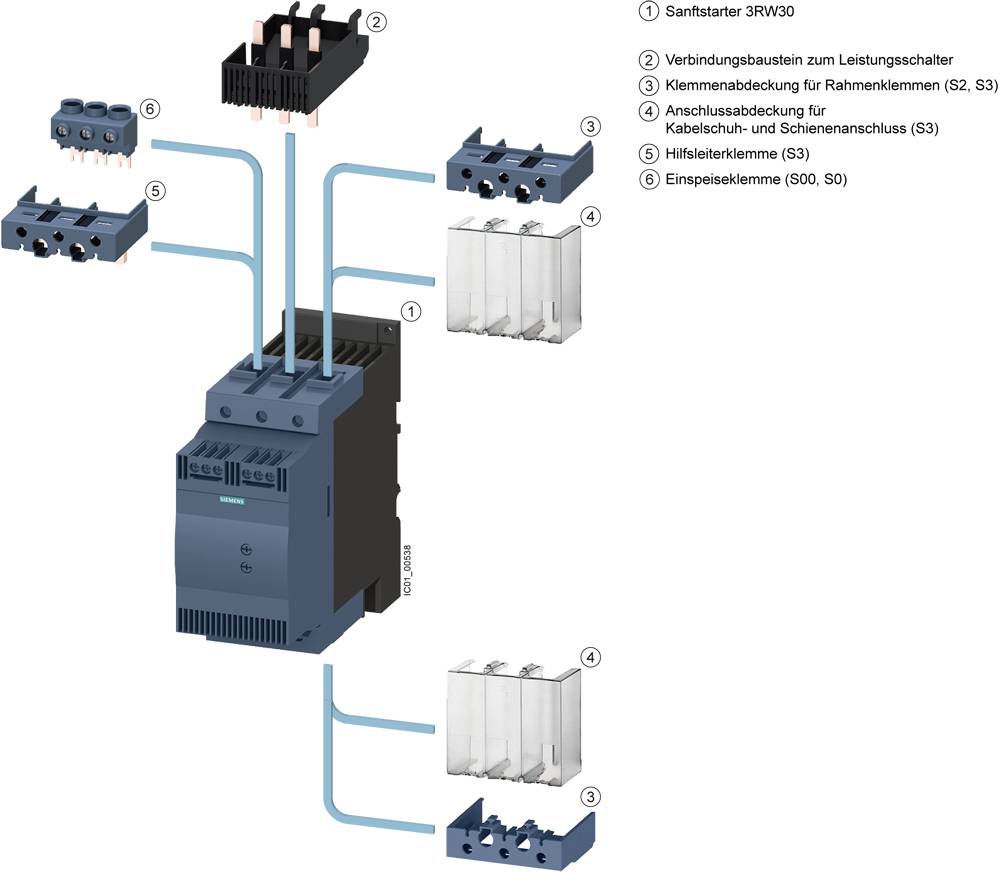

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Testo tradotto automaticamente
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
