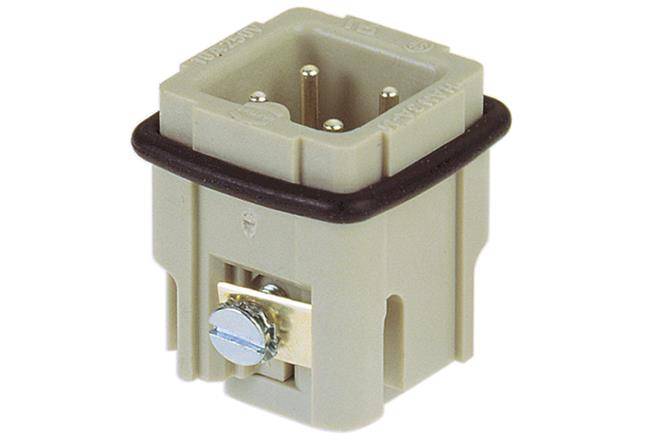

Componenti elettromeccanici HARTING 09200032611
EAN:
Codice produttore
Articolo n°:
Tot poli
3
Contenuto
1 pz.
Tipo
09200032611
Colore
Multicolore
Codice articolo produttore
09200032611
Numero
Totale
10,00 €
IVA escl.
20,08 €
Diritto di reso di 14 giorni incluso
Dati tecnici
- Tipo
09200032611
- Tot poli
3
- Colore
Multicolore
- Contenuto
1 pz.
- Codice articolo produttore
09200032611
- Numero Poli
3
- UKCA
Non rilevante
Descrizione
Product code: 09 20 003 2611 / 09200032611
Han 3A M Insert Screw
Identification
Category
Inserts
Series
Han A ®
Version
Connection
Screw connection
Contact type (male or female)
Male
Cut it
3 A
Number of poles
3
Earth contact
yes
Technical details
Conductor section
0.75 ... 1.5 mm²
Operating current
10 A
Earth contact operating voltage
230 V
Contact-to-contact operating voltage
400 V
Test voltage
4 kV
Degree of pollution
3
Operating voltage according to UL
600 V
Contact resistance
> 10 10 Ω
Stripping length
2.5 ... 5.5 mm
Tightening torque
0.25 Nm
Maximum temperature
-40 ... +125 ° C
Switching on / off cycles
≥ 500
Properties of the material
Material (inserts)
Polycarbonate (PC)
Color (insert)
RAL 7032 (sand gray)
Material (contacts)
Copper alloy
Surface finish (contacts)
Silvered
Fire behavior according to UL 94
V-0
RoHS
Compliant with exemption
RoHS exemptions
6 c): Copper alloys containing up to 4% lead by weight
ELV status
Compliant with exemption
China RoHS
50
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV Substances
Not included
REACH SVHC substances
Yup
REACH SVHC substances
Lead
ECHA SCIP code
564b7d75-7bf6-4cfb-acb1-2168eb61b675
California Proposition 65 substances
Yup
California Proposition 65 substances
Lead
Nickel
Naphthalene
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Requirement set with Hazard Levels
R22 (HL 1-3)
R23 (HL 1-3)
Specifications and approvals
Specifications
EN 60664-1
IEC 61984
Approvals
DNV GL
UL / CSA
UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076
