Componenti elettromeccanici HARTING 09300060302

Product code: 09 30 006 0302 / 09300060302

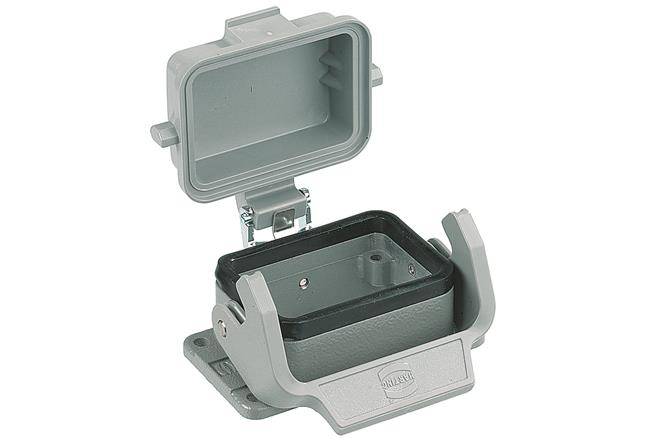

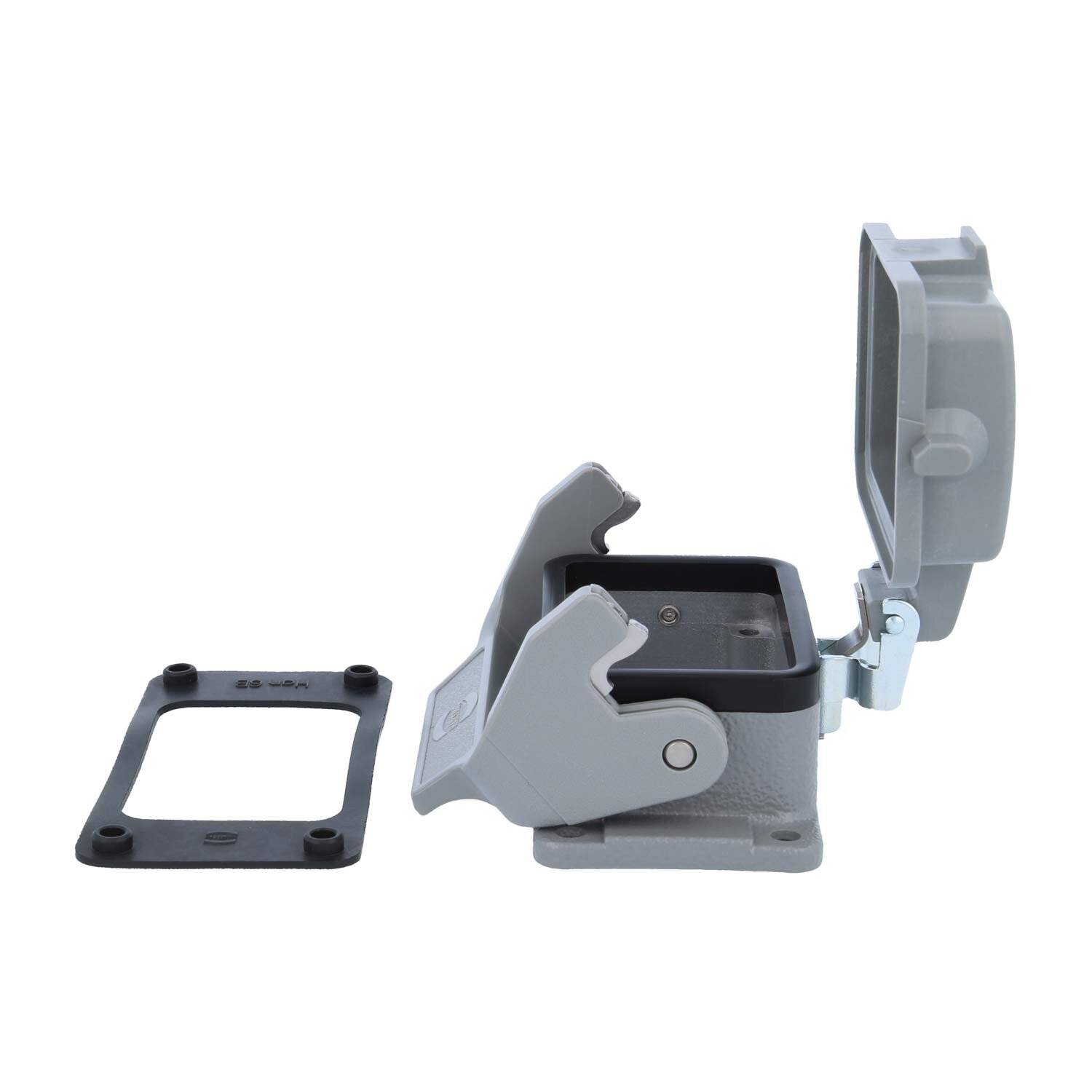

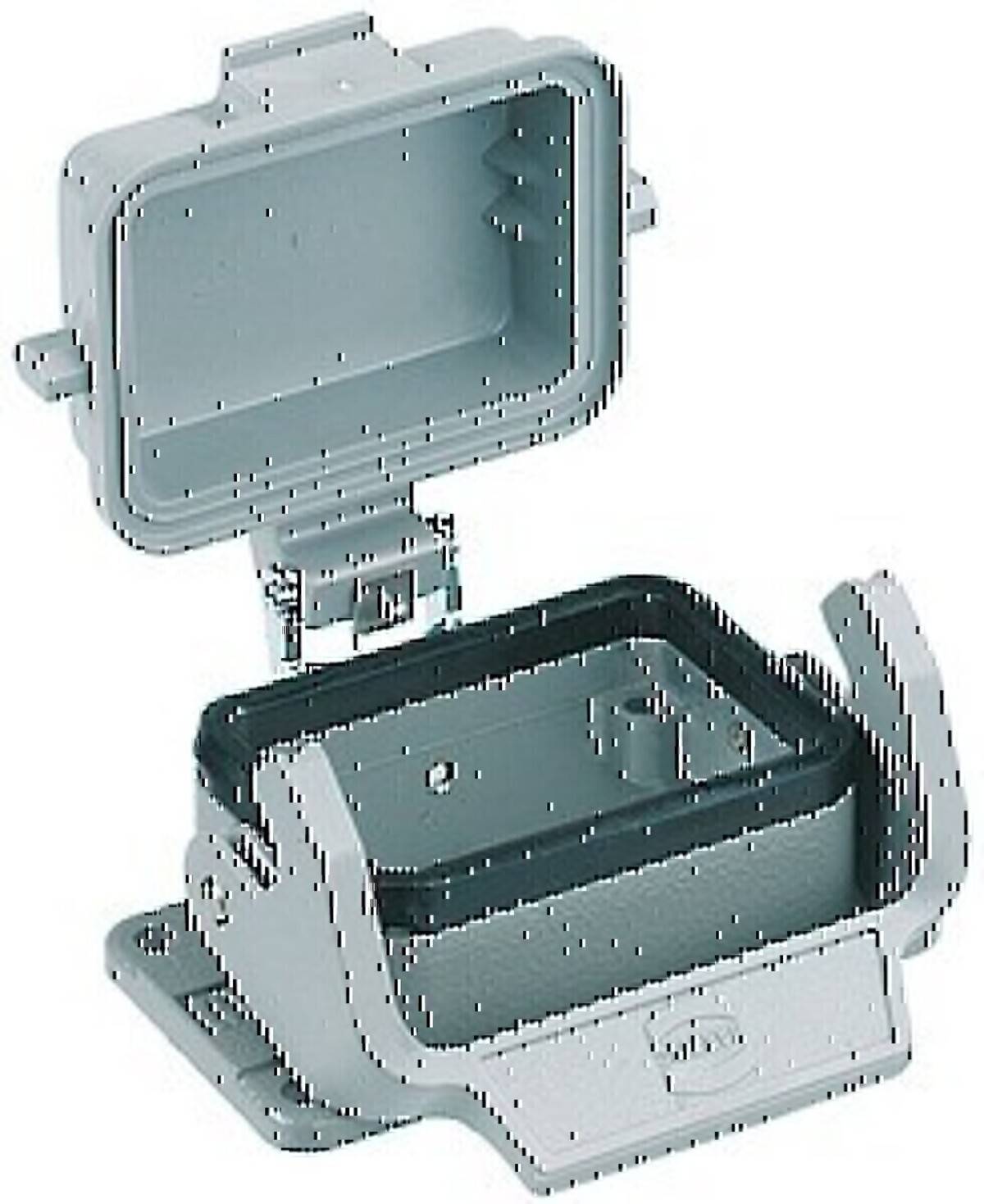

Han B Base Panel 1 Lever Thermoplastic C
Version
Cut it
6 B
Types of coupling
Single lever coupling
Han-Easy Lock
yes
Sectors of application
Standard housings for industrial connectors
Maximum temperature
-40 ... +125 ° C
Degree of protection according to IEC 60529
IP65
UL 50 / UL 50E certifications
4
4X
12
Material (cases)
Aluminum die casting
Surface finish (housings)
Powder coating
Color (cases)
RAL 7037 (dusty gray)
Material (seals)
NBR
Material (hooks)
Polycarbonate (PC)
Stainless steel
Color (docking)
RAL 7037 (dusty gray)
Fire behavior according to UL 94 (coupling levers)
V-0
RoHS
Compliant
ELV status
Compliant
China RoHS
And
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV Substances
Not included
REACH SVHC substances
Yup
REACH SVHC substances
6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
ECHA SCIP code
a4a9de28-6060-4c0d-b79b-5842f7db41be
California Proposition 65 substances
Yup
California Proposition 65 substances
Nickel
Naphthalene
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Requirement set with Hazard Levels
R1 (HL 1-3)
R7 (HL 1-3)
Approvals
DNV GL
UL / CSA
UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076
THERE IS
yes
