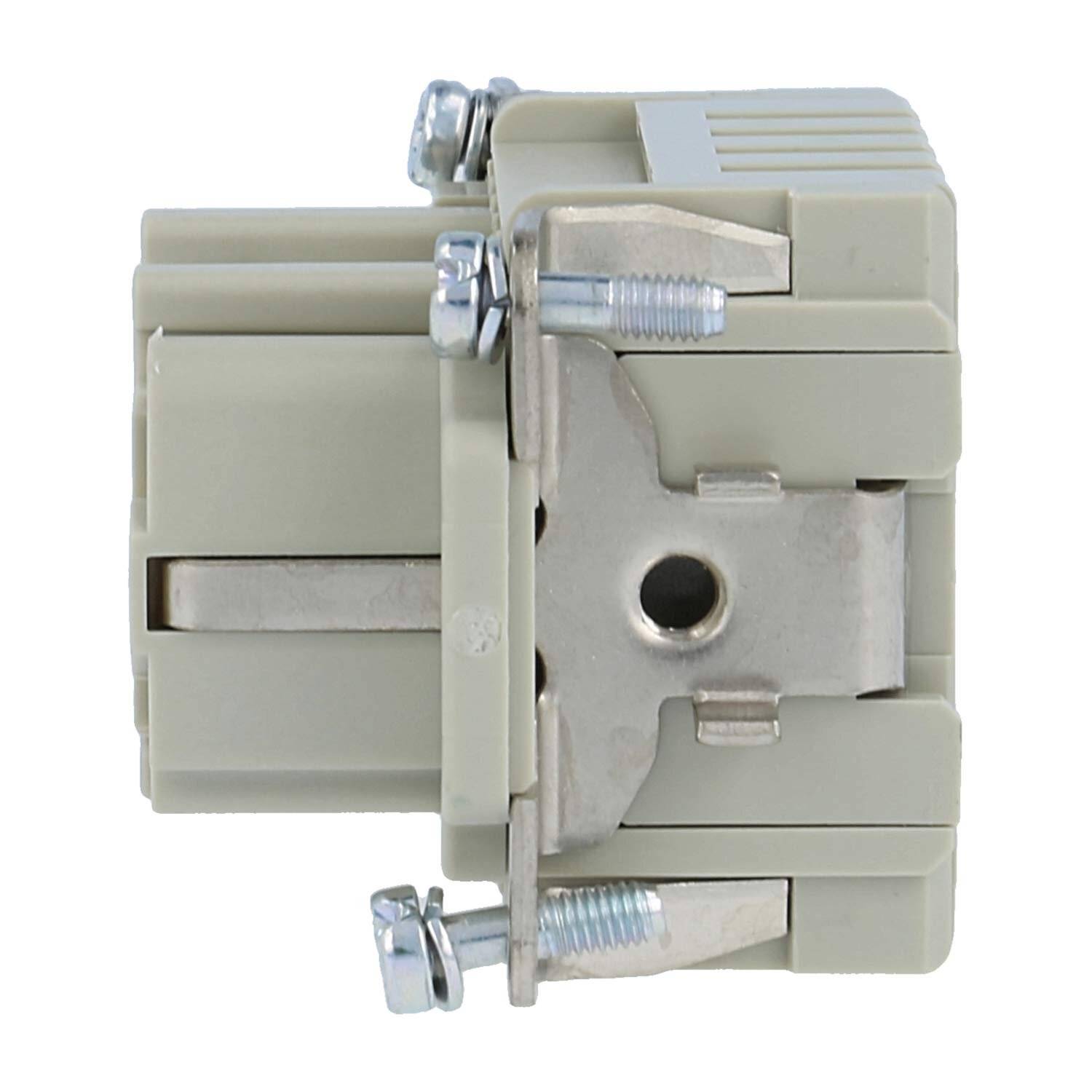

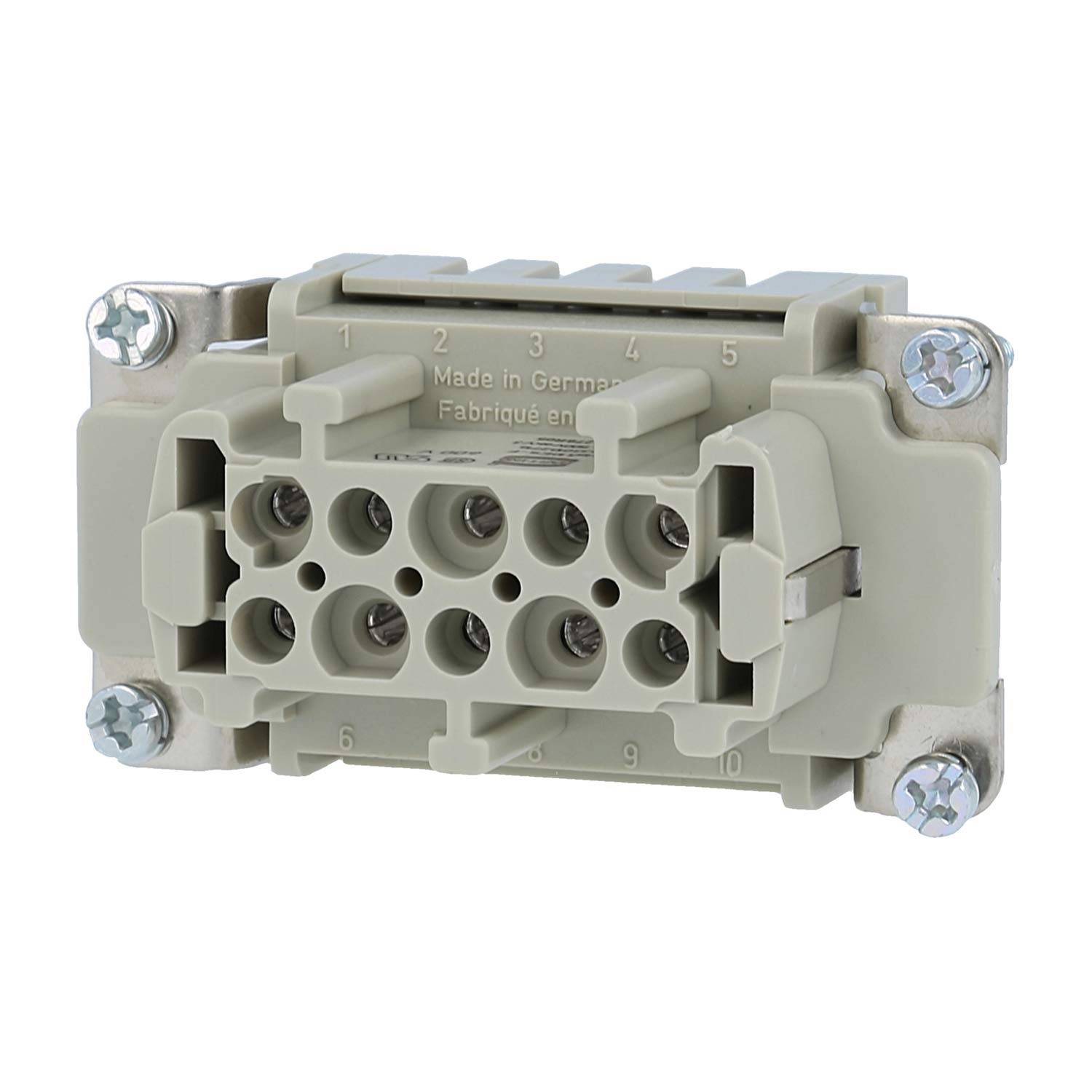

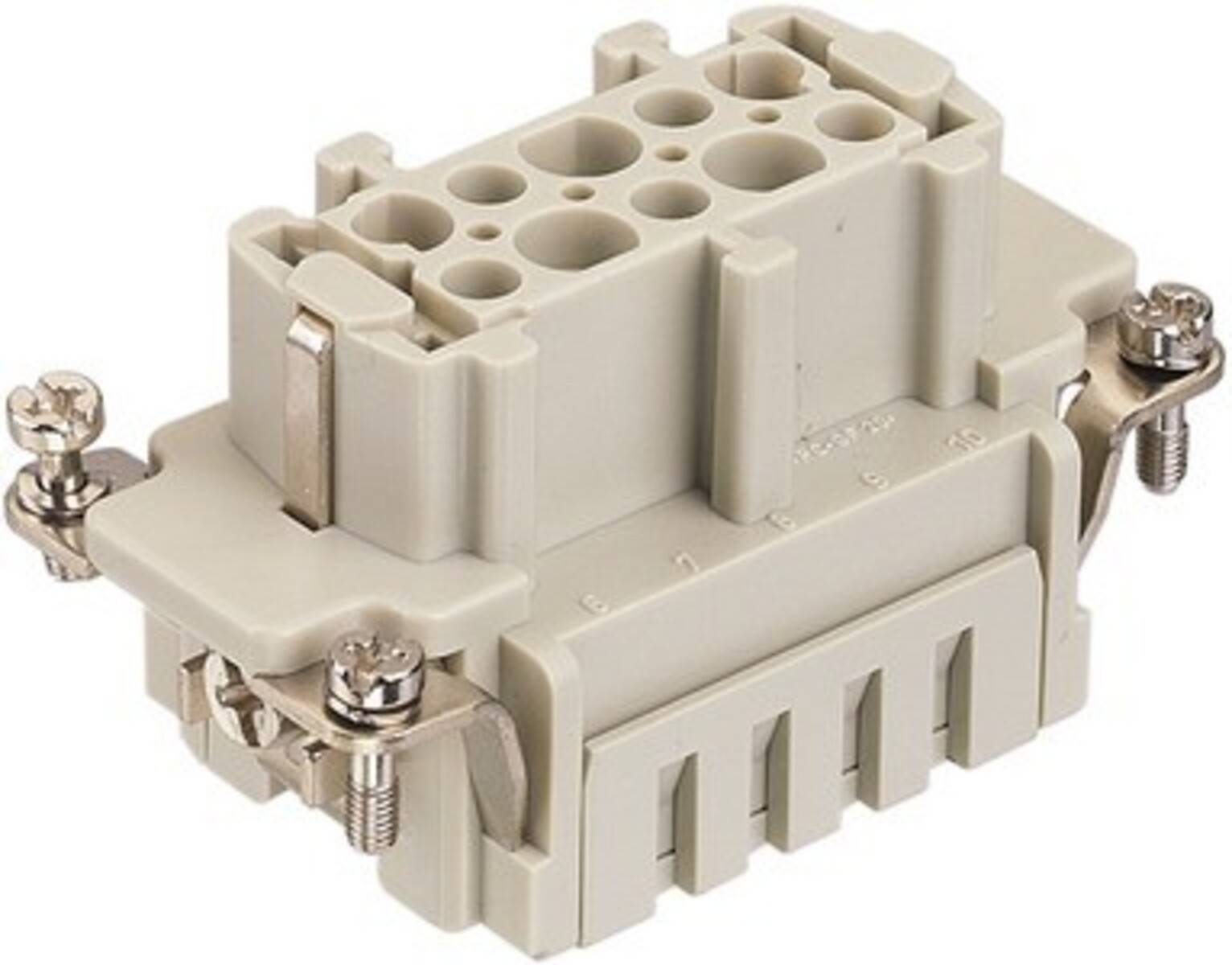

Componenti elettromeccanici HARTING 09330102716

09 33 010 2716 09330102716
HARTING
Properties overview
Inserts
Spring connection
Female
Polycarbonate (PC)
RAL 7032 (sand gray)
Operating current: 16 A
Size: 10 B
Contacts: 10
Conductor section: 0.14 ... 2.5 mm²
Copper alloy
Silvered
Product Details
Identification
Category
Inserts
Series
Han ® ES
Version
Connection
Spring connection
Contact type (male or female)
Female
Cut it
10 B
Number of poles
10
Earth contact
yes
Technical details
Conductor section
0.14 ... 2.5 mm²
Conductor section
AWG 26 ... AWG 14
Operating current
16 A
Operating voltage
500 V
Test voltage
6 kV
Degree of pollution
3
Operating voltage according to UL
600 V
Operating voltage according to CSA
600 V
Contact resistance
> 10 10 Ω
Contact resistance
≤ 3 mΩ
Stripping length
7 ... 9 mm
Maximum temperature
-40 ... +125 ° C
Switching on / off cycles
≥ 500
Properties of the material
Material (inserts)
Polycarbonate (PC)
Color (insert)
RAL 7032 (sand gray)
Material (contacts)
Copper alloy
Surface finish (contacts)
Silvered
Fire behavior according to UL 94
V-0
RoHS
Compliant
ELV status
Compliant
China RoHS
And
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV Substances
Not included
REACH SVHC substances
Yup
REACH SVHC substances
Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Lead
ECHA SCIP code
1e38d35d-d1be-4585-8e03-95faccd739bf
California Proposition 65 substances
Yup
California Proposition 65 substances
Lead
Nickel
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Set of requirements with risk levels
R22 (HL 1-3)
R23 (HL 1-3)
Specifications and approvals
Specifications
EN 60664-1
IEC 61984
Approvals
DNV GL
UL / CSA
UL 1977 ECBT2.E235076
UL 2237 PVVA2.E318390
CSA-C22.2 No. 182.3 PVVA8.E318390
Commercial data
Packaging dimensions
1
Net weight
67.4 g
Country of origin
Germany
European customs code
85366990
eCl @ ss
27440205 Contact insert for industrial connectors
