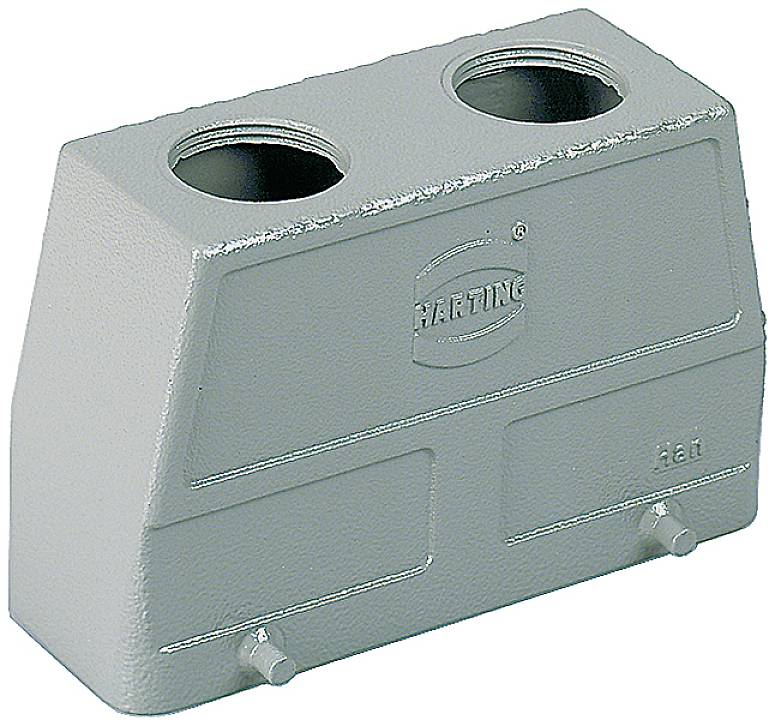

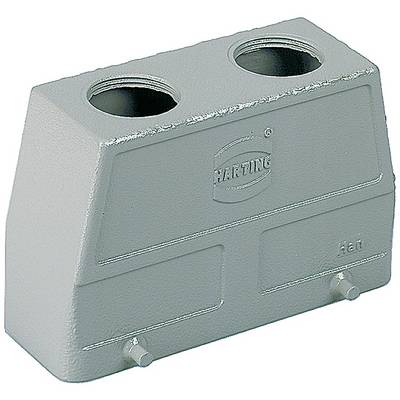

Custodia mobile 09300240462 09300240462 HARTING 1 pz. Pezzo
EAN:
Codice produttore
Articolo n°:
Tipo di imballaggio
Pezzo
Tipo prodotto
Custodia mobile
Serie
Han® 24B
Materiale
Alluminio pressofuso
Tipo
09300240462
Scheda tecnica (PDF)
Numero
Totale
33,00 €
IVA escl.
20,08 €
Diritto di reso di 14 giorni incluso
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Tipo di bloccaggio: Staffa trasversale
- Superficie alloggiamento: Verniciato a polvere
- Struttura: Struttura elevata
- Tipo di imballaggio
Pezzo
- Tipo
09300240462
- Tipo prodotto
Custodia mobile
- Serie
Han® 24B
- Codice articolo produttore
09300240462
- Caratteristiche
Staffa
- Colore
Grigio
- Modello
Ingresso cavo dritto
- Materiale
Alluminio pressofuso
- Serie
Han® B
- Contenuto
1 pz.
- Ingresso cavo
2x PG 21
IP65
- Temperatura max.
+125 °C
- Min. temperatura
-40 °C
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1990716 Custodia mobile 09300240462 09300240462 HARTING 1 pz. Pezzo
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1990716 Custodia mobile 09300240462 09300240462 HARTING 1 pz. Pezzo
Descrizione
09 30 024 0462 09300240462
HARTING
Properties overview
Custody
Size: 24 B
High version
Double lever coupling
Straight exit
2x Pg 21
Material (enclosures): Die-cast aluminum
Powder coating
RAL 7037 (dusty gray)
Product Details
Identification
Category
Cases
Series of fixed and flying housings
Han ® B
Enclosure type
Custody
Guy
High version
Version
Cut it
24 B
Version
Straight exit
Metric cable outlet
2x Pg 21
Types of coupling
Double lever coupling
Sectors of application
Standard housings for industrial connectors
Technical details
Maximum temperature
-40 ... +125 ° C
Degree of protection according to IEC 60529
IP65
IP66
IP67
UL 50 / UL 50E certifications
4
4X
12
Properties of the material
Material (cases)
Aluminum die casting
Surface finish (housings)
Powder coating
Color (cases)
RAL 7037 (dusty gray)
RoHS
Compliant
ELV status
Compliant
China RoHS
And
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV Substances
Not included
REACH SVHC substances
Not included
California Proposition 65 substances
Yup
California Proposition 65 substances
Lead
Nickel
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Set of requirements with risk levels
R1 (HL 1-3)
R7 (HL 1-3)
Specifications and approvals
Approvals
DNV GL
UL / CSA
UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076
THERE IS
yes
Commercial data
Packaging dimensions
1
Net weight
243.1 g
Country of origin
Germany
European customs code
85389099
eCl @ ss
27440202 Shell for industrial connectors
