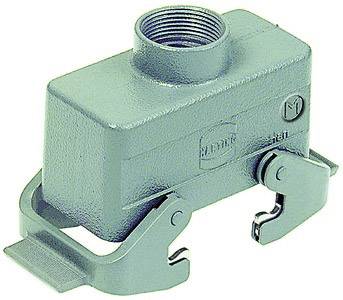

Custodia mobile 19300101430 19300101430 HARTING 1 pz.
EAN:
Codice produttore
Articolo n°:
Tipo prodotto
Custodia mobile
Serie
Han® 10B
Materiale
Alluminio pressofuso
Tipo
19300101430
Codice articolo produttore
19300101430
Scheda tecnica (PDF)
Numero
Totale
20,00 €
IVA escl.
20,08 €
Diritto di reso di 14 giorni incluso
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Tipo di bloccaggio: Staffa trasversale (lato porta)
- Materiale di bloccaggio: Acciaio inox; policarbonato
- Superficie alloggiamento: Verniciato a polvere
- Forma: Struttura bassa
- Tipo
19300101430
- Tipo prodotto
Custodia mobile
- Serie
Han® 10B
- Codice articolo produttore
19300101430
- Caratteristiche
Staffa
- Colore
Grigio
- Modello
Ingresso cavo dritto
- Materiale
Alluminio pressofuso
- Staffa
1
- Serie
Han® B
- Contenuto
1 pz.
- Ingresso cavo
1x M20
IP65
- Temperatura max.
+125 °C
- Min. temperatura
-40 °C
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1990809 Custodia mobile 19300101430 19300101430 HARTING 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1990809 Custodia mobile 19300101430 19300101430 HARTING 1 pz.
Descrizione
19300101430
HARTING
Product Details
Identification
Category
Cases
Series of fixed and flying housings
Han ® B
Enclosure type
Custody
Guy
Normal version
Version
Cut it
10 B
Version
Straight exit
Metric cable outlet
1x M20
Types of coupling
Double lever latch (on the steering wheel housing)
Han-Easy Lock
®
yes
Sectors of application
Standard housings for industrial connectors
Technical details
Maximum temperature
-40 ... +125 ° C
Degree of protection according to IEC 60529
IP65
IP66
IP67
UL 50 / UL 50E certifications
4
4X
12
Properties of the material
Material (cases)
Aluminum die casting
Surface finish (housings)
Powder coating
Color (cases)
RAL 7037 (dusty gray)
Material (hooks)
Polycarbonate (PC)
Stainless steel
Color (docking)
RAL 7037 (dusty gray)
Fire behavior according to UL 94 (coupling levers)
V-0
RoHS
Compliant
ELV status
Compliant
China RoHS
And
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV substances
Not included
REACH SVHC substances
Yup
REACH SVHC substances
Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
California Proposition 65 substances
Yup
California Proposition 65 substances
Nickel
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Requirement set with Hazard Levels
R1 (HL 1-3)
R7 (HL 1-3)
Specifications and approvals
Approvals
DNV GL
THERE IS
yes
HARTING
Product Details
Identification
Category
Cases
Series of fixed and flying housings
Han ® B
Enclosure type
Custody
Guy
Normal version
Version
Cut it
10 B
Version
Straight exit
Metric cable outlet
1x M20
Types of coupling
Double lever latch (on the steering wheel housing)
Han-Easy Lock
®
yes
Sectors of application
Standard housings for industrial connectors
Technical details
Maximum temperature
-40 ... +125 ° C
Degree of protection according to IEC 60529
IP65
IP66
IP67
UL 50 / UL 50E certifications
4
4X
12
Properties of the material
Material (cases)
Aluminum die casting
Surface finish (housings)
Powder coating
Color (cases)
RAL 7037 (dusty gray)
Material (hooks)
Polycarbonate (PC)
Stainless steel
Color (docking)
RAL 7037 (dusty gray)
Fire behavior according to UL 94 (coupling levers)
V-0
RoHS
Compliant
ELV status
Compliant
China RoHS
And
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV substances
Not included
REACH SVHC substances
Yup
REACH SVHC substances
Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
California Proposition 65 substances
Yup
California Proposition 65 substances
Nickel
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Requirement set with Hazard Levels
R1 (HL 1-3)
R7 (HL 1-3)
Specifications and approvals
Approvals
DNV GL
THERE IS
yes
