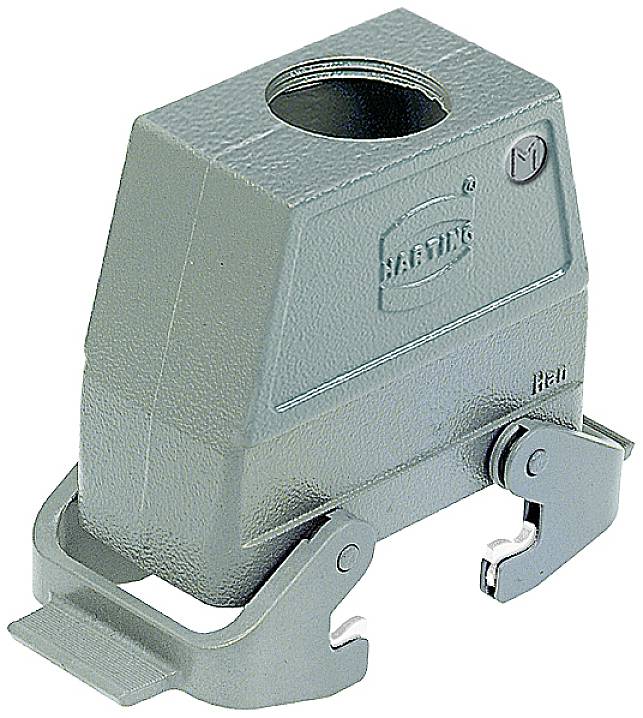

Custodia mobile 19300160437 19300160437 HARTING 1 pz. Pezzo
EAN:
Codice produttore
Articolo n°:
Tipo di imballaggio
Pezzo
Tipo prodotto
Custodia mobile
Serie
Han® 16B
Diam. foro montaggio
M32
Materiale
Alluminio pressofuso
Scheda tecnica (PDF)
Numero
Totale
27,00 €
IVA escl.
20,08 €
Solo 1 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Tipo di bloccaggio: Staffa trasversale (lato porta)
- Materiale di bloccaggio: Acciaio inox; policarbonato
- Superficie alloggiamento: Verniciato a polvere
- Struttura: Struttura elevata
- Tipo di imballaggio
Pezzo
- Tipo
19300160437
- Tipo prodotto
Custodia mobile
- Serie
Han® 16B
- Codice articolo produttore
19300160437
- Caratteristiche
Modello alto
- Colore
Grigio
- Diam. foro montaggio
M32
- Modello
Ingresso cavo dritto
- Materiale
Alluminio pressofuso
- Staffa
1
- Serie
Han® B
- Per inserti/punte/prese
Steckergehäuse
- Contenuto
1 pz.
- Ingresso cavo
1x M32
IP65
- Temperatura max.
+125 °C
- Min. temperatura
-40 °C
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1990815 Custodia mobile 19300160437 19300160437 HARTING 1 pz. Pezzo
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1990815 Custodia mobile 19300160437 19300160437 HARTING 1 pz. Pezzo
Descrizione
19 30 016 0437
HARTING
Properties overview
Custody
Size: 16 B
High version
Double lever latch (on the steering wheel housing)
Polycarbonate (PC), Stainless steel
Straight exit
1x M32
Material (enclosures): Die-cast aluminum
Powder coating
RAL 7037 (dusty gray)
Product Details
Identification
Category
Cases
Series of fixed and flying housings
Han ® B
Enclosure type
Custody
Guy
High version
Version
Cut it
16 B
Version
Straight exit
Metric cable outlet
1x M32
Types of coupling
Double lever latch (on the steering wheel housing)
Han-Easy Lock
®
yes
Sectors of application
Standard housings for industrial connectors
Technical details
Maximum temperature
-40 ... +125 ° C
Degree of protection according to IEC 60529
IP65
IP66
IP67
UL 50 / UL 50E certifications
4
4X
12
Properties of the material
Material (cases)
Aluminum die casting
Surface finish (housings)
Powder coating
Color (cases)
RAL 7037 (dusty gray)
Material (hooks)
Polycarbonate (PC)
Stainless steel
Color (docking)
RAL 7037 (dusty gray)
Fire behavior according to UL 94 (coupling levers)
V-0
RoHS
Compliant
ELV status
Compliant
China RoHS
And
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV Substances
Not included
REACH SVHC substances
Yup
REACH SVHC substances
Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
California Proposition 65 substances
Yup
California Proposition 65 substances
Nickel
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Set of requirements with risk levels
R1 (HL 1-3)
R7 (HL 1-3)
Specifications and approvals
Approvals
DNV GL
THERE IS
yes
Commercial data
Packaging dimensions
1
Net weight
248.6 g
Country of origin
Germany
European customs code
85389099
eCl @ ss
27440202 Shell for industrial connectors
