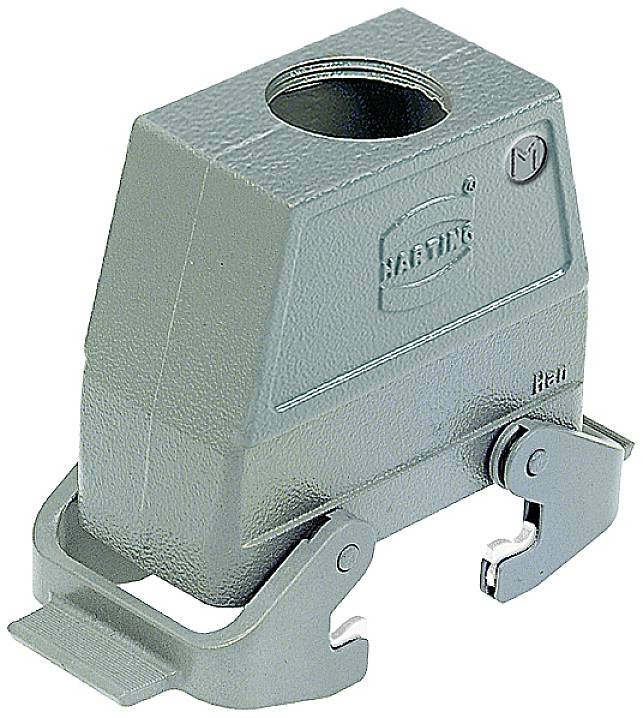

Custodia mobile 19300240437 19300240437 HARTING 1 pz.
EAN:
Codice produttore
Articolo n°:
Tipo prodotto
Custodia mobile
Serie
Han® 24B
Diam. foro montaggio
M32
Materiale
Alluminio pressofuso
Tipo
19300240437
Scheda tecnica (PDF)
Numero
Totale
35,00 €
IVA escl.
20,08 €
Solo 8 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Tipo di bloccaggio: Staffa trasversale (lato porta)
- Materiale di bloccaggio: Acciaio inox; policarbonato
- Superficie alloggiamento: Verniciato a polvere
- Struttura: Struttura elevata
- Tipo
19300240437
- Tipo prodotto
Custodia mobile
- Serie
Han® 24B
- Codice articolo produttore
19300240437
- Caratteristiche
con rivestimento in polvere
- Colore
Grigio
- Diam. foro montaggio
M32
- Modello
Ingresso cavo dritto
- Tot poli
24
- Materiale
Alluminio pressofuso
- Staffa
1
- Serie
Han® B
- Contenuto
1 pz.
- Ingresso cavo
1x M32
- Numero Poli
24
IP65
- Temperatura max.
+125 °C
- Min. temperatura
-40 °C
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1990839 Custodia mobile 19300240437 19300240437 HARTING 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1990839 Custodia mobile 19300240437 19300240437 HARTING 1 pz.
Descrizione
19300240437
HARTING
Product Details
Identification
Category
Cases
Series of fixed and flying housings
Han ® B
Enclosure type
Custody
Guy
High version
Version
Cut it
24 B
Version
Straight exit
Metric cable outlet
1x M32
Types of coupling
Double lever latch (on the steering wheel housing)
Han-Easy Lock
yes
Sectors of application
Standard housings for industrial connectors
Maximum temperature
-40 ... +125 ° C
Degree of protection according to IEC 60529
IP65
IP66
IP67
UL 50 / UL 50E certifications
4
4X
12
Material (cases)
Aluminum die casting
Surface finish (housings)
Powder coating
Color (cases)
RAL 7037 (dusty gray)
Material (hooks)
Polycarbonate (PC)
Stainless steel
Color (docking)
RAL 7037 (dusty gray)
Fire behavior according to UL 94 (coupling levers)
V-0
RoHS
Compliant
ELV status
Compliant
China RoHS
And
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV substances
Not included
REACH SVHC substances
Yup
REACH SVHC substances
Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
ECHA SCIP code
a4a9de28-6060-4c0d-b79b-5842f7db41be
California Proposition 65 substances
Yup
California Proposition 65 substances
Nickel
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Requirement set with Hazard Levels
R1 (HL 1-3)
R7 (HL 1-3)
pprovals
DNV GL
THERE IS
yes
