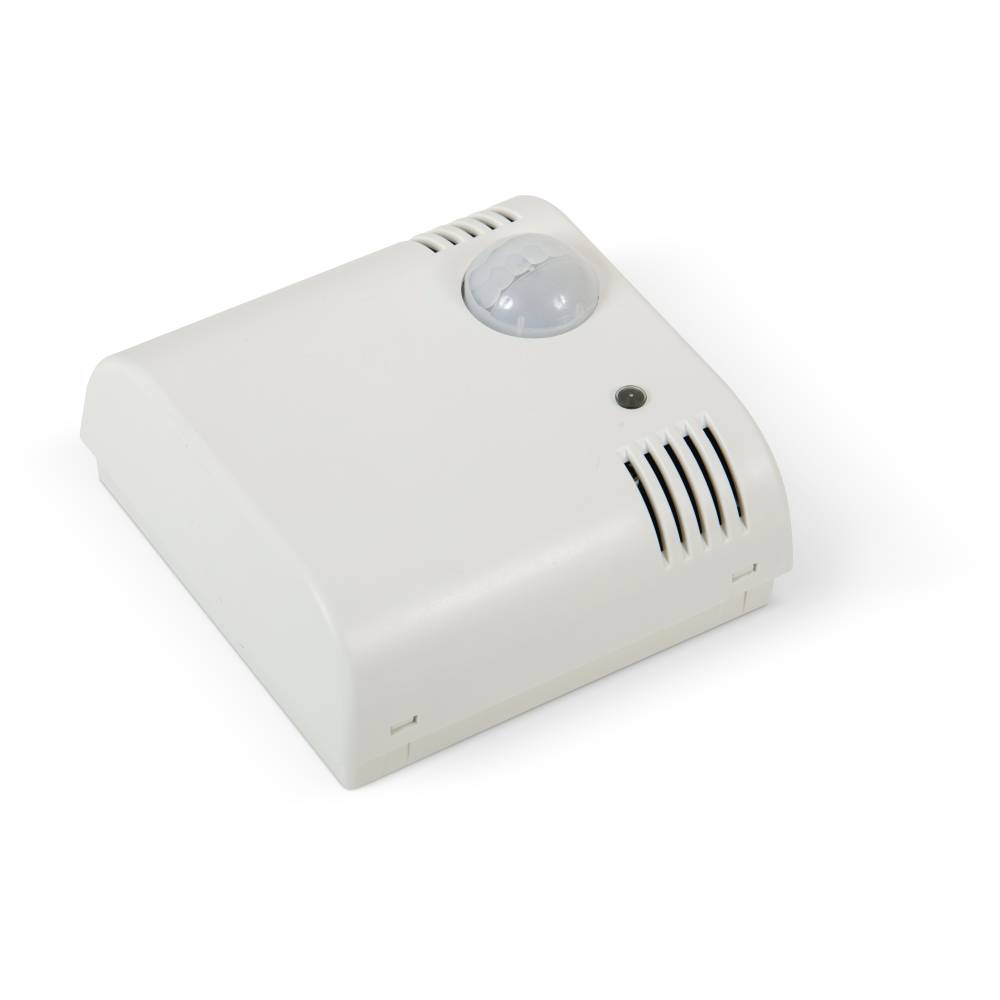

Exo Sense Pi with CM4 Wireless, 2GB RAM, 16GB eMMC-0

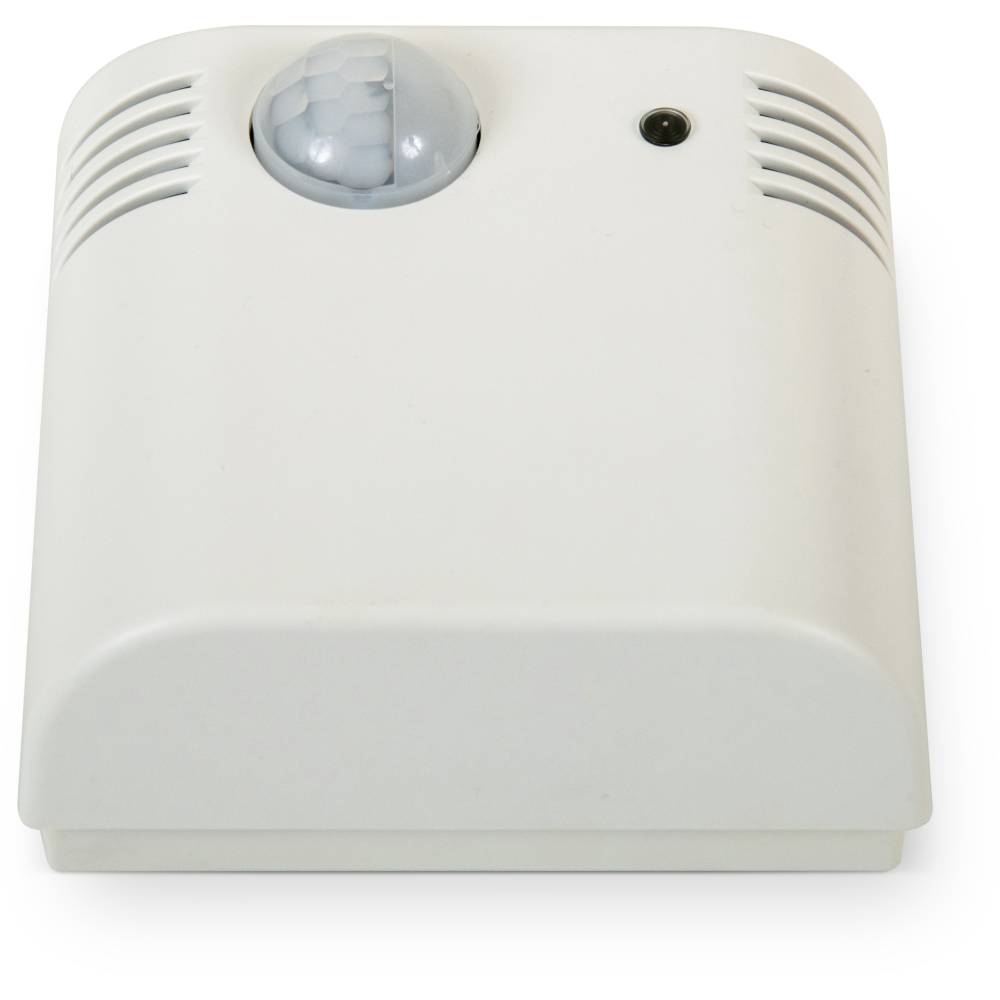

Exo Sense Pi with CM4 Wireless, 2GB RAM, 16GB eMMC-1

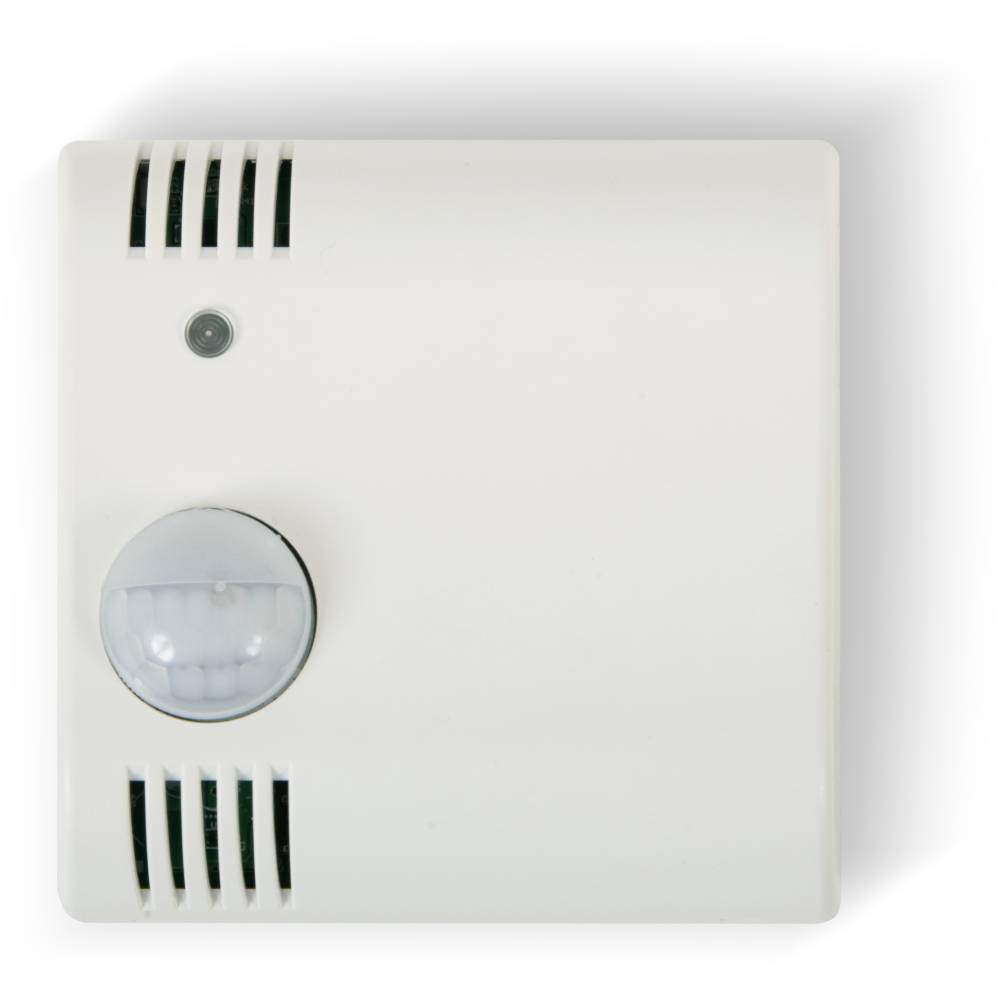

Exo Sense Pi with CM4 Wireless, 2GB RAM, 16GB eMMC-2

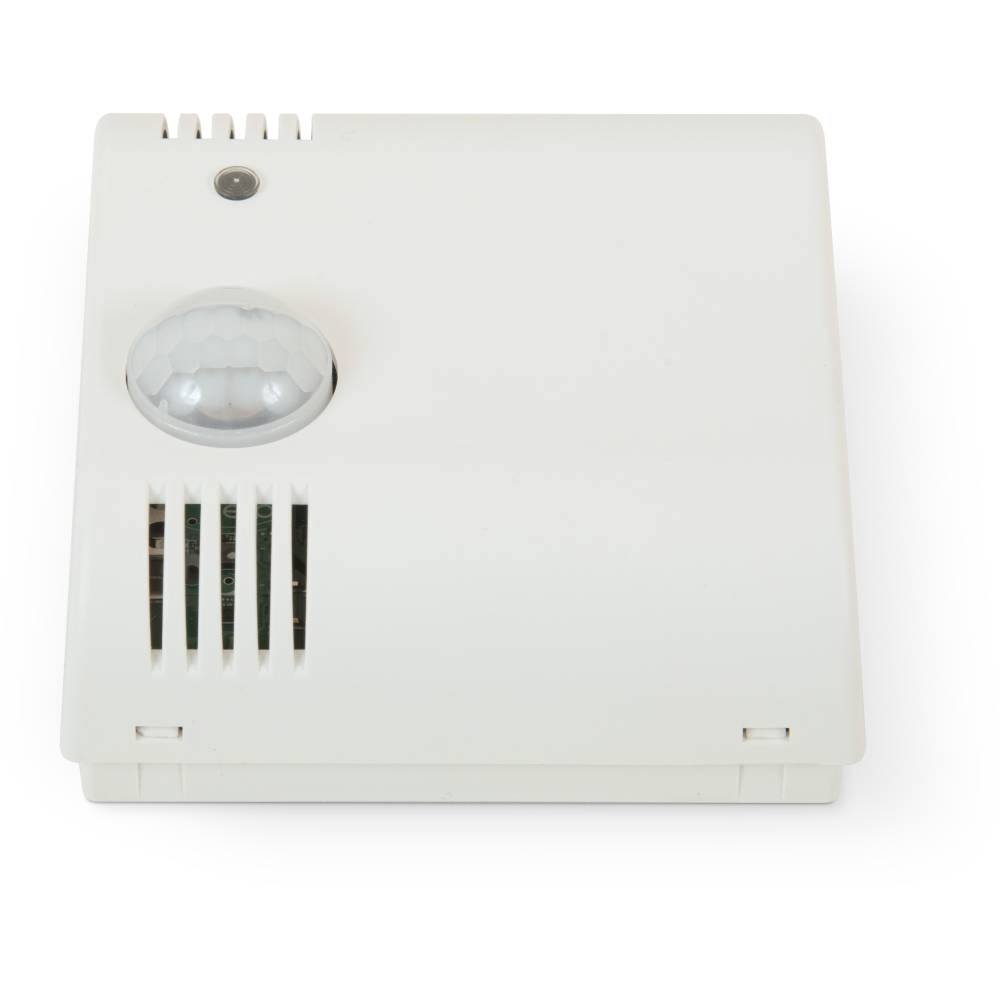

Exo Sense Pi with CM4 Wireless, 2GB RAM, 16GB eMMC-3

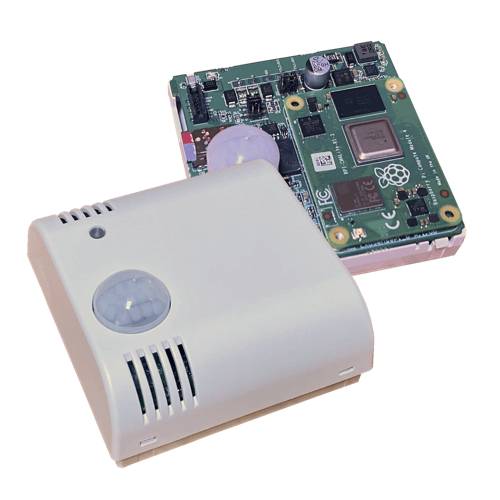

Exo Sense Pi with CM4 Wireless, 2GB RAM, 16GB eMMC-4

1/5

Scheda tecnica (PDF)

Consegna entro Mer. 30 Set.

10 Pezzo(i)

Vendita e spedizione:

Sfera Labs Termini e condizioni

Numero

Pezzo(i)

Totale

354,00 €

IVA escl.

Spedizione gratuita

Solo 10 Pezzo(i) disponibili

Diritto di reso di 14 giorni incluso

Segnala un problema

Highlights & Dettagli

An environmental sensor and a powerful server
Exo Sense Pi is a multi-sensor module with a Raspberry Pi 4 computing core and a wide range of connectivity options. Ready for residential and commercial applications such as environmental monitoring and data gathering, BLE positioning, indoor people and assets tracking, rooms management and access control, voice control and much more.
Its broad range of sensors, two digital inputs and open-collector output are routed to a Raspberry Pi Compute Module 4, all in a small wall-mount package.
The Raspberry Pi Compute Module 4 incorporates a high performance quad-core ARM Cortex-A72 processor, Wi-Fi, Bluetooth 5.0 and Bluetooth Low Energy (BLE) wireless interfaces, up to 8GB RAM and 32GB eMMC Flash memory.
Moreover, an RS-485 bus and dedicated I/O lines enable Exo Sense Pi to communicate over standard protocols such as Modbus, I2C, 1-Wire and Wiegand.
Exo Sense Pi is compliant with the CE electromagnetic compatibility standard for emissions in residential environments and immunity in industrial environments. It is also compliant with the FCC and IC electromagnetic compatibility standards.

Dati tecnici

Tipo: Exo Sense Pi with CM4 Wireless, 2GB RAM, 16GB eMMC

Dim.: (L x L x A) 80 x 80 x 80 mm

Modello: Exo Sense Pi

Tensione d'esercizio: 10 - 28 V/DC

Voltaggio Max.: 28 V/DC

Voltaggio operativo Min.: 10 V/DC

Display: No / No

Orologio in tempo reale: Sì (Hardware)

Soppressione radiodisturbi: CE, FCC, IC

Peso: 90 g

Codice articolo produttore: ESCB10X4102016

Protezione corto circuito: SI

Larghezza: 80 mm

Altezza: 80 mm

Lunghezza: 80 mm

Profondità: 41.7 mm

Max. Temperatura ambiente: 70 °C

Min. Temperatura ambiente: -20 °C

Documenti & Download

Scheda tecnica

Scheda tecnica 869379041 Exo Sense Pi with CM4 Wireless, 2GB RAM, 16GB eMMC

Istruzioni d'uso e di sicurezza

Istruzioni d'uso e di sicurezza 869379041 Exo Sense Pi with CM4 Wireless, 2GB RAM, 16GB eMMC

Descrizione

Features

Sensors:
temperature
humidity
air quality (VOC)
light intensity
microphone for sound intensity monitoring, recording and processing
PIR motion sensor

Mounting:
80x80mm wall mount ABS case with fast snap-in terminal block

Power supply:
9÷28Vdc power supply, with surge and reverse polarity protection, and 1.1A resettable fuse

Raspberry Pi Compute Module compatibility:
all Raspberry Pi Compute Module 4 boards. A microSD slot is present on Exo Sense Pi to use external flash memory cards with the CM4 Lite

Inputs/Outputs:
2 x digital inputs or TTL level I/O (1-Wire, I2C, Wiegand support)
1 x open collector output

Connectivity:
standard RS-485 interface to the Raspberry Pi serial line, with electrostatic discharge protection
2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless; Bluetooth 5.0, BLE depending on installed Raspberry Pi Compute Module 4 board
micro USB socket for updating Compute Module 4 eMMC

More:
GPIO-controlled LED
piezoelectric buzzer, for acoustic feedback
real time clock (RTC) with replaceable back-up battery
embedded Microchip ATECC608A secure element chip
internal temperature sensors for heat compensation

Optionals (factory-installed upon request):
earthquake sensor module
