Highlights & Dettagli

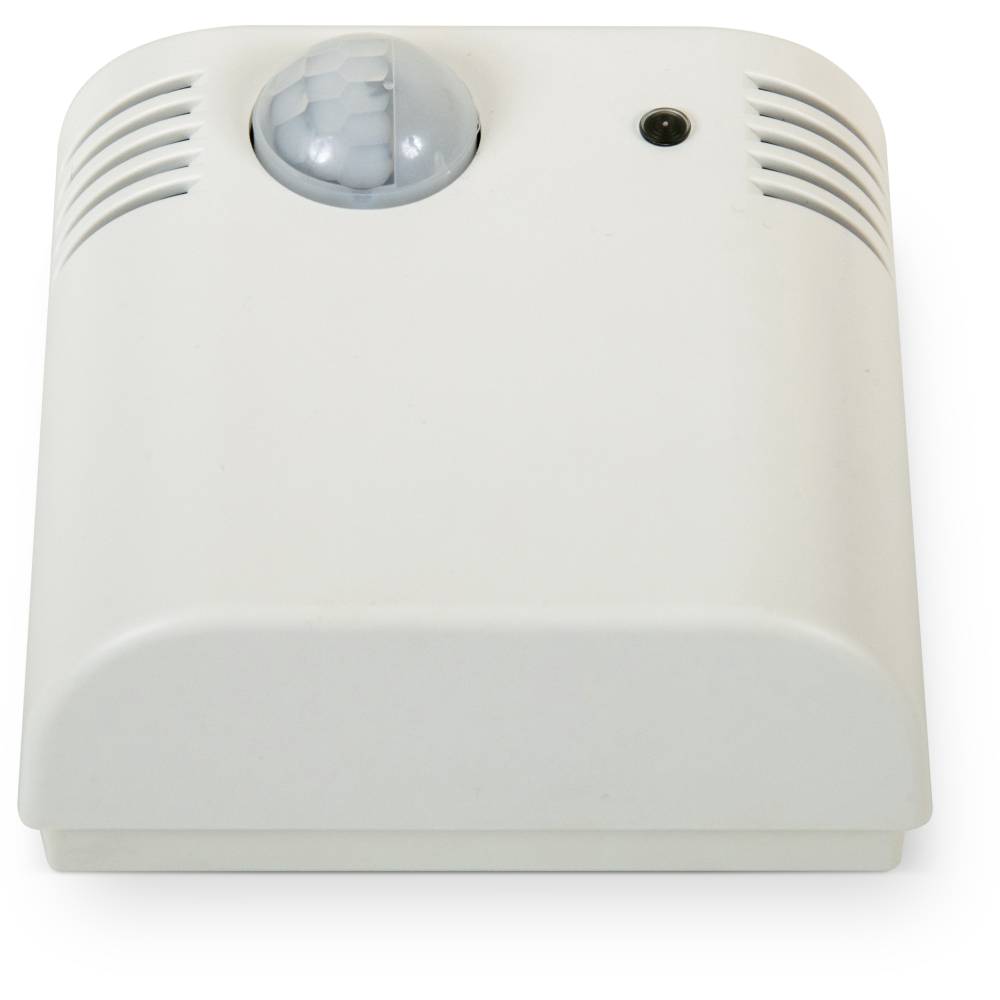

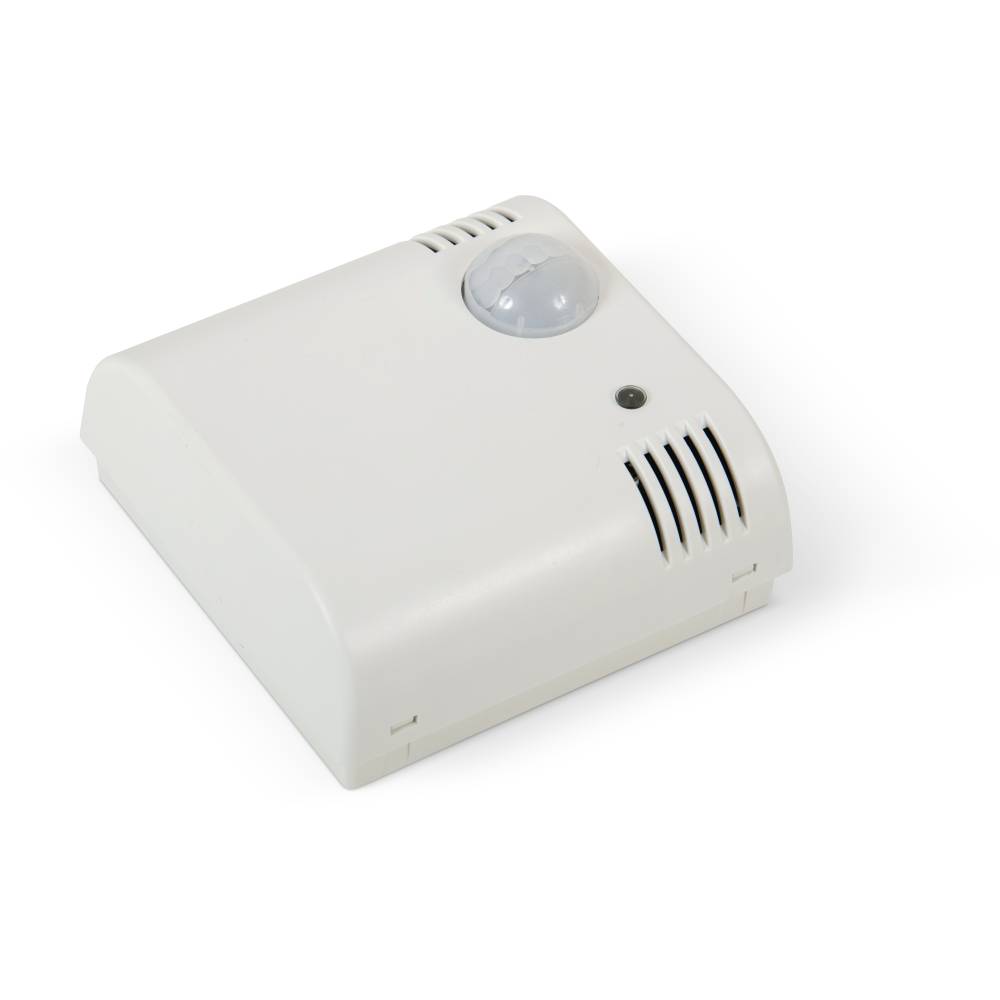

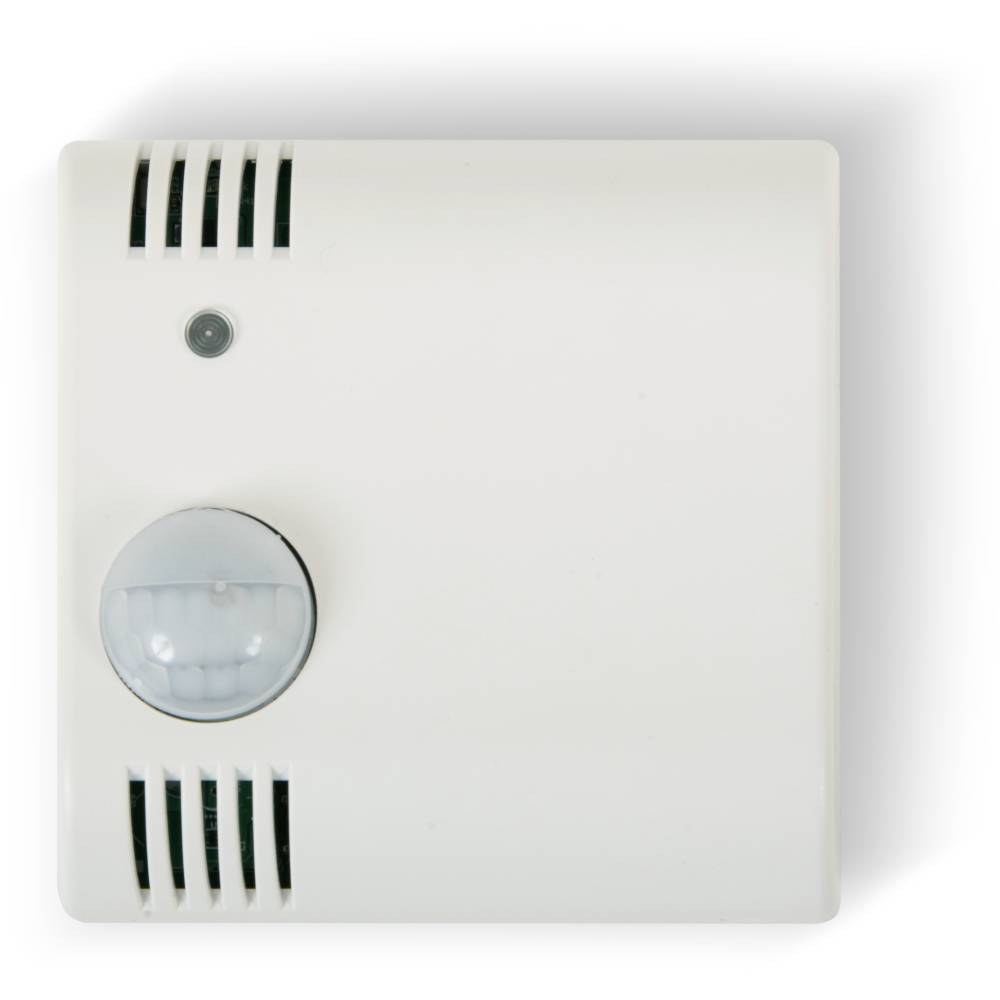

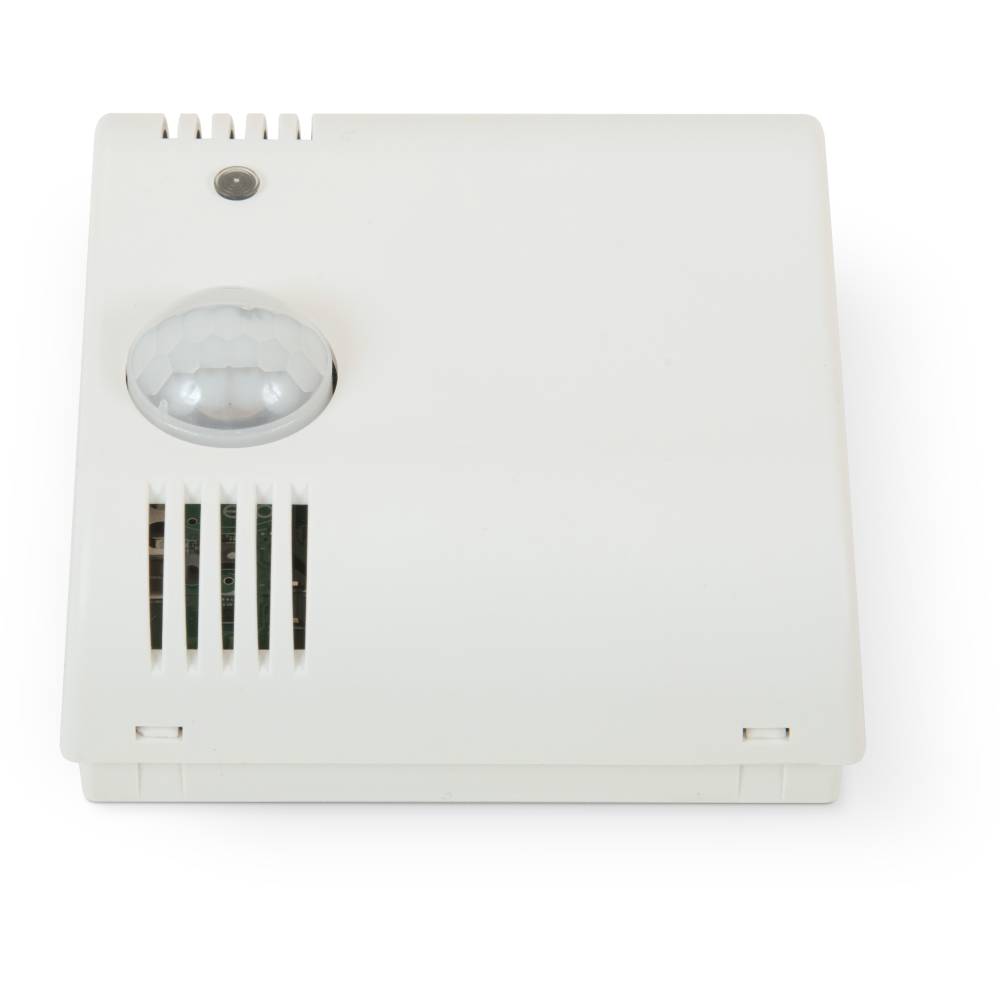

Exo Sense RP is an extremely versatile indoor environment sensor. It combines the power and ease of use of the Raspberry Pi RP2040 microcontroller, with several environmental sensors and input/output lines.
Exo Sense RP embeds temperature, humidity, air quality, light and PIR-based motion detection sensors, as well as a microphone for ambient noise measurements and audio recording. Two digital input/output lines and an open-collector output line are available on the terminal block. A real time clock module with battery back-up is also standard. It can optionally have a factory-installed earthquake sensor module.
An ESD-protected RS-485 bus is available for wired serial communication using the industry standard Modbus protocol or any other half-duplex serial protocol.
Exo Sense RP has an embedded RP2040, with a dual-core Arm Cortex M0+ processor, clocked up to 133 MHz, 264KB of SRAM, and a large 16MB on-board Flash memory.
A hidden USB 1.1 port is used to easily flash the microcontroller.

Dati tecnici

Tipo: Exo Sense RP

Dim.: (L x L x A) 80 x 80 x 80 mm

Modello: Exo Sense RP

Tensione d'esercizio: 10 - 28 V/DC

Voltaggio Max.: 28 V/DC

Voltaggio operativo Min.: 10 V/DC

Display: No / No

Orologio in tempo reale: Sì (Hardware)

Soppressione radiodisturbi: CE, FCC, IC

Peso: 90 g

Codice articolo produttore: ESRB10X

Protezione corto circuito: SI

Larghezza: 80 mm

Altezza: 80 mm

Lunghezza: 80 mm

Profondità: 41.7 mm

Max. Temperatura ambiente: 70 °C

Min. Temperatura ambiente: -20 °C

Documenti & Download

Scheda tecnica

Scheda tecnica 869379043 Exo Sense RP multi-sensor module

Istruzioni d'uso e di sicurezza

Istruzioni d'uso e di sicurezza 869379043 Exo Sense RP multi-sensor module

Descrizione

Features

Sensors:
temperature
humidity
air quality (VOC)
light intensity
microphone for sound intensity monitoring, recording and processing
PIR motion sensor

Mounting:
80x80mm wall mount ABS case with fast snap-in terminal block

Power supply:
9÷28Vdc power supply, with surge and reverse polarity protection, and 1.1A resettable fuse

Inputs/Outputs:
2 x digital inputs or TTL level I/O (1-Wire, I2C, Wiegand support)
1 x open collector output

Connectivity:
standard RS-485 interface connected to RP2040 UART, with electrostatic discharge protection
micro USB socket for RP2040 programming and debugging

More:
GPIO-controlled LED
GPIO/PWM-controlled piezoelectric buzzer, for acoustic feedback
real time clock (RTC) with replaceable back-up battery
embedded Microchip ATECC608 secure element chip

Optionals (factory-installed upon request):
earthquake sensor module
