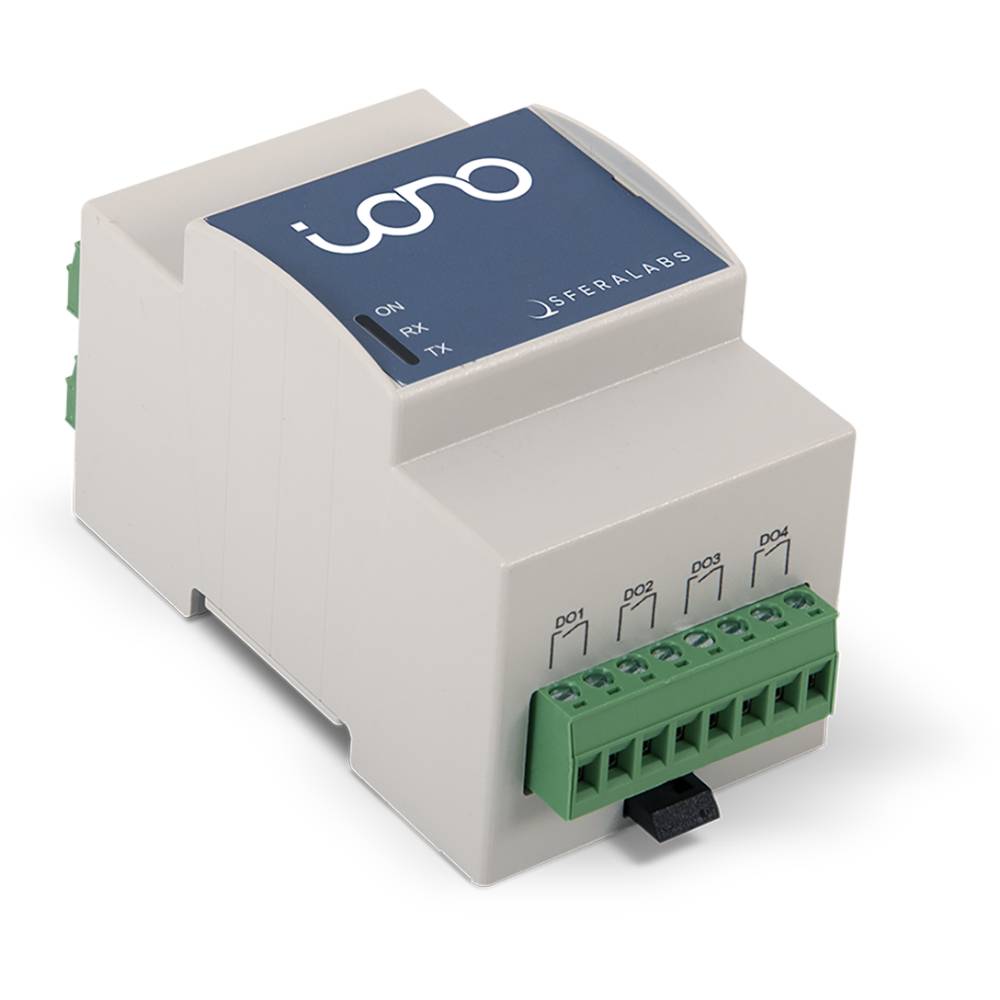

Iono MKR + Arduino MKR WAN 1300 board and 868 MHz internal antenna-0

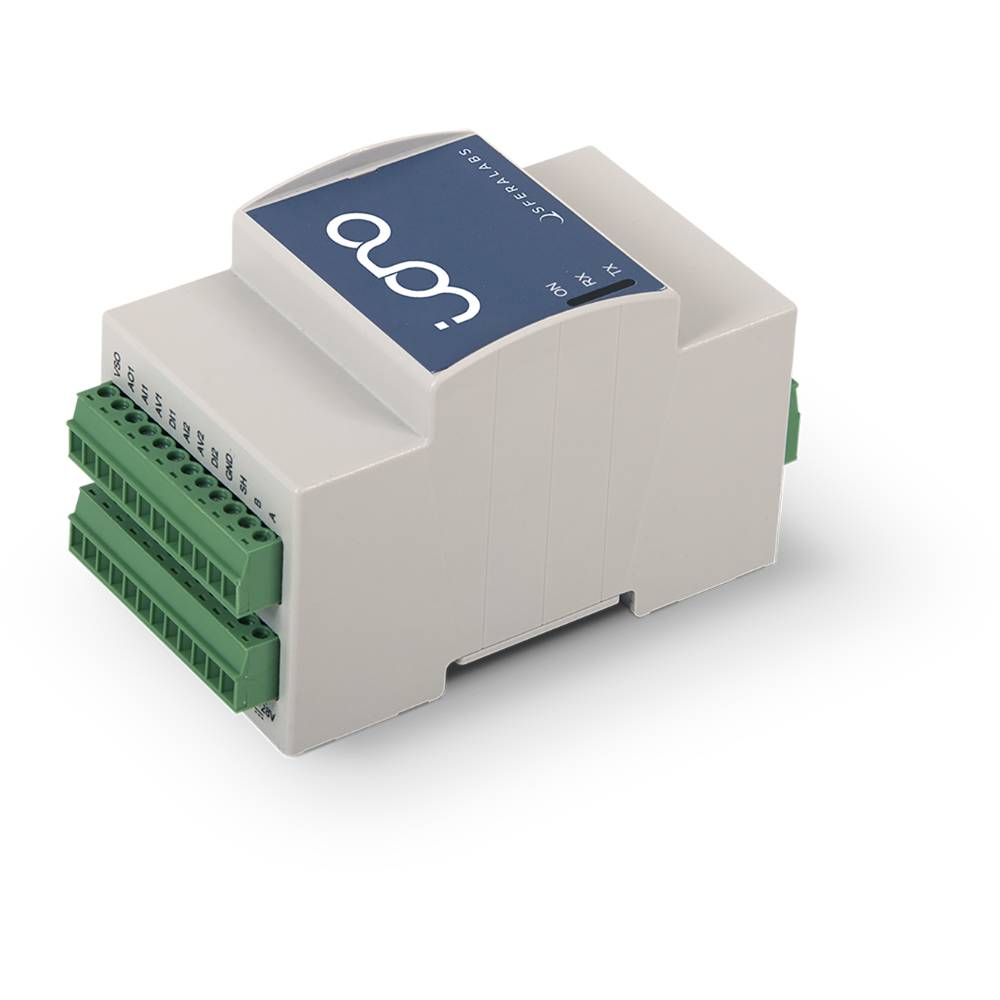

Iono MKR + Arduino MKR WAN 1300 board and 868 MHz internal antenna-1

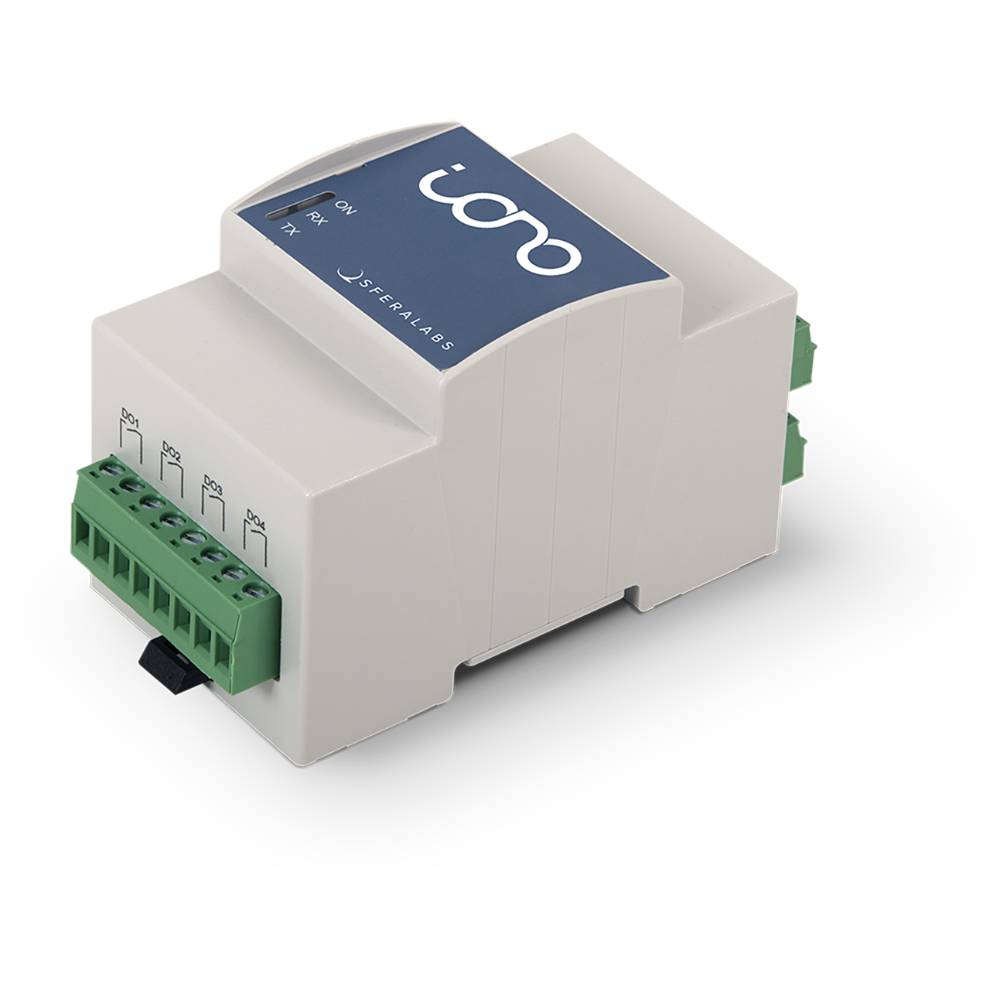

Iono MKR + Arduino MKR WAN 1300 board and 868 MHz internal antenna-2

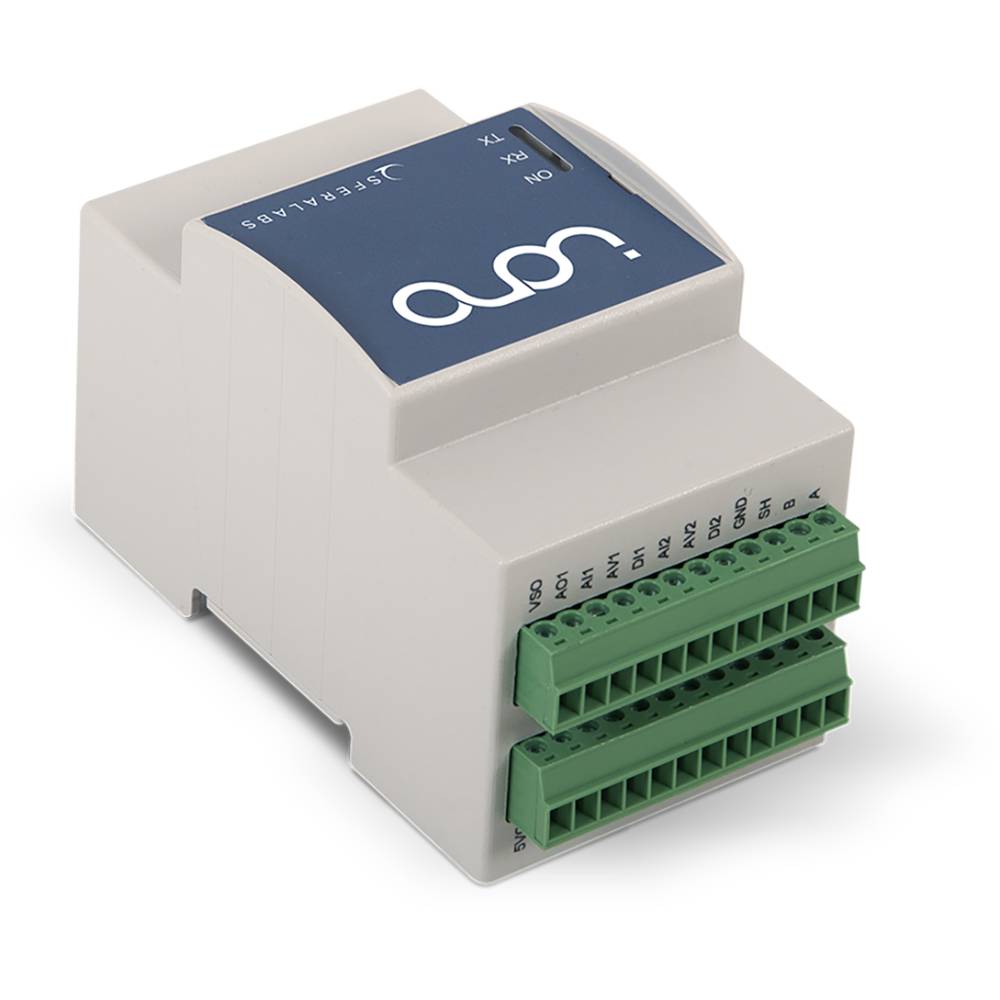

Iono MKR + Arduino MKR WAN 1300 board and 868 MHz internal antenna-3

1/4

Scheda tecnica (PDF)

Consegna entro Mer. 30 Set.

10 Pezzo(i)

Vendita e spedizione:

Sfera Labs Termini e condizioni

Numero

Pezzo(i)

Totale

280,72 €

IVA escl.

Spedizione gratuita

Solo 10 Pezzo(i) disponibili

Diritto di reso di 14 giorni incluso

Segnala un problema

Highlights & Dettagli

An industrial PLC with an Arduino MKR core
The use cases for Iono MKR are simply endless. The power of the SAMD21 Cortex-M0+ 32bit Low Power ARM MCU, featured on the Arduino MKR boards family, is bound with several industry-standard interfaces, as well as digital and analog input and output lines.
Developing on Iono MKR is just the same as programming your Arduino: you use exactly the same IDE, no need for proprietary libraries or drivers and all the available resources from the Arduino community will transparently work.
The combination with the many wireless interfaces available on the different Arduino MKR boards makes Iono MKR a perfect fit for IoT solutions, remote data acquisition and remote control.
Iono MKR can be employed both in industrial and residential environments, for professional applications where extreme reliability, ruggedness and compliance with technical and safety directives are required.
It is compliant with the low voltage and EMC CE directives, as well as the harmonised standards for electromagnetic compatibility, electrical safety, emission and the RoHS directive for hazardous substances. It is also compliant with the applicable FCC rules and IC standards.

Dati tecnici

Tipo: Iono MKR + Arduino MKR WAN 1300 board and 868 MHz internal antenna

Tipo prodotto: Modulo ingresso uscita analogico/digitale PLC

Dim.: (L x L x A) 53.5 x 53.5 x 90.5 mm

Modello: Iono MKR

Tensione d'esercizio: 12 - 28 V/DC

Voltaggio Max.: 28 V/DC

Voltaggio operativo Min.: 12 V/DC

Display: No / No

Orologio in tempo reale: No / No

Soppressione radiodisturbi: CE, FCC, IC

Peso: 128 g

Codice articolo produttore: IMMS13X+MKR1300/868

Protezione corto circuito: SI

Larghezza: 53.5 mm

Altezza: 90.5 mm

Lunghezza: 53.5 mm

Profondità: 62 mm

Max. Temperatura ambiente: 70 °C

Min. Temperatura ambiente: -20 °C

Documenti & Download

Scheda tecnica

Scheda tecnica 869378304 Iono MKR + Arduino MKR WAN 1300 board and 868 MHz internal antenna

Istruzioni d'uso e di sicurezza

Istruzioni d'uso e di sicurezza 869378304 Iono MKR + Arduino MKR WAN 1300 board and 868 MHz internal antenna

Descrizione

Features

Mounting:
3 modules DIN rail case
power supply, serial and I/O connections on pluggable terminal blocks

Power supply:
12÷24 Vdc power supply, with surge and reverse polarity protection, and 1.1A resettable fuse

Arduino compatibility:
all 3.3V Arduino MKR boards (WiFi 1010, ZERO, FOX 1200, WAN 1300, GSM 1400)

Inputs/Outputs:
4 x power relay outputs rated for 6A at 250V
4 x multi-mode inputs: digital or 0÷30V or 0÷20mA analog
2 x digital inputs or TTL level I/Os (1-Wire, I2C, Wiegand support)
1 x 0÷10V analog output

Communication:
standard RS-485 interface to the Arduino serial pins, with electrostatic discharge protection
WiFi/BLE/GSM/NB-IoT/LoRa/SigFox depending on installed Arduino MKR board
Factory-installed optionals:
real time clock (RTC) with back-up battery
earthquake sensor module

Contenuto della fornitura

Iono MKR
Alimentatore non incluso
Scheda Arduino MKR non inclusa
E' possibile acquistare le versioni con Arduino MKR Zero, Arduino MKR WIFI 1010, Arduino MKR WAN 1300 + antenna 886 MHz
