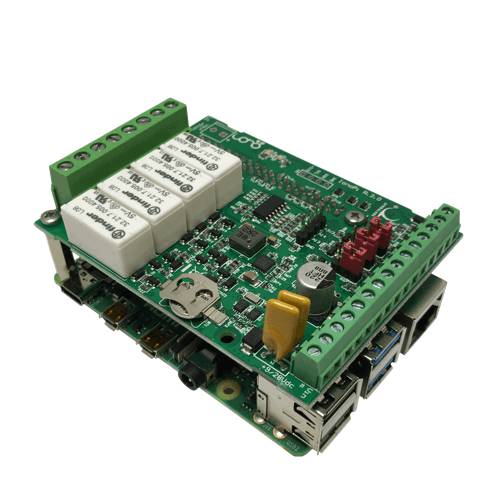

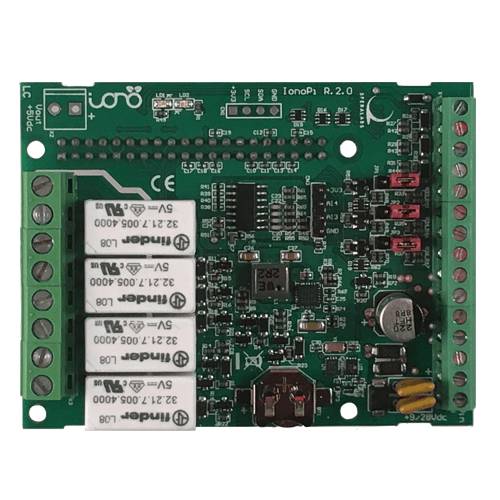

Iono Pi Board 2.0 Raspberry Pi industrial expansion board
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Numero
Totale
125,44 €
IVA escl.
Spedizione gratuita
Solo 10 Pezzo(i) disponibili
Highlights & Dettagli
- The highlights of Iono Pi 2.0 are the following:
- • We have redesigned Iono Pi keeping the new Raspberry Pi 4 in mind. The power-supply stage has been re-engineered to withstand the current demand of Raspberry Pi 4 and, in general terms, can handle substantially more current, particularly at low supply voltages, compared to the previous version
- • the real time clock is now standard, and integrated in the main circuit board, with an improved battery holder
- • we have added the Microchip ATECC608A secure element chip.
Dati tecnici
- Tipo
Iono Pi Board
- Tipo prodotto
Modulo ingresso uscita analogico/digitale PLC
- Dim.
(L x L x A) 57.1 x 71.3 x 84.3 mm
- Modello
Iono Pi
- Tensione d'esercizio
9 - 28 V/DC
- Voltaggio Max.
28 V/DC
- Voltaggio operativo Min.
9 V/DC
- Display
No / No
- Orologio in tempo reale
Sì (Hardware)
- Soppressione radiodisturbi
CE, FCC, IC
- Peso
150 g
- Codice articolo produttore
IPBB20R
- Protezione corto circuito
SI
- Larghezza
71.3 mm
- Altezza
84.3 mm
- Lunghezza
57.1 mm
- Max. Temperatura ambiente
70 °C
- Min. Temperatura ambiente
-20 °C
Documenti & Download
Scheda tecnica
Scheda tecnica 868592510 Iono Pi Board 2.0 Raspberry Pi industrial expansion board
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 868592510 Iono Pi Board 2.0 Raspberry Pi industrial expansion board
Descrizione
Raspberry Pi industrial expansion board
Iono Pi is an extremely versatile Input/Output module which combines several digital and analog input lines, support for standard interfaces like 1-Wire and Wiegand and power relay outputs, typical of a modern PLC, with the incredibly powerful quad-core processor of the Raspberry Pi 3 or 4.
Iono Pi adds other important features that are essential to use the Raspberry Pi for professional applications, like a robust power supply with wide voltage range (9-28V) capable of up to 4A output current at 5V, and a real time clock with lithium back-up battery.
Iono Pi can be used for an incredible range of applications, from data acquisition and control, to home and building automation, as well as access control, hotel room control solutions, environmental monitoring and many many others. And software development is pure Raspberry Pi, with the constantly growing list of standard and proprietary software frameworks available on this platform.
Iono Pi can be employed both in industrial and residential environments, for professional applications where extreme reliability, ruggedness and compliance with technical and safety directives are required.
It is compliant with the low voltage and EMC CE directives, as well as the harmonised standards for electromagnetic compatibility, electrical safety, emission and the RoHS directive for hazardous substances. It is also compliant with the applicable FCC rules and IC standards
.
Features
Power supply:
• 9÷28Vdc power supply, with surge and reverse polarity protection, and 2.2A resettable fuse
• up to 4.0A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
Inputs/Outputs:
• 4 x power relay outputs rated for 6A at 250V
• 2 x analog voltage inputs 0÷30V
• 2 x analog voltage inputs 0÷3V on internal pin-headers
• 7 x configurable digital input/output pins, for potential-free or voltage inputs, TLL input/outputs and open collector outputs
• 1-Wire and Wiegand support
High reliability and security:
• real time clock (RTC) with replaceable back-up battery
• embedded Microchip ATECC608A secure element chip
• Can be coupled with SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan (to be purchased separately)
More:
• GPIO-controlled LED
• power-on status LED
Iono Pi is an extremely versatile Input/Output module which combines several digital and analog input lines, support for standard interfaces like 1-Wire and Wiegand and power relay outputs, typical of a modern PLC, with the incredibly powerful quad-core processor of the Raspberry Pi 3 or 4.
Iono Pi adds other important features that are essential to use the Raspberry Pi for professional applications, like a robust power supply with wide voltage range (9-28V) capable of up to 4A output current at 5V, and a real time clock with lithium back-up battery.
Iono Pi can be used for an incredible range of applications, from data acquisition and control, to home and building automation, as well as access control, hotel room control solutions, environmental monitoring and many many others. And software development is pure Raspberry Pi, with the constantly growing list of standard and proprietary software frameworks available on this platform.
Iono Pi can be employed both in industrial and residential environments, for professional applications where extreme reliability, ruggedness and compliance with technical and safety directives are required.
It is compliant with the low voltage and EMC CE directives, as well as the harmonised standards for electromagnetic compatibility, electrical safety, emission and the RoHS directive for hazardous substances. It is also compliant with the applicable FCC rules and IC standards
.
Features
Power supply:
• 9÷28Vdc power supply, with surge and reverse polarity protection, and 2.2A resettable fuse
• up to 4.0A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
Inputs/Outputs:
• 4 x power relay outputs rated for 6A at 250V
• 2 x analog voltage inputs 0÷30V
• 2 x analog voltage inputs 0÷3V on internal pin-headers
• 7 x configurable digital input/output pins, for potential-free or voltage inputs, TLL input/outputs and open collector outputs
• 1-Wire and Wiegand support
High reliability and security:
• real time clock (RTC) with replaceable back-up battery
• embedded Microchip ATECC608A secure element chip
• Can be coupled with SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan (to be purchased separately)
More:
• GPIO-controlled LED
• power-on status LED
Contenuto della fornitura
- Iono Pi board
- Alimentatore non incluso
- Scheda Raspberry Pi non inclusa
Note
Alimentatore non incluso.
Scheda Raspberry Pi non inclusa
