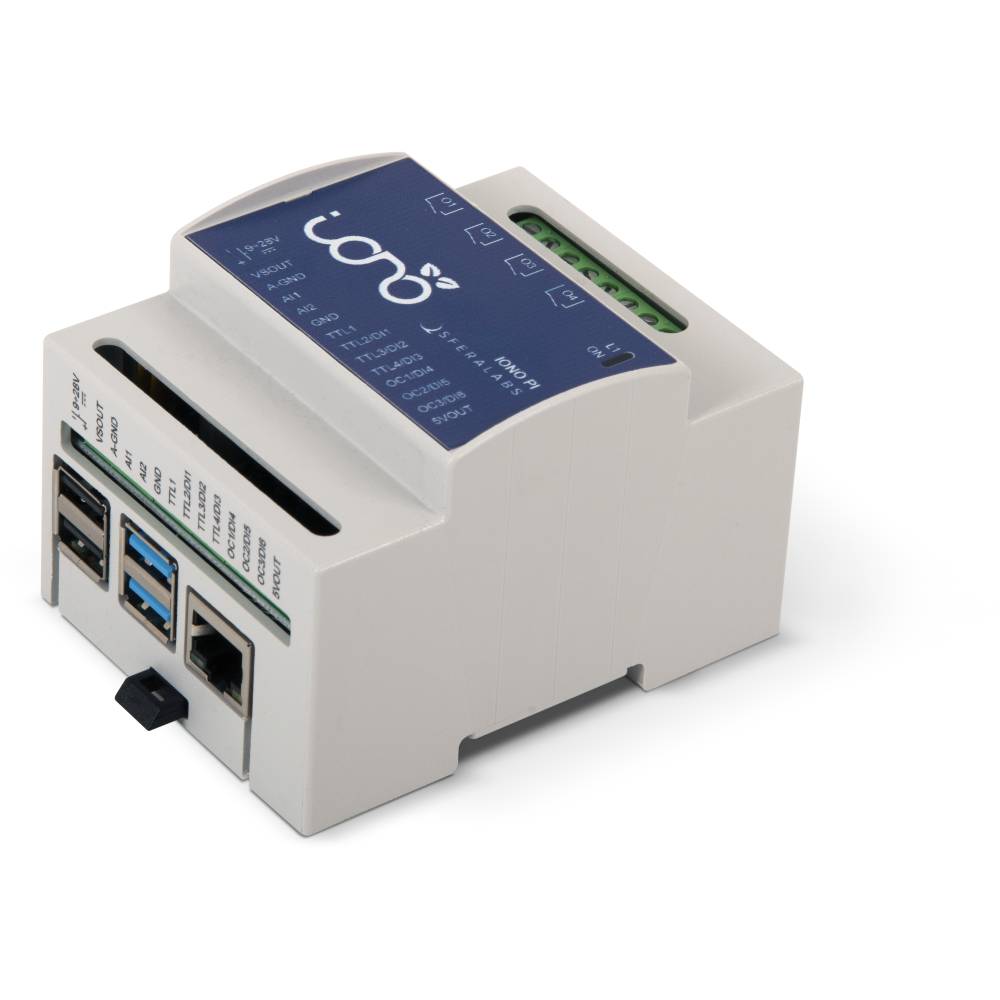

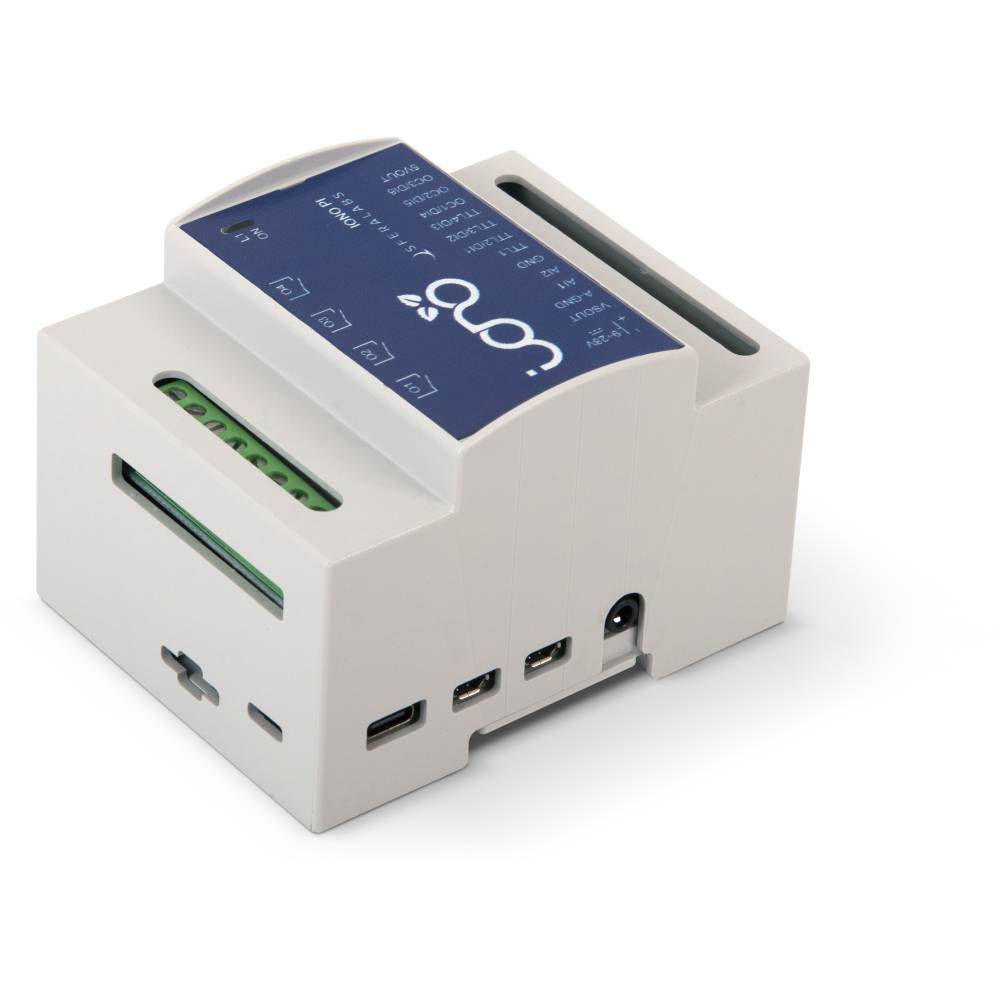

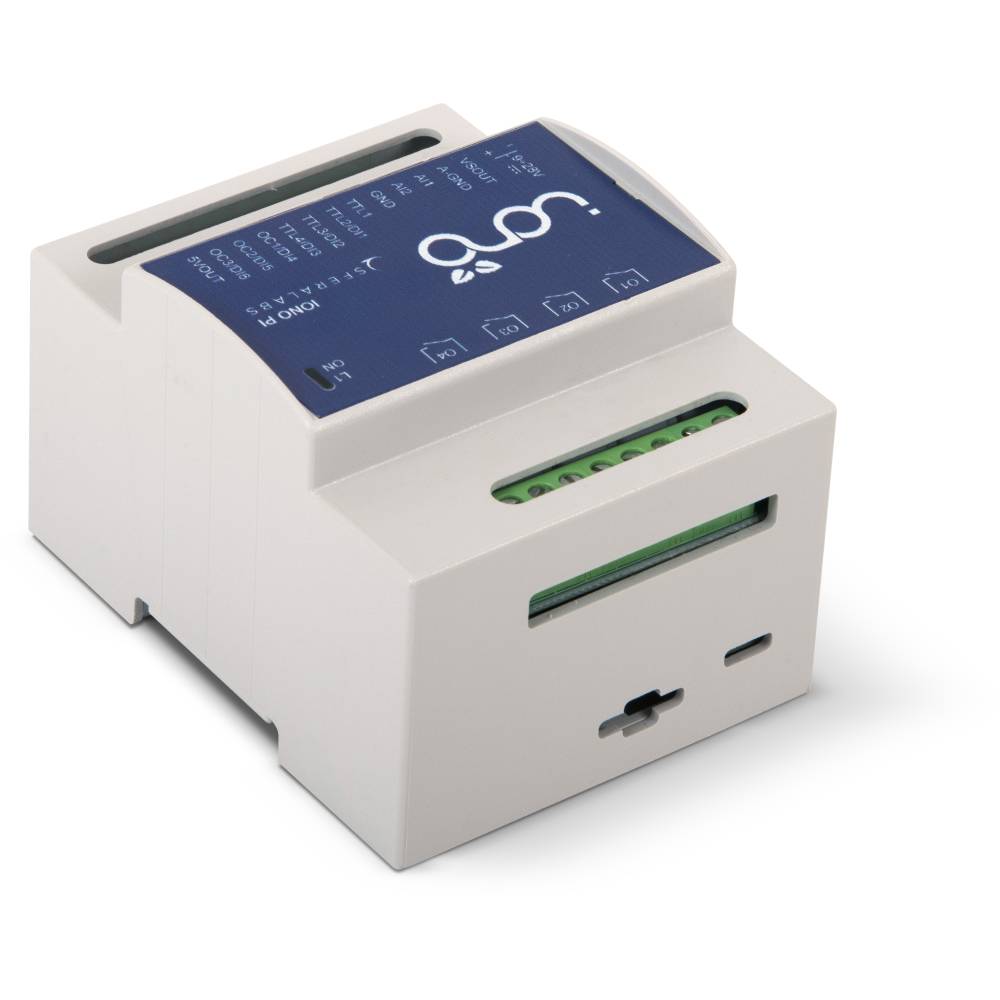

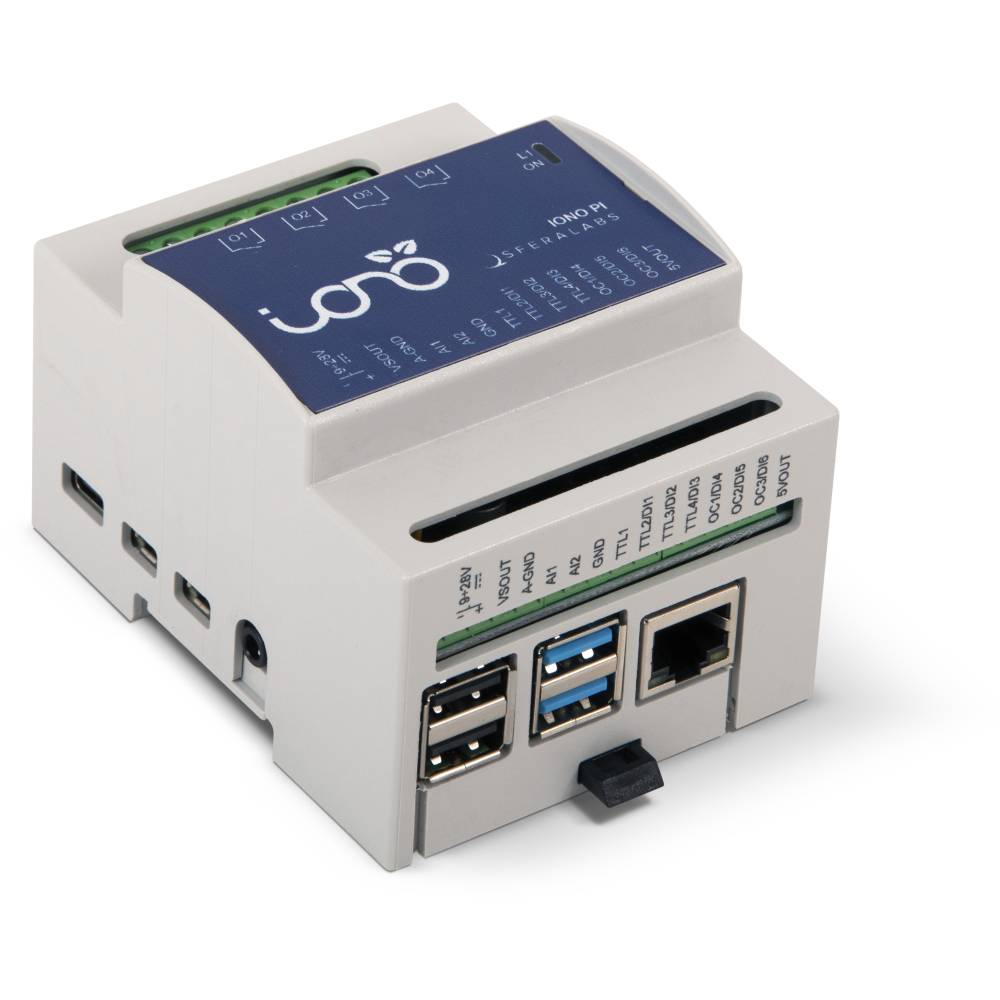

Iono Pi Server Iono Pi Server 2.0 Raspberry 4B 4GB + Strato Pi Fan 1.0

A Raspberry Pi based PLC

Iono Pi is an extremely versatile Input/Output module which combines several digital and analog input lines, support for standard interfaces like 1-Wire and Wiegand and power relay outputs, typical of a modern PLC, with the incredibly powerful quad-core processor of the Raspberry Pi 3 or 4.
Iono Pi adds other important features that are essential to use the Raspberry Pi for professional applications, like a robust power supply with wide voltage range (9-28V) capable of up to 4A output current at 5V, and a real time clock with lithium back-up battery.
Iono Pi can be used for an incredible range of applications, from data acquisition and control, to home and building automation, as well as access control, hotel room control solutions, environmental monitoring and many many others. And software development is pure Raspberry Pi, with the constantly growing list of standard and proprietary software frameworks available on this platform.
Iono Pi can be employed both in industrial and residential environments, for professional applications where extreme reliability, ruggedness and compliance with technical and safety directives are required.
It is compliant with the low voltage and EMC CE directives, as well as the harmonised standards for electromagnetic compatibility, electrical safety, emission and the RoHS directive for hazardous substances. It is also compliant with the applicable FCC rules and IC standards.

Features

Mounting:
• 4 modules DIN rail case

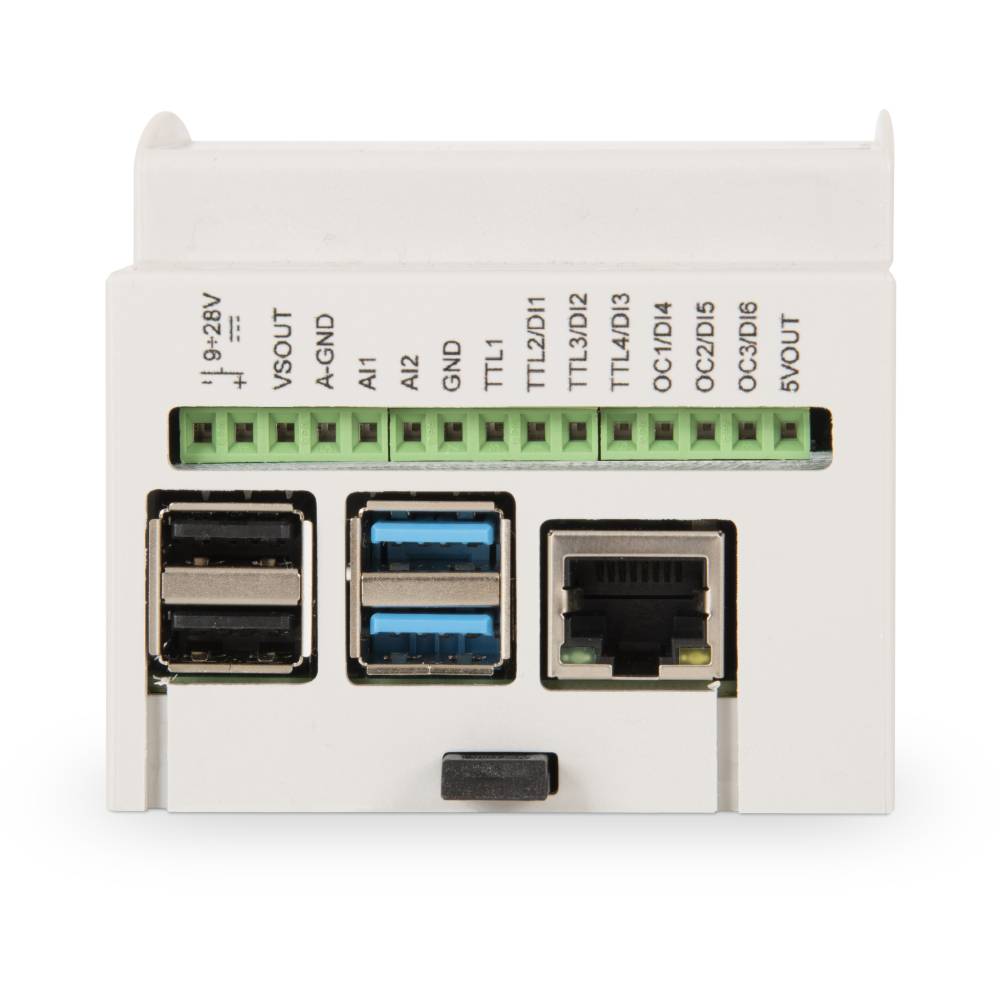

• power supply and I/O connections on screw terminal block

Power supply:
• 9÷28Vdc power supply, with surge and reverse polarity protection, and 2.2A resettable fuse
• up to 4.0A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)

Inputs/Outputs:
• 4 x power relay outputs rated for 6A at 250V
• 2 x analog voltage inputs 0÷30V
• 2 x analog voltage inputs 0÷3V on internal pin-headers
• 7 x configurable digital input/output pins, for potential-free or voltage inputs, TLL input/outputs and open collector outputs
• 1-Wire and Wiegand support

High reliability and security:
• real time clock (RTC) with replaceable back-up battery
• embedded Microchip ATECC608A secure element chip
• optional pre-assembled SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan

More:
• GPIO-controlled LED
• power-on status LED
 Raspberry Pi embedded:
• 1 x Ethernet
• 4 x USB
• 1 x HDMI (RPi 3+) / 2x Micro HDMI (RPi 4)
• 1 x microSD card slot
• 1 x jack for audio and composite video
• WiFi
• Bluetooth/BLE
