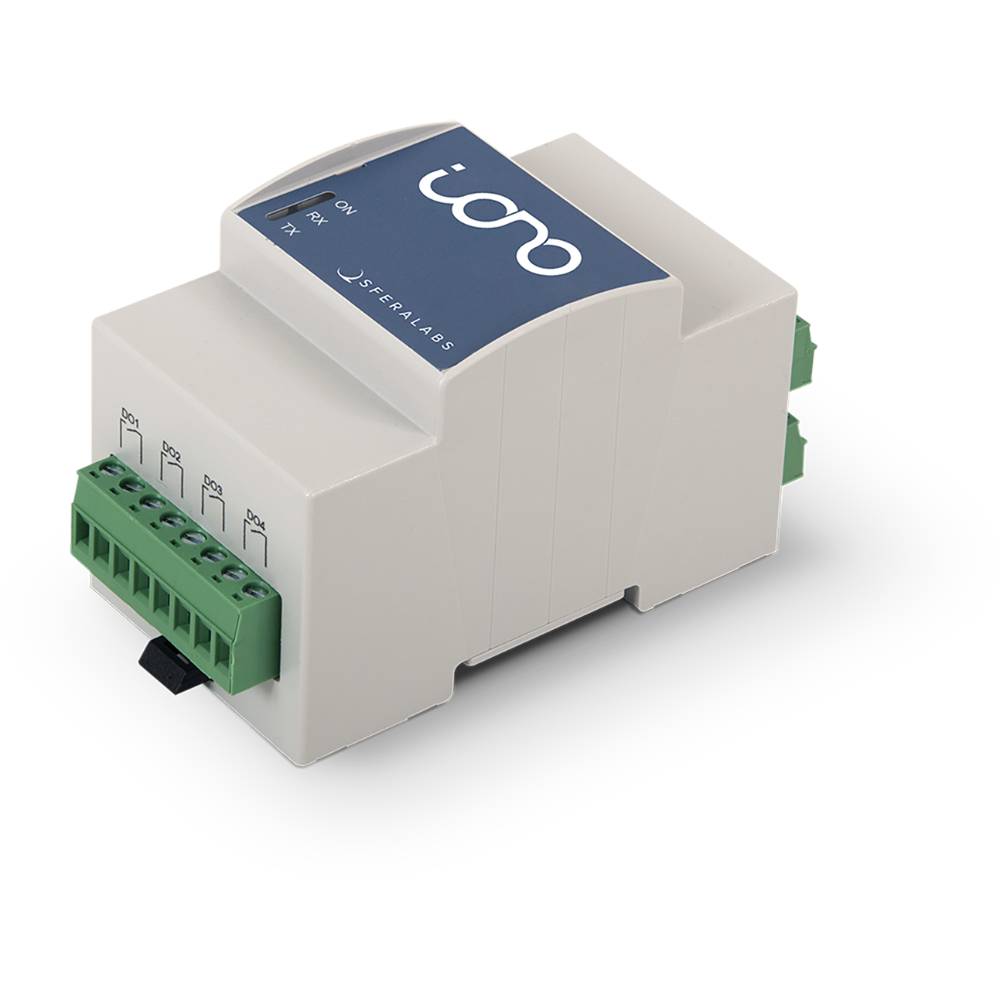

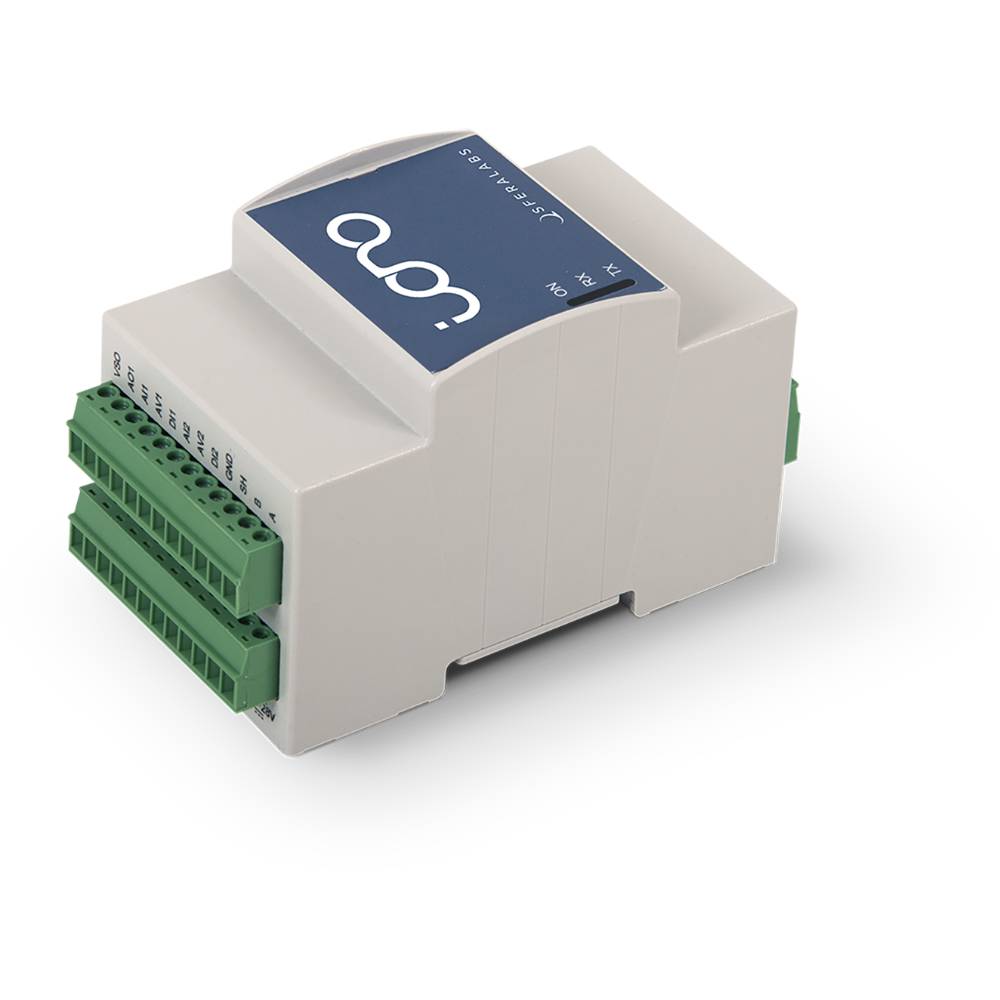

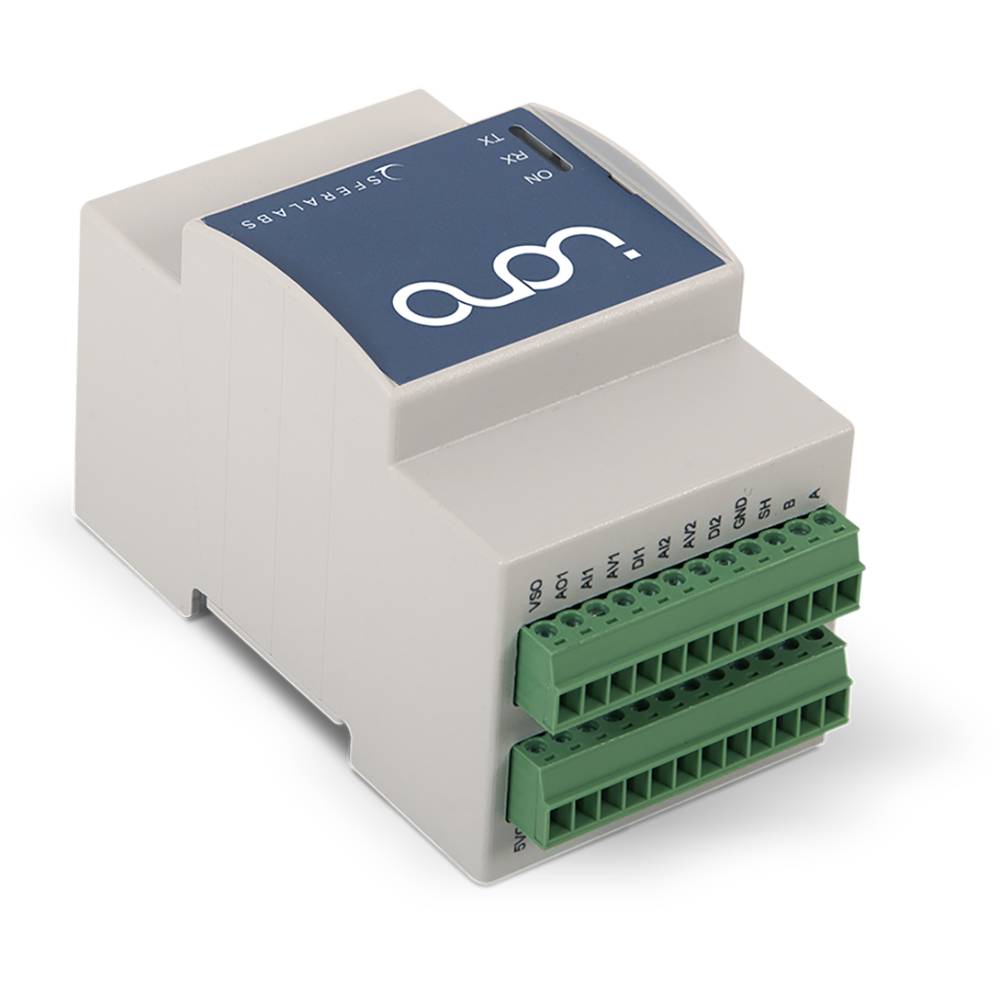

Iono RP compact I/O module with a Raspberry Pi RP2040 core-0

Iono RP compact I/O module with a Raspberry Pi RP2040 core-1

Iono RP compact I/O module with a Raspberry Pi RP2040 core-2

Iono RP compact I/O module with a Raspberry Pi RP2040 core-3

Iono RP compact I/O module with a Raspberry Pi RP2040 core-4

1/5

Scheda tecnica (PDF)

Consegna entro Mer. 30 Set.

10 Pezzo(i)

Vendita e spedizione:

Sfera Labs Termini e condizioni

Numero

Pezzo(i)

Totale

237,60 €

IVA escl.

Spedizione gratuita

Solo 10 Pezzo(i) disponibili

Diritto di reso di 14 giorni incluso

Segnala un problema

Highlights & Dettagli

Iono RP is a versatile and compact I/O module with a Raspberry Pi RP2040 core. Programmable in C/C++ and MicroPython. CE/FCC/IC compliant

Iono RP features a wide set of digital and analog input and output lines, power relays and industry-standard interfaces, all routed to the powerful dual-core Arm Cortex-M0+ processor of the Raspberry Pi RP2040 microcontroller.
Developing on Iono RP is easier than ever: write your code in C/C++ or MicroPython, use your preferred IDE among the many available options for the RP2040, no need for proprietary libraries or drivers and all the available resources from the Raspberry Pi community will transparently work.
Iono RP can be employed both in industrial and residential environments, for professional applications where extreme reliability, ruggedness and compliance with technical and safety directives are required.
It is compliant with the low voltage and EMC CE directives, as well as the harmonised standards for electromagnetic compatibility, electrical safety, emission and the RoHS directive for hazardous substances. It is also compliant with the applicable FCC rules and IC standards.

Dati tecnici

Tipo: Iono RP

Tipo prodotto: Modulo ingresso uscita analogico/digitale PLC

Dim.: (L x L x A) 53.5 x 53.5 x 90.5 mm

Modello: Iono RP

Tensione d'esercizio: 12 - 28 V/DC

Voltaggio Max.: 28 V/DC

Voltaggio operativo Min.: 12 V/DC

Display: No / No

Orologio in tempo reale: No / No

Soppressione radiodisturbi: CE, FCC, IC

Peso: 150 g

Codice articolo produttore: IRMB10X

Protezione corto circuito: SI

Larghezza: 53.5 mm

Altezza: 90.5 mm

Lunghezza: 53.5 mm

Profondità: 62 mm

Max. Temperatura ambiente: 70 °C

Min. Temperatura ambiente: -20 °C

Documenti & Download

Scheda tecnica

Scheda tecnica 868592514 Iono RP compact I/O module with a Raspberry Pi RP2040 core

Istruzioni d'uso e di sicurezza

Istruzioni d'uso e di sicurezza 868592514 Iono RP compact I/O module with a Raspberry Pi RP2040 core

Descrizione

Features

Mounting:
3 modules DIN rail case
power supply, serial and I/O connections on pluggable terminal blocks

Power supply:
12÷24 Vdc power supply, with surge and reverse polarity protection, and 1.1A resettable fuse

Core:
Raspberry Pi RP2040 – Dual ARM Cortex-M0+ @ 133MHz, 264kB on-chip SRAM

Storage:
16MB embedded Flash
optional microSD card slot

Inputs/Outputs:
4 x power relay outputs rated for 6A at 250V
4 x multi-mode inputs: digital or 0÷30V or 0÷20mA analog
2 x digital inputs or TTL level I/Os (1-Wire, I2C, Wiegand support)
1 x 0÷10V analog output

Communication:
standard RS-485 interface to the RP2040 serial lines, with electrostatic discharge protection
USB programming/debugging port

Factory-installed optionals:
real time clock (RTC) with back-up battery
secure element chip
earthquake sensor module
