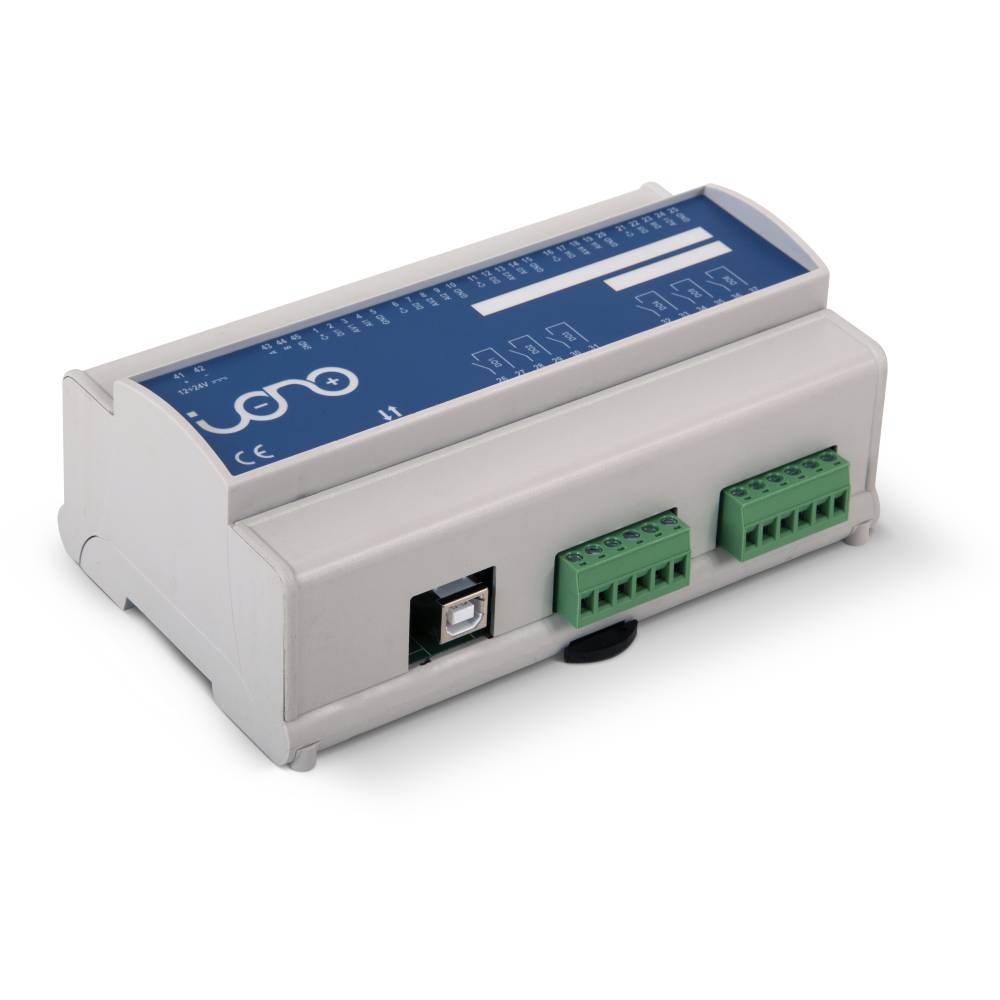

Iono Uno + Arduino Uno WiFi Rev 2 board-0

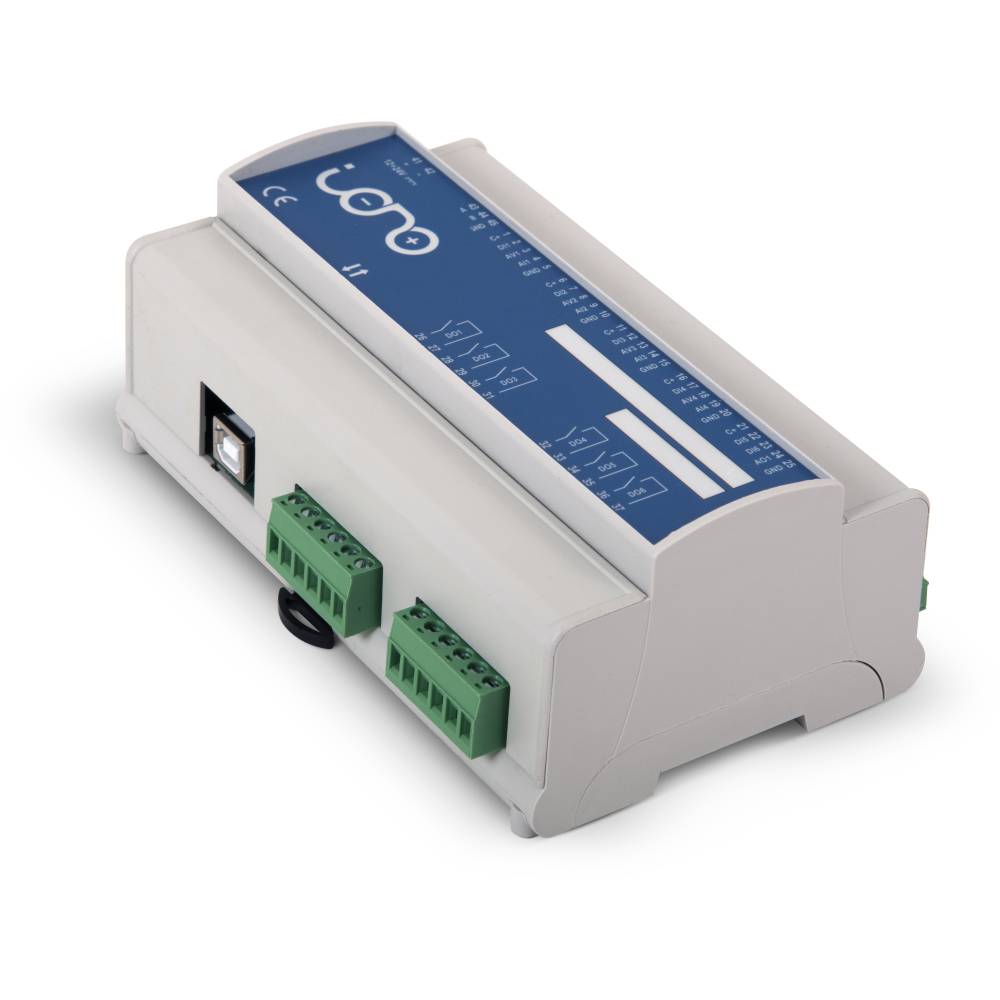

Iono Uno + Arduino Uno WiFi Rev 2 board-1

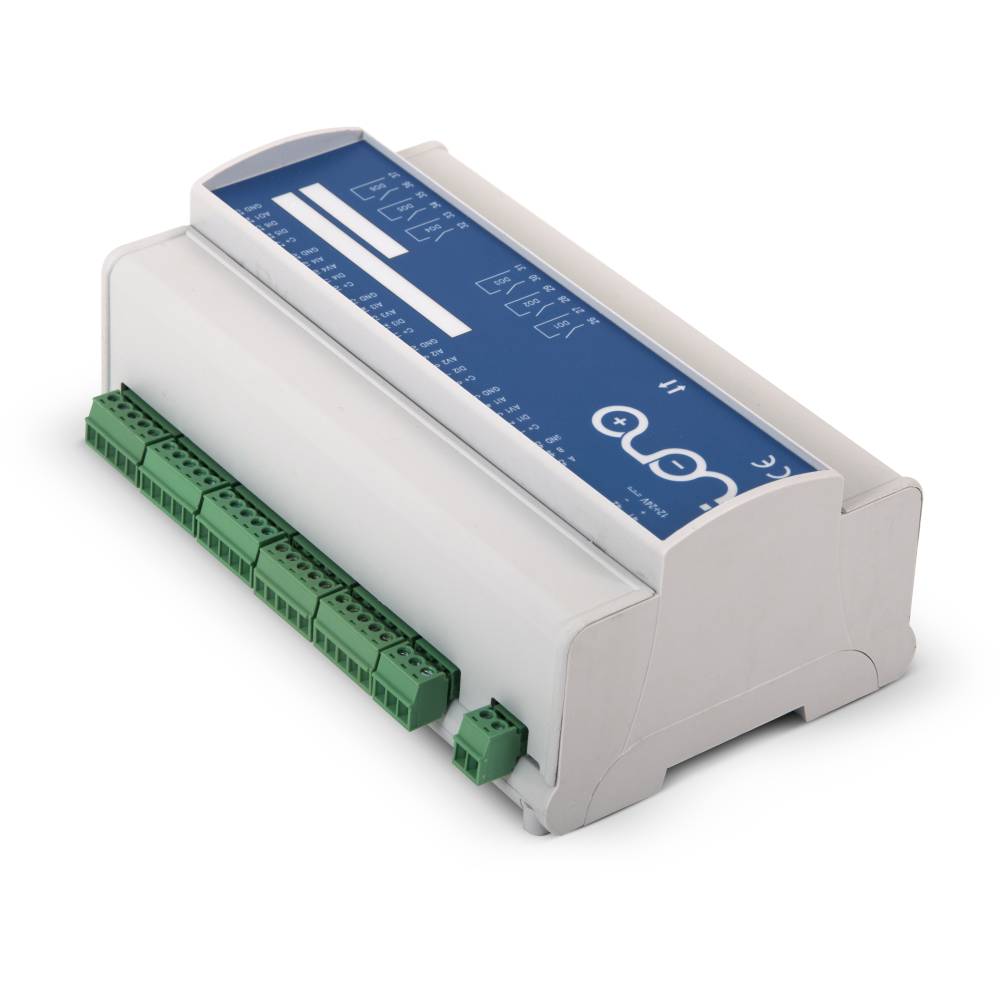

Iono Uno + Arduino Uno WiFi Rev 2 board-2

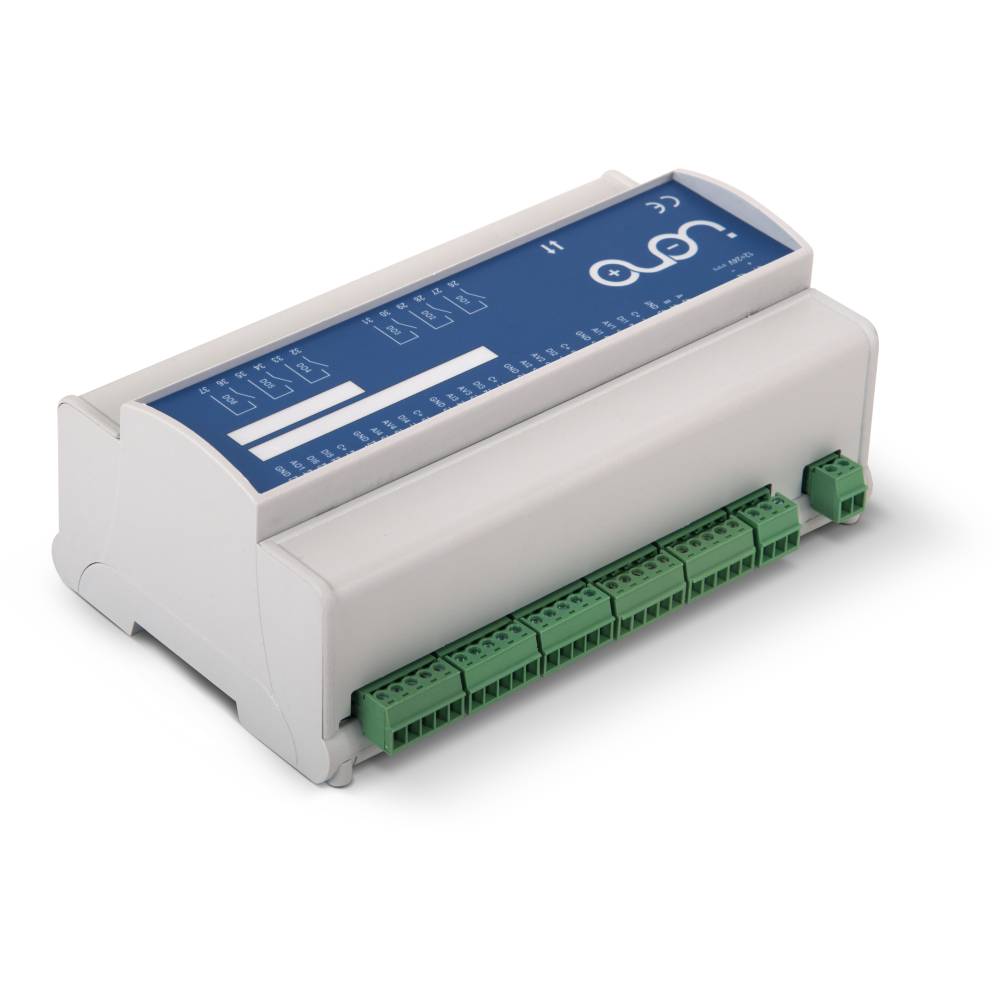

Iono Uno + Arduino Uno WiFi Rev 2 board-3

1/4

Scheda tecnica (PDF)

Consegna entro Mer. 30 Set.

10 Pezzo(i)

Vendita e spedizione:

Sfera Labs Termini e condizioni

Numero

Pezzo(i)

Totale

298,50 €

IVA escl.

Spedizione gratuita

Solo 10 Pezzo(i) disponibili

Diritto di reso di 14 giorni incluso

Segnala un problema

Highlights & Dettagli

An industrial PLC with an Arduino core
Iono Uno is a work-suit for Arduino, it turns it into a PLC that combines the ease of use of the Arduino platform and the vast amount of software available for it with robust input and output electronic interfaces.
Iono Uno can be employed both in industrial and residential environments, for professional applications where extreme reliability, ruggedness and compliance with technical and safety directives are required.
It is compliant with the low voltage and EMC CE directives, as well as the harmonised standards for electromagnetic compatibility, electrical safety, emission and the RoHS directive for hazardous substances.
Iono Uno can be used in several ways:
As an armored Arduino
You can do anything you are able to do with an Arduino, in the same exact way, programming it with the standard Arduino IDE. You just have a more robust hardware that will help you transition from your prototipe to your final industrial project.
As an Ethernet or WiFi I/O module
Combine Iono Uno with Arduino Ethernet, Arduino Yún or Arduino Uno WiFi to have a simple network I/O module. When combined with Arduino Yún, you get a Linux CPU core next to your microcontroller too!
As a Modbus module
Are you more at ease with Modbus devices? No problem, just upload the Modbus TCP or Modbus RTU sketches available from the libraries examples and your Iono turns into a standard Modbus module, configurable with a simple serial interface.
Of course, you can always modify the provided example sketches and add your custom logic!

Dati tecnici

Tipo: Iono Uno + Arduino Uno WiFi Rev 2 board

Tipo prodotto: Modulo ingresso uscita analogico/digitale PLC

Dim.: (L x L x A) 160 x 160 x 96.8 mm

Modello: Iono Uno

Tensione d'esercizio: 12 - 24 V/DC

Voltaggio Max.: 24 V/DC

Voltaggio operativo Min.: 12 V/DC

Display: No / No

Orologio in tempo reale: No / No

Soppressione radiodisturbi: CE, FCC, IC

Peso: 300 g

Codice articolo produttore: IAMS21X+WIFI

Protezione corto circuito: SI

Larghezza: 160 mm

Altezza: 96.8 mm

Lunghezza: 160 mm

Profondità: 63 mm

Max. Temperatura ambiente: 70 °C

Min. Temperatura ambiente: -20 °C

Documenti & Download

Scheda tecnica

Scheda tecnica 869378290 Iono Uno + Arduino Uno WiFi Rev 2 board

Istruzioni d'uso e di sicurezza

Istruzioni d'uso e di sicurezza 869378290 Iono Uno + Arduino Uno WiFi Rev 2 board

Descrizione

Features

Mounting:
9 modules DIN rail case
power supply, serial and I/O connections on pluggable terminal blocks

Power supply:
12÷24Vdc power supply, with surge and reverse polarity protection, and resettable fuse

Arduino compatibility:
all 5.0V and 3.3V Arduino boards with 1.0 pinout (Uno, Uno WiFi Rev2, Ethernet, Zero, Leonardo, Leonardo Ethernet, Yún, Yún Rev2)

Inputs/Outputs:
6 x power relay outputs with bistable coils rated for 12A at 250V
4 x multi-mode inputs: digital or 0÷10V or 0÷20mA analog
2 x digital inputs or TTL level I/Os (1-Wire, I2C, Wiegand support)
1 x 0÷10V analog output

Communication:
standard RS-485 interface to the Arduino serial pins, with electrostatic discharge protection
Ethernet/WiFi/USB depending on installed Arduino board
