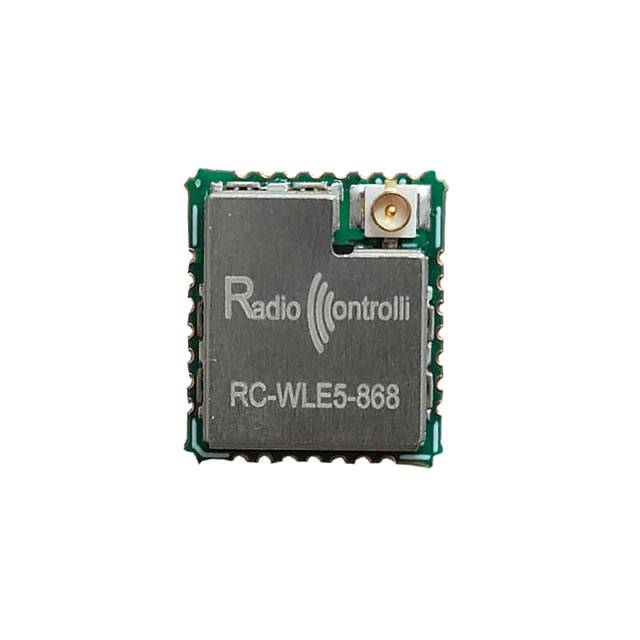

LoRa wireless module STM32WLE5JC based
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Dati tecnici
- Tipo di imballaggio
Tape on Full reel
- Tipo prodotto
Ricevitore trasmettitore
- Tipo
RC-WLE5-868
- Tensione di esercizio
3 V/DC
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 879239940 LoRa wireless module STM32WLE5JC based
Descrizione
RC-WLE5-868 is an ultra low power long range device designed by RadioControlli. The module is based on STM32WLE5JC device from STMicroelectronics.
Multiprotocol LPWAN 32bit Arm®Cortex® M4 MCUs, LoRa®, (G)FSK,
(G)MSK, BPSK .
The main applications of this module are Internet of Things devices and wireless sensor networks , especially battery powered low power consumption long range.
CORE : STM32WLE5JC
Operative Frequency bands : 868MHz.
Ready for use SMD mounting (13 x 14.5mm) - Metal shield.
Multiprotocol LPWAN 32bit Arm®Cortex® M4 MCUs, LoRa®, (G)FSK,
(G)MSK, BPSK .
The main applications of this module are Internet of Things devices and wireless sensor networks , especially battery powered low power consumption long range.
CORE : STM32WLE5JC
Operative Frequency bands : 868MHz.
Ready for use SMD mounting (13 x 14.5mm) - Metal shield.
