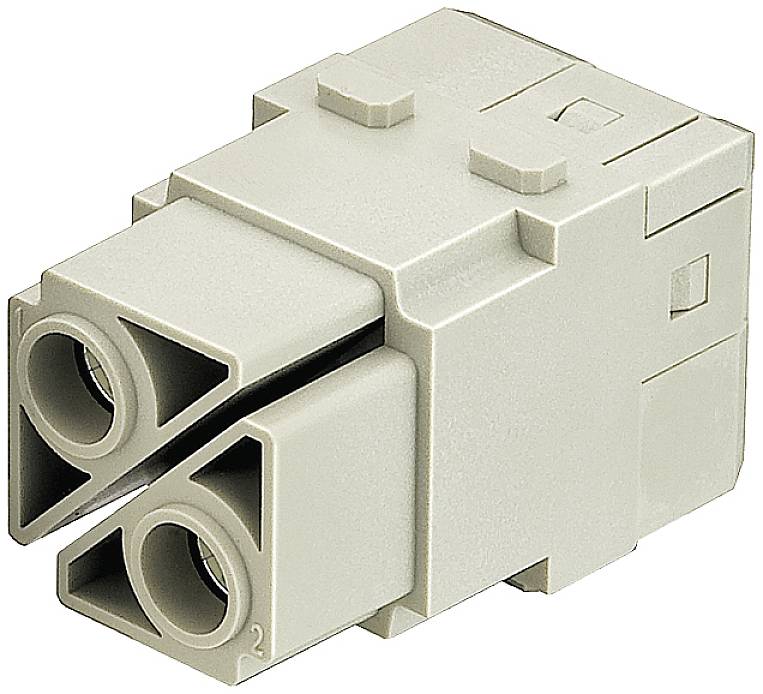

Modulo presa 09140022753 HARTING Contenuto: 1 pz. Modulo femmina
EAN:
Codice produttore
Articolo n°:
Tipo prodotto
Modulo femmina
Numero Poli
2
Tipo
09140022753
Codice articolo produttore
09140022753
Colore
Grigio (RAL 7032)
Scheda tecnica (PDF)
Numero
Totale
38,00 €
IVA escl.
20,08 €
Solo 2 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Peso netto: 72 g
- Corrente nominale: 100 A
- Numero di contatti: 2
- Tensione nominale: 1000 V
- Sezione conduttore: Da 10 mm² a 25 mm²
- Sesso: Presa
- Cicli di accoppiamento: ≥ 500
- Coppia di serraggio: Da 6 Nm a 7 Nm
- Tensione a impulso nominale: 8 kV
- Superficie del contatto: argentata
- Resistenza di passaggio: ≤ 0,3 MΩ
- Lunghezza spellatura: 12 mm - 14 mm
- Grado di inquinamento: 3
- Tipo
09140022753
- Tipo prodotto
Modulo femmina
- Codice articolo produttore
09140022753
- Colore
Grigio (RAL 7032)
- Numero Poli
2
- Collegamento
Connettori assiali a vite
- Tot poli
2
- Contenuto
1 pz.
- Materiale
Policarbonato
lega di rame
- Temperatura max.
+125 °C
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1989650 Modulo presa 09140022753 HARTING Contenuto: 1 pz. Modulo femmina
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1989650 Modulo presa 09140022753 HARTING Contenuto: 1 pz. Modulo femmina
Descrizione
09 14 002 2753 09140022753
HARTING
Properties overview
Han module
100 A
Double module
Axial screw connection
Female
Contacts: 2
Conductor section: 10 ... 25 mm²
Operating current: 100 A
Polycarbonate (PC)
RAL 7032 (sand gray)
Copper alloy
Silvered
Product Details
Identification
Category
Forms
Series
Han-Modular ®
Type of module
Han ® 100 A module
Module size
Double module
Version
Connection
Axial screw connection
Contact type (male or female)
Female
Number of poles
2
Technical details
Conductor section
10 ... 25 mm²
Operating current
100 A
Operating voltage
1,000 V
Test voltage
8 kV
Degree of pollution
3
Operating voltage according to UL
600 V
Contact resistance
> 10 10 Ω
Contact resistance
≤ 0.3 mΩ
Stripping length
12 ... 14 mm
Tightening torque
6 ... 7 Nm
Maximum temperature
-40 ... +125 ° C
Switching on / off cycles
≥ 500
Properties of the material
Material (inserts)
Polycarbonate (PC)
Color (insert)
RAL 7032 (sand gray)
Material (contacts)
Copper alloy
Surface finish (contacts)
Silvered
Fire behavior according to UL 94
V-0
RoHS
Compliant with exemption
RoHS exemptions
6 c): Copper alloys containing up to 4% lead by weight
ELV status
Compliant with exemption
China RoHS
50
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV Substances
Not included
REACH SVHC substances
Yup
REACH SVHC substances
Lead
ECHA SCIP code
5dbb3851-b94e-4e88-97a1-571845975242
California Proposition 65 substances
Yup
California Proposition 65 substances
Lead
Nickel
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Set of requirements with risk levels
R22 (HL 1-3)
R23 (HL 1-3)
Specifications and approvals
Specifications
EN 60664-1
IEC 61984
Approvals
DNV GL
UL / CSA
UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076
UL 2237 PVVA2.E318390
CSA-C22.2 No. 182.3 PVVA8.E318390
Commercial data
Packaging dimensions
1
Net weight
20 g
Country of origin
Germany
European customs code
85366990
GTIN
5713140019805
eCl @ ss
27440217 Module for industrial connectors (power / signals)
HARTING
Properties overview
Han module
100 A
Double module
Axial screw connection
Female
Contacts: 2
Conductor section: 10 ... 25 mm²
Operating current: 100 A
Polycarbonate (PC)
RAL 7032 (sand gray)
Copper alloy
Silvered
Product Details
Identification
Category
Forms
Series
Han-Modular ®
Type of module
Han ® 100 A module
Module size
Double module
Version
Connection
Axial screw connection
Contact type (male or female)
Female
Number of poles
2
Technical details
Conductor section
10 ... 25 mm²
Operating current
100 A
Operating voltage
1,000 V
Test voltage
8 kV
Degree of pollution
3
Operating voltage according to UL
600 V
Contact resistance
> 10 10 Ω
Contact resistance
≤ 0.3 mΩ
Stripping length
12 ... 14 mm
Tightening torque
6 ... 7 Nm
Maximum temperature
-40 ... +125 ° C
Switching on / off cycles
≥ 500
Properties of the material
Material (inserts)
Polycarbonate (PC)
Color (insert)
RAL 7032 (sand gray)
Material (contacts)
Copper alloy
Surface finish (contacts)
Silvered
Fire behavior according to UL 94
V-0
RoHS
Compliant with exemption
RoHS exemptions
6 c): Copper alloys containing up to 4% lead by weight
ELV status
Compliant with exemption
China RoHS
50
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV Substances
Not included
REACH SVHC substances
Yup
REACH SVHC substances
Lead
ECHA SCIP code
5dbb3851-b94e-4e88-97a1-571845975242
California Proposition 65 substances
Yup
California Proposition 65 substances
Lead
Nickel
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Set of requirements with risk levels
R22 (HL 1-3)
R23 (HL 1-3)
Specifications and approvals
Specifications
EN 60664-1
IEC 61984
Approvals
DNV GL
UL / CSA
UL 1977 ECBT2.E235076
CSA-C22.2 No. 182.3 ECBT8.E235076
UL 2237 PVVA2.E318390
CSA-C22.2 No. 182.3 PVVA8.E318390
Commercial data
Packaging dimensions
1
Net weight
20 g
Country of origin
Germany
European customs code
85366990
GTIN
5713140019805
eCl @ ss
27440217 Module for industrial connectors (power / signals)
