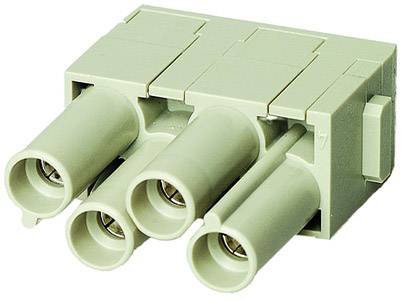

Modulo presa 09140043141 HARTING Contenuto: 1 pz. Modulo femmina
EAN:
Codice produttore
Articolo n°:
Tipo prodotto
Modulo femmina
Numero Poli
4
Tipo
09140043141
Codice articolo produttore
09140043141
Colore
Grigio (RAL 7032)
Scheda tecnica (PDF)
Numero
Totale
5,00 €
IVA escl.
20,08 €
Solo 2 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Highlights & Dettagli
Modulo presa
Servizi e promozioni supplementari
Dati tecnici
- Peso netto: 9.26 g
- Corrente nominale: 40 A
- Numero di contatti: 4
- Tensione nominale: 830 V
- Sezione conduttore: 1,5 mm² - 6 mm²
- Sesso: Presa
- Cicli di accoppiamento: ≥ 500
- Tensione a impulso nominale: 8 kV
- Grado di inquinamento: 3
- Tipo
09140043141
- Tipo prodotto
Modulo femmina
- Codice articolo produttore
09140043141
- Colore
Grigio (RAL 7032)
- Numero Poli
4
- Collegamento
A crimpare
- Tot poli
4
- Contenuto
1 pz.
- Materiale
Policarbonato
- Temperatura max.
+125 °C
Documenti & Download
Scheda tecnica
Scheda tecnica 1989691 Modulo presa 09140043141 HARTING Contenuto: 1 pz. Modulo femmina
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1989691 Modulo presa 09140043141 HARTING Contenuto: 1 pz. Modulo femmina
Descrizione
09 14 004 3141 09140043141
HARTING
Properties overview
Han module
CC Protected
Single module
Crimp connection
Female
Contacts: 4
Conductor section: 1.5 ... 6 mm²
Operating current: 40 A
Polycarbonate (PC)
RAL 7032 (sand gray)
Product Details
Identification
Category
Forms
Series
Han-Modular ®
Type of module
Han ® CC Protected module
Module size
Single module
Version
Connection
Crimp connection
Contact type (male or female)
Female
Number of poles
4
Application details
Order contacts separately
Technical details
Conductor section
1.5 ... 6 mm²
Operating current
40 A
Operating voltage
830 V
Test voltage
8 kV
Degree of pollution
3
Operating voltage according to UL
600 V
Contact resistance
> 10 10 Ω
Maximum temperature
-40 ... +125 ° C
Switching on / off cycles
≥ 500
Properties of the material
Material (inserts)
Polycarbonate (PC)
Color (insert)
RAL 7032 (sand gray)
Fire behavior according to UL 94
V-0
RoHS
Compliant
ELV status
Compliant
China RoHS
And
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV Substances
Not included
REACH SVHC substances
Not included
California Proposition 65 substances
Not included
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Set of requirements with risk levels
R22 (HL 1-3)
R23 (HL 1-3)
Specifications and approvals
Specifications
EN 60664-1
IEC 61984
Approvals
DNV GL
UL / CSA
UL 1977 ECBT2.E235076
Commercial data
Packaging dimensions
2
Net weight
10 g
Country of origin
Germany
European customs code
85389099
GTIN
5713140020153
eCl @ ss
27440217 Module for industrial connectors (power / signals)
HARTING
Properties overview
Han module
CC Protected
Single module
Crimp connection
Female
Contacts: 4
Conductor section: 1.5 ... 6 mm²
Operating current: 40 A
Polycarbonate (PC)
RAL 7032 (sand gray)
Product Details
Identification
Category
Forms
Series
Han-Modular ®
Type of module
Han ® CC Protected module
Module size
Single module
Version
Connection
Crimp connection
Contact type (male or female)
Female
Number of poles
4
Application details
Order contacts separately
Technical details
Conductor section
1.5 ... 6 mm²
Operating current
40 A
Operating voltage
830 V
Test voltage
8 kV
Degree of pollution
3
Operating voltage according to UL
600 V
Contact resistance
> 10 10 Ω
Maximum temperature
-40 ... +125 ° C
Switching on / off cycles
≥ 500
Properties of the material
Material (inserts)
Polycarbonate (PC)
Color (insert)
RAL 7032 (sand gray)
Fire behavior according to UL 94
V-0
RoHS
Compliant
ELV status
Compliant
China RoHS
And
REACH ANNEX XVII substances
Not included
REACH ANNEX XIV Substances
Not included
REACH SVHC substances
Not included
California Proposition 65 substances
Not included
Fire protection on railway vehicles
EN 45545-2 (2020-08)
Set of requirements with risk levels
R22 (HL 1-3)
R23 (HL 1-3)
Specifications and approvals
Specifications
EN 60664-1
IEC 61984
Approvals
DNV GL
UL / CSA
UL 1977 ECBT2.E235076
Commercial data
Packaging dimensions
2
Net weight
10 g
Country of origin
Germany
European customs code
85389099
GTIN
5713140020153
eCl @ ss
27440217 Module for industrial connectors (power / signals)
Note
Si prega di ordinare separatamente i contatti a crimpare.
