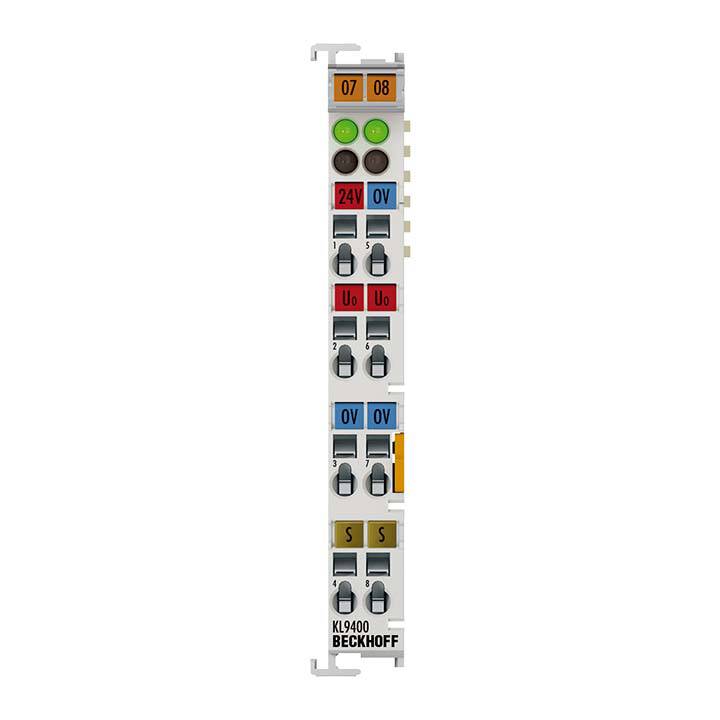

KL9400 | Power supply unit terminal for the K-bus The KL9400 power supply unit terminal is used to refresh the K-bus. Data is exchanged between the Bus Coupler and Bus Terminal over the K-bus. Each Bus Terminal draws a certain amount of current from the K-bus (see Current consumption K-bus in the technical data). This current is fed into the K-bus by the relevant Bus Coupler’s power supply unit. The standard couplers (BKxx00, BCxx00) make 1.75 A available to the K-bus. In configurations with a large number of Bus Terminals it is possible to use the KL9400 in order to supply an extra 2 A to the K-bus. Technical data KL9400 Input voltage 24 V DC (-15 %/+20 %) Output voltage 5 V DC Output current 2 A for K-bus supply Power contacts max. 24 V DC/max. 10 A Short-circuit proof yes Weight approx. 65 g Operating/storage temperature -25…+60 °C/-40…+85 °C Relative humidity 95 %, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring for all KSxxxx Bus Terminals Approvals/markings CE, UL, ATEX, DNV GL Ex marking II 3 G Ex nA IIC T4 Gc Technical data To top Housing data KL-12-8pin Design form compact terminal housing with signal LEDs Material polycarbonate Dimensions (W x H x D) 12 mm x 100 mm x 68 mm Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of double slot and key connection Marking labeling of the BZxxx series Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver Connection cross-section s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² Connection cross-section AWG s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 s* Stripping length 8…9 mm Current load power contacts Imax: 10 A *s: solid wire; st: stranded wire; f: with ferrule
Note
Descrizione
KL9400 | Power supply unit terminal for the K-bus The KL9400 power supply unit terminal is used to refresh the K-bus. Data is exchanged between the Bus Coupler and Bus Terminal over the K-bus. Each Bus Terminal draws a certain amount of current from the K-bus (see Current consumption K-bus in the technical data). This current is fed into the K-bus by the relevant Bus Coupler’s power supply unit. The standard couplers (BKxx00, BCxx00) make 1.75 A available to the K-bus. In configurations with a large number of Bus Terminals it is possible to use the KL9400 in order to supply an extra 2 A to the K-bus. Technical data KL9400 Input voltage 24 V DC (-15 %/+20 %) Output voltage 5 V DC Output current 2 A for K-bus supply Power contacts max. 24 V DC/max. 10 A Short-circuit proof yes Weight approx. 65 g Operating/storage temperature -25…+60 °C/-40…+85 °C Relative humidity 95 %, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring for all KSxxxx Bus Terminals Approvals/markings CE, UL, ATEX, DNV GL Ex marking II 3 G Ex nA IIC T4 Gc Technical data To top Housing data KL-12-8pin Design form compact terminal housing with signal LEDs Material polycarbonate Dimensions (W x H x D) 12 mm x 100 mm x 68 mm Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of double slot and key connection Marking labeling of the BZxxx series Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver Connection cross-section s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² Connection cross-section AWG s*: AWG 28…14, st*: AWG 28…14, f*: AWG 26…16 s* Stripping length 8…9 mm Current load power contacts Imax: 10 A *s: solid wire; st: stranded wire; f: with ferrule
