Acquista Schneider Electric LC1D32BL Contattore di potenza 15 kW 1 pz. da Conrad

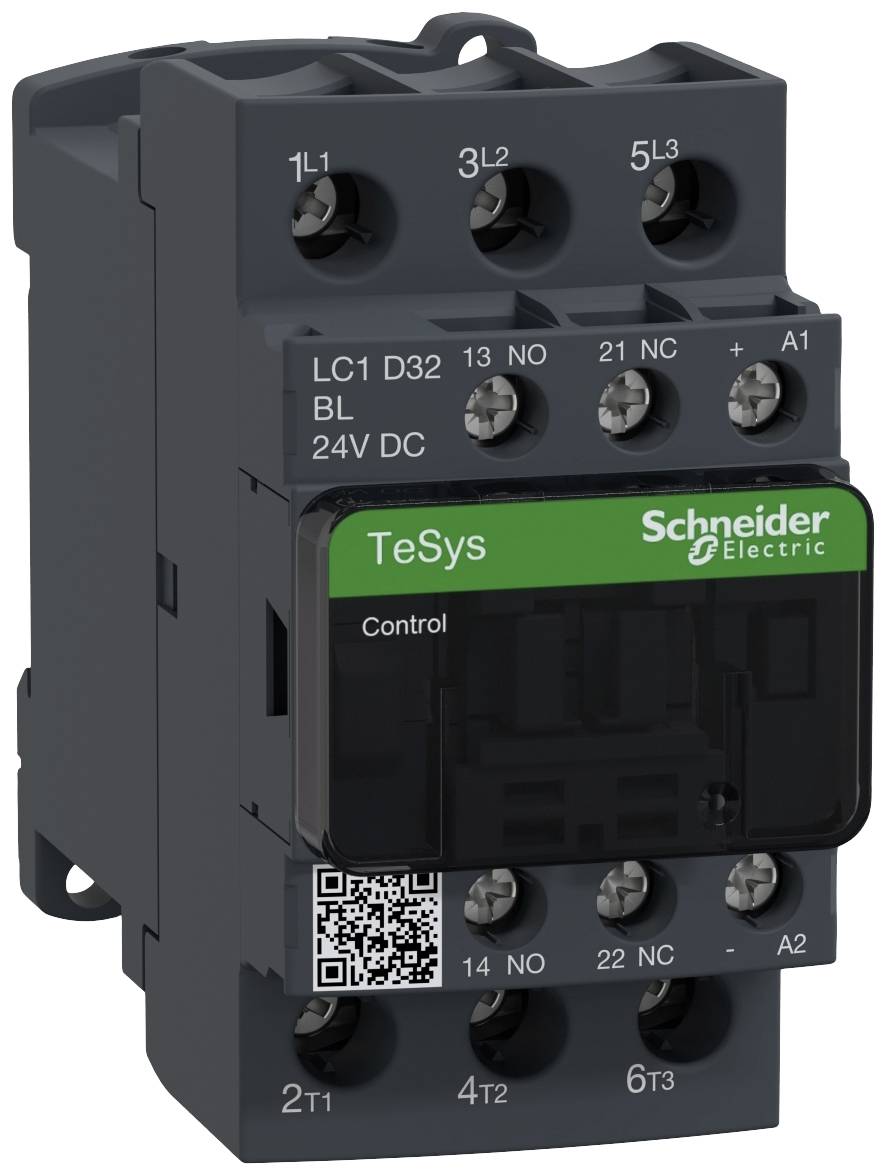

Un contattore elettrico nero di Schneider Electric con più morsetti e la scritta 'TeSys'.

Tipo prodotto

Contattore di potenza

Numero poli

3 poli

Potenza

15 kW

Collegamento

Morsetto a vite

Tipo

LC1D32BL

Consegna entro Gio. 1 Ott.

5 Pezzo(i)

Vendita e spedizione:

Automation24 IT Termini e condizioni

spedizione gratuita a partire da 100,00 € valore dell'ordine con questo fornitore

Numero

Pezzo(i)

Totale

138,90 €

Prodotto proveniente da altro paese EU (IVA 0%)

Spedizione gratuita

Solo 5 Pezzo(i) disponibili

Diritto di reso di 14 giorni incluso

Avete già l'offerta migliore per la vostra quantità.

La nostra offerta

Conrad Electronic

CGV & Politica dei resi

Consegna entro Gio. 8 Ott.

19 Pezzo(i)

Spedizione gratuita

192,61 €

IVA escl.

Segnala un problema

Highlights & Dettagli

Contatto ausiliario Schneider Electric LC1D32BL

TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 32A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 7.5HP at 200 to 208VAC, 10HP at 240VAC, 20HP at 480VAC and 30HP at 600VAC three phase. Contactor is also rated for 2HP at 115VAC and 5HP at 240VAC single phase. When used with a 480VAC up to 60A circuit breaker, this contactor can have a SCCR up to 85kA. When used with up to a 600VAC 80A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a low consumption 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.35 inches tall, 1.77 inches wide and 3.98 inches deep. It weighs 1.18 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
