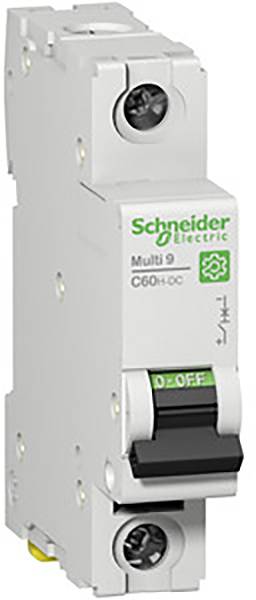

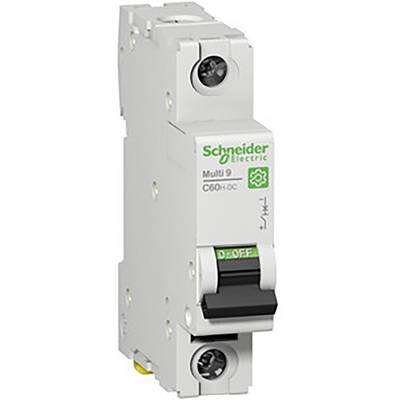

Schneider Electric M9U21106 M9U21106 Interruttore magnetotermico
EAN:
Codice produttore
Articolo n°:
Tipo prodotto
Interruttore magnetotermico
Numero Poli
1
Caratteristica di rilascio
D
Contenuto
1 pz.
Potere d'interruzione
10 kA
Scheda tecnica (PDF)
Numero
Totale (42,61 € / Pezzo)
42,61 €
IVA escl.
Diritto di reso di 14 giorni incluso
Highlights & Dettagli
- This Multi9 C60H-DC is a low voltage miniature circuit breaker (MCB) dedicated to direct current. It is a 1P circuit breaker with 1 protected pole, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VDC conforming to EN/IEC 60947-2 standard and 10kA at 220VDC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 250VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 73mm. The weight is 0.128kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.
Dati tecnici
- Tipo prodotto
Interruttore magnetotermico
- Numero Poli
1
- Caratteristica di rilascio
D
- Contenuto
1 pz.
- Potere d'interruzione
10 kA
DC
44 mm
6 A
250 V
C
500 V
4
3
1
FALSE
IP20
1
FALSE
FALSE
TRUE
1
6
- UKCA
Non rilevante
