Sensoristica industriale Phoenix Contact 1669628

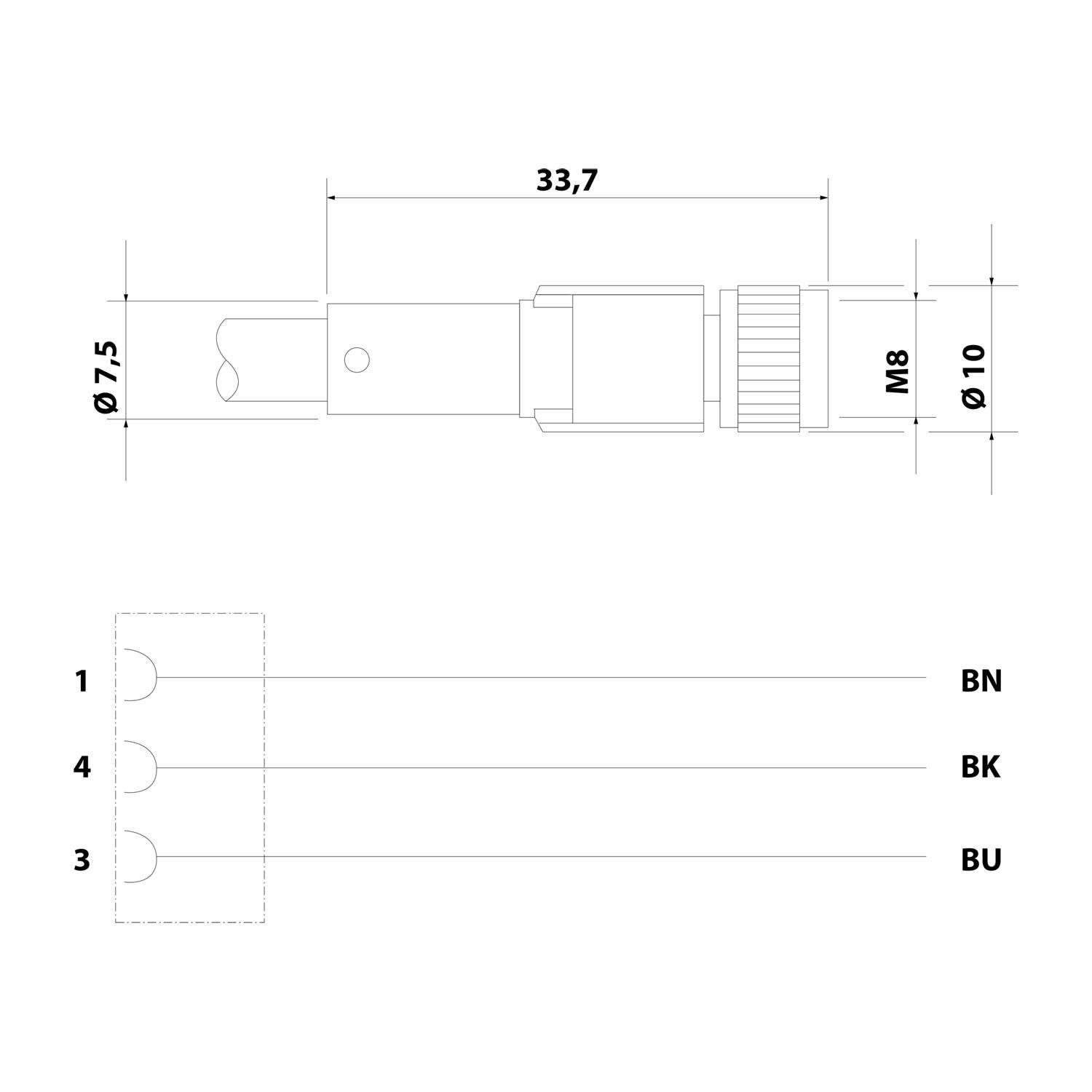

Sensor / actuator cable - SAC-3P- 5,0-PUR / M 8FS
1669628 PHOENIX

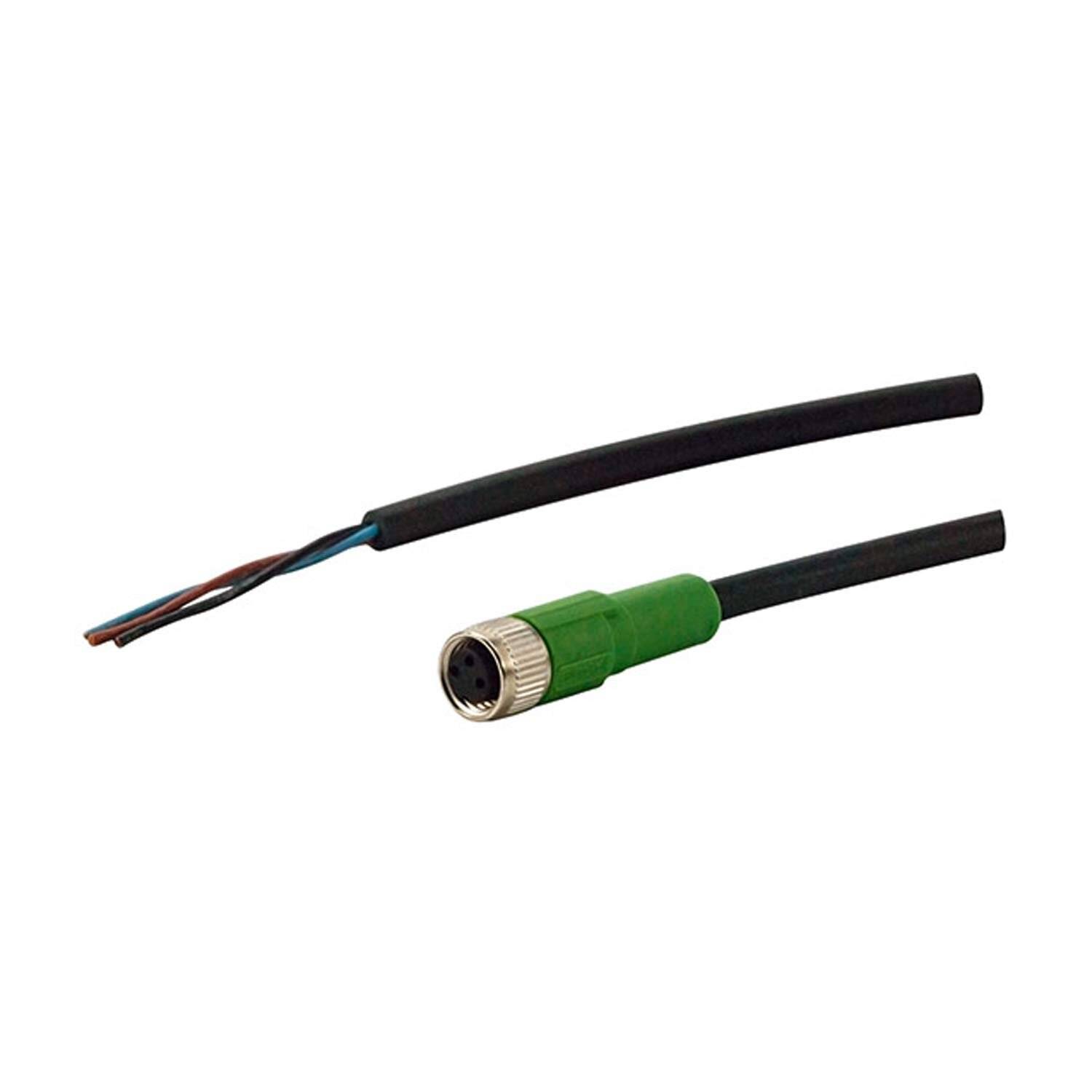

Sensor / actuator cable, 3-pole, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket straight M8, cable length: 5 m
Product type Sensor / actuator cables
No. poles 3
Application Standard
Number of cable outlets 1
Shielded no
Coding A - standard
Features of insulation
Overvoltage category II
Degree of pollution 3
Combustion class according to UL 94 HB
Gasket material NBR
Handle material TPU, hardly flammable, self-extinguishing
Contact material CuSn
Contact surface material Ni / Au
Contact insert material TPU GF
Screw material Zinc die-cast, nickel-plated
Mass resistivity ≤ 5 mΩ
Insulation resistance ≥ 100 MΩ
Rated voltage U N 48 V AC
60 V DC
Rated current I N 4 A
Protection circuit without circuit
Conductor connection
Tightening torque 0.2 Nm (M8 connectors)
Maneuver cycles ≥ 100
Connection 1
Head structure free conductor end
Connection 2
Head structure Female
Head cable outlet right
Head thread type M8
Status reporting No
Status indication available No
Cable length 5 m
Line weight 18 kg / km
UL AWM Style 20549/10493 (80 ° C / 300 V)
No. poles 3
Shielded no
Cable type PUR halogen-free black [PUR]
Line signal conductor structure 32x 0.10 mm
AWG signal line 24
Conductor cross section 3x 0.25 mm²
Wire diameter with insulating sheath 1.17 mm ± 0.02 mm
Conductor outer diameter 3.6 mm ± 0.15 mm
Outer sheath, material EVEN THOUGH
Outer sheath, color gray-black RAL 7021
Conductor material Bare Cu wire
Material, wire insulation PP
Single conductor, color brown, blue, black
Wall thickness insulation ≥ 0.21 mm (Wire insulation)
Wall thickness outer sheath ca. 0.5 mm
Whole stranding 3 longitudinally twisted wires
Whole stranding stranding pitch 40 mm
Conductor resistance max. ≤ 78 Ω / km (at 20 ° C)
Insulation resistance ≥ 100 GΩ * km (at 20 ° C)
Rated cable voltage ≤ 300 V
Test voltage ≥ 3000 V
Minimum bending radius, fixed 18 mm
Minimum bending radius, movable 36 mm
Bending cycles, maximum 10000000
Absence of halogens according to DIN VDE 0472 Part 815
Resistance to flame according to UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
Resistance to oil in accordance with DIN EN 60811-2-1
More resistance Resistance to hydrolysis and microbes
Excellent resistance against acids, lyes and solvents
seawater resistant
UV resistant according to DIN EN ISO 4892-2-A
Particular characteristics for e-chain®
silicone free
without paint impregnated substances
Ambient temperature (operation) -40 ° C ... 80 ° C (cables, fixed installation)
-25 ° C ... 80 ° C (Cables, mobile laying)
Line weight 23 kg / km
Cable structure
Cable abbreviation Li9Y11Y-HF
Cable type PUR halogen-free black
Conductor outer diameter 4.40 mm
Outer sheath, material EVEN THOUGH
Outer sheath, color gray-black RAL 7021
Conductor material Bare Cu wire
Line signal conductor structure 32x 0.10 mm
AWG signal line 24
Wire insulation material PP
Wall thickness insulation ≥ 0.38 mm (Wire insulation)
Wire diameter with insulating sheath 1.15 mm ± 0.05 mm
Single conductor, color brown, blue, black
Whole stranding 3 longitudinally twisted wires
Electrical characteristics
Nominal cable voltage 300 V
Cable test voltage 4000 V
Conductor resistance ≤ 77.6 Ω / m
Line insulation resistance ≥ 100 GΩ * km
Mechanical characteristics
Minimum bending radius, mobile laying 44 mm
Number of bending cycles 4000000
Bend radius 44 mm
Positioning stroke 10 m
Positioning speed 3 m / s
Bending cycles
Minimum bending radius, mobile laying 44 mm
Number of bending cycles 4000000
Bend radius 44 mm
Positioning stroke 10 m
Positioning speed 3 m / s
Degree of protection IP65
IP67
IP68
Ambient temperature (operation) -25 ° C ... 90 ° C (female connector / connector)
Standards / regulations IEC 61076-2-104
