Sensor / actuator cable - SAC-5P-M12MS / 5,0-PUR
1669783

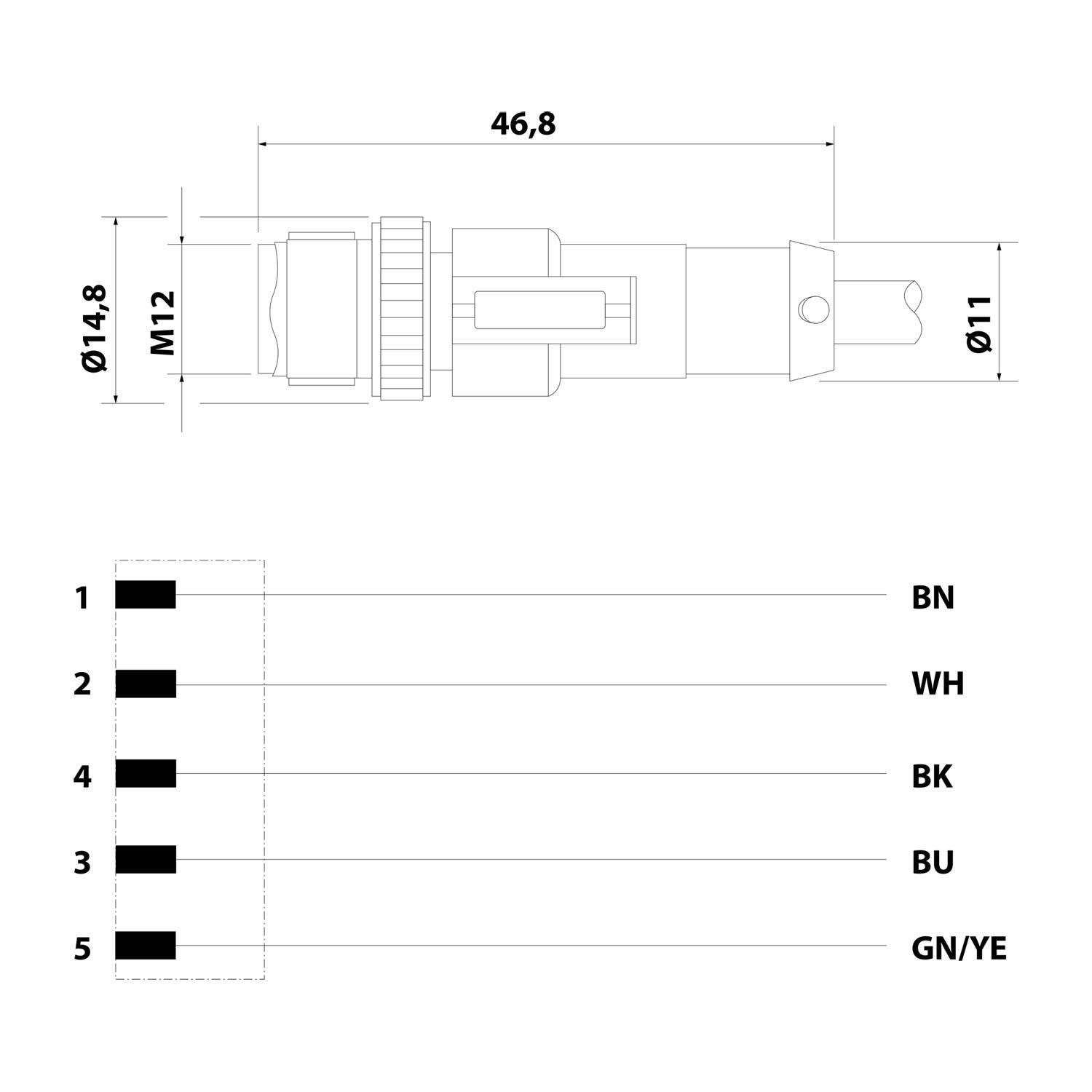

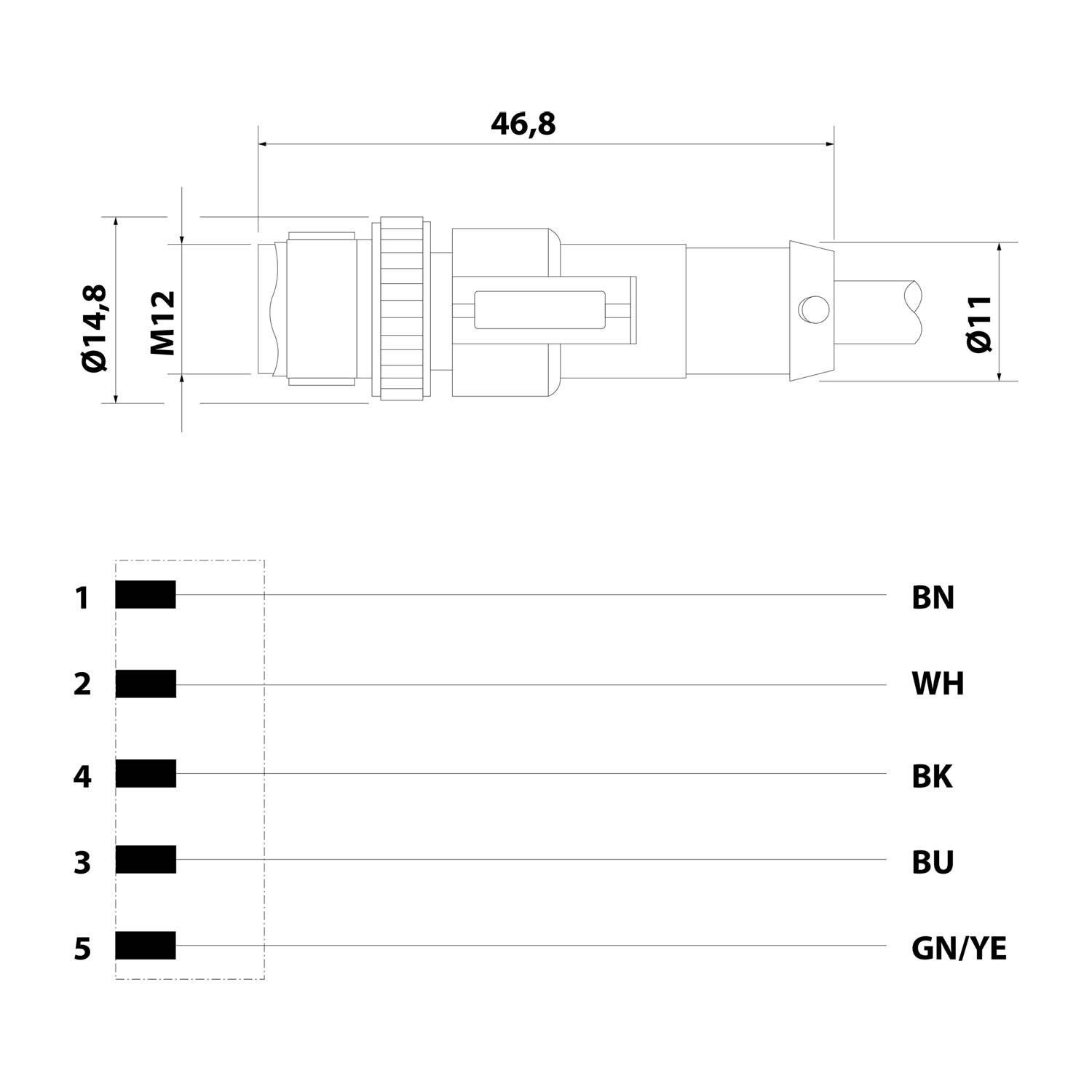

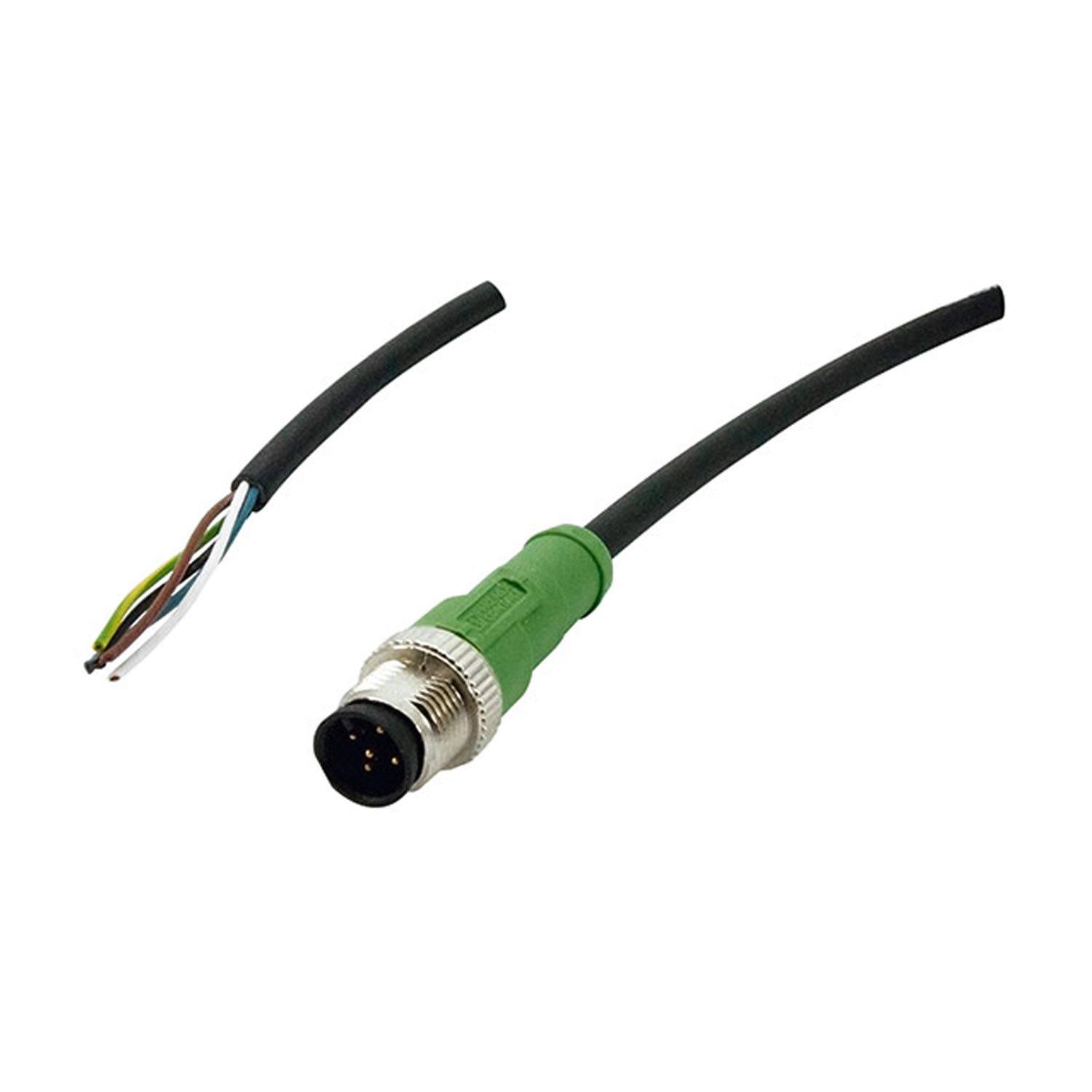

Sensor / actuator cable, 5-pin, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: A, on free cable end, cable length: 5 m
Product type Sensor / actuator cables
No. poles 5
Application Standard
Number of cable outlets 1
Shielded no
Coding A - standard
Features of insulation
Overvoltage category II
Degree of pollution 3
Mass resistivity ≤ 5 mΩ
Insulation resistance ≥ 100 MΩ
Rated voltage U N 48 V AC
60 V DC
Rated current I N 4 A
Protection circuit without circuit
Conductor connection
Tightening torque 0.4 Nm Connector M12
Maneuver cycles ≥ 100
Head 1
Head structure Male
Head cable outlet right
Head thread type M12
Coding TO
Head 2
Head structure free conductor end
Application Standard
No. poles 5
Coding A - standard
Maneuver cycles ≥ 100
Contact material CuSn
Contact surface material Ni / Au
Application Standard
No. poles 5
Coding A - standard
Maneuver cycles ≥ 100
Contact material CuSn
Contact surface material Ni / Au
Application Standard
No. poles 5
Coding A - standard
Maneuver cycles ≥ 100
Contact material CuSn
Contact surface material Ni / Au
Cable length 5 m
Line weight 33 kg / km
UL AWM Style 20549
No. poles 5
Shielded no
Cable type PUR halogen-free black [PUR]
Line signal conductor structure 42x 0.10 mm
AWG signal line 22
Conductor cross section 5x 0.34 mm² (Signal line)
Wire diameter with insulating sheath 1.27mm ± 0.02mm (Signal line)
Conductor outer diameter 4.55 mm ± 0.15 mm
Outer sheath, material EVEN THOUGH
Outer sheath, color gray-black RAL 7021
Conductor material Bare Cu wire
Material, wire insulation PP
Single conductor, color black, brown, blue, white, yellow-green
Wall thickness insulation ca. 0.5 mm
Conductor resistance max. max. 58 Ω / km (at 20 ° C)
Insulation resistance ≥ 16 GΩ * km (at 20 ° C)
Rated cable voltage 300 V
Test voltage 3000 V
Minimum bending radius, fixed 23 mm
Minimum bending radius, movable 46 mm
Bending cycles, maximum 10000000
Absence of halogens according to DIN VDE 0472 Part 815
Resistance to flame according to UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
Resistance to oil in accordance with DIN EN 60811-2-1
More resistance Excellent resistance against acids, lyes and solvents
Resistance to hydrolysis and microbes
seawater resistant
UV resistant according to DIN EN ISO 4892-2-A
Particular characteristics for e-chain®
silicone free
without paint impregnated substances
flexible
Ambient temperature (operation) -40 ° C ... 80 ° C (cables, fixed installation)
-25 ° C ... 80 ° C (Cables, mobile laying)
Line weight 35 kg / km
Cable structure
Cable abbreviation Li9Y11Y-HF
Cable type PUR halogen-free black
Conductor outer diameter 5.00 mm
Outer sheath, material EVEN THOUGH
Outer sheath, color gray-black RAL 7021
Conductor material Bare Cu wire
Line signal conductor structure 42x 0.10 mm
AWG signal line 22
Material filler PP
Wire insulation material PP
Wall thickness insulation ≥ 0.21 mm (Wire insulation)
Wire diameter with insulating sheath 1.27 mm ± 0.05 mm
Single conductor, color brown, blue, white, green / yellow
Whole stranding 5 longitudinally twisted wires
Electrical characteristics
Nominal cable voltage 300 V
Cable test voltage 3000 V
Conductor resistance ≤ 58 Ω / m
Line insulation resistance ≥ 100 GΩ * km
Mechanical characteristics
Number of bending cycles 4000000
Bend radius 50 mm
Positioning stroke 10 m
Positioning speed 3 m / s
Bending cycles
Number of bending cycles 4000000
Bend radius 50 mm
Positioning stroke 10 m
Positioning speed 3 m / s
