Sensoristica industriale Phoenix Contact 1681389

Sensor / actuator cable - SAC-4P-10,0-PUR / M12FR
1681389 PHOENIX

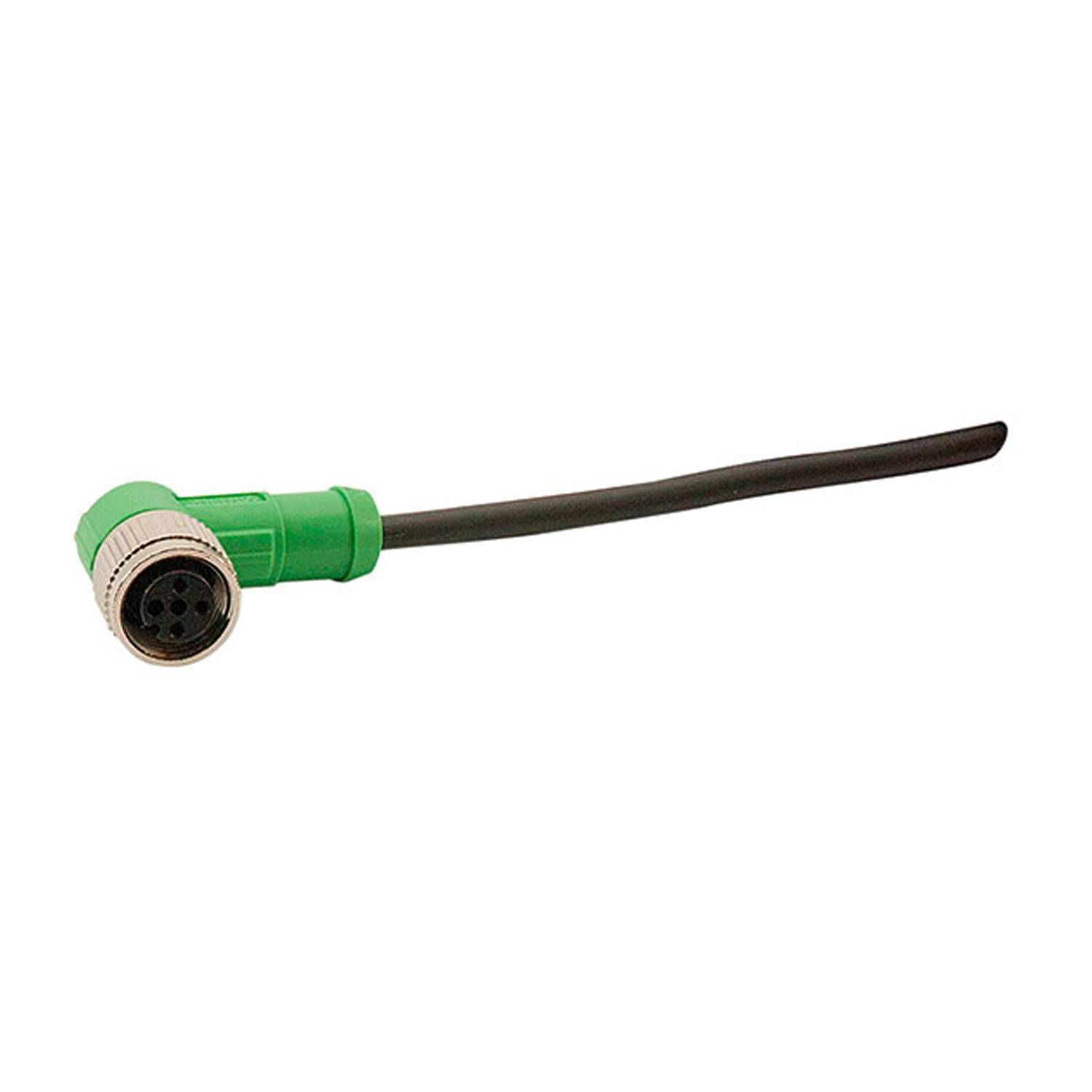

Sensor / actuator cable, 4-pin, PUR halogen-free, black-gray RAL 7021, free cable end, on Socket angled M12, coding: A, cable length: 10 m
Product type Sensor / actuator cables
No. poles 4
Application Standard
Number of cable outlets 1
Shielded no
Coding A - standard
Features of insulation
Overvoltage category II
Degree of pollution 3
Combustion class according to UL 94 HB
Gasket material NBR
Handle material TPU, hardly flammable, self-extinguishing
Contact material CuSn
Contact surface material Ni / Au
Contact insert material TPU GF
Screw material Zinc die-cast, nickel-plated
Mass resistivity ≤ 5 mΩ
Insulation resistance ≥ 10 MΩ
Rated voltage U N 250 V AC
250 V DC
Rated current I N 4 A
Protection circuit without circuit
Conductor connection
Tightening torque 0.4 Nm (M12 connector)
Maneuver cycles ≥ 100
Connection 1
Head structure free conductor end
Connection 2
Head structure Female
Head cable outlet angled
Head thread type M12
Coding TO
Status reporting No
Status indication available No
Cable length 10 m
Line weight 30 kg / km
UL AWM Style 20549/10493 (80 ° C / 300 V)
No. poles 4
Shielded no
Cable type PUR halogen-free black [PUR]
Line signal conductor structure 42x 0.10 mm
AWG signal line 22
Conductor cross section 4x 0.34 mm² (Signal line)
Wire diameter with insulating sheath 1.27 mm ± 0.02 mm
Conductor outer diameter 4.2 mm ± 0.15 mm
Outer sheath, material EVEN THOUGH
Outer sheath, color gray-black RAL 7021
Conductor material Bare Cu wire
Material, wire insulation PP

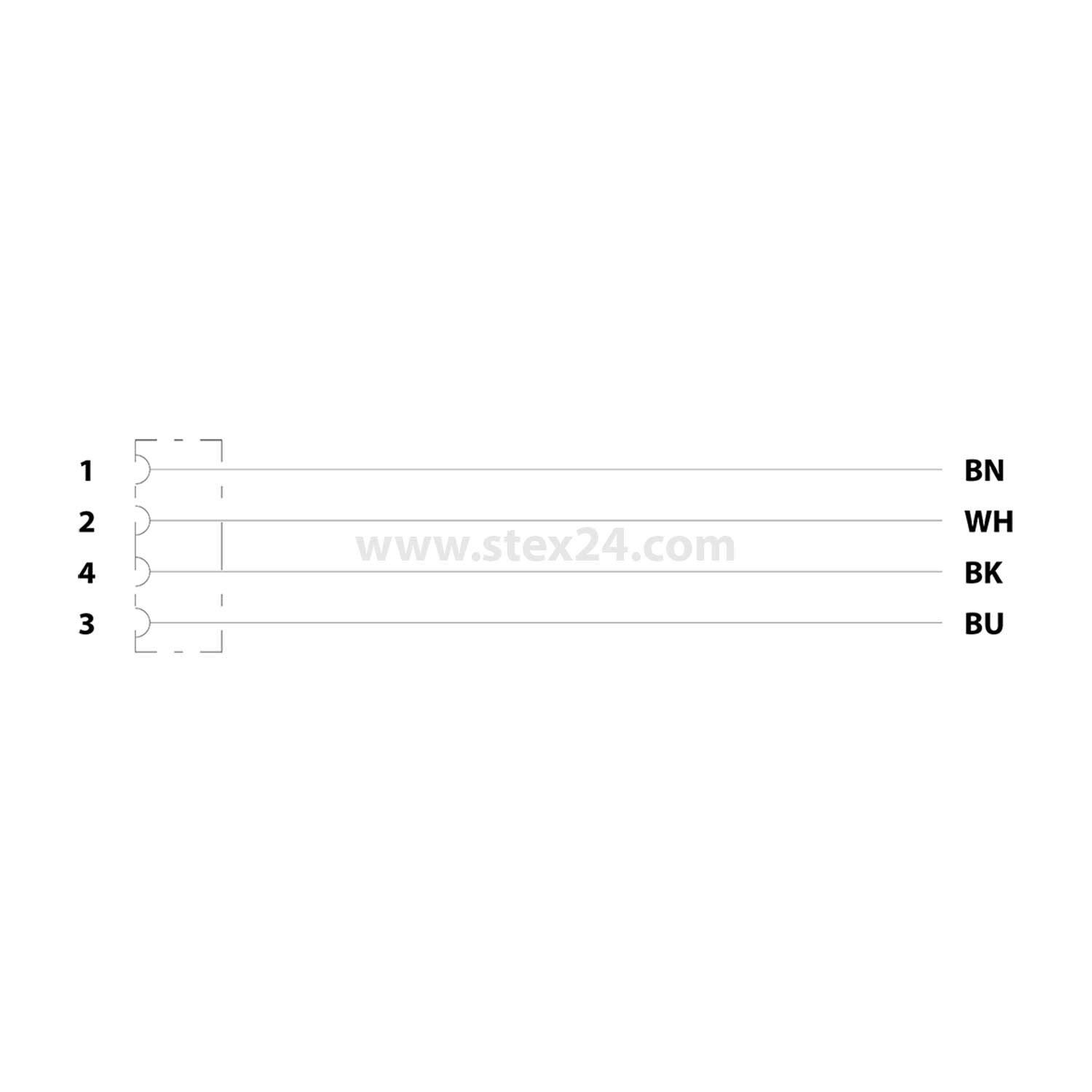

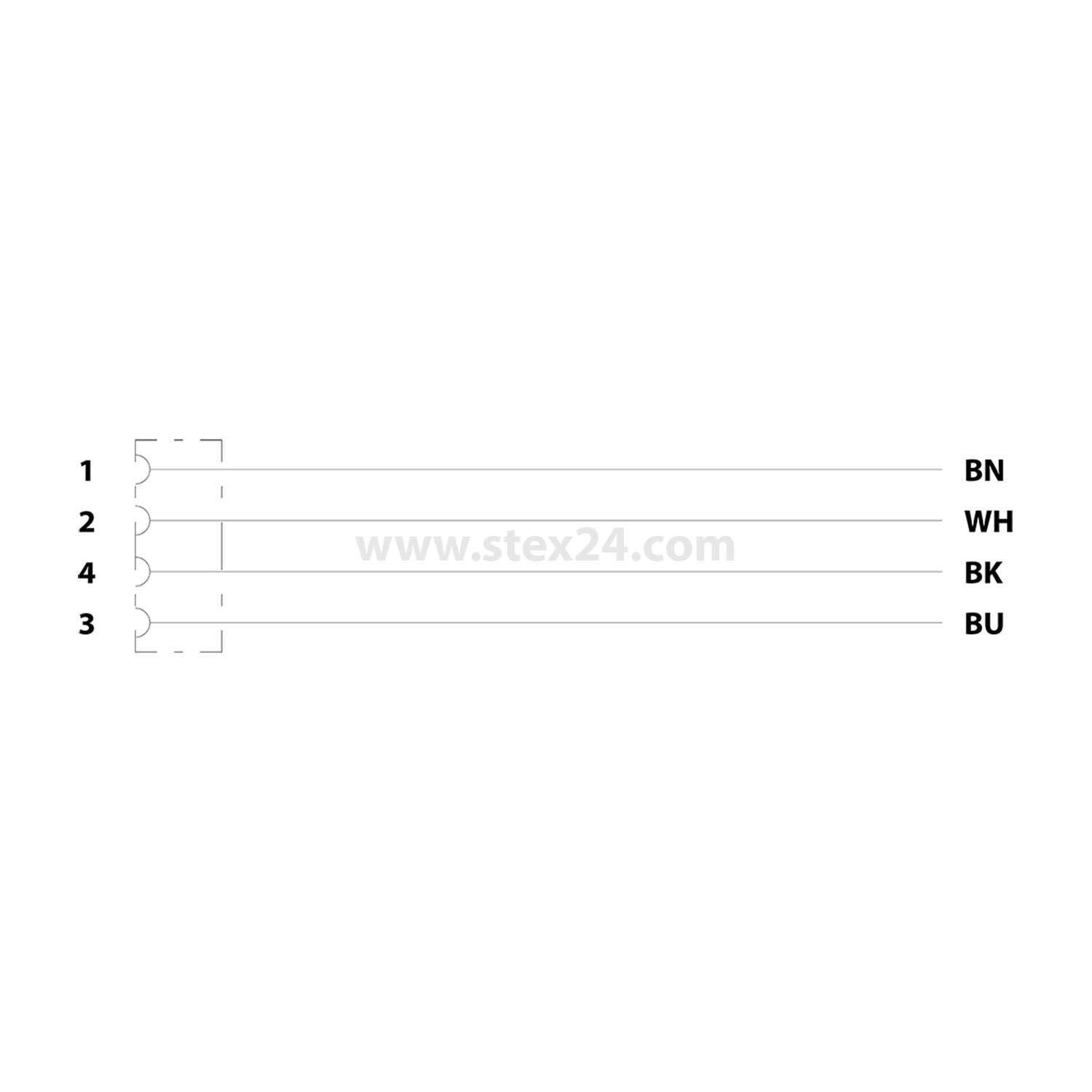

Single conductor, color brown, white, blue, black
Wall thickness insulation ≥ 0.21 mm
Wall thickness outer sheath ca. 0.5 mm
Whole stranding 4 longitudinally twisted wires
Conductor resistance max. ≤ 58 Ω / km
Insulation resistance ≥ 1 GΩ * km
Rated cable voltage ≤ 300 V
Test voltage ≥ 3000 V
Minimum bending radius, fixed 5 x D
Minimum bend radius, flexible 10 x D
Bending cycles, maximum 10000000
Absence of halogens according to DIN VDE 0472 Part 815
in accordance with DIN EN 50267-2-1
Resistance to flame according to UL 758/1581 FT2
DIN EN 60332-2-2 (20 s)
Resistance to oil in accordance with DIN EN 60811-2-1
More resistance Excellent resistance against acids, lyes and solvents
Resistance to hydrolysis and microbes
UV resistant according to DIN EN ISO 4892-2-A
non-adherent
abrasion resistant
Particular characteristics for e-chain®
silicone free
without paint impregnated substances
flexible
Ambient temperature (operation) -40 ° C ... 80 ° C (cables, fixed installation)
-25 ° C ... 80 ° C (Cables, mobile laying)
Degree of protection IP65
IP67
IP68
Ambient temperature (operation) -25 ° C ... 90 ° C (female connector / connector)
Standards / regulations IEC 61076-2-101
