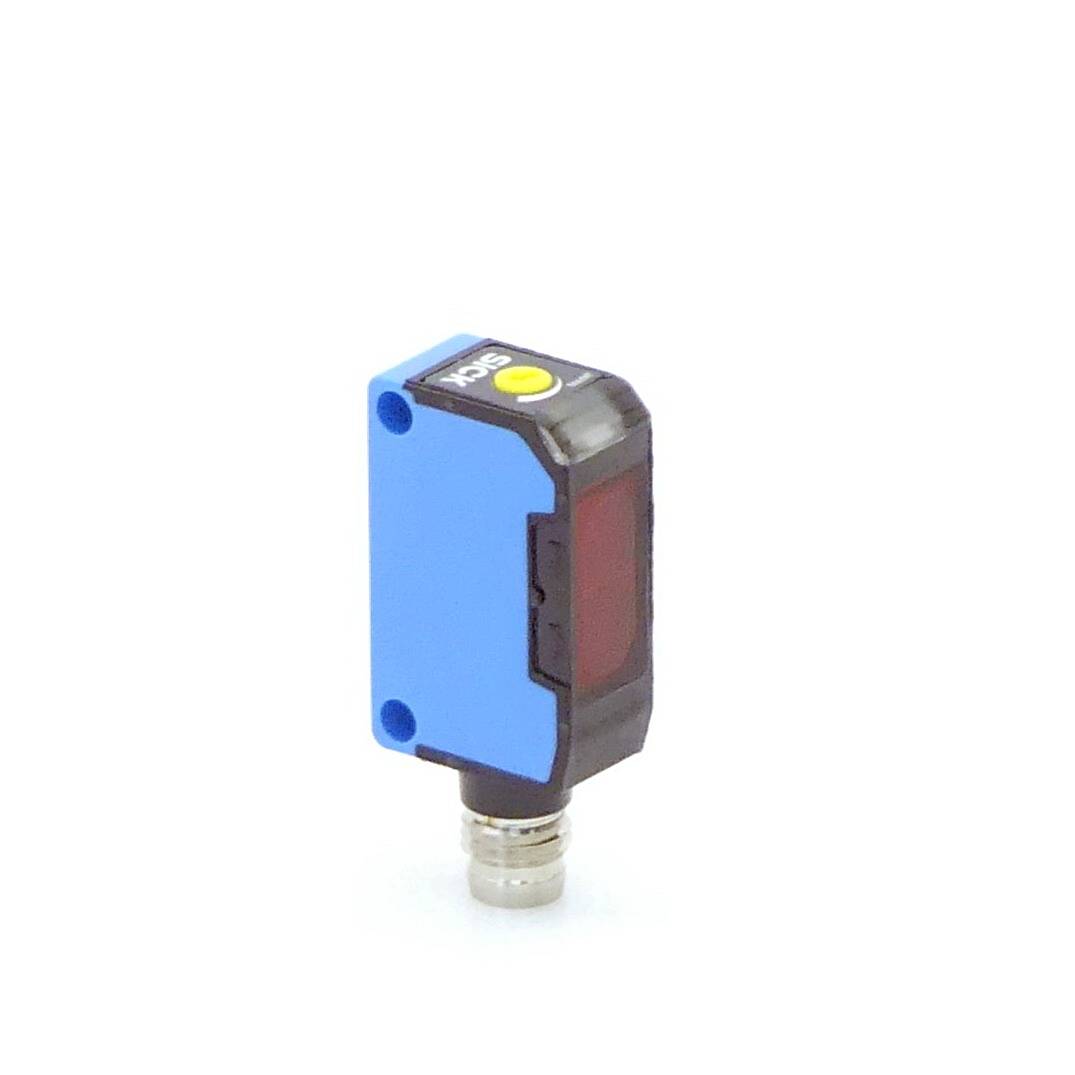

Sensoristica industriale SICK WL150-P430

W150 miniature photocells
Guy:
WL150-P430
Art. Code:
6011038
Features
Type of sensor / detection principle Photoelectric reflector sensor, Double lens
Dimensions (W x H x D) 10mm x 28mm x 17.5mm
Light emitting point In the shape of a parallelepiped
Distance max. detection 0 m … 2.4 m 1)
Detection distance 0.01 m … 2 m 1)
Focus About 6 °
Nature of light Visible red light
Light source LED 2)
Radiation angle About 6 °
Setting Potentiometer, 270 °
1) PL80A reflector.
2) Average duration 100,000 h with T U = + 25 °° C.
Mechanical and electrical characteristics
Supply voltage 10 V DC … 30 V DC – Limit values.
Residual ripple ± 10% – U v Cannot overshoot or undershoot the tolerance values.
Current consumption 20 mA – Without load.
Switching output PNP
Switching type Light on / dark on operation
Selectable switching mode Selectable via L / D control cable
Output current I max. ≤ 100 mA
Response time ≤ 0.5 ms – Signal duration with ohmic load.
Switching frequency 1,000 Hz – With 1: 1 light / dark ratio.

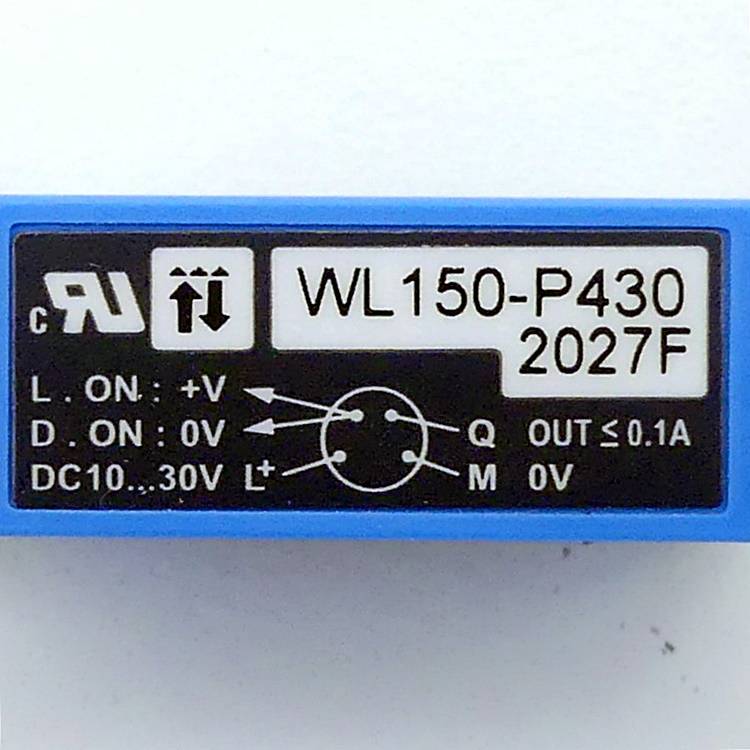

Connection type Male connector M8, 4 poles
Protection switches
A = U V connections protected against polarity inversion.
B = inputs and outputs protected from reverse polarity.
C = Suppression of interference pulses.
D = Overcurrent and short circuit protected outputs.
Protection class II
Weight 7 g
Polarizer ✔
Housing material Plastic, ABS
Material, optics Plastic, PMMA
Degree of protection IP67
Scope of supply Fixing angle BEF-W150-A, Reflector PL20A
Ambient operating temperature –25 ° C … +55 ° C
Ambient storage temperature –40 ° C … +75 ° C
UL-File-Nr. NRNT2.E128350 & NRNT8.E128350
Classifications
ECl @ ss 5.0 27270902
ECl @ ss 5.1.4 27270902
ECl @ ss 6.0 27270902
ECl @ ss 6.2 27270902
ECl @ ss 7.0 27270902
ECl @ ss 8.0 27270902
ECl @ ss 8.1 27270902
ECl @ ss 9.0 27270902
ECl @ ss 10.0 27270902
ECl @ ss 11.0 27270902
ETIM 5.0 EC002717
ETIM 6.0 EC002717
ETIM 7.0 EC002717
ETIM 8.0 EC002717
UNSPSC 16.0901 39121528
