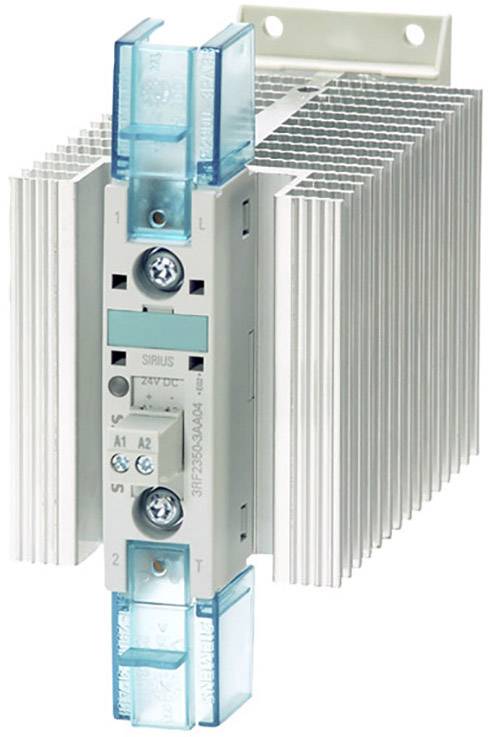

Siemens 3RF2350-3AA24 Protezione dei semiconduttori Commutazione zero crossing 1 NA 50 A 1 pz.
EAN:
Codice produttore
Articolo n°:
Tipo prodotto
Protezione dei semiconduttori
Numero poli
1 polo
Corrente di carico
50 A
Collegamento
Occhiello da 5 mm
Occhiello da 3 mm
Tipo
3RF2350-3AA24
Scheda tecnica (PDF)
Quantità (Pezzo(i))
Risparmio
Prezzo dell'imballaggio (IVA escl.)
1
-
110,65 €
3
3% = 3,07 €
107,58 €
5
4% = 4,30 €
106,35 €
10
5% = 5,12 €
105,53 €
25
5% = 6,04 €
104,61 €
I prezzi a scala possono variare a seconda del venditore
Risparmio 0,00 €
Numero
Totale (110,65 € / Pezzo)
110,65 €
IVA escl.
Spedizione gratuita
Dati tecnici
- Peso: 480 g
- Potenza dissipata: 54 W
- Tipo prodotto
Protezione dei semiconduttori
- Tipo
3RF2350-3AA24
- Numero poli
1 polo
- Tipo di commutazione
Commutazione zero crossing
- Tipo contatto
1 NA
- Tensione di comando (min.)
110 V/AC
- Tensione di comando (max.)
230 V/AC
- Range tensione di controllo
110 - 230 V/AC
- Tensione di commutazione (min.)
48 V/AC
- Tensione di commutazione max
460 V/AC
- Corrente di carico
50 A
- Tipo di montaggio
Guida DIN
- Collegamento
Occhiello da 5 mm
Occhiello da 3 mm
- Tempo di risposta
40 ms
IP00
- Min. temperatura
-25 °C
- Temperatura max.
+60 °C

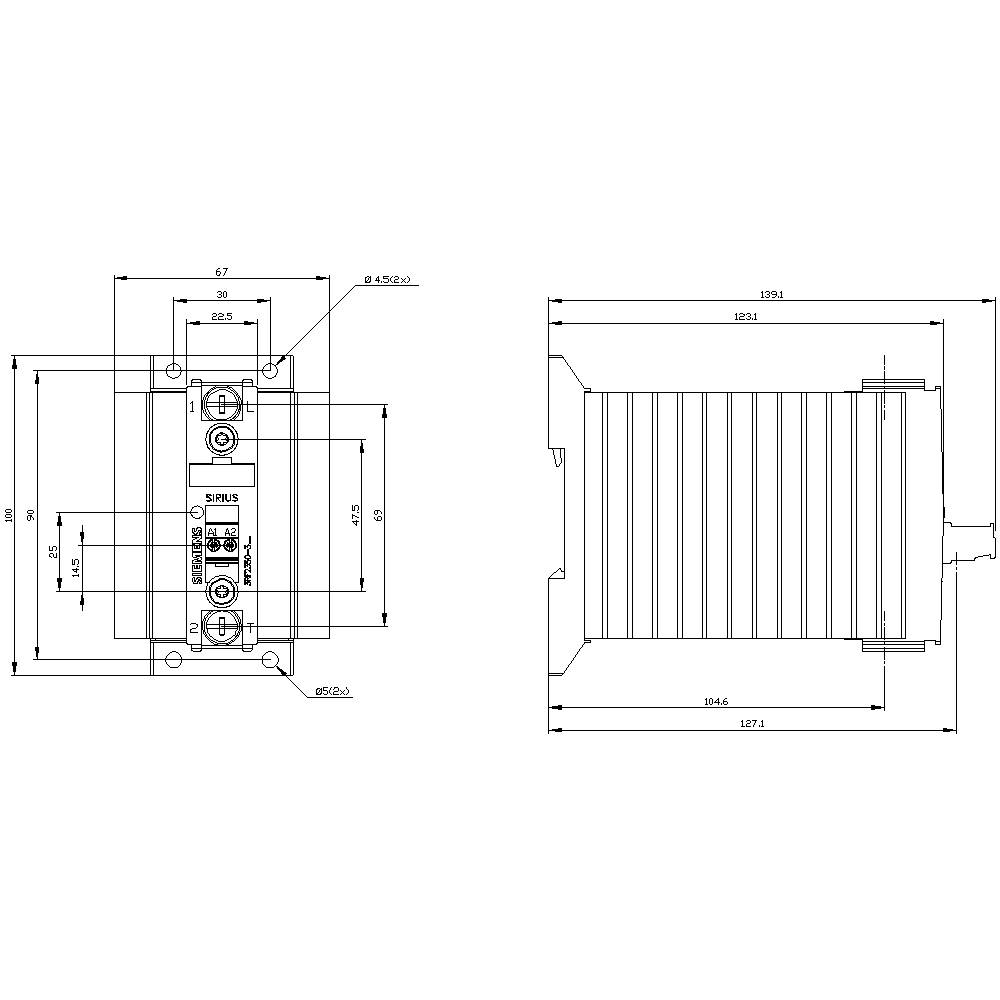

- Larghezza
67.5 mm
- Altezza
100 mm
- Profondità
142 mm
- Dim.
(L x A x P) 67.5 x 100 x 142 mm
- Contenuto
1 pz.
- Compatibile RoHS
Sì
1
TRUE
50 A
AC
50 A
- UKCA
Non rilevante
Documenti & Download
Scheda tecnica
Scheda tecnica 1431027 Siemens 3RF2350-3AA24 Protezione dei semiconduttori Commutazione zero crossing 1 NA 50 A 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1431027 Siemens 3RF2350-3AA24 Protezione dei semiconduttori Commutazione zero crossing 1 NA 50 A 1 pz.
Descrizione
Solid-state contactor 1-phase 3RF2 AC 51 / 50 A / 40 °C 48-460 V / 110-230 V AC Ring cable connection solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
