Siemens 3RF2370-1BA26 Protezione dei semiconduttori Commutazione immediata 1 NA 70 A 1 pz.
EAN:
Codice produttore
Articolo n°:
Tipo prodotto
Protezione dei semiconduttori
Numero poli
1 polo
Corrente di carico
70 A
Collegamento
Morsetto a vite
Tipo
3RF2370-1BA26
Scheda tecnica (PDF)
Numero
Totale (168,02 € / Pezzo)
168,02 €
IVA escl.
Spedizione gratuita
Dati tecnici
- Peso: 1.233 kg
- Potenza dissipata: 83 W
- Tipo prodotto
Protezione dei semiconduttori
- Tipo
3RF2370-1BA26
- Numero poli
1 polo
- Tipo di commutazione
Commutazione immediata
- Tipo contatto
1 NA
- Tensione di comando (min.)
110 V/AC
- Tensione di comando (max.)
230 V/AC
- Range tensione di controllo
110 - 230 V/AC
- Tensione di commutazione (min.)
48 V/AC
- Tensione di commutazione max
600 V/AC
- Corrente di carico
70 A
- Tipo di montaggio
Montaggio a vite
- Collegamento
Morsetto a vite
- Tempo di risposta
40 ms
IP20
- Min. temperatura
-25 °C
- Temperatura max.
+60 °C

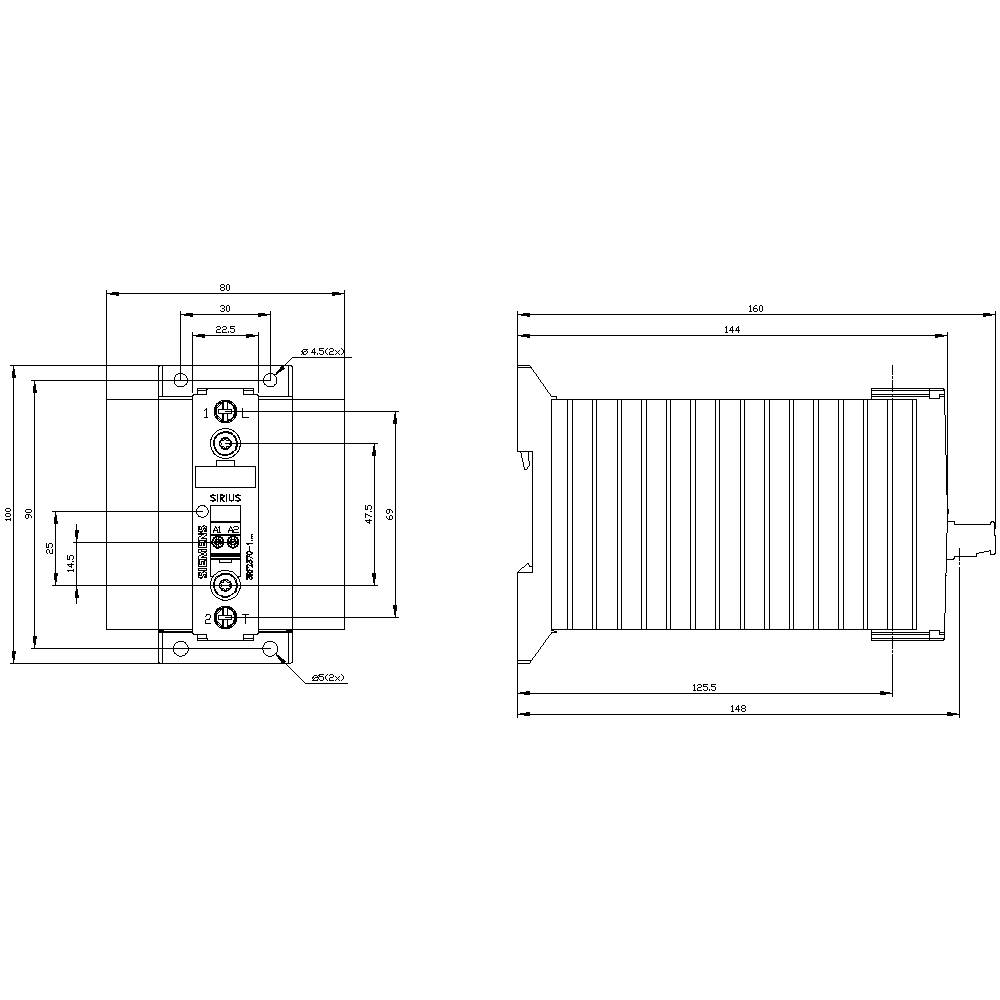

- Larghezza
80 mm
- Altezza
100 mm
- Profondità
161.5 mm
- Dim.
(L x A x P) 80 x 100 x 161.5 mm
- Contenuto
1 pz.
- Compatibile RoHS
Sì
1
TRUE
50 A
AC
50 A
- UKCA
Non rilevante
Documenti & Download
Scheda tecnica
Scheda tecnica 1430994 Siemens 3RF2370-1BA26 Protezione dei semiconduttori Commutazione immediata 1 NA 70 A 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1430994 Siemens 3RF2370-1BA26 Protezione dei semiconduttori Commutazione immediata 1 NA 70 A 1 pz.
Descrizione
Solid-state contactor 1-phase 3RF2 AC 15 / 27.5 A / 40 °C 48-600 V / 110-230 V AC Instantaneous switching Since 21 May 2018, the dimensions and the drill pattern have changed, additional information in the Industry Online Support solid-state contactor SIRIUS 3RF23 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Testo tradotto automaticamente
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. As the heat sink is already integrated, they can be used directly in the control cabinet. The compact design saves space on the mounting rail. The solid-state contactors can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state contactors are available as single-phase or three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
