Siemens 3RV2011-1KA10 Interruttore 1 pz. Regolazione (corrente): 9 - 12.5 A Tens.comm.max: 690 V/AC (L x A x P) 45 x 97
EAN:
Codice produttore
Articolo n°:
Tipo prodotto
Interruttore
Impostazione corrente (max.)
12.5 A
Collegamento
A vite
Tipo
3RV2011-1KA10
Dimensione
S00
Scheda tecnica (PDF)
12 Pezzo(i)
Vendita e spedizione:
spedizione gratuita a partire da 199,00 € valore dell'ordine con questo fornitore
Numero
Totale
39,00 €
Prodotto proveniente da altro paese EU (IVA 0%)
12,90 €
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Modello: per protezione motore
- Modello della filettatura: M3
- Peso: 349 g
- Durata meccanica: 100000
- Durata elettrica: 100000
- Tensione di isolamento: 690 V
- Potenza dissipata: 7 W
- Frequenza: 50/60 Hz
- Tipo prodotto
Interruttore
- Tipo
3RV2011-1KA10
- Dimensione
S00
- Impostazione corrente (min.)
9 A
- Impostazione corrente (max.)
12.5 A
- Regolazione
9 - 12.5 A
- Numero poli
3 poli
- Tensione di commutazione max
690 V/AC
- Tipo di montaggio
Guida DIN
- Min. temperatura
-20 °C
- Temperatura max.
+60 °C
- Collegamento
A vite
IP20

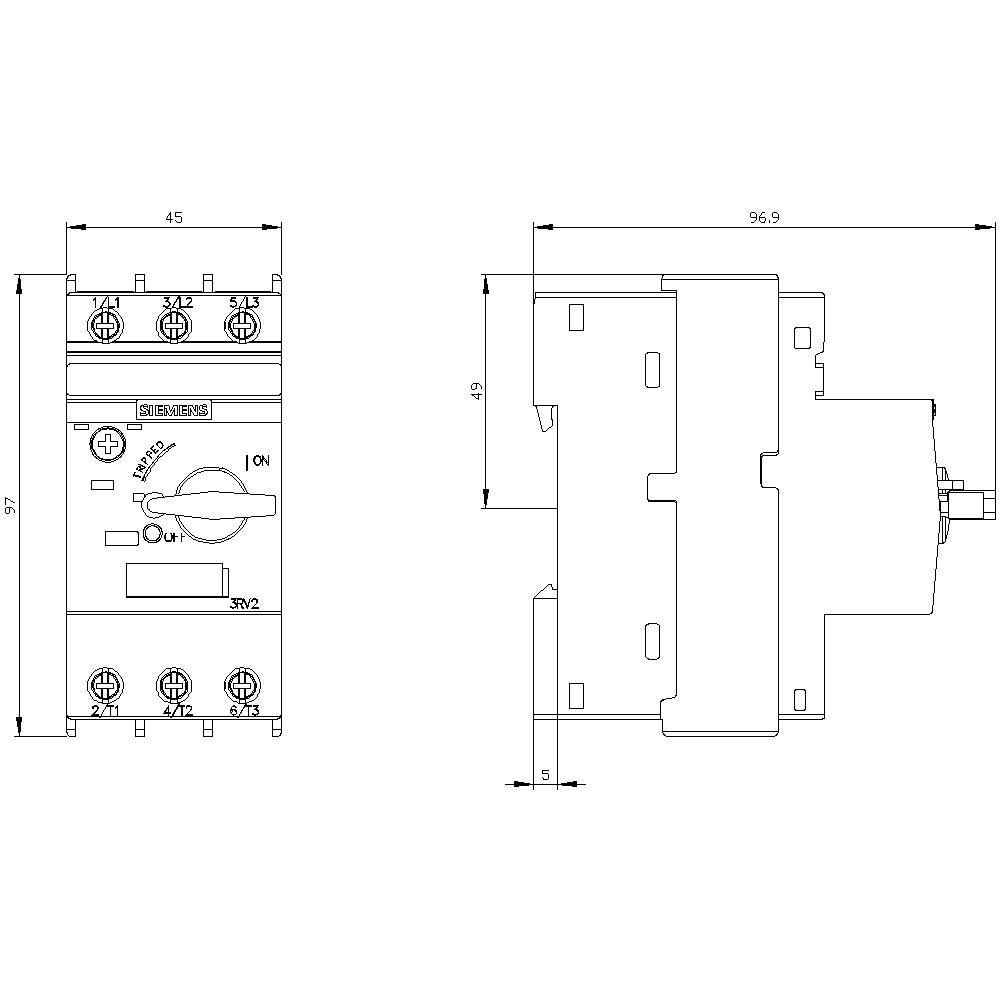

- Profondità
97 mm
- Larghezza
45 mm
- Altezza
97 mm
- Dim.
(L x A x P) 45 x 97 x 97 mm
- Contenuto
1 pz.
- Compatibile RoHS
Sì
45
97 mm
97 mm
5.5 kW
FALSE
12.5 A
FALSE
3
690-690 V
9-12.5 A
IP20
TRUE
Screw connection
Turn button
Magnetic
3 kW
100 kA
TRUE
Built-in device fixed built-in technique
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1431167 Siemens 3RV2011-1KA10 Interruttore 1 pz. Regolazione (corrente): 9 - 12.5 A Tens.comm.max: 690 V/AC (L x A x P) 45 x 97
Scheda tecnica 1431167 Siemens 3RV2011-1KA10 Interruttore 1 pz. Regolazione (corrente): 9 - 12.5 A Tens.comm.max: 690 V/AC (L x A x P) 45 x 97
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1431167 Siemens 3RV2011-1KA10 Interruttore 1 pz. Regolazione (corrente): 9 - 12.5 A Tens.comm.max: 690 V/AC (L x A x P) 45 x 97
Descrizione
Circuit breaker size S00 for motor protection, CLASS 10 A-release 9...12 A N-release 163 A screw terminal Standard switching capacity Circuit breaker SIRIUS 3RV2 For motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for safe isolation of the system from the network.
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.

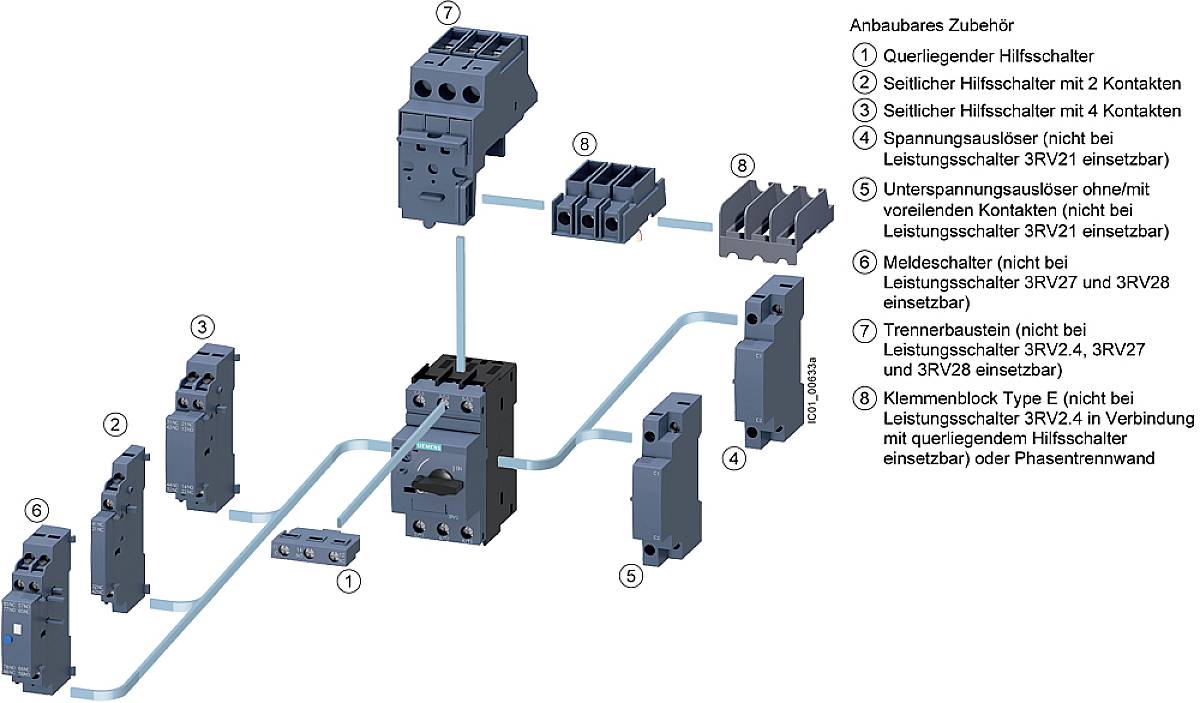

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
Testo tradotto automaticamente
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
