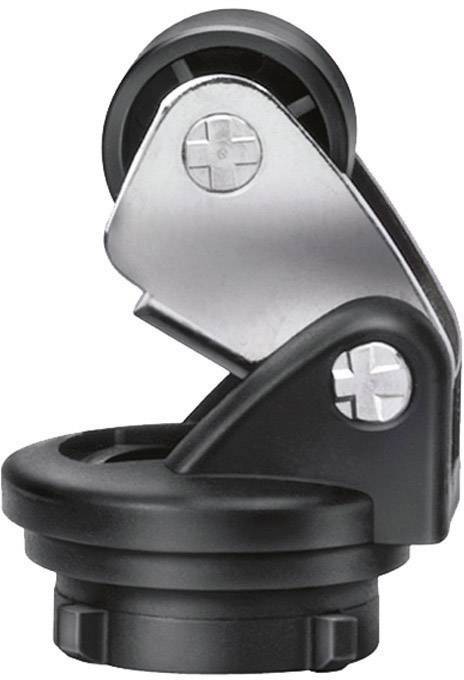

Siemens 3SE50000AE10 3SE5000-0AE10 Testa azionamento Leva in metallo Leva con rotella Nero 1 pz.
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Numero
Totale
6,00 €
Prodotto proveniente da altro paese EU (IVA 0%)
19,90 €
Solo 5 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici

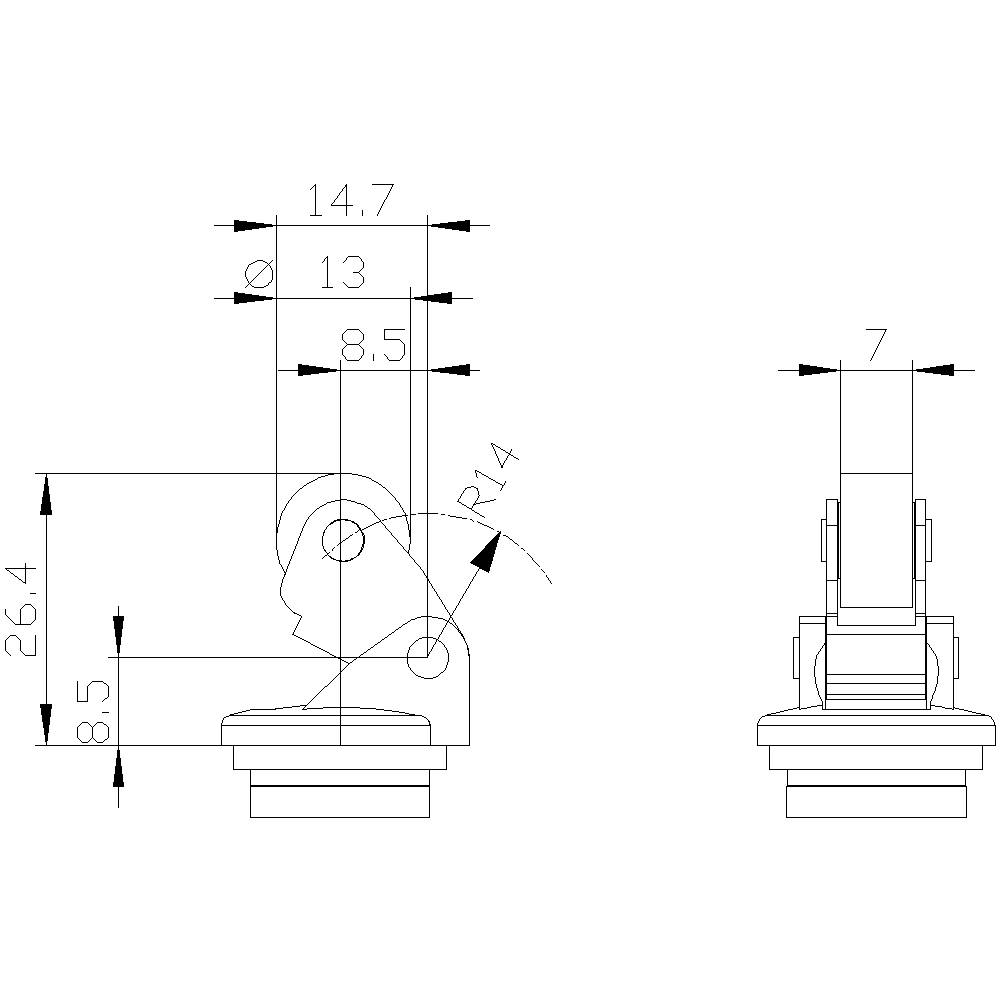

- Testa di azionamento per interruttore di posizione 3SE51/52 Leva a rullo, forma E, con leva in metallo e rullo in plastica 13 mm secondo DIN EN 50047
- Tipo prodotto
Testa azionamento
- Caratteristiche
Leva in metallo
- Tipo di illuminazione
Senza
- Tipo lampadina
LED (monocolore)
- Azionamento
Leva con rotella
- Colore
Nero
- Colore alloggiamento
Nero
- Serigrafia
Senza
- Collegamento
spina M12
- Durata meccanica
1,5E7
- Modello
Rullo in plastica
- Min. temperatura
-25 °C
- Temperatura max.
+85 °C
- Diametro
13 mm
- Adatto per
Interruttore di posizione 3SE51/52
- Contenuto
1 pz.
- Dim.
(Ø) 13 mm
- Compatibile RoHS
Sì
- Peso
15 g
- Tipo
3SE5000-0AE10
- Tipo
3SE5000-0AE10
Other
None
None
None
Roller lever
None
Roller cam straight
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 703007 Siemens 3SE50000AE10 3SE5000-0AE10 Testa azionamento Leva in metallo Leva con rotella Nero 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 703007 Siemens 3SE50000AE10 3SE5000-0AE10 Testa azionamento Leva in metallo Leva con rotella Nero 1 pz.
Descrizione
Actuator head for position switch 3SE51/52 Roller lever, Form E, with Metal lever and Plastic roller 13 mm according to EN 50047 actuator head for position switch SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
Testo tradotto automaticamente
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
