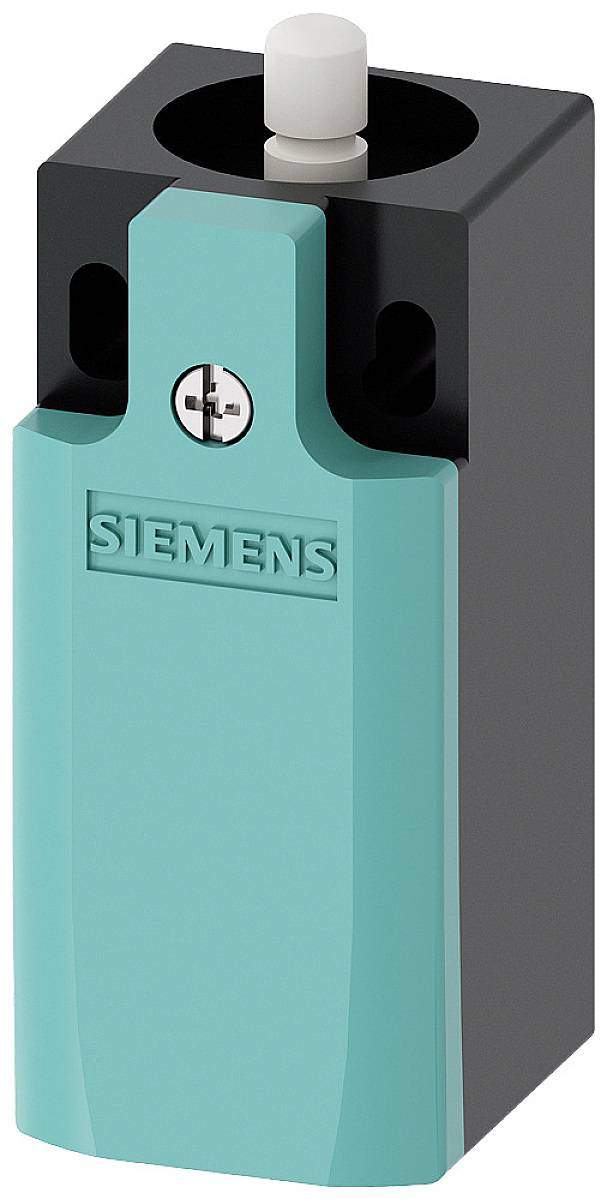

Siemens 3SE52320LC05 3SE5232-0LC05 Fine corsa 240 V/AC 1.5 A Pistone Momentaneo IP67 1 pz.
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Quantità (Pezzo(i))
Risparmio
Prezzo dell'imballaggio (IVA escl.)
1
-
62,29 €
3
3% = 1,72 €
60,57 €
5
4% = 2,42 €
59,87 €
10
5% = 2,88 €
59,41 €
25
5% = 3,40 €
58,89 €
I prezzi a scala possono variare a seconda del venditore
Risparmio 0,00 €
Numero
Totale (62,29 € / Pezzo)
62,29 €
IVA escl.
Diritto di reso di 14 giorni incluso
Dati tecnici
- Interruttore di posizione Custodia in plastica secondo DIN EN 50047, 31 mm Collegamento dispositivo 1 x (M20 x 1,5) 1S/2Ö Contatti a scatto Pistone a cupola, forma B
- Tipo di imballaggio
Pezzo
- Tipo prodotto
Fine corsa
- Collegamento
A vite
- Azionamento
Pistone
- Tensione di commutazione
240 V/AC
- Corrente di commut. max.
1.5 A
- Tipo contatto
1 NA
2 NC
- Apertura di contatto
Contatto a scatto
- Funzioni
Momentaneo
IP67
- Diam. foro montaggio
M20
- Materiale
Plastica
- Larghezza
31 mm
- Tipo
3SE5232-0LC05
- Contenuto
1 pz.

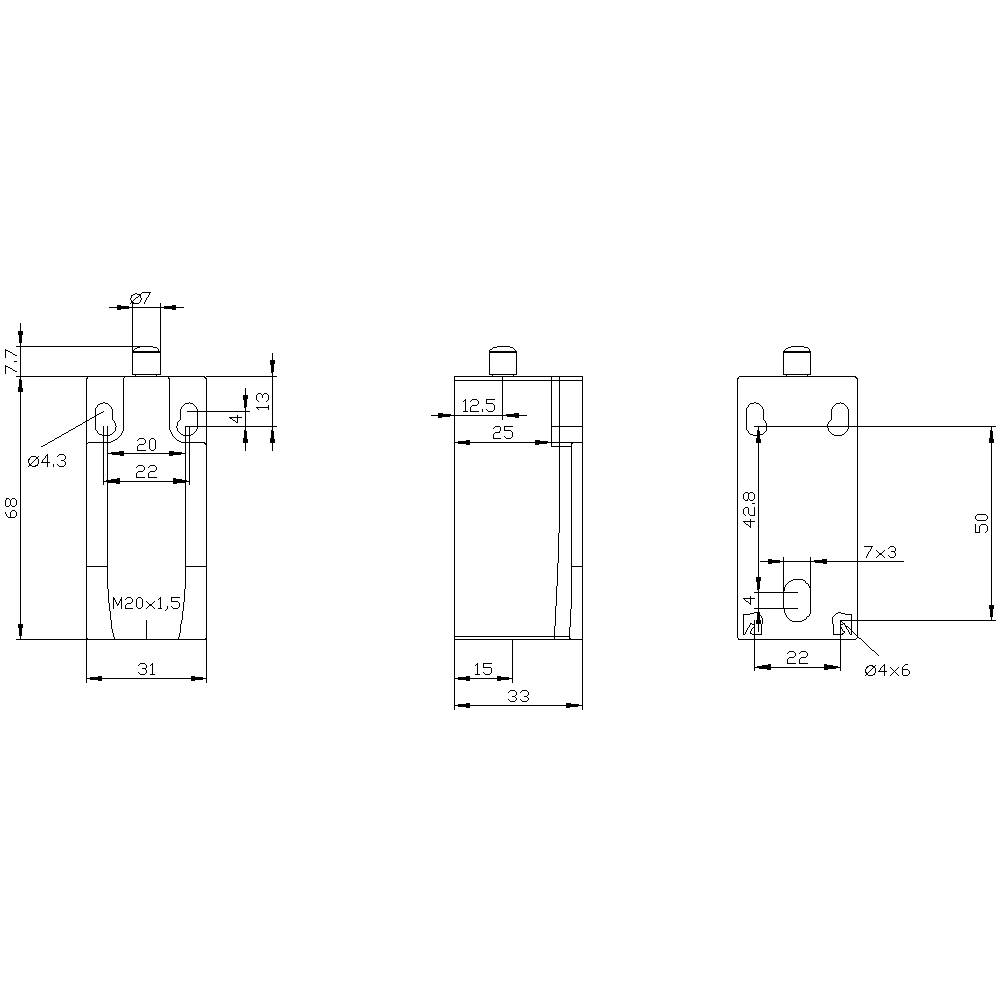

- Dim.
(L x L x A) 31 x 31 x 68 mm
- Compatibile RoHS
Sì
- Altezza
68 mm
- Lunghezza
31 mm
- Profondità
33 mm
- Tensione di commutazione
240 V/AC
- Corrente di commutazione
1,5 A
- Tipo
3SE5232-0LC05
- Collegamento
Collegamento a vite M20 x 1,5 mm
- Intervallo di temperatura
-25 - +85 °C
- Case
Alloggiamento in plastica
Quick-break switch
Plastic
TRUE
Other
FALSE
None
None
None
Cuboid
IP65
TRUE
2
Plunger
None
FALSE
6 A
0.55 A
3 A
31 mm
33 mm
75.7 mm
FALSE
-25-85 °C
2
1
0
Roller cam straight
12
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 703033 Siemens 3SE52320LC05 3SE5232-0LC05 Fine corsa 240 V/AC 1.5 A Pistone Momentaneo IP67 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 703033 Siemens 3SE52320LC05 3SE5232-0LC05 Fine corsa 240 V/AC 1.5 A Pistone Momentaneo IP67 1 pz.
Descrizione
Position switch Plastic enclosure according to EN 50047, 31 mm Device connection 1 x (M20 x 1.5) 1 NO/2 NC quick action contacts Rounded plunger, Form B with Teflon plunger Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.

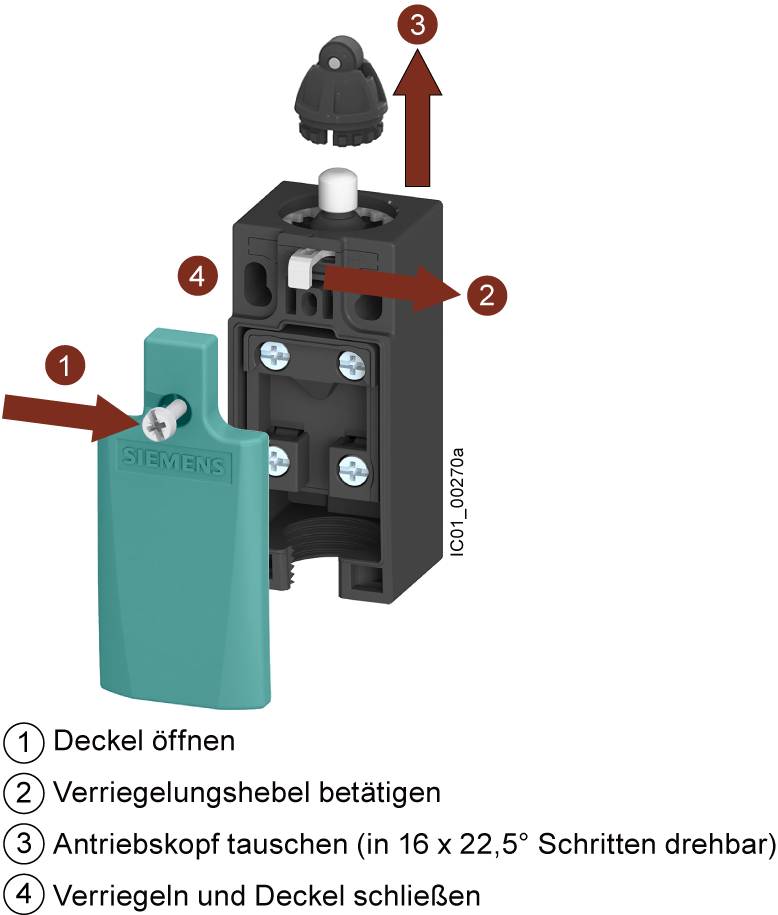

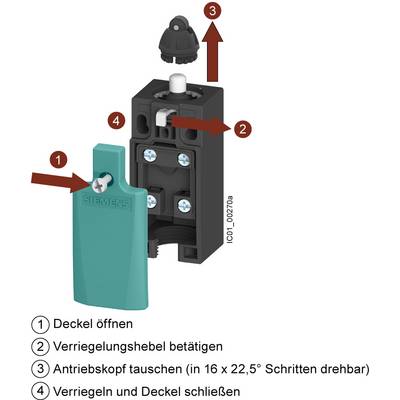

Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
Testo tradotto automaticamente
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.
Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.
