Dati tecnici
- Materiale dell'elemento di azionamento: plastica
- Tipo prodotto
Spia luminosa
- Modello
Elemento di segnalazione/sono disponibili
- Colore
Bianco
- Ø Foro di montaggio
22 mm
n.rel.

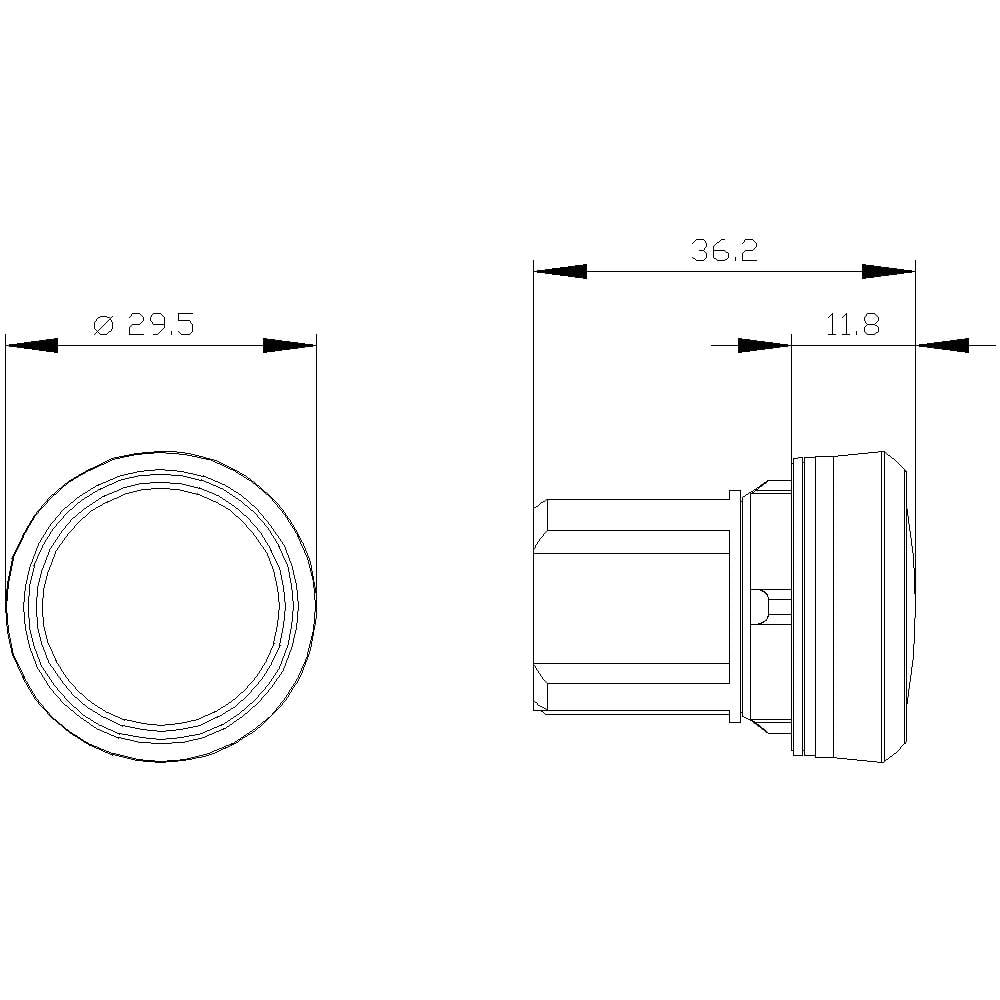

- Dim.
(Ø x A) 29.45 mm x 29.5 mm
- Collegamento
Elemento di contatto a LED
- Contenuto
1 pz.
- Larghezza
29.5 mm
- Altezza
29.5 mm
- Diametro
29.45 mm
- Compatibile RoHS
Sì
- Caratteristiche
piatto
IP66
IP67
IP69/IP69K
- Temperatura max.
+70 °C
- Min. temperatura
-25 °C
- Tipo
3SU1001-6AA60-0AA0
22.3 mm
Other
Other
IP67/IP69K
29.5 mm
11.8 mm
Other
FALSE
Round
1
High
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1379591 Siemens 3SU1001-6AA60-0AA0 Spia luminosa piatto Bianco 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1379591 Siemens 3SU1001-6AA60-0AA0 Spia luminosa piatto Bianco 1 pz.
Informazioni
Informazioni 1379591 Siemens 3SU1001-6AA60-0AA0 Spia luminosa piatto Bianco 1 pz.
Descrizione
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.

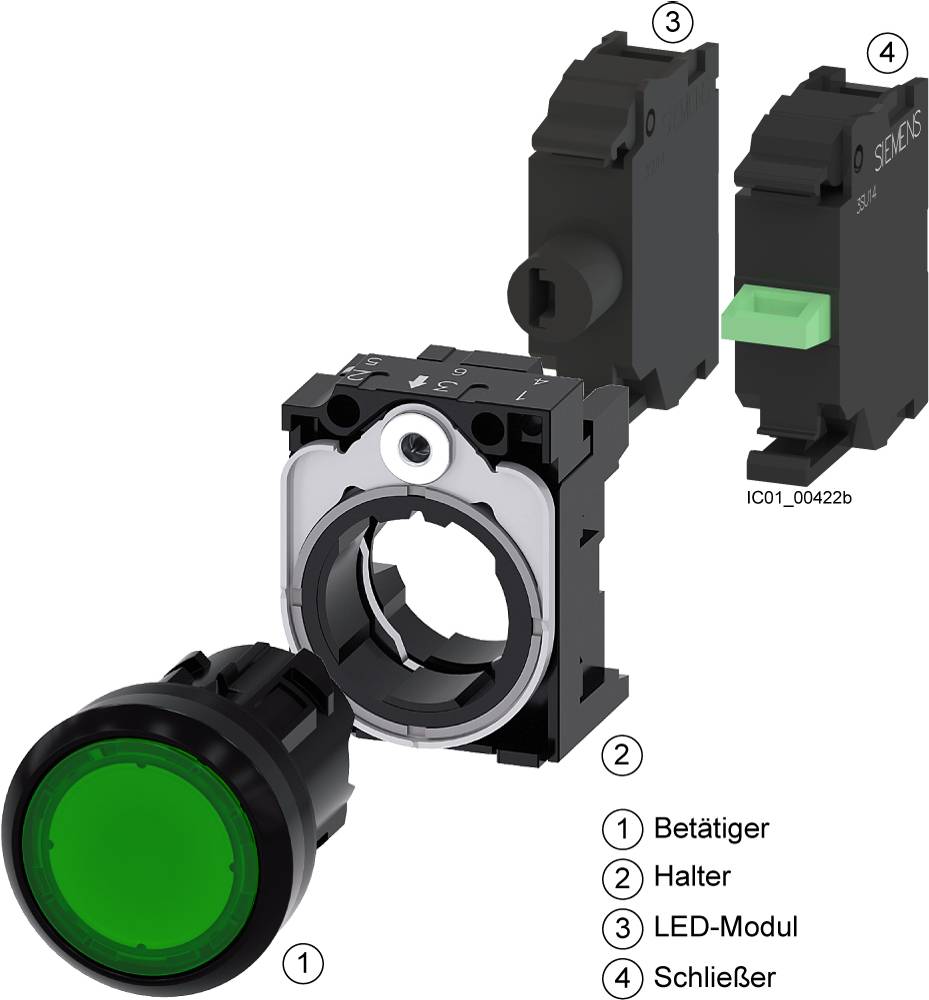

An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
