Siemens 3SU10510AB300AA0 3SU1051-0AB30-0AA0 Pulsante illuminato Piatto, Anello frontale in metallo, Lucido Pulsante Gial
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
5 Pezzo(i)
Vendita e spedizione:
spedizione gratuita a partire da 100,00 € valore dell'ordine con questo fornitore
Numero
Totale
6,10 €
Prodotto proveniente da altro paese EU (IVA 0%)
7,37 €
Solo 5 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Pulsante illuminato, 22 mm, rotondo, metallo, lucido, ambra, pulsante, piatto, azione momentanea
- Tipo di imballaggio
Pezzo
- Tipo prodotto
Pulsante illuminato
- Caratteristiche
Piatto
Anello frontale in metallo
Lucido
- Tipo di illuminazione
Senza
- Azionamento
Pulsante
- Colore della luce
Giallo
- Colore
Giallo
- Colore alloggiamento
Giallo
- Serigrafia
Senza
- Collegamento
Elemento di contatto esterno
Elemento di contatto a LED
- Formato
rotondo
- Dima di montaggio
22 mm
- Funzioni
Momentaneo
- Durata meccanica
3000000
- Ø Foro di montaggio
22 mm
IP66
IP67
IP69K
- Min. temperatura
-25 °C
- Temperatura max.
+70 °C
- Larghezza
29.5 mm
- Altezza
29.5 mm
- Diametro
22 mm
- Contenuto
1 pz.
- Dim.
(Ø x A) 22 mm x 29.5 mm
- Compatibile RoHS
Sì
- Peso
40 g
- Tipo
3SU1051-0AB30-0AA0
22.3 mm
Yellow
TRUE
1
FALSE
FALSE
Chrome
Other
FALSE
Metal
TRUE
Round
FALSE
Other
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1379459 Siemens 3SU10510AB300AA0 3SU1051-0AB30-0AA0 Pulsante illuminato Piatto, Anello frontale in metallo, Lucido Pulsante Gial
Scheda tecnica 1379459 Siemens 3SU10510AB300AA0 3SU1051-0AB30-0AA0 Pulsante illuminato Piatto, Anello frontale in metallo, Lucido Pulsante Gial
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1379459 Siemens 3SU10510AB300AA0 3SU1051-0AB30-0AA0 Pulsante illuminato Piatto, Anello frontale in metallo, Lucido Pulsante Gial
Informazioni
Informazioni 1379459 Siemens 3SU10510AB300AA0 3SU1051-0AB30-0AA0 Pulsante illuminato Piatto, Anello frontale in metallo, Lucido Pulsante Gial
Descrizione

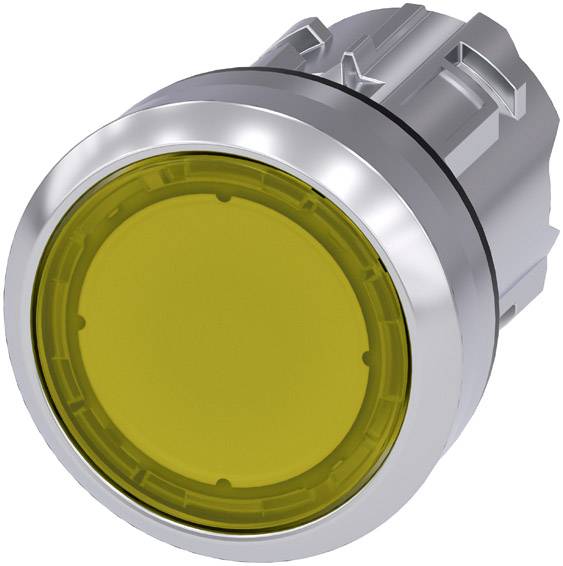

Illuminated pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton, flat, momentary contact type Illuminated pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
