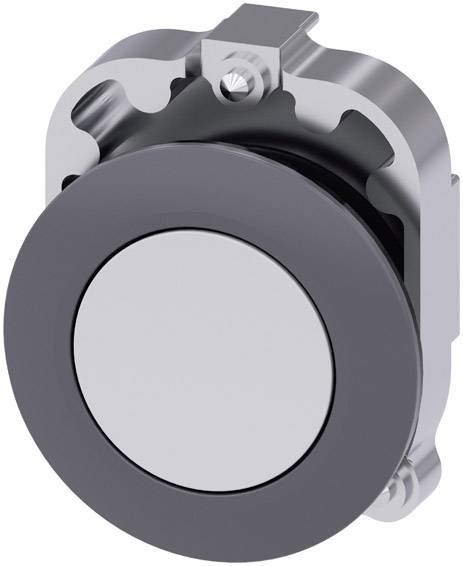

Siemens 3SU10600JB600AA0 3SU1060-0JB60-0AA0 Pulsante Anello frontale in metallo, Piatto appiattito Bianco 1 pz. Pezzo
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
25 Pezzo(i)
Vendita e spedizione:
spedizione gratuita a partire da 100,00 € valore dell'ordine con questo fornitore
Numero
Totale
20,30 €
Prodotto proveniente da altro paese EU (IVA 0%)
7,37 €
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Pulsante, 30 mm, rotondo, metallo, opaco, bianco, anello frontale per installazione in piano, azione momentanea
- Tipo di imballaggio
Pezzo
- Tipo prodotto
Pulsante
- Caratteristiche
Anello frontale in metallo
Piatto
- Tipo di illuminazione
Senza
- Azionamento
appiattito
- Colore
Bianco
- Colore alloggiamento
Bianco
- Ø pulsante
30 mm
- Serigrafia
Senza
- Collegamento
Elemento di contatto esterno
- Formato
rotondo
- Funzioni
Momentaneo
- Ø Foro di montaggio
30 mm
- Modello
opaco
IP67/IP69
- Min. temperatura
-25 °C
- Temperatura max.
+70 °C
- Contenuto
1 pz.
- Compatibile RoHS
Sì
- Peso
0.0792 kg
- Tipo
3SU1060-0JB60-0AA0
30.5 mm
White
FALSE
1
FALSE
FALSE
Grey
Other
FALSE
Metal
TRUE
Round
FALSE
Other
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1379611 Siemens 3SU10600JB600AA0 3SU1060-0JB60-0AA0 Pulsante Anello frontale in metallo, Piatto appiattito Bianco 1 pz. Pezzo
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1379611 Siemens 3SU10600JB600AA0 3SU1060-0JB60-0AA0 Pulsante Anello frontale in metallo, Piatto appiattito Bianco 1 pz. Pezzo
Informazioni
Informazioni 1379611 Siemens 3SU10600JB600AA0 3SU1060-0JB60-0AA0 Pulsante Anello frontale in metallo, Piatto appiattito Bianco 1 pz. Pezzo
Descrizione
Pushbutton, 30 mm, round, metal, matte, white, front ring for flush installation, momentary contact type Pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

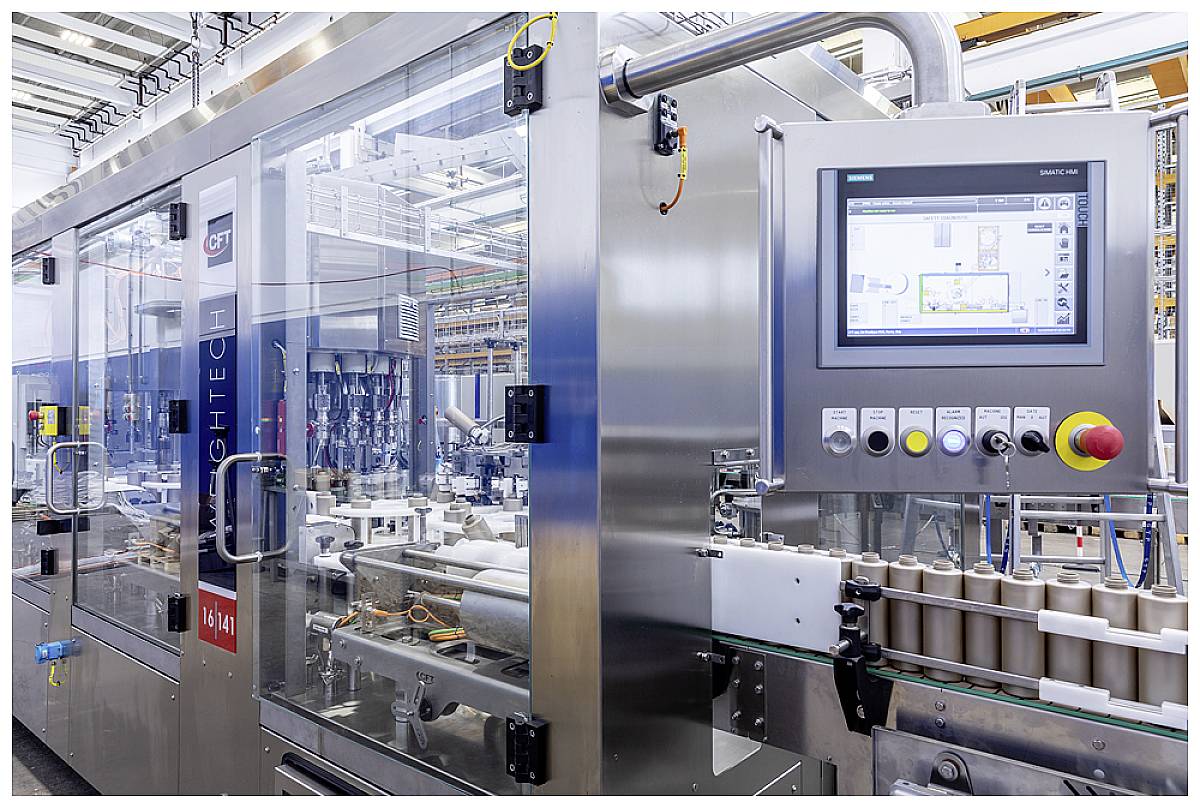

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Single device, please order holders and modules separately.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
