Siemens 3SU1401-1BF60-1AA0 Modulo LED con elemento LED Bianco 230 V/AC 1 pz.
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
20 Pezzo(i)
Vendita e spedizione:
spedizione gratuita a partire da 100,00 € valore dell'ordine con questo fornitore
Numero
Totale
11,10 €
Prodotto proveniente da altro paese EU (IVA 0%)
7,37 €
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Modulo LED con LED integrato AC 230 V, bianco, collegamento a vite, per montaggio su pannello frontale
- Tipo prodotto
Modulo LED
- Caratteristiche
con elemento LED
- Collegamento
A vite
- Profondità di montaggio
29.4 mm
- Colore della luce
Bianco
- Tensione di commutazione
230 V/AC
IP20
IP40
- Min. temperatura
-25 °C
- Temperatura max.
+70 °C

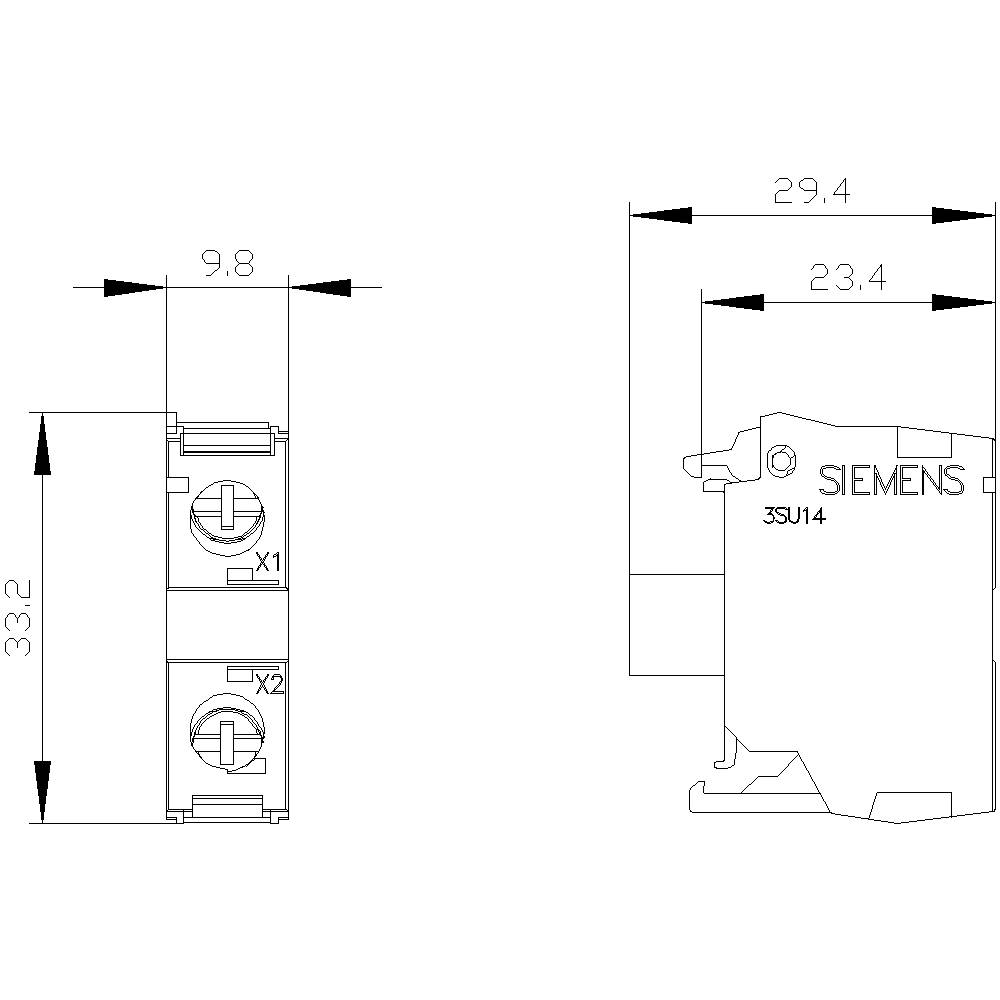

- Lunghezza
29.4 mm
- Larghezza
9.8 mm
- Altezza
33.2 mm
- Adatto per
Fissaggio del pannello frontale
- Metodo di montaggio
Fissagggio frontale
- Contenuto
1 pz.
- Dim.
(L x L x A) 29.4 x 9.8 x 33.2 mm
- Compatibile RoHS
Sì
- Peso
0.0110 kg
- Profondità
29.4 mm
- Tipo
3SU1401-1BF60-1AA0
- Colore
Multicolore
- Illuminante incluso
Sì
None
FALSE
FALSE
TRUE
White
LED
TRUE
Screw connection
AC
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1379504 Siemens 3SU1401-1BF60-1AA0 Modulo LED con elemento LED Bianco 230 V/AC 1 pz.
Scheda tecnica 1379504 Siemens 3SU1401-1BF60-1AA0 Modulo LED con elemento LED Bianco 230 V/AC 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1379504 Siemens 3SU1401-1BF60-1AA0 Modulo LED con elemento LED Bianco 230 V/AC 1 pz.
Informazioni
Informazioni 1379504 Siemens 3SU1401-1BF60-1AA0 Modulo LED con elemento LED Bianco 230 V/AC 1 pz.
Descrizione
LED module with integrated LED 230 V AC, white, screw terminal, for front plate mounting LED module SIRIUS ACT for illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity thanks to energy efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
