SNOM M430 DECT BUNDLE DOUBLE-CELL

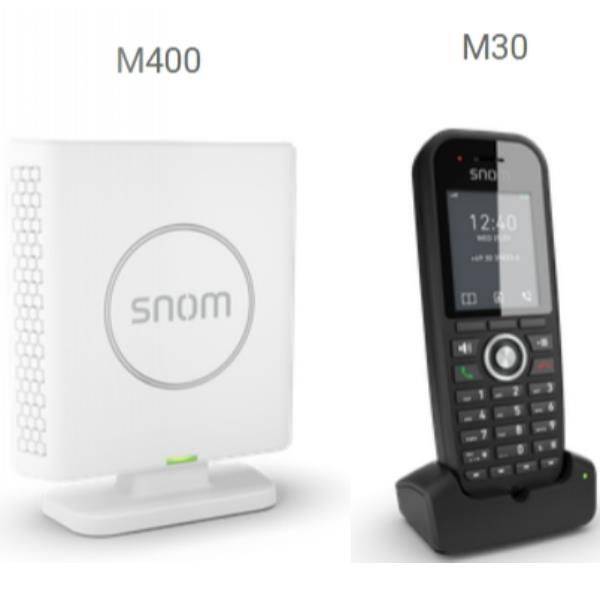

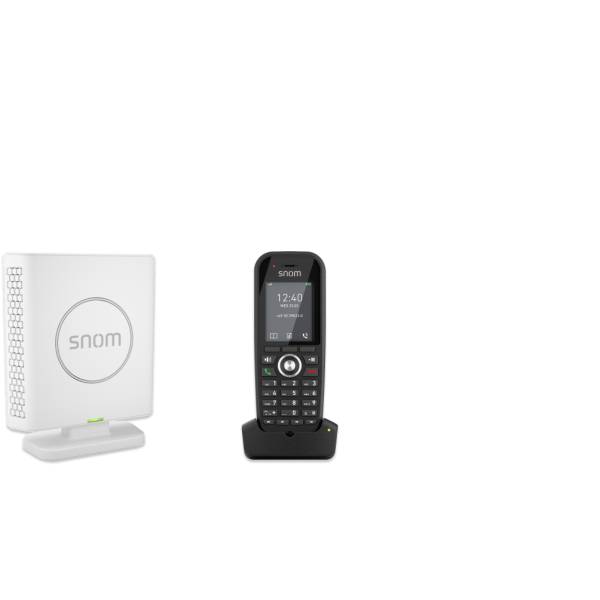

Snom M430 DECT-IP Doublecell bundle: M400 & M30. Up to 10 parallel calls, Repeater support M6

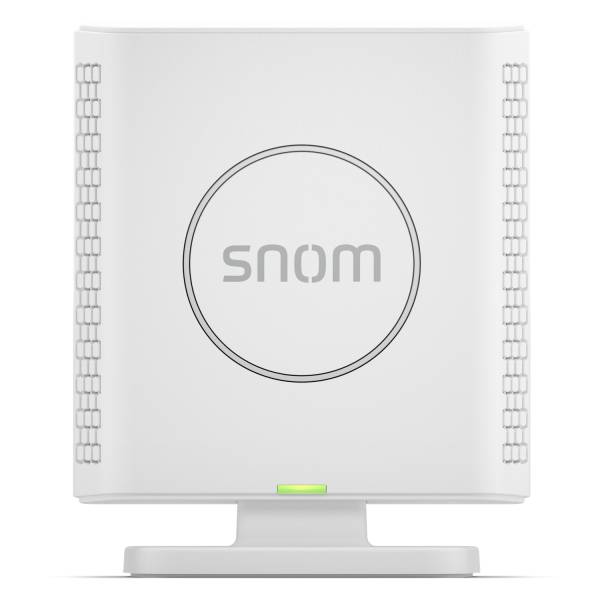

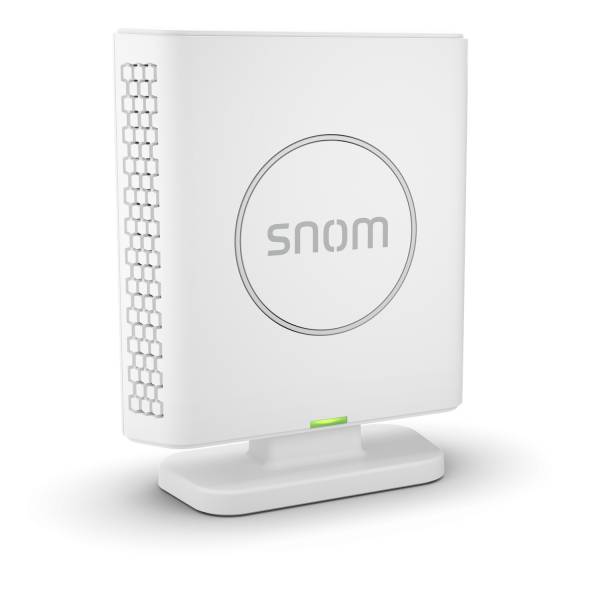

La stazione base DECT M400 a doppia cella offre l'intera gamma di funzioni di telefonia aziendale. In un'installazione a doppia cella, garantisce disponibilità ininterrotta, trasferimento senza interruzioni e può essere utilizzato con tutti gli endpoint multicella Snom. L'M400 fornisce una catena automatizzata a doppia cella alla rete locale per potenziare la soluzione di comunicazione e dispone di un potente gestore di chiamate DECT per un massimo di 20 chiamate parallele con un massimo di 40 account SIP in una configurazione a doppia cella.

Per i partner Cloud e VoIP PBX, l'M400 offre manutenibilità remota e implementazione zero-touch. L'M400 è conforme ai più recenti standard di crittografia e condivide la stessa architettura del sistema multicella M900 per gli ultimi aggiornamenti software e di sicurezza.

     Scalabilità a doppia cella
     Power over Ethernet (PoE)
     Sicurezza (TLS e SRTP)
     Aggiornamenti OTA
     Directory

Comprende un cordless M30Basics:Colour whiteWall mountableProduct numbersM400 - DECT dual-cell base station - EU & UK - PN 00004587M400 - DECT dual-cell base station - Americas - PN 00004588Dimensions and weight:Dimensions (H x W x D, approx.)
112 mm x 90 mm x 36 mm

Weight (approx.)
170 g

Indicators and keys:1 multicolour LED1 dedicated function key ResetAudio codecs and features:Audio codecs
G.711 (A-law, µ-law), G.722, G.726, G.729

Related features
Codec negotiation, codec switching

Interfaces and connectionsM400 power options
Power over Ethernet (PoE), IEEE 802.3af, class 2

Wired interfaces
RJ45-8P8C 10/100 Mbit Ethernet port

Wireless interfaces
DECT

User interfaces and setupConfiguration and setup via menu-driven web user interface (WUI)Automatic configuration via provisioning
Loading of settings and firmware via HTTP / HTTPS / TFTP
Secure provisioning with preinstalled certificate
Cloud Zero-Touch Provisioning

Localization
Timezone, Dial tone

Diagnostic
DECT messages, alarms, location

Related features
XML browser
Automatic dual-cell chain setup
Compatible handset feature RSSI tool, no additional measurement equipment needed

InteroperabilityCertified VoIP partnerEnvironmental conditionsOperating ambient temperature: -10 °C to 50 °C (14 °F to 122 °F)Package contentsDECT base station unitQuick Installation Guide (QIG)Information sheets (security, standards)1 DECT devices manufactured for the United States and Canada are marketed as DECT 6.0
 Directory support and call features
Directory support
LDAP (server-based directory)
XML phonebook support


Related features
List of registered mobile handsets, repeaters, location gateways



DECT technology and features
Standard: DECT1
Antenna diversity (2 internal omni-directional antennas for better transmission and reception)
Authentication/encryption of base and handset
Seamless handover and roaming using DECT sychronisation
Wideband audio


Frequency band
Europe: 1,880 - 1,900 MHz
USA: 1,920 - 1,930 MHz


Output power
Europe: less than 250 mW
USA: less than 100 mW
Level (dbm): 14, 17, 20, 24


Coverage
Up to 50 m indoor range / 300 m outdoor range


Handsets
Up to 20 per base station / 40 per dual-cell installation


Repeaters
Up to 6 per base station / 12 per dual-cell installation


Calls in single-cell system
Up to 10 narrowband calls / 5 wideband calls


Calls in dual-cell system
Up to 20 narrowband calls / 10 wideband calls


Related features
Software upgrade over the air (SUOTA)



Networking technologies and protocols
Network technologies
VLAN (IEEE 802.1Q)


Secure VoIP protocols
SIPS (SIP over TLS), SRTP (RFC 3711)


Network protocols
DHCP, NTP, LLDP-MED, HTTP


Secure network protocols
TLS V1.2, HTTPS


Quality of Service (QoS)
ToS



Type approval and standards conformance
Information technology equipment - Safety 62368-1
WEEE 2012/19/EU
FCC (ID T7HX9431)

Accessories
00004607 - M30 - DECT handset - EU & UK
00004423 - M70 - DECT handset
00004424 - M80 - DECT handset
00004189 - M85 - DECT handset
00004425 - M90 - DECT handset
