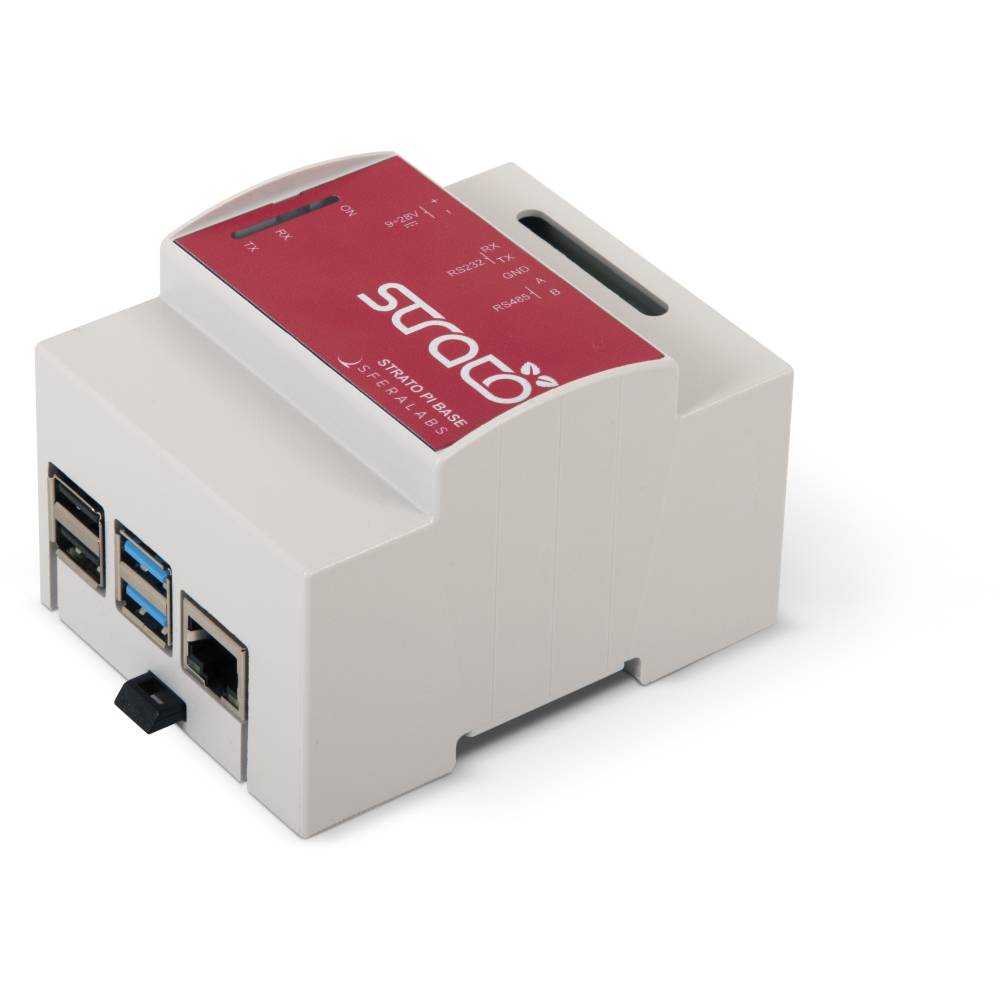

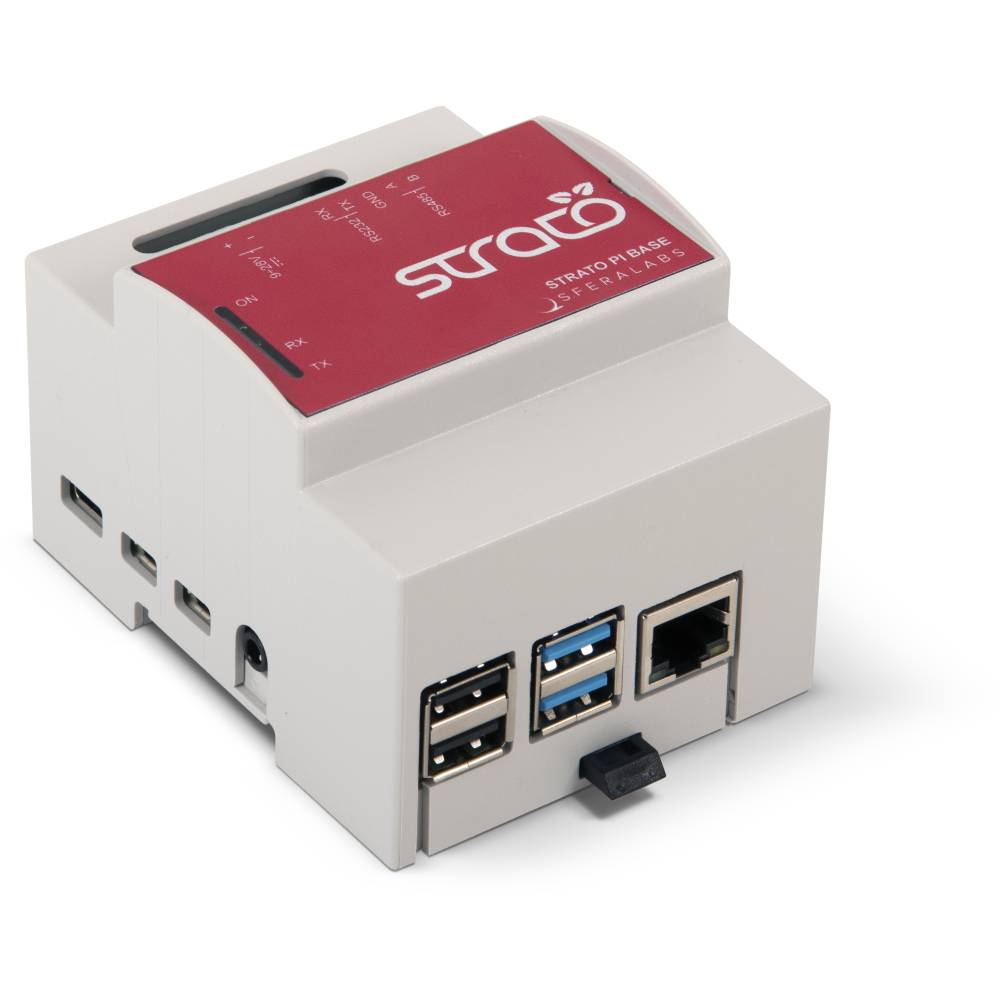

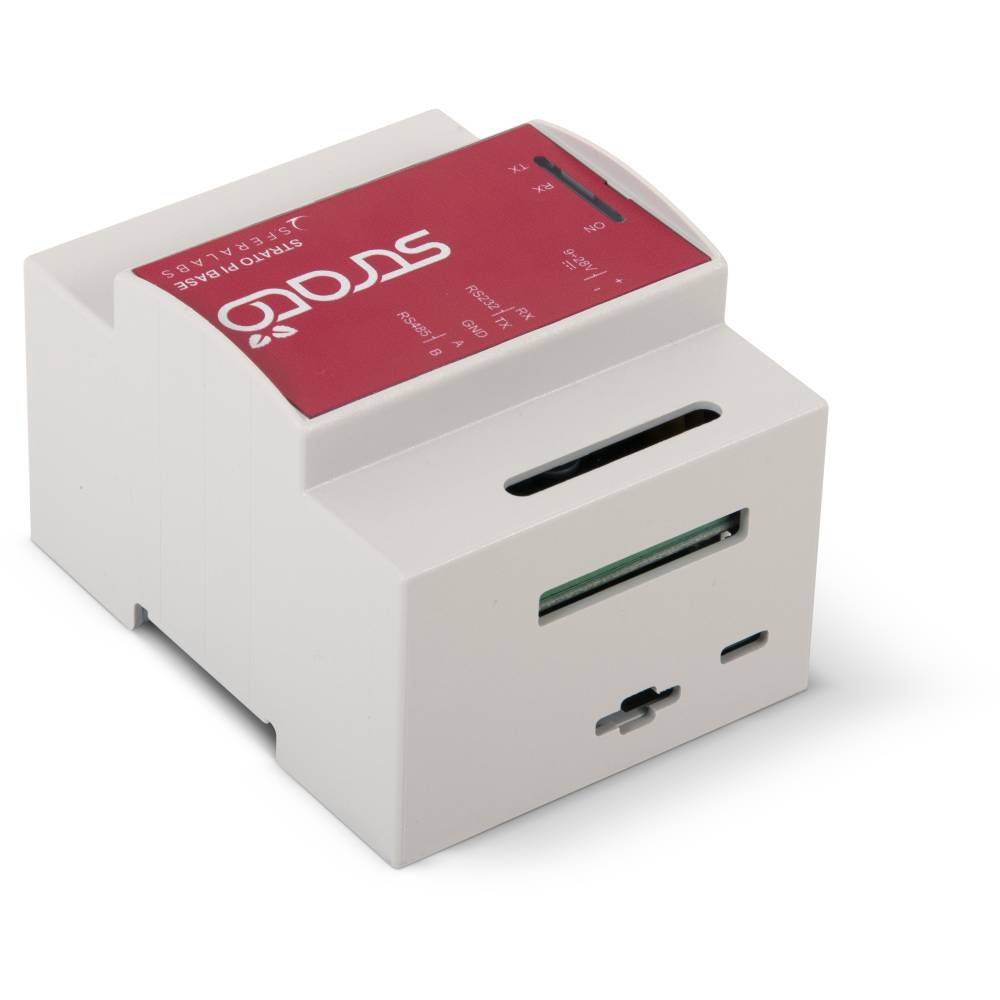

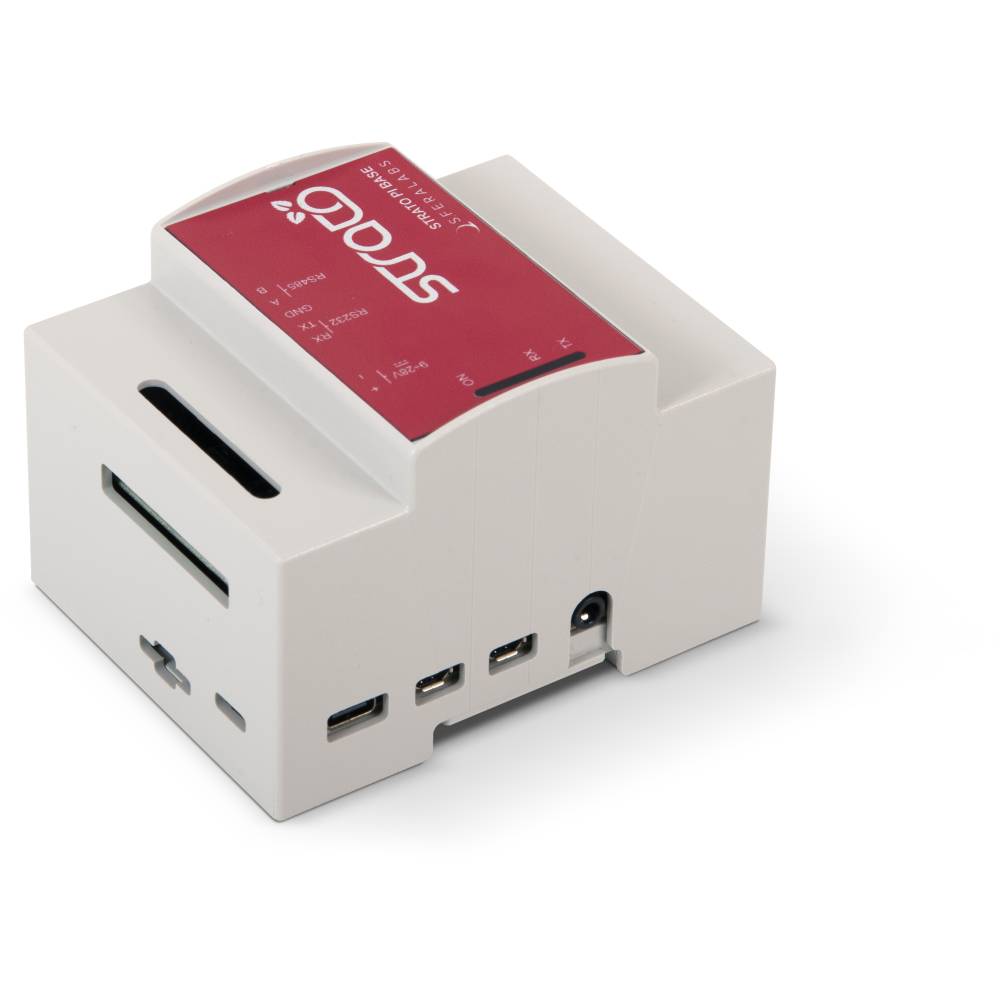

Strato Pi Base Server Strato Base 3.0 Raspberry 4B 4GB + Strato Pi Fan 1.0
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Numero
Totale
316,57 €
IVA escl.
Spedizione gratuita
Solo 10 Pezzo(i) disponibili
Highlights & Dettagli
Industrial Raspberry Pi server, CE/FCC/IC compliant, with wide-range power supply, RTC, RS-232 and RS-485 interfaces, watchdog and secure element.
- The highlights of Strato Pi 3.0 are the following:
- • We have redesigned the Strato Pi keeping the new Raspberry Pi 4 in mind. The power-supply stage has been re-engineered to withstand the current demand of Raspberry Pi 4
- • User-configurable watchdog and power management operations
- . Secure element
- • User-upgradable firmware for the onboard micro-controller directly through Raspberry Pi
- All functional features and connections of the previous versions are totally preserved and fully compatible. The new Strato Pi Base version 3.0 adds new features, and substantial performance improvements in the power supply stage.
Dati tecnici
- Tipo
Strato Pi Base Server, w. Pi4B 4GB + Strato Pi Fan
- Tipo prodotto
Modulo di controllo PLC
- Dim.
(L x L x A) 71.3 x 71.3 x 90.5 mm
- Modello
Strato Pi Base + Strato Pi Fan
- Tensione d'esercizio
9 - 28 V/DC
- Voltaggio Max.
28 V/DC
- Voltaggio operativo Min.
9 V/DC
- Display
No / No
- Orologio in tempo reale
Sì (Hardware)
- Soppressione radiodisturbi
CE, FCC, IC
- Peso
160 g
- Codice articolo produttore
SPMB30X44+SPBF10X
- Protezione corto circuito
SI
- Larghezza
71.3 mm
- Altezza
90.5 mm
- Lunghezza
71.3 mm
- Profondità
62 mm
- Max. Temperatura ambiente
70 °C
- Min. Temperatura ambiente
-20 °C
Documenti & Download
Scheda tecnica
Scheda tecnica 868590333 Strato Pi Base Server Strato Base 3.0 Raspberry 4B 4GB + Strato Pi Fan 1.0
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 868590333 Strato Pi Base Server Strato Base 3.0 Raspberry 4B 4GB + Strato Pi Fan 1.0
Descrizione

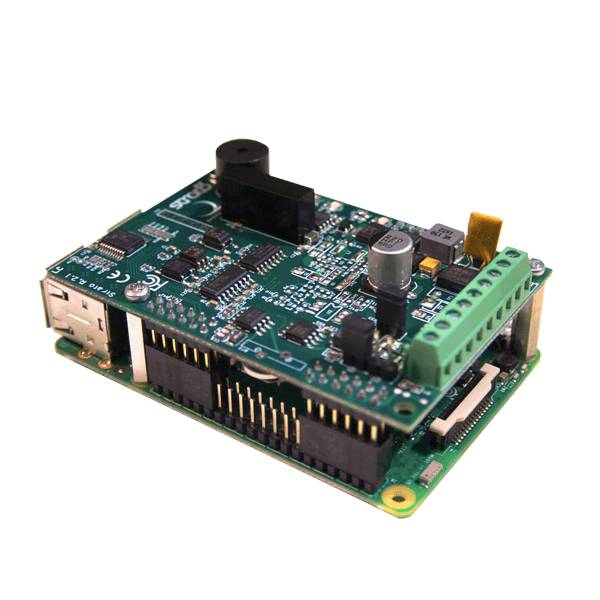

An industrial Raspberry Pi
Strato Pi Base enhances the Raspberry Pi computer with several hardware features to make it suitable for use in industrial and professional applications where reliability and service continuity are key requirements.
It is compliant with the low voltage and EMC CE directives, as well as the harmonised standards for electromagnetic compatibility, electrical safety, emission and the RoHS directive for hazardous substances. It is also compliant with the applicable FCC rules and IC standards.
Features
Mounting:
4 modules DIN rail case
power supply and serial connections on screw terminal block
Power supply:
9-28Vdc power supply, with surge and reverse polarity protection, and 2.2A resettable fuse
up to 4.0A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
Serial interfaces:
standard RS-232 and RS-485 interfaces to the Raspberry Pi serial line, with opto-isolator and electrostatic discharge protection
High reliability and security:
hardware watchdog implemented in the Strato Pi board, fully independent from the Raspberry Pi, controlled via GPIO
real time clock (RTC) with replaceable back-up battery
optional embedded Microchip ATECC608A/B secure element chip
integrated boot loader for the Strato Pi micro-controller, allowing in-field firmware upgrades directly from the Raspberry Pi
pre-assembled SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan
More:
buzzer, controlled via GPIO
LEDs for power supply and serial line activity
Raspberry Pi embedded:
1 x Ethernet
4 x USB
1 x HDMI (RPi 3+) / 2x Micro HDMI (RPi 4)
1 x microSD card slot
1 x jack for audio and composite video
WiFi
Bluetooth/BLE
Strato Pi Base enhances the Raspberry Pi computer with several hardware features to make it suitable for use in industrial and professional applications where reliability and service continuity are key requirements.
It is compliant with the low voltage and EMC CE directives, as well as the harmonised standards for electromagnetic compatibility, electrical safety, emission and the RoHS directive for hazardous substances. It is also compliant with the applicable FCC rules and IC standards.
Features
Mounting:
4 modules DIN rail case
power supply and serial connections on screw terminal block
Power supply:
9-28Vdc power supply, with surge and reverse polarity protection, and 2.2A resettable fuse
up to 4.0A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
Serial interfaces:
standard RS-232 and RS-485 interfaces to the Raspberry Pi serial line, with opto-isolator and electrostatic discharge protection
High reliability and security:
hardware watchdog implemented in the Strato Pi board, fully independent from the Raspberry Pi, controlled via GPIO
real time clock (RTC) with replaceable back-up battery
optional embedded Microchip ATECC608A/B secure element chip
integrated boot loader for the Strato Pi micro-controller, allowing in-field firmware upgrades directly from the Raspberry Pi
pre-assembled SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan
More:
buzzer, controlled via GPIO
LEDs for power supply and serial line activity
Raspberry Pi embedded:
1 x Ethernet
4 x USB
1 x HDMI (RPi 3+) / 2x Micro HDMI (RPi 4)
1 x microSD card slot
1 x jack for audio and composite video
WiFi
Bluetooth/BLE
Contenuto della fornitura
- Strato Pi Base server
- Alimentatore non incluso
Note
Alimentatore non incluso.
E' possibile scegliere la versione con aggiunta Strato Pi Fan
