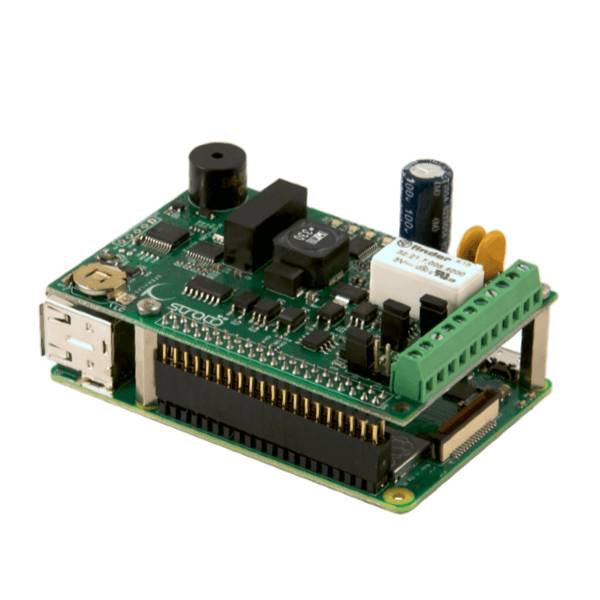

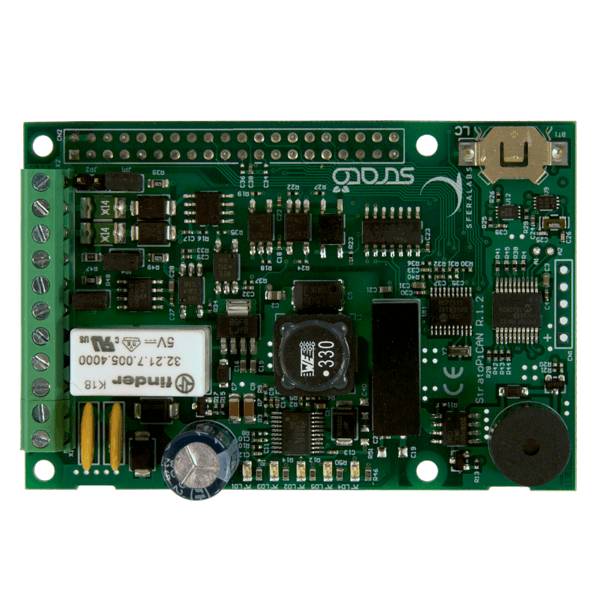

Strato Pi CAN Board Raspberry Pi industrial expansion board
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Numero
Totale
149,85 €
IVA escl.
Spedizione gratuita
Solo 10 Pezzo(i) disponibili
Highlights & Dettagli
Raspberry Pi industrial expansion board with wide-range power supply, RTC, CAN and RS-485 interfaces, watchdog and secure element
- The Strato Pi CAN board enhances the Raspberry Pi computer with several hardware features to make it suitable for use in industrial and automotive applications where reliability and service continuity are key requirements.
- This add-on board is the the core of our Strato Pi CAN server and Strato Pi Touch Display and can be purchased separately for product evaluation, prototypes developments, or custom embedded designs.
Dati tecnici
- Tipo
Strato Pi CAN Board
- Tipo prodotto
Modulo di controllo PLC
- Dim.
(L x L x A) 55.5 x 55.5 x 83.3 mm
- Modello
Strato Pi CAN
- Tensione d'esercizio
9 - 65 V/DC
- Voltaggio Max.
65 V/DC
- Voltaggio operativo Min.
9 V/DC
- Display
No / No
- Orologio in tempo reale
No / No
- Soppressione radiodisturbi
CE, FCC, IC
- Peso
45 g
- Codice articolo produttore
SPBC12X
- Protezione corto circuito
SI
- Larghezza
55.5 mm
- Altezza
83.3 mm
- Lunghezza
55.5 mm
- Profondità
28.5 mm
- Max. Temperatura ambiente
70 °C
- Min. Temperatura ambiente
-30 °C
Documenti & Download
Scheda tecnica
Scheda tecnica 871910832 Strato Pi CAN Board Raspberry Pi industrial expansion board
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 871910832 Strato Pi CAN Board Raspberry Pi industrial expansion board
Descrizione
Features
Mounting:
. standard Raspberry Pi 40-pin GPIO header
. power supply and serial connections on screw terminal block
Power supply:
. 9-65Vdc power supply, with surge and reverse polarity protection, and 1.3A resettable fuse
. up to 2.5A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
Serial interfaces:
. Controller Area Network (CAN) V2.0B interface, up to 1 Mb/s, with opto-isolator and electrostatic discharge protection
. standard RS-485 interface to the Raspberry Pi serial line, with opto-isolator and electrostatic discharge protection
High reliability and security:
. hardware watchdog implemented in the Strato Pi board, fully independent from the Raspberry Pi, controlled via GPIO
. real time clock (RTC) with replaceable back-up battery
. embedded Microchip ATECC608A secure element chip
I/O:
. relay with change-over (CO), Single Pole Double Throw (SPDT) terminals
More:
. buzzer, controlled via GPIO
. LEDs for power supply and serial line activity
Mounting:
. standard Raspberry Pi 40-pin GPIO header
. power supply and serial connections on screw terminal block
Power supply:
. 9-65Vdc power supply, with surge and reverse polarity protection, and 1.3A resettable fuse
. up to 2.5A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
Serial interfaces:
. Controller Area Network (CAN) V2.0B interface, up to 1 Mb/s, with opto-isolator and electrostatic discharge protection
. standard RS-485 interface to the Raspberry Pi serial line, with opto-isolator and electrostatic discharge protection
High reliability and security:
. hardware watchdog implemented in the Strato Pi board, fully independent from the Raspberry Pi, controlled via GPIO
. real time clock (RTC) with replaceable back-up battery
. embedded Microchip ATECC608A secure element chip
I/O:
. relay with change-over (CO), Single Pole Double Throw (SPDT) terminals
More:
. buzzer, controlled via GPIO
. LEDs for power supply and serial line activity
Contenuto della fornitura
- Strato Pi CAN board
- Alimentatore non incluso
- Scheda Raspberry Pi non inclusa
Note
Alimentatore non incluso.
