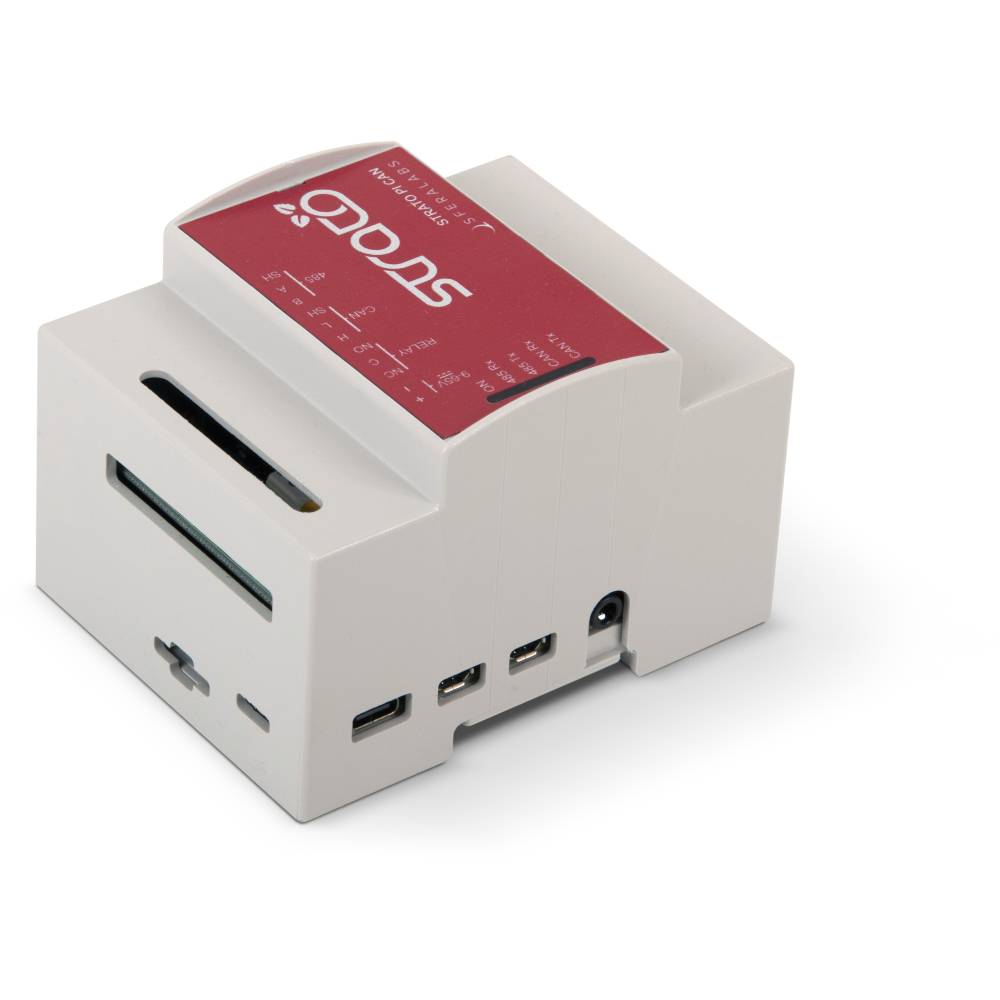

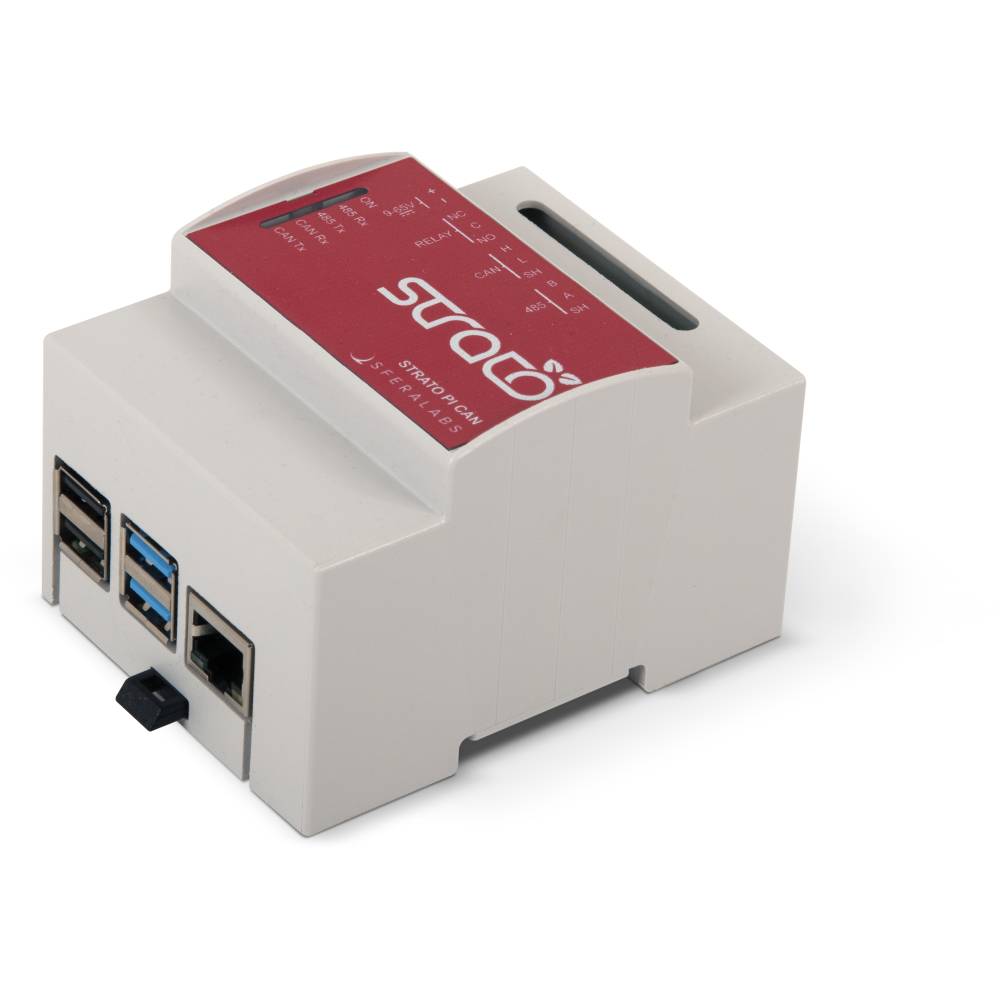

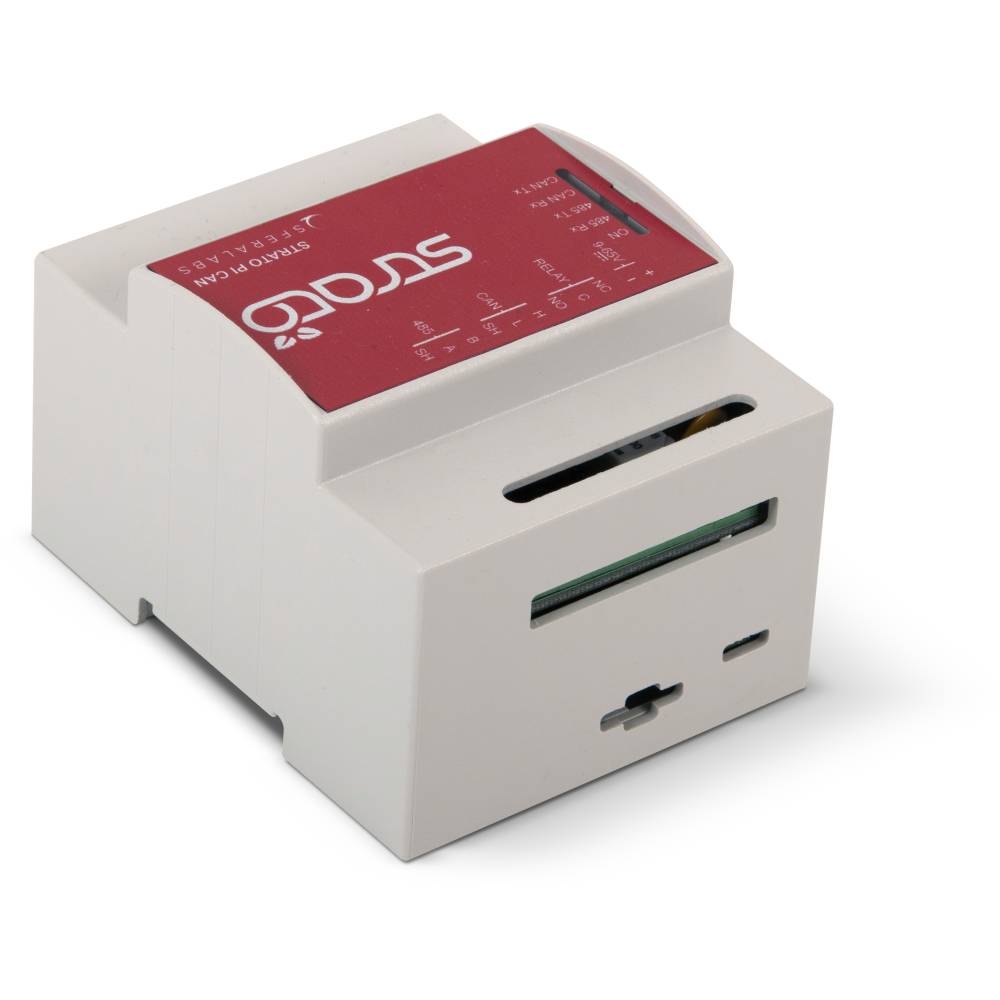

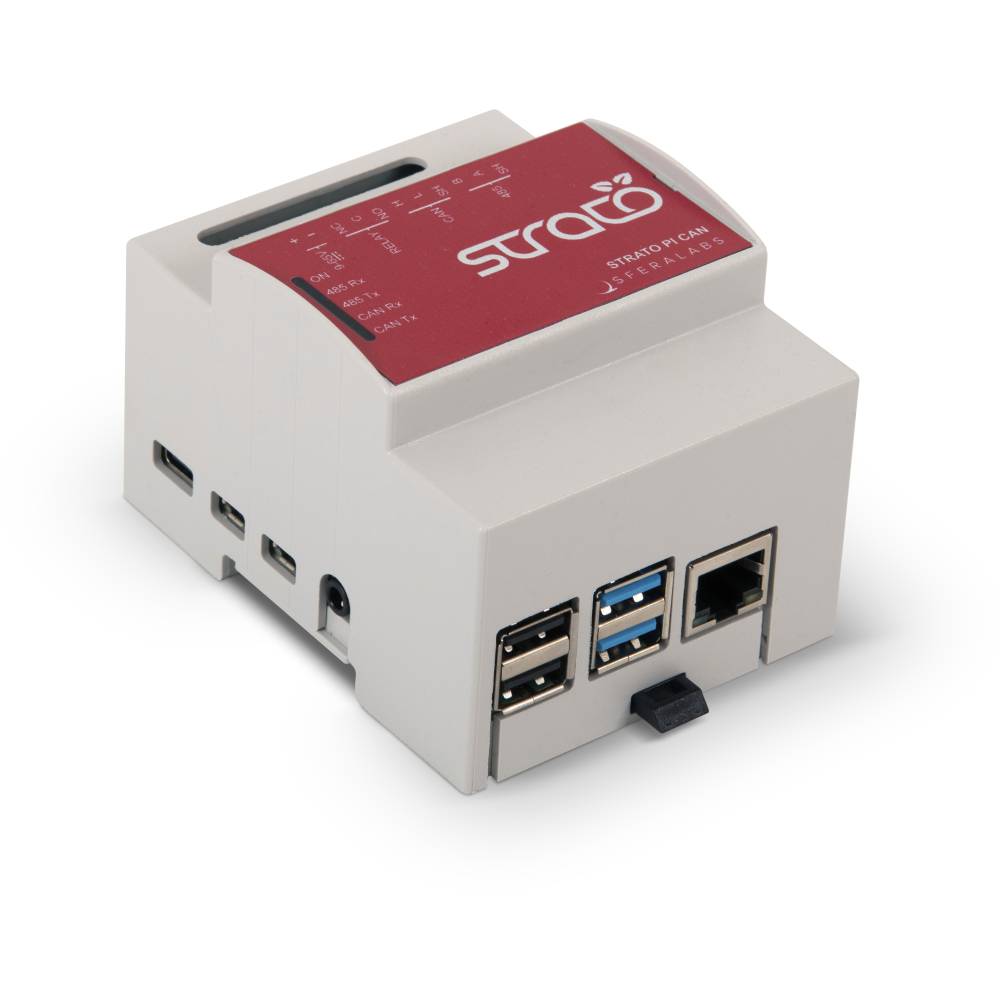

Strato Pi CAN server with Raspberry Pi 3 Model B+
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Numero
Totale
263,55 €
IVA escl.
Spedizione gratuita
Solo 10 Pezzo(i) disponibili
Highlights & Dettagli
Industrial Raspberry Pi server, CE/FCC/IC compliant, with wide-range power supply, RTC, CAN and RS-485 interfaces, watchdog and secure element.
- Industrial Raspberry Pi server, CE/FCC/IC compliant, with wide-range power supply, RTC, CAN and RS-485 interfaces, watchdog and secure element.
Dati tecnici
- Tipo
Strato Pi CAN Server, w. Pi3B+
- Tipo prodotto
Modulo di controllo PLC
- Dim.
(L x L x A) 71.3 x 71.3 x 90.5 mm
- Modello
Strato Pi CAN
- Tensione d'esercizio
9 - 65 V/DC
- Voltaggio Max.
65 V/DC
- Voltaggio operativo Min.
9 V/DC
- Display
No / No
- Orologio in tempo reale
Sì (Hardware)
- Soppressione radiodisturbi
CE, FCC, IC
- Peso
170 g
- Codice articolo produttore
SPMC12XP
- Protezione corto circuito
SI
- Larghezza
71.3 mm
- Altezza
90.5 mm
- Lunghezza
71.3 mm
- Profondità
62 mm
- Max. Temperatura ambiente
70 °C
- Min. Temperatura ambiente
-30 °C
Documenti & Download
Scheda tecnica
Scheda tecnica 870456754 Strato Pi CAN server with Raspberry Pi 3 Model B+
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 870456754 Strato Pi CAN server with Raspberry Pi 3 Model B+
Descrizione
Features

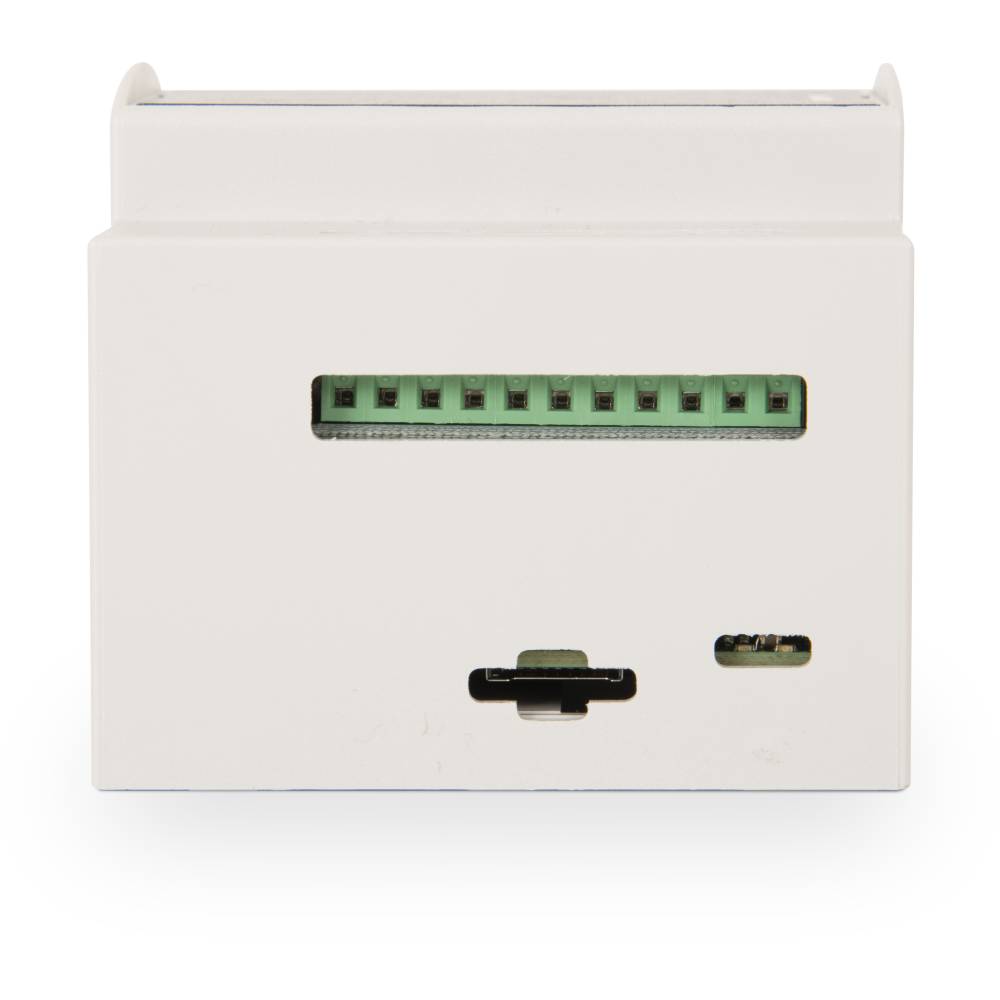

Mounting:
. 4 modules DIN rail case
. power supply and serial connections on screw terminal block
Power supply:
. 9-65Vdc power supply, with surge and reverse polarity protection, and 1.3A resettable fuse
. up to 2.5A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
Serial interfaces:
. Controller Area Network (CAN) V2.0B interface, up to 1 Mb/s, with opto-isolator and electrostatic discharge protection
. standard RS-485 interface to the Raspberry Pi serial line, with opto-isolator and electrostatic discharge protection
High reliability and security:
. hardware watchdog implemented in the Strato Pi board, fully independent from the Raspberry Pi, controlled via GPIO
. real time clock (RTC) with replaceable back-up battery
. embedded Microchip ATECC608A secure element chip
. optional pre-assembled SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan
I/O:
. relay with change-over (CO), Single Pole Double Throw (SPDT) terminals
More:
. buzzer, controlled via GPIO
. LEDs for power supply and serial line activity

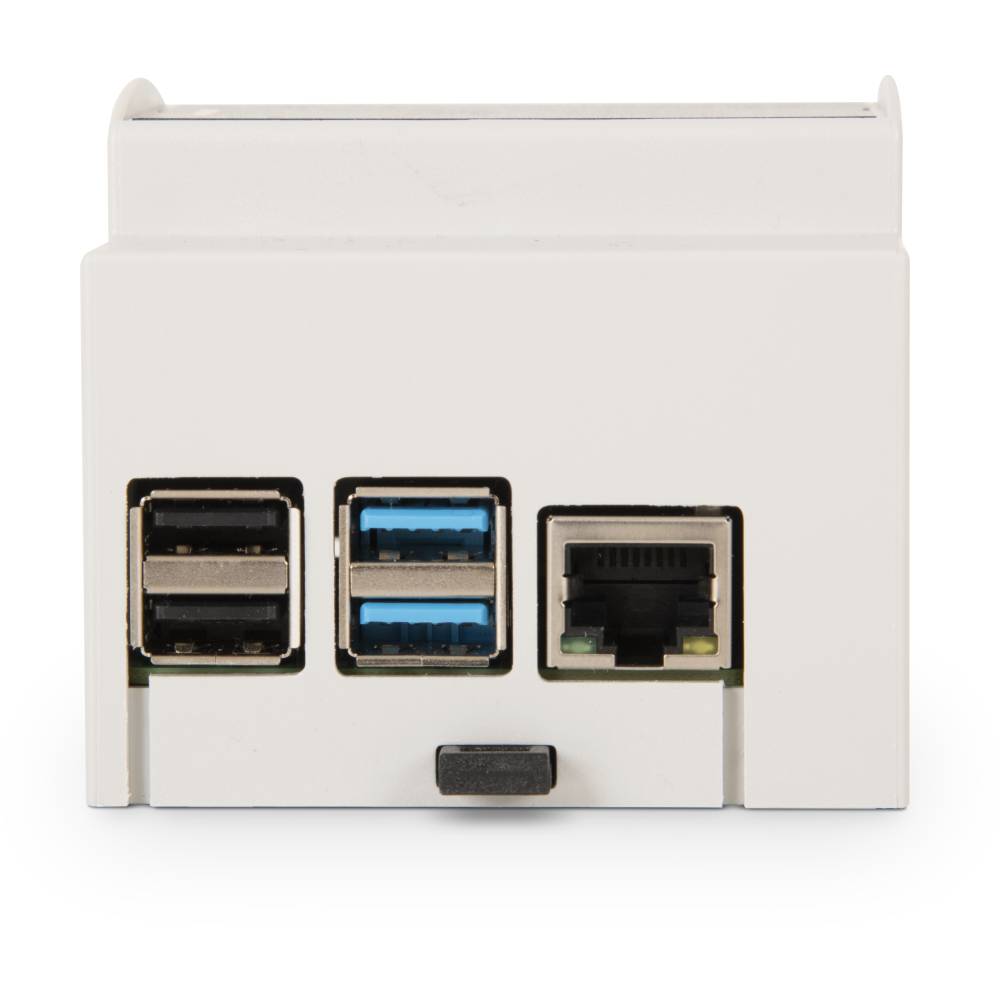

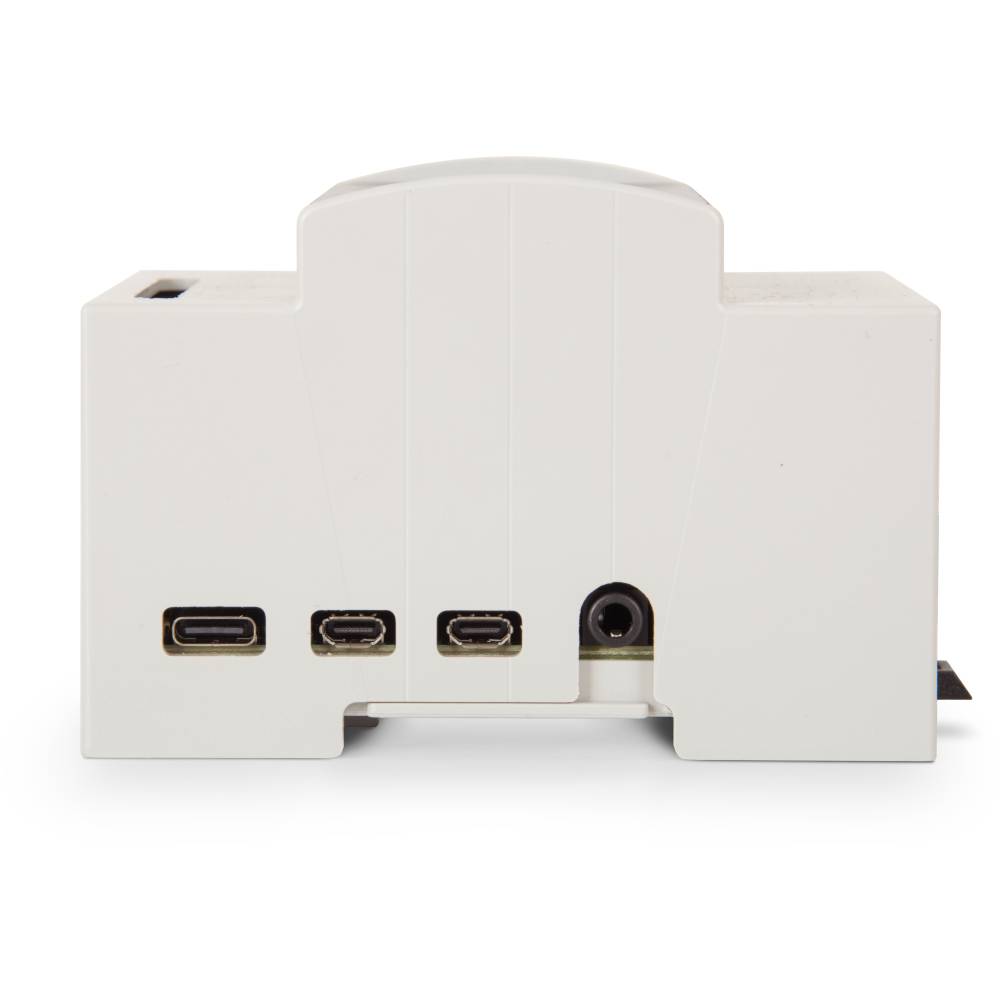

Raspberry Pi embedded:
. 1 x Ethernet
. 4 x USB
. 1 x HDMI (RPi 3+) / 2x Micro HDMI (RPi 4)
. 1 x microSD card slot
. 1 x jack for audio and composite video
. WiFi
. Bluetooth/BLE
Mounting:
. 4 modules DIN rail case
. power supply and serial connections on screw terminal block
Power supply:
. 9-65Vdc power supply, with surge and reverse polarity protection, and 1.3A resettable fuse
. up to 2.5A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
Serial interfaces:
. Controller Area Network (CAN) V2.0B interface, up to 1 Mb/s, with opto-isolator and electrostatic discharge protection
. standard RS-485 interface to the Raspberry Pi serial line, with opto-isolator and electrostatic discharge protection
High reliability and security:
. hardware watchdog implemented in the Strato Pi board, fully independent from the Raspberry Pi, controlled via GPIO
. real time clock (RTC) with replaceable back-up battery
. embedded Microchip ATECC608A secure element chip
. optional pre-assembled SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan
I/O:
. relay with change-over (CO), Single Pole Double Throw (SPDT) terminals
More:
. buzzer, controlled via GPIO
. LEDs for power supply and serial line activity
Raspberry Pi embedded:
. 1 x Ethernet
. 4 x USB
. 1 x HDMI (RPi 3+) / 2x Micro HDMI (RPi 4)
. 1 x microSD card slot
. 1 x jack for audio and composite video
. WiFi
. Bluetooth/BLE
Contenuto della fornitura
- Strato Pi CAN board
- Alimentatore non incluso
Note
Alimentatore non incluso.
E' possibile scegliere la versione con aggiunta Strato Pi Fan
