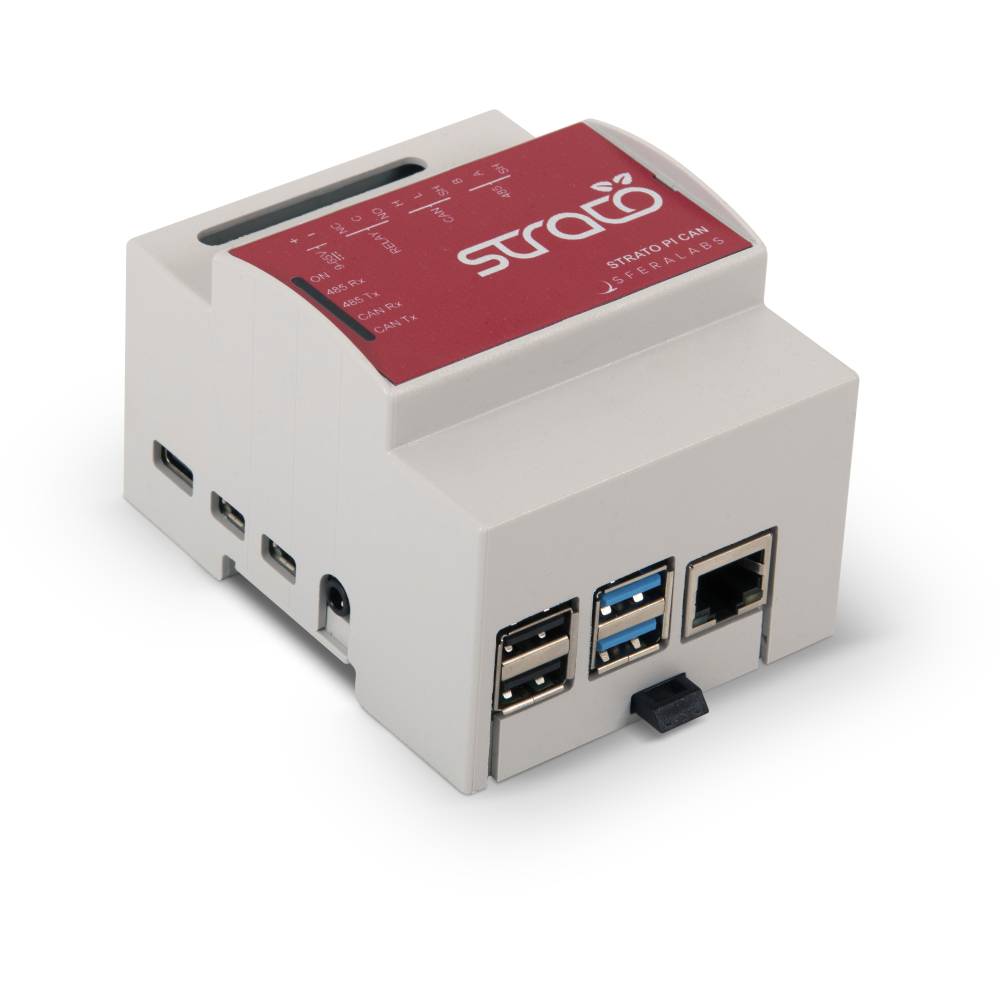

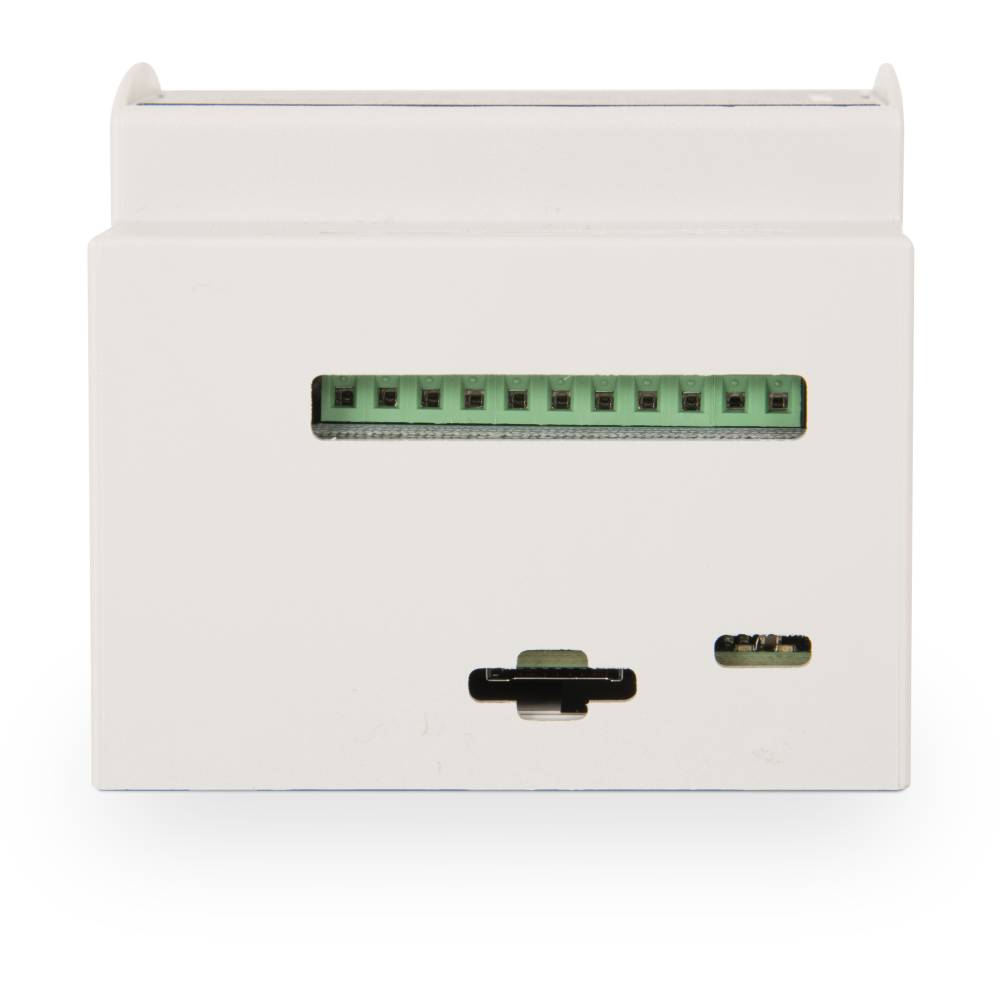

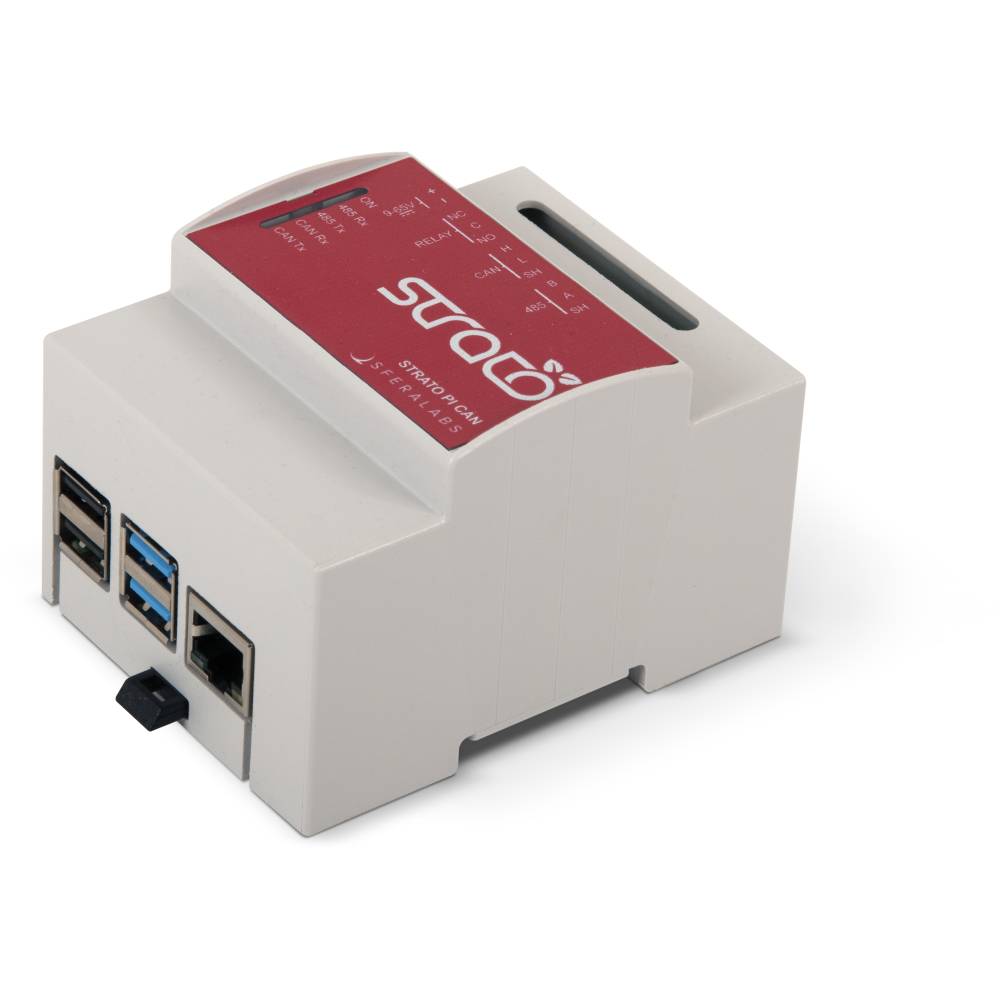

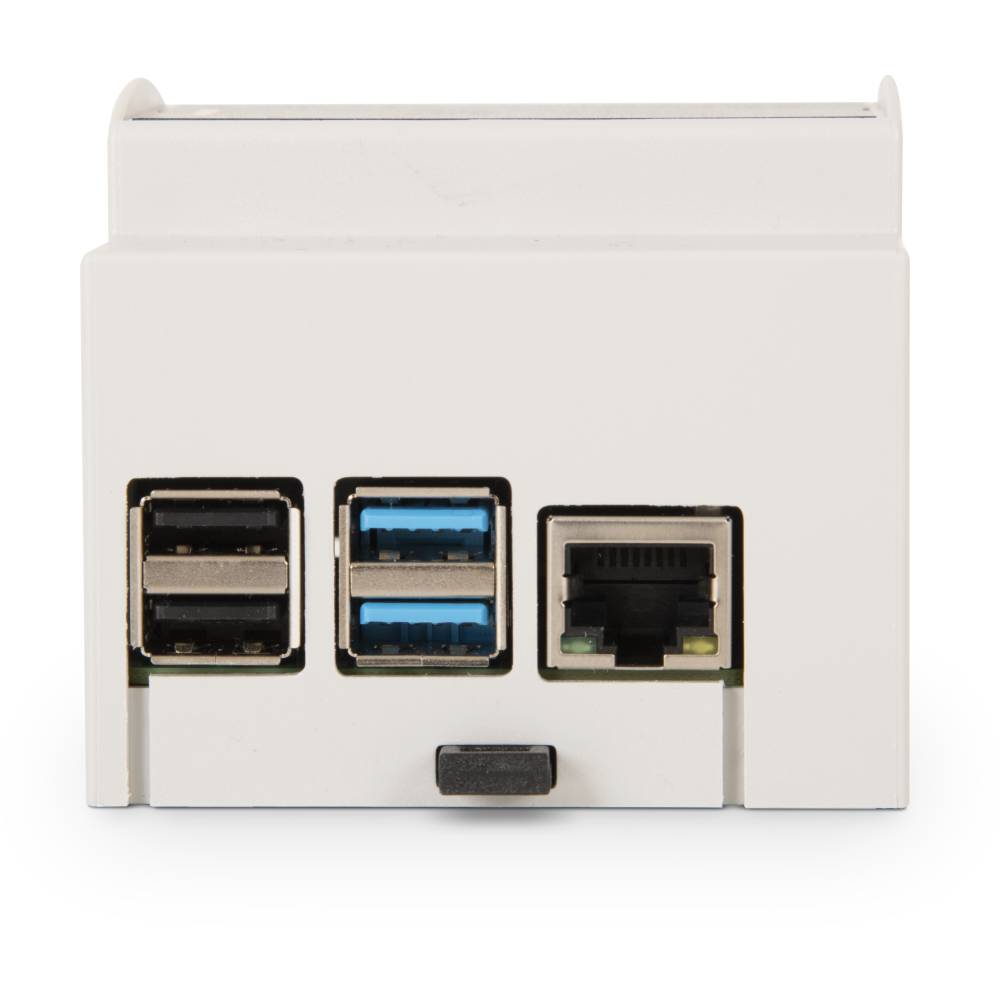

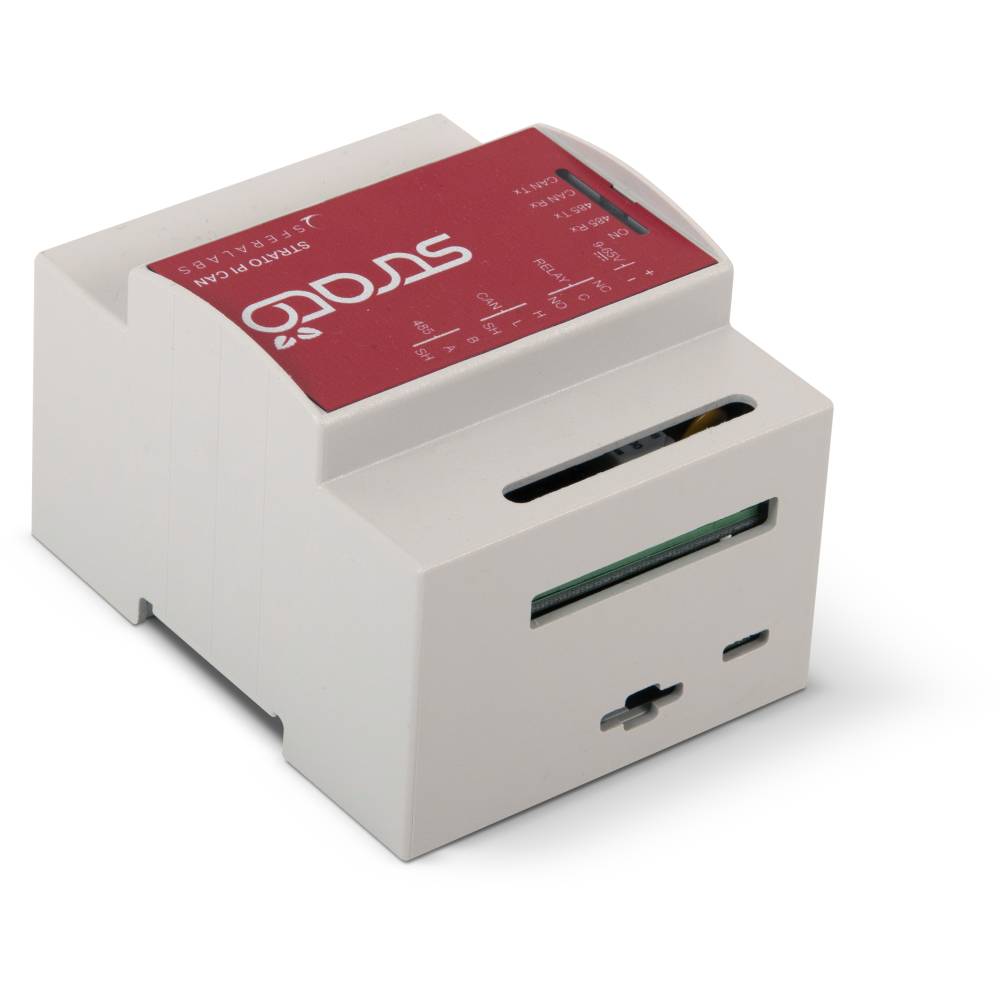

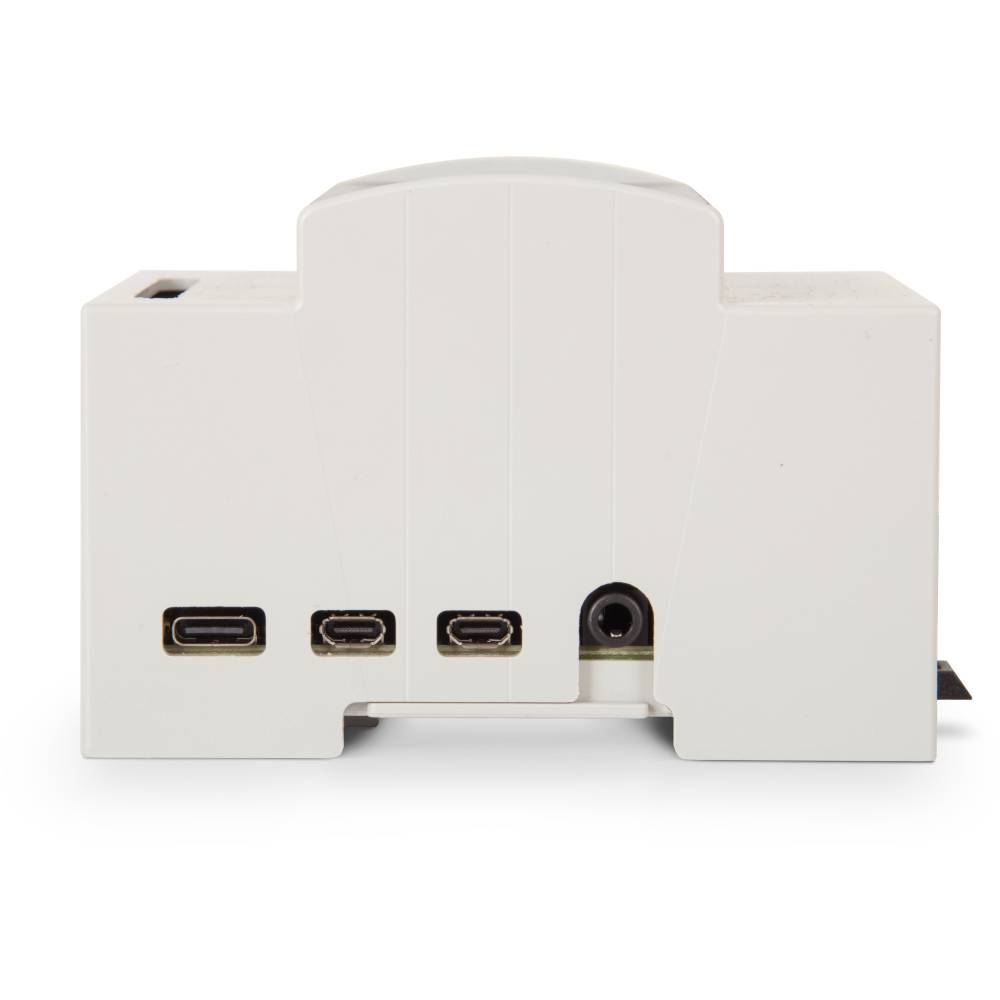

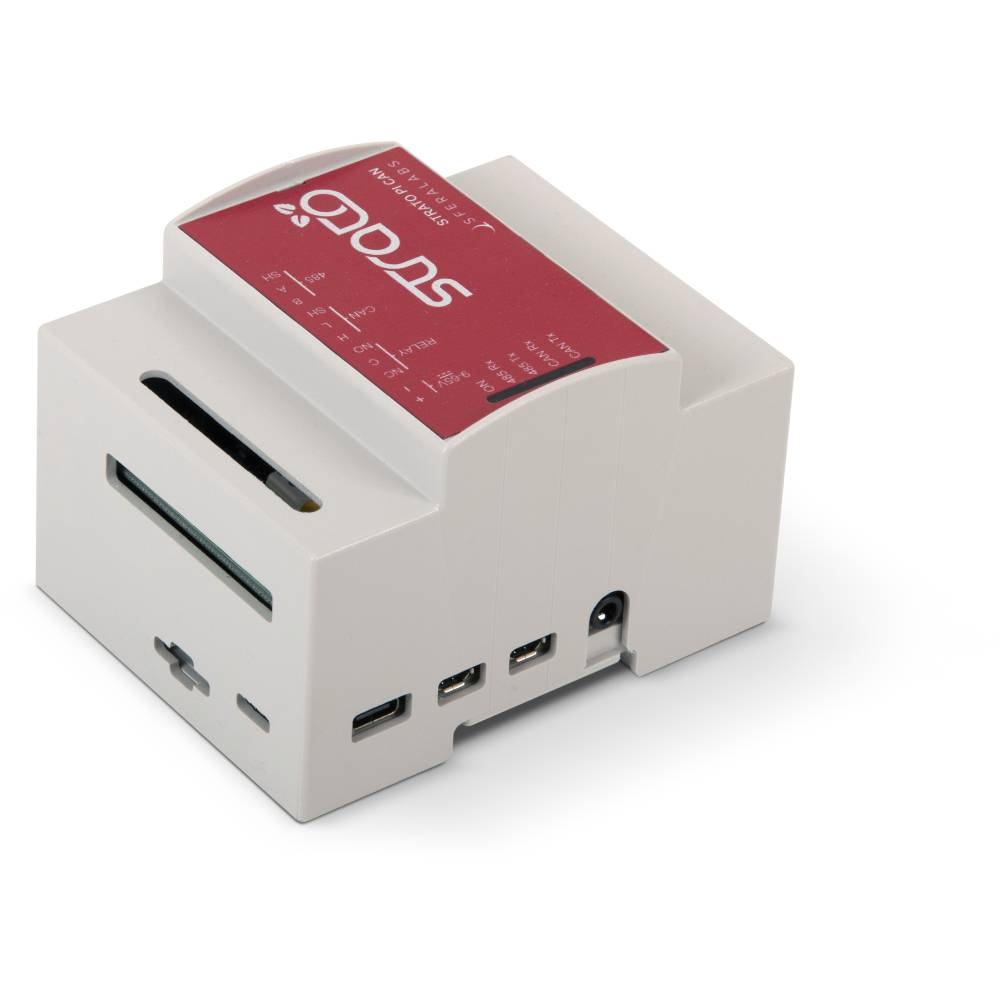

Strato Pi CAN server with Raspberry Pi 4 Model B 2GB + Strato Pi Fan
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Numero
Totale
313,52 €
IVA escl.
Spedizione gratuita
Solo 10 Pezzo(i) disponibili
Highlights & Dettagli
Industrial Raspberry Pi server, CE/FCC/IC compliant, with wide-range power supply, RTC, CAN and RS-485 interfaces, watchdog and secure element.
- Features
- Mounting:
- 9 modules DIN rail case
- power supply, serial and I/O connections on pluggable terminal blocks
- Power supply:
- 12÷24Vdc power supply, with surge and reverse polarity protection, and resettable fuse
- Arduino compatibility:
- all 5.0V and 3.3V Arduino boards with 1.0 pinout (Uno, Uno WiFi Rev2, Ethernet, Zero, Leonardo, Leonardo Ethernet, Yún, Yún Rev2)
- Inputs/Outputs:
- 6 x power relay outputs with bistable coils rated for 12A at 250V
- 4 x multi-mode inputs: digital or 0÷10V or 0÷20mA analog
- 2 x digital inputs or TTL level I/Os (1-Wire, I2C, Wiegand support)
- 1 x 0÷10V analog output
- Communication:
- standard RS-485 interface to the Arduino serial pins, with electrostatic discharge protection
- Ethernet/WiFi/USB depending on installed Arduino board
Dati tecnici
- Tipo
Strato Pi CAN Server, w. Pi4B 2GB + Strato Pi Fan
- Tipo prodotto
Modulo di controllo PLC
- Dim.
(L x L x A) 71.3 x 71.3 x 90.5 mm
- Modello
Strato Pi CAN + Strato Pi Fan
- Tensione d'esercizio
9 - 65 V/DC
- Voltaggio Max.
65 V/DC
- Voltaggio operativo Min.
9 V/DC
- Display
No / No
- Orologio in tempo reale
Sì (Hardware)
- Soppressione radiodisturbi
CE, FCC, IC
- Peso
180 g
- Codice articolo produttore
SPMC12X42+SPBF10X
- Protezione corto circuito
SI
- Larghezza
71.3 mm
- Altezza
90.5 mm
- Lunghezza
71.3 mm
- Profondità
62 mm
- Max. Temperatura ambiente
70 °C
- Min. Temperatura ambiente
-30 °C
Documenti & Download
Scheda tecnica
Scheda tecnica 870456750 Strato Pi CAN server with Raspberry Pi 4 Model B 2GB + Strato Pi Fan
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 870456750 Strato Pi CAN server with Raspberry Pi 4 Model B 2GB + Strato Pi Fan
Descrizione
Features
Mounting:
. 4 modules DIN rail case
. power supply and serial connections on screw terminal block
Power supply:
. 9-65Vdc power supply, with surge and reverse polarity protection, and 1.3A resettable fuse
. up to 2.5A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
Serial interfaces:
. Controller Area Network (CAN) V2.0B interface, up to 1 Mb/s, with opto-isolator and electrostatic discharge protection
. standard RS-485 interface to the Raspberry Pi serial line, with opto-isolator and electrostatic discharge protection
High reliability and security:
. hardware watchdog implemented in the Strato Pi board, fully independent from the Raspberry Pi, controlled via GPIO
. real time clock (RTC) with replaceable back-up battery
. embedded Microchip ATECC608A secure element chip
. optional pre-assembled SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan
I/O:
. relay with change-over (CO), Single Pole Double Throw (SPDT) terminals
More:
. buzzer, controlled via GPIO
. LEDs for power supply and serial line activity
Raspberry Pi embedded:
. 1 x Ethernet
. 4 x USB
. 1 x HDMI (RPi 3+) / 2x Micro HDMI (RPi 4)
. 1 x microSD card slot
. 1 x jack for audio and composite video
. WiFi
. Bluetooth/BLE
Mounting:
. 4 modules DIN rail case
. power supply and serial connections on screw terminal block
Power supply:
. 9-65Vdc power supply, with surge and reverse polarity protection, and 1.3A resettable fuse
. up to 2.5A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
Serial interfaces:
. Controller Area Network (CAN) V2.0B interface, up to 1 Mb/s, with opto-isolator and electrostatic discharge protection
. standard RS-485 interface to the Raspberry Pi serial line, with opto-isolator and electrostatic discharge protection
High reliability and security:
. hardware watchdog implemented in the Strato Pi board, fully independent from the Raspberry Pi, controlled via GPIO
. real time clock (RTC) with replaceable back-up battery
. embedded Microchip ATECC608A secure element chip
. optional pre-assembled SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan
I/O:
. relay with change-over (CO), Single Pole Double Throw (SPDT) terminals
More:
. buzzer, controlled via GPIO
. LEDs for power supply and serial line activity
Raspberry Pi embedded:
. 1 x Ethernet
. 4 x USB
. 1 x HDMI (RPi 3+) / 2x Micro HDMI (RPi 4)
. 1 x microSD card slot
. 1 x jack for audio and composite video
. WiFi
. Bluetooth/BLE
Contenuto della fornitura
- Strato Pi CAN board
- Alimentatore non incluso
Note
Alimentatore non incluso.
E' possibile scegliere la versione con aggiunta Strato Pi Fan
