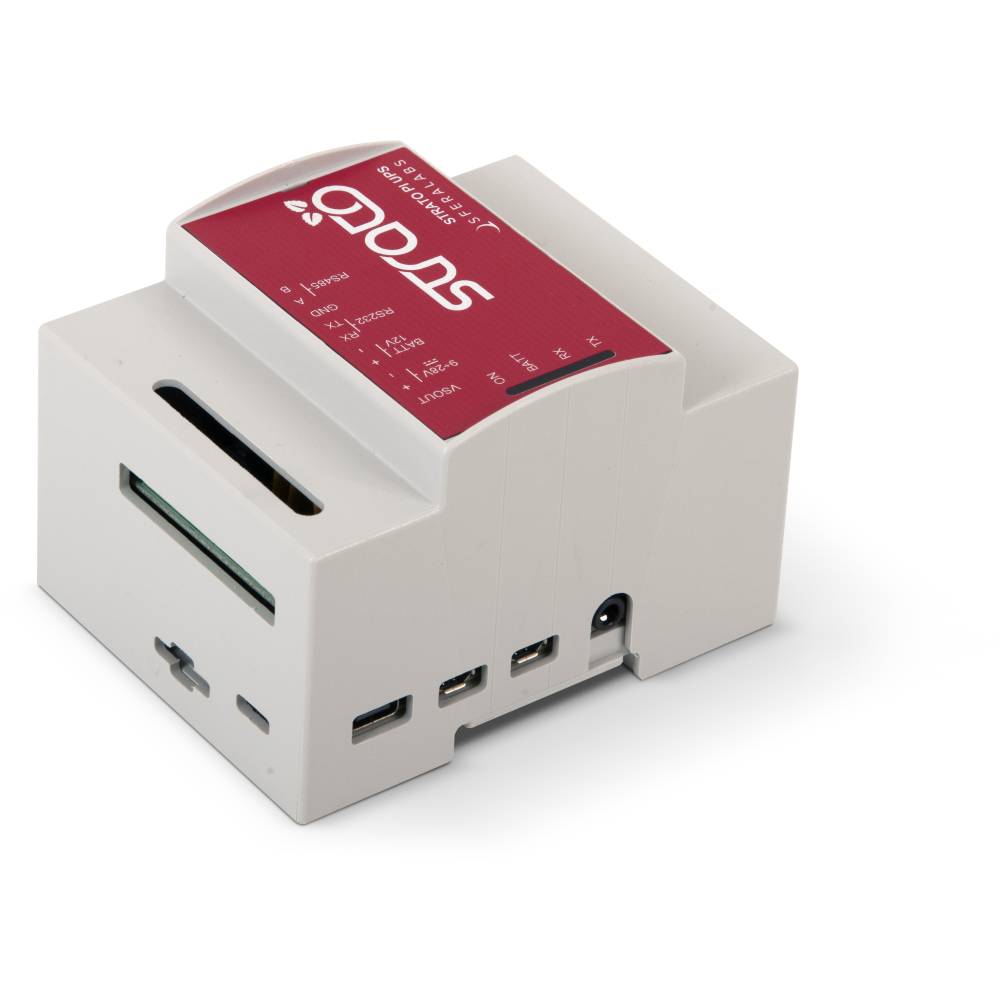

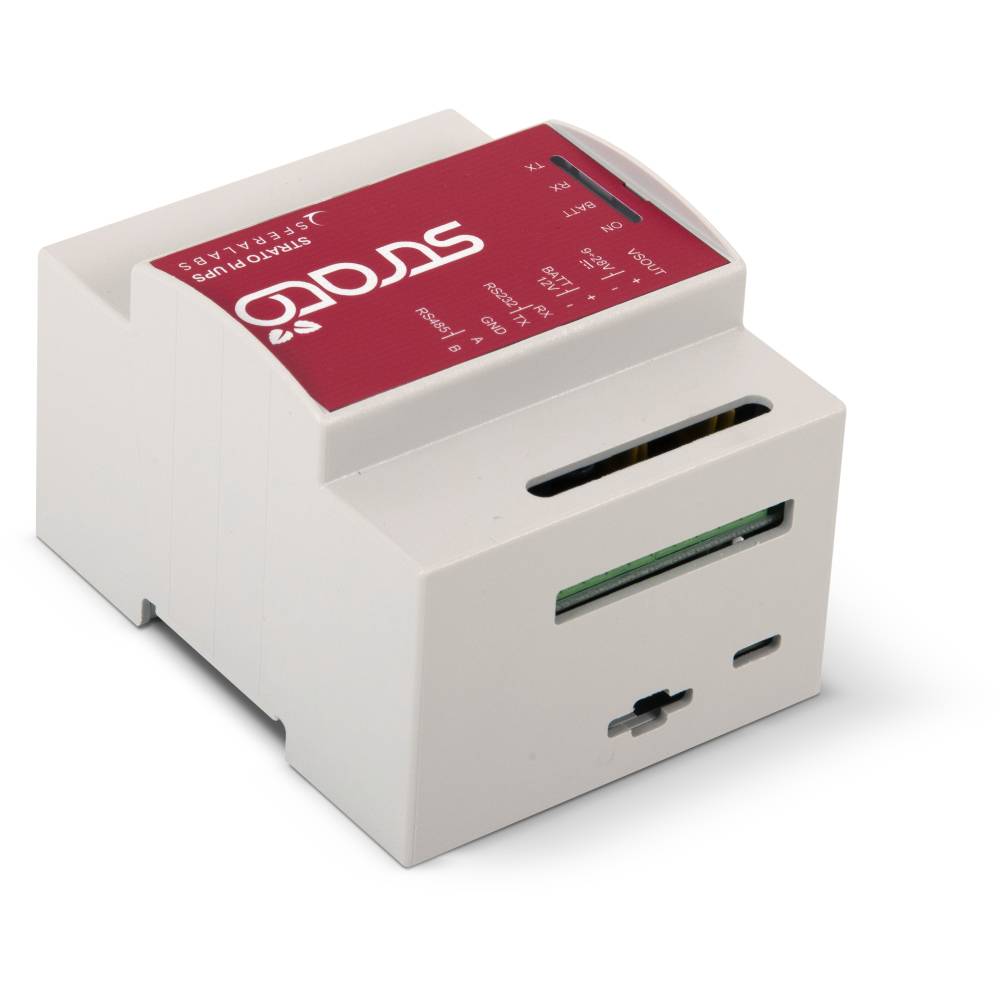

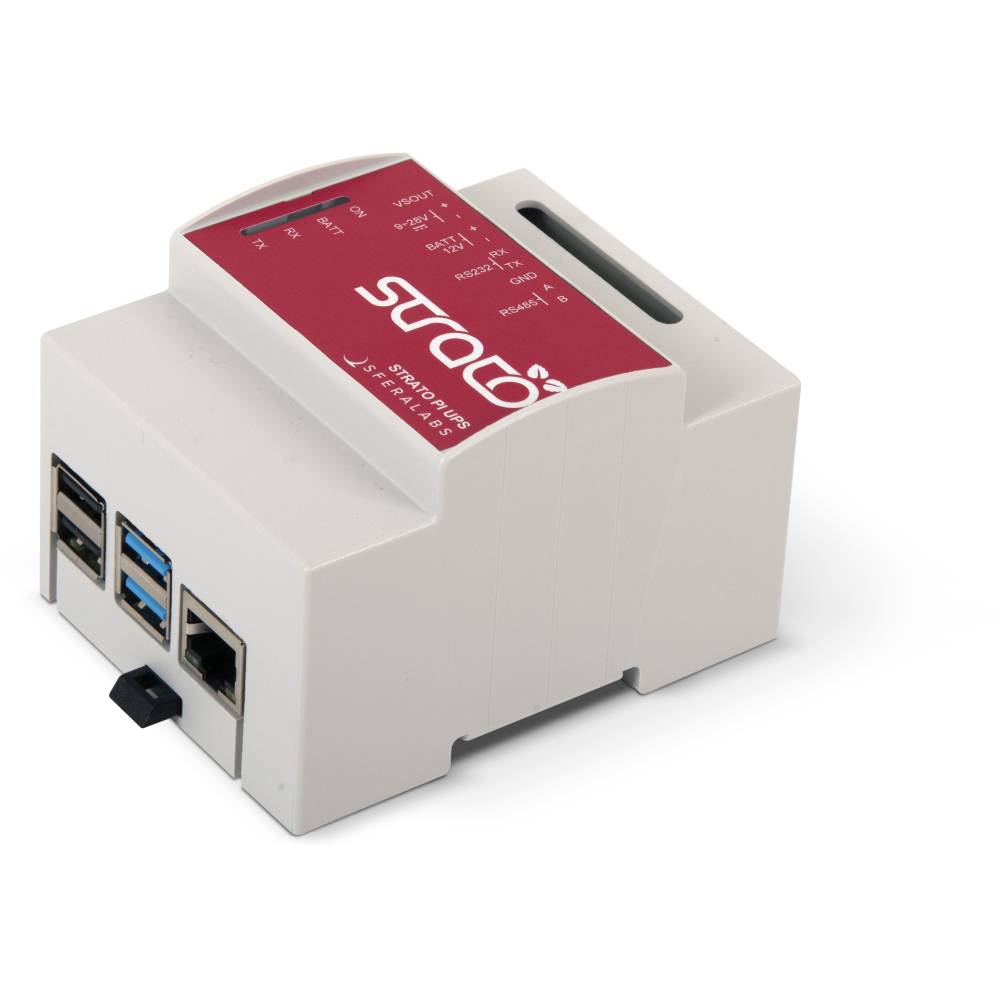

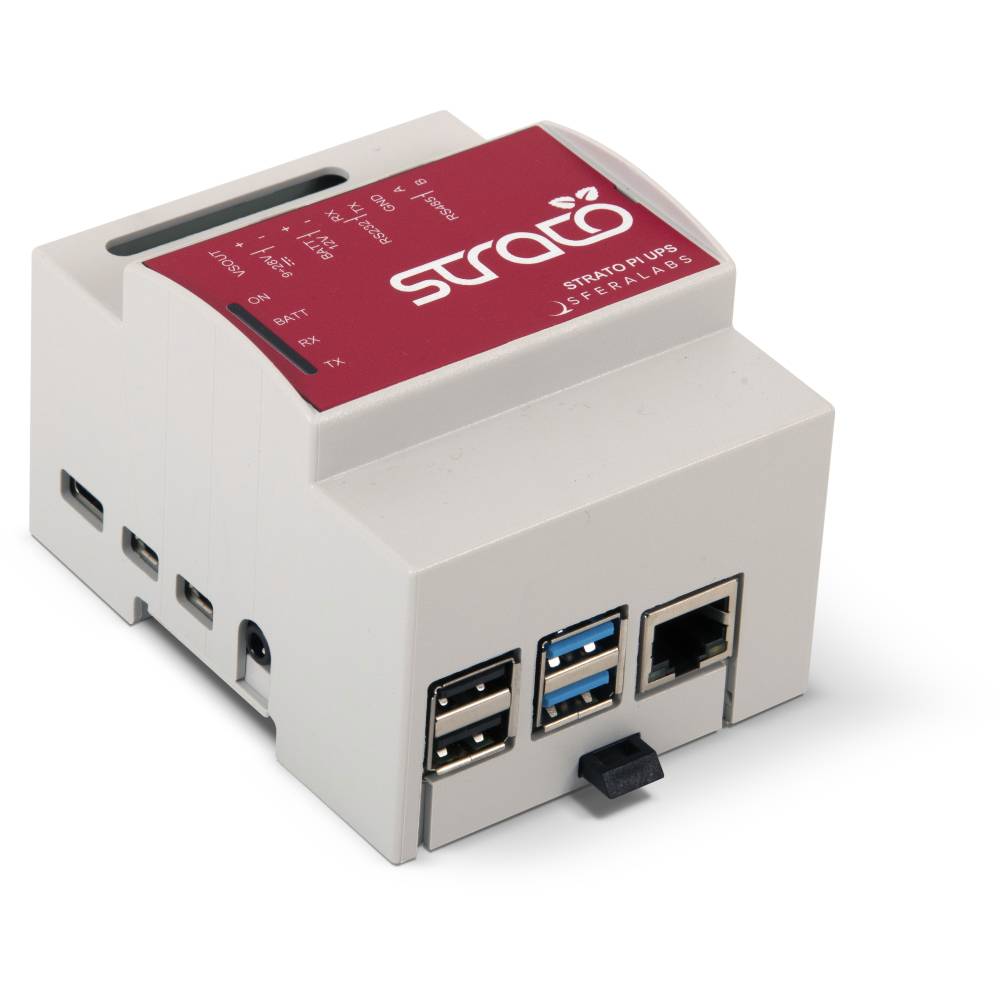

Strato Pi UPS server with Raspberry Pi 3 Model B+
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Numero
Totale
257,60 €
IVA escl.
Spedizione gratuita
Solo 10 Pezzo(i) disponibili
Highlights & Dettagli
- The highlights of Strato Pi UPS 3.0 are the following:
- • We have redesigned the Strato Pi UPS keeping the new Raspberry Pi 4 in mind. The power-supply stage has been re-engineered to withstand the current demand of Raspberry Pi 4, including that of the external devices powered via USB and Strato's auxiliary power supply output.
- • User-configurable watchdog and power management operations
- • Secure element
- • User-upgradable firmware for the onboard micro-controller directly through Raspberry Pi
Dati tecnici
- Tipo
Strato Pi UPS Server, w. Pi3B+
- Tipo prodotto
Modulo di controllo PLC
- Dim.
(L x L x A) 71.3 x 71.3 x 90.5 mm
- Modello
Strato Pi UPS
- Tensione d'esercizio
9 - 28 V/DC
- Voltaggio Max.
28 V/DC
- Voltaggio operativo Min.
9 V/DC
- Display
No / No
- Orologio in tempo reale
Sì (Hardware)
- Soppressione radiodisturbi
CE, FCC, IC
- Peso
150 g
- Codice articolo produttore
SPMU30XP
- Protezione corto circuito
SI
- Larghezza
71.3 mm
- Altezza
90.5 mm
- Lunghezza
71.3 mm
- Profondità
62 mm
- Max. Temperatura ambiente
70 °C
- Min. Temperatura ambiente
-20 °C
Documenti & Download
Scheda tecnica
Scheda tecnica 868590331 Strato Pi UPS server with Raspberry Pi 3 Model B+
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 868590331 Strato Pi UPS server with Raspberry Pi 3 Model B+
Descrizione
An industrial Raspberry Pi
Strato Pi UPS enhances the Raspberry Pi computer with several hardware features to make it suitable for use in industrial and professional applications where reliability and service continuity are key requirements.
It is compliant with the low voltage and EMC CE directives, as well as the harmonised standards for electromagnetic compatibility, electrical safety, emission and the RoHS directive for hazardous substances. It is also compliant with the applicable FCC rules and IC standards.
Features
Mounting:
• 4 modules DIN rail case

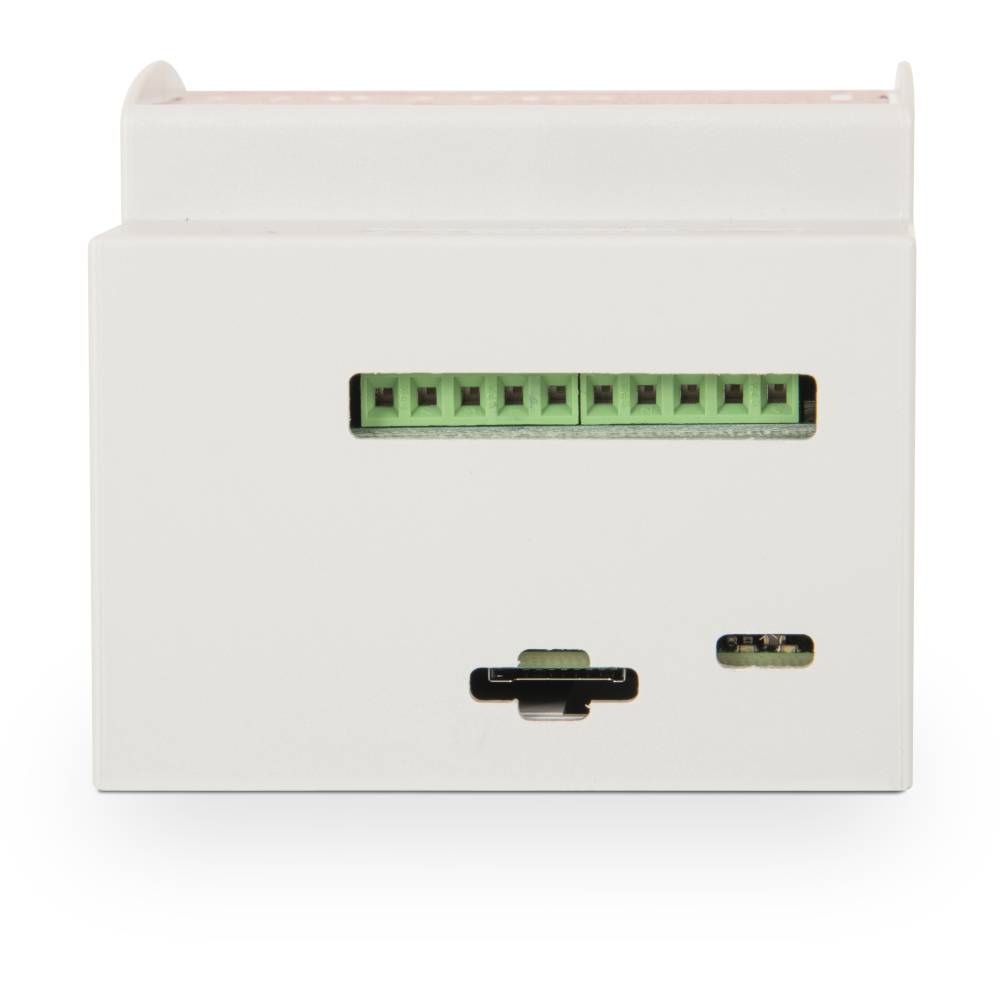

• power supply and serial connections on screw terminal block
Power supply:
• 9-28Vdc power supply, with surge and reverse polarity protection, and 2.2A resettable fuse
• up to 4.0A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
• auxiliary power supply output voltage, to power external devices through Strato Pi UPS
• integrated uninterruptible power supply (UPS), with external lead-acid 12V battery
• 2.2A resettable fuse on battery input
• simple UPS control and feedback via GPIO
Serial interfaces:
• standard RS-232 and RS-485 interfaces to the Raspberry Pi serial line, with opto-isolator and electrostatic discharge protection
High reliability and security:
• hardware watchdog implemented in the Strato Pi board, fully independent from the Raspberry Pi, controlled via GPIO
• real time clock (RTC) with replaceable back-up battery
• embedded Microchip ATECC608A/B secure element chip
• integrated boot loader for the Strato Pi micro-controller, allowing in-field firmware upgrades directly from the Raspberry Pi
• optional pre-assembled SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan
More:
• buzzer, controlled via GPIO
• LEDs for power supply, battery and serial line activity
Raspberry Pi embedded:
• 1 x Ethernet
• 4 x USB
• 1 x HDMI (RPi 3+) / 2x Micro HDMI (RPi 4)
• 1 x microSD card slot
• 1 x jack for audio and composite video
• WiFi
• Bluetooth/BLE
Strato Pi UPS enhances the Raspberry Pi computer with several hardware features to make it suitable for use in industrial and professional applications where reliability and service continuity are key requirements.
It is compliant with the low voltage and EMC CE directives, as well as the harmonised standards for electromagnetic compatibility, electrical safety, emission and the RoHS directive for hazardous substances. It is also compliant with the applicable FCC rules and IC standards.
Features
Mounting:
• 4 modules DIN rail case
• power supply and serial connections on screw terminal block
Power supply:
• 9-28Vdc power supply, with surge and reverse polarity protection, and 2.2A resettable fuse
• up to 4.0A max current to the 5V Raspberry Pi power supply input pins (at 24Vdc)
• auxiliary power supply output voltage, to power external devices through Strato Pi UPS
• integrated uninterruptible power supply (UPS), with external lead-acid 12V battery
• 2.2A resettable fuse on battery input
• simple UPS control and feedback via GPIO
Serial interfaces:
• standard RS-232 and RS-485 interfaces to the Raspberry Pi serial line, with opto-isolator and electrostatic discharge protection
High reliability and security:
• hardware watchdog implemented in the Strato Pi board, fully independent from the Raspberry Pi, controlled via GPIO
• real time clock (RTC) with replaceable back-up battery
• embedded Microchip ATECC608A/B secure element chip
• integrated boot loader for the Strato Pi micro-controller, allowing in-field firmware upgrades directly from the Raspberry Pi
• optional pre-assembled SPBF10X Strato Pi Fan active cooling temperature controlled high performance fan
More:
• buzzer, controlled via GPIO
• LEDs for power supply, battery and serial line activity
Raspberry Pi embedded:
• 1 x Ethernet
• 4 x USB
• 1 x HDMI (RPi 3+) / 2x Micro HDMI (RPi 4)
• 1 x microSD card slot
• 1 x jack for audio and composite video
• WiFi
• Bluetooth/BLE
Contenuto della fornitura
- Strato Pi UPS server
- Alimentatore non incluso
Note
Alimentatore non incluso.
E' possibile scegliere la versione con aggiunta Strato Pi Fan
