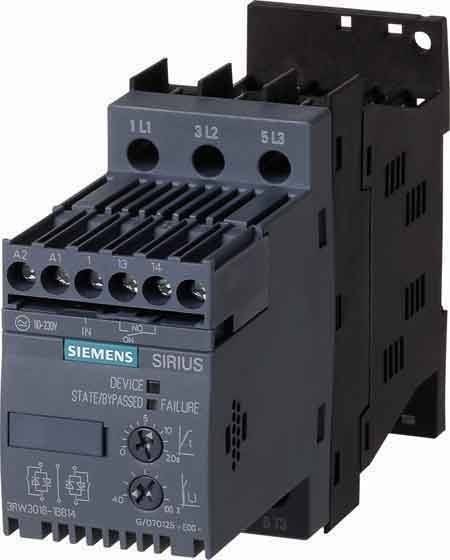

Avviatore soft starter Siemens Potenza motore a 400 V 7.5 kW Potenza motore a 230 V 4 kW 400 V/AC Corrente nominale 17.6
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Numero
Totale
210,08 €
Consegna intracomunitaria (esente da IVA)
17,00 €
Solo 2 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Tipo di protezione: IP20
- Tensione motore
200-480 V/AC
- Tipo prodotto
Avviatore soft starter
- Corrente di allacciamento
17.6 A
- Potenza motore a 230 V
4 kW
- Potenza motore a 400 V
7.5 kW
- Tensione d'esercizio
200 V-480 V
- Tensione nom.
400 V/AC
- Fasi operative
1
- Modello
Collegamento a vite
- Codice articolo produttore
3RW30181BB14
- Corrente nominale
17.6 A
- Corrente nominale
17.6 A
- Tipo
3RW3018-1BB14
- Potenza motore a 230 V/ 400 V
7.5 kW
- Dim.
(L x L x A) 150 x 45 x 100 mm
- Collegamento
Morsetto a vite
- Larghezza
45 mm
- Altezza
100 mm
- Lunghezza
150 mm
- Profondità
150 mm
- Temperatura max.
60 °C
- Min. temperatura
-25 °C
Single direction
IP20
Other
17.6 A
4 kW
7.5 kW
40 °C
FALSE
AC/DC
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 197559 Avviatore soft starter Siemens Potenza motore a 400 V 7.5 kW Potenza motore a 230 V 4 kW 400 V/AC Corrente nominale 17.6
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 197559 Avviatore soft starter Siemens Potenza motore a 400 V 7.5 kW Potenza motore a 230 V 4 kW 400 V/AC Corrente nominale 17.6
Descrizione
SIRIUS soft starter S00 17.6 A, 7.5 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW30 for standard applications for the soft starting of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

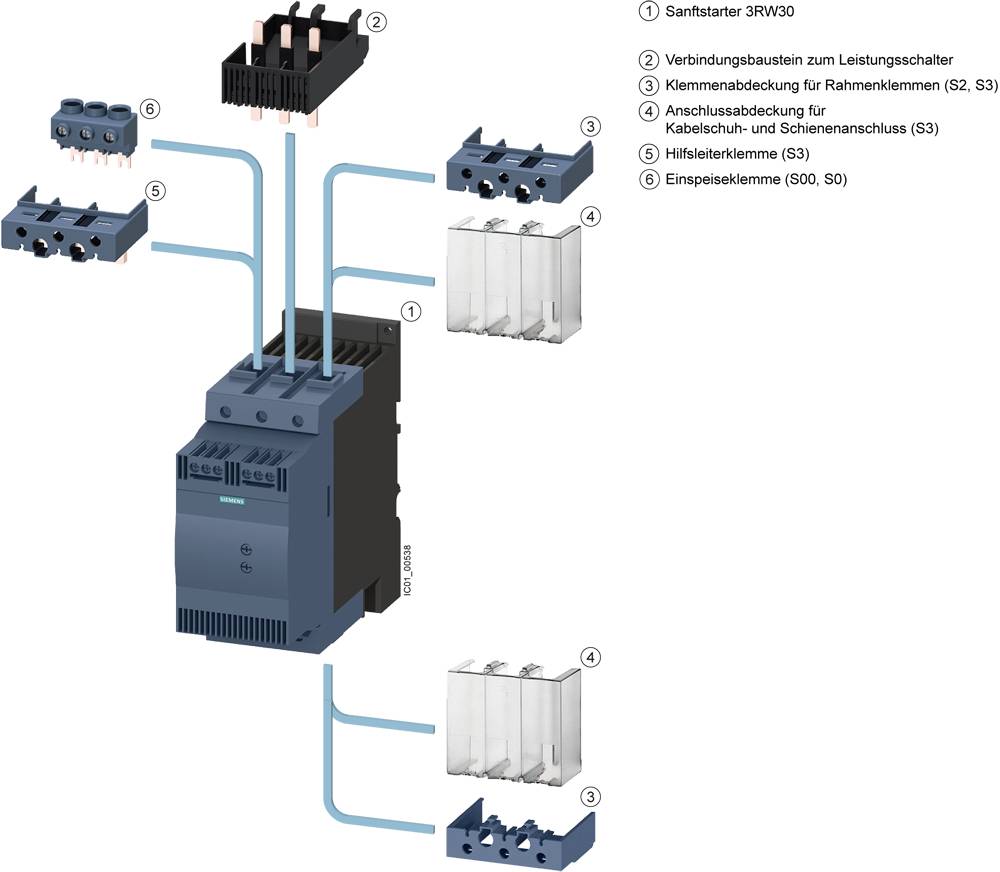

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
Testo tradotto automaticamente
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Worldwide approvals (e.g. IEC and UL/CSA).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.
With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals.
Simple, efficient and always up to date - SIRIUS modular system.
