Siemens 3RT2026-1AP00 Contattore 3 NA 11 kW 230 V/AC 25 A con contatto ausiliario Adatto per marchio (relè): Siemens 1 p
EAN:
Codice produttore
Articolo n°:
Tipo prodotto
Contattore
Numero poli
3 poli
Tensione nom.
230 V/AC
Corrente di carico
25 A
Potenza
11 kW
Scheda tecnica (PDF)
Numero
Totale
53,40 €
Consegna intracomunitaria (esente da IVA)
19,90 €
Diritto di reso di 14 giorni incluso
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Peso: 411 g
- Potenza dissipata: 1.6 W
- Tipo prodotto
Contattore
- Tipo
3RT2026-1AP00
- Dimensione
S0
- Numero poli
3 poli

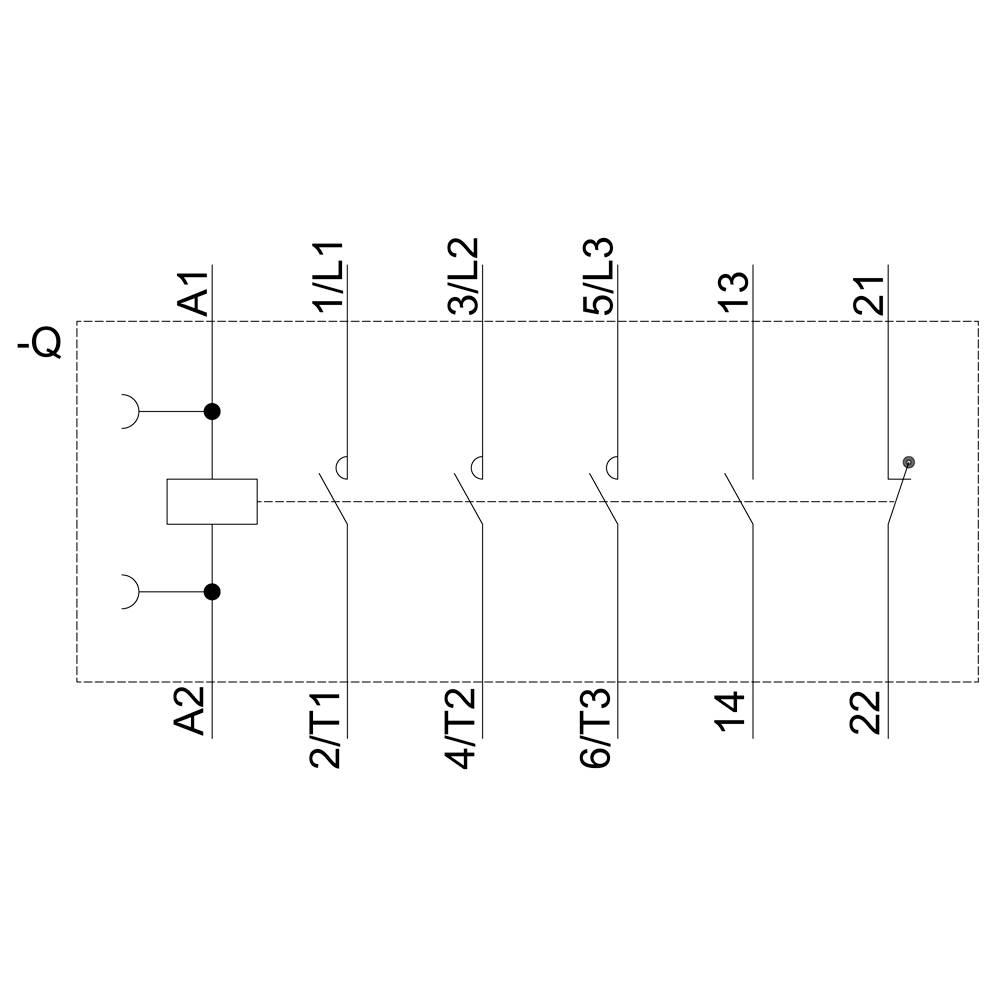

- Tipo contatto
3 NA
- Contatto ausiliario
1 NA
1 NC
- Tensione nom.
230 V/AC
- Tensione di comando (max.)
230 V/AC
- Range tensione di controllo
230 V/AC (max)
- Tensione di commutazione max
400 V/AC
- Corrente continua (max.)
25 A
- Corrente di carico
25 A
11 kW
- Adatto per
Siemens
- Adatto per serie
Siemens Serie Sirius
- Caratteristiche
con contatto ausiliario
- Tipo di montaggio
Guida DIN
- Collegamento
Morsetto a vite
- Durata meccanica
1.0E7
IP20
- Min. temperatura
-25 °C
- Temperatura max.
+60 °C

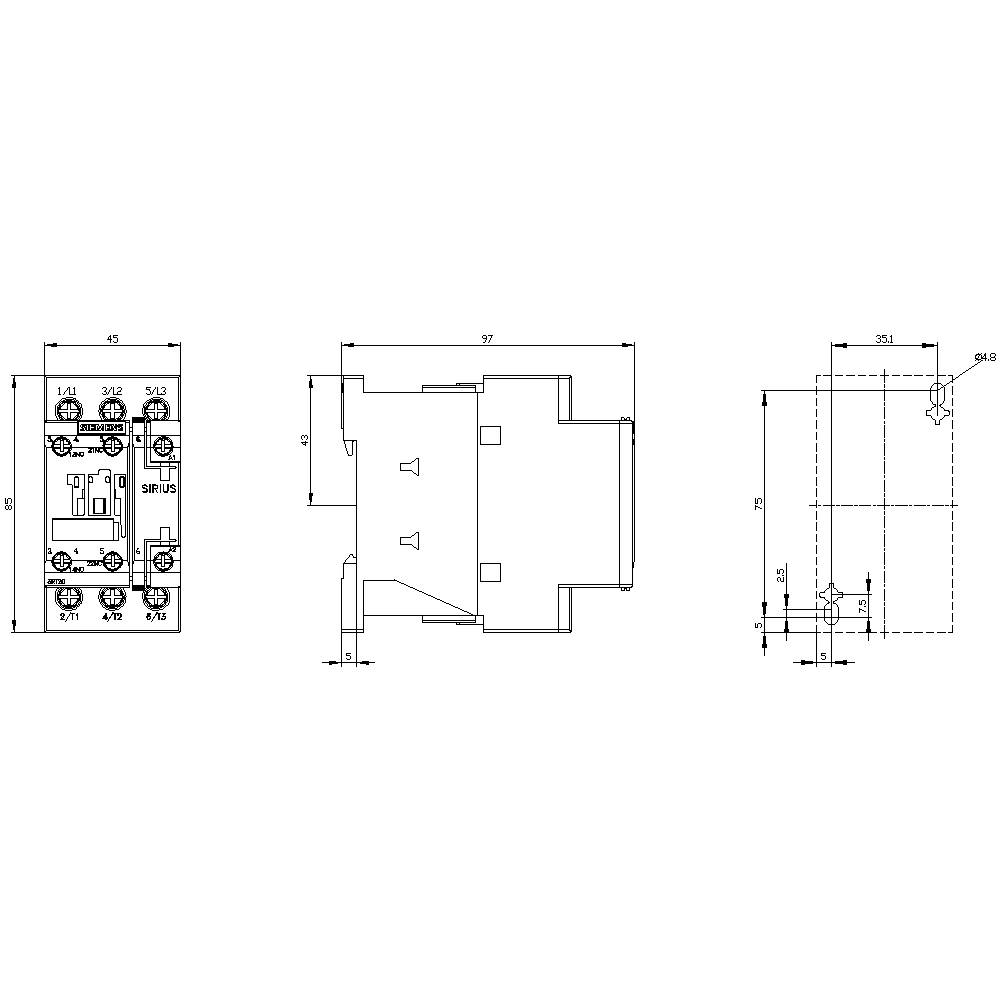

- Larghezza
45 mm
- Altezza
85 mm
- Profondità
97 mm
- Dim.
(L x A x P) 45 x 85 x 97 mm
- Contenuto
1 pz.
- Compatibile RoHS
Sì
- Peso
420 g
TRUE
11 kW
3
1
1
25 A
40 A
Screw connection
AC
15.5 A
11.03248125
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1431063 Siemens 3RT2026-1AP00 Contattore 3 NA 11 kW 230 V/AC 25 A con contatto ausiliario Adatto per marchio (relè): Siemens 1 p
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1431063 Siemens 3RT2026-1AP00 Contattore 3 NA 11 kW 230 V/AC 25 A con contatto ausiliario Adatto per marchio (relè): Siemens 1 p
Descrizione
power contactor, AC-3 25 A, 11 kW / 400 V 1 NO + 1 NC, 230 V AC, 50 Hz, 3-pole, Size S0 screw terminal Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.

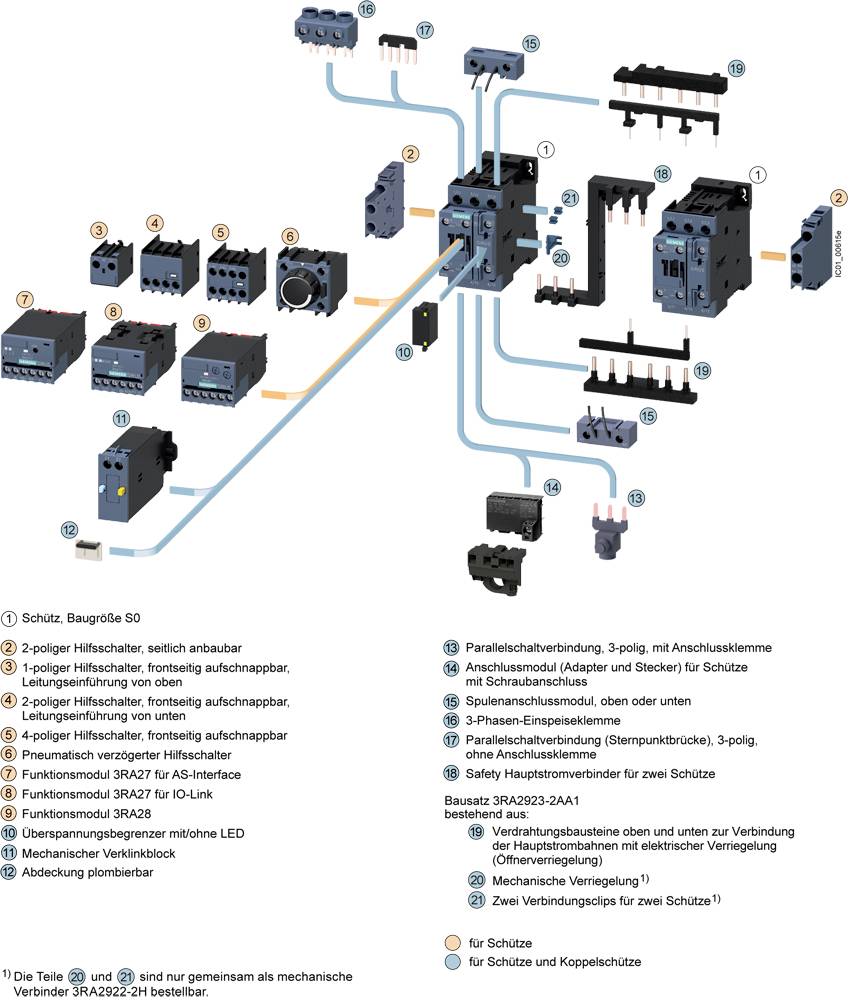

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
Testo tradotto automaticamente
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.
Testo tradotto automaticamente
