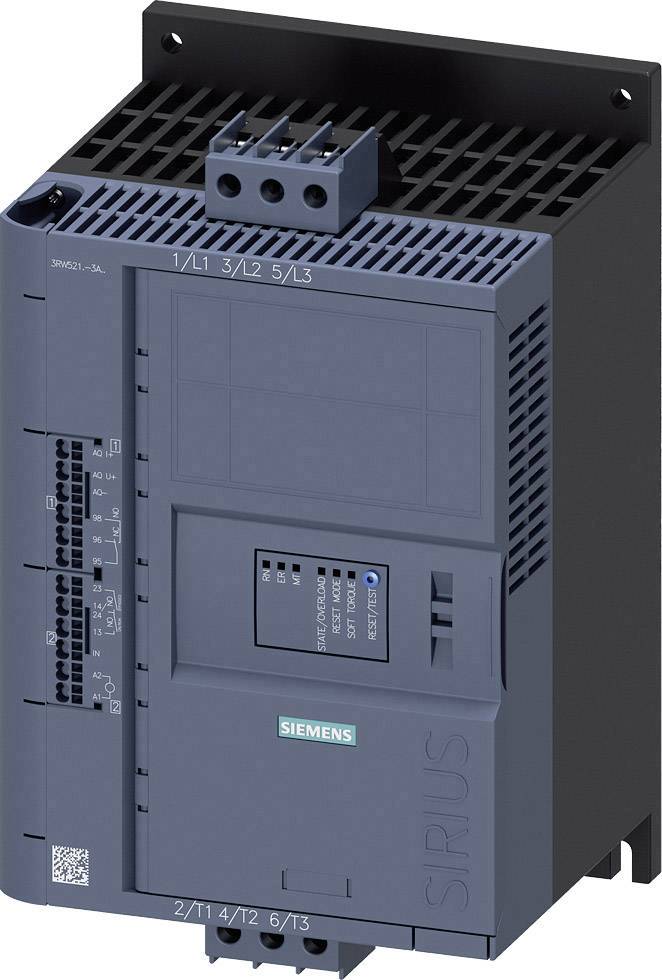

Siemens 3RW5213-1AC14 3RW52131AC14 Avviatore soft starter Potenza motore a 400 V 5.5 kW Potenza motore a 230 V 3 kW 200
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
Numero
Totale
627,60 €
Consegna intracomunitaria (esente da IVA)
19,90 €
Solo 1 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Highlights & Dettagli
Avviatore SIRIUS 3RW52
- Cablaggio semplice
- Manutenzione ridotta
- Meno costi di acquisto
- Risparmio di spazio grazie alla struttura molto compatta
Dati tecnici
- Dimensione BG1
- Tipo di protezione: IP20
- Frequenza di funzionamento: 50/60 Hz
- Tensione di isolamento: 600 V
- Tipo di fissaggio: fissaggio a vite
- Modello di uscite digitali: 2 dispositivi di chiusura (NO) / 1 contatto in scambio (CO)
- Tensione motore
200-480 V
- Tipo prodotto
Avviatore soft starter
- Corrente di allacciamento
13 A
- Potenza motore a 230 V
3 kW
- Potenza motore a 400 V
5.5 kW
- Tensione nom.
200 V
480 V
- Fasi operative
3
- Codice articolo produttore
3RW52131AC14
- Corrente nominale
13 A
- Corrente nominale
13 A
- Tipo
3RW5213-1AC14

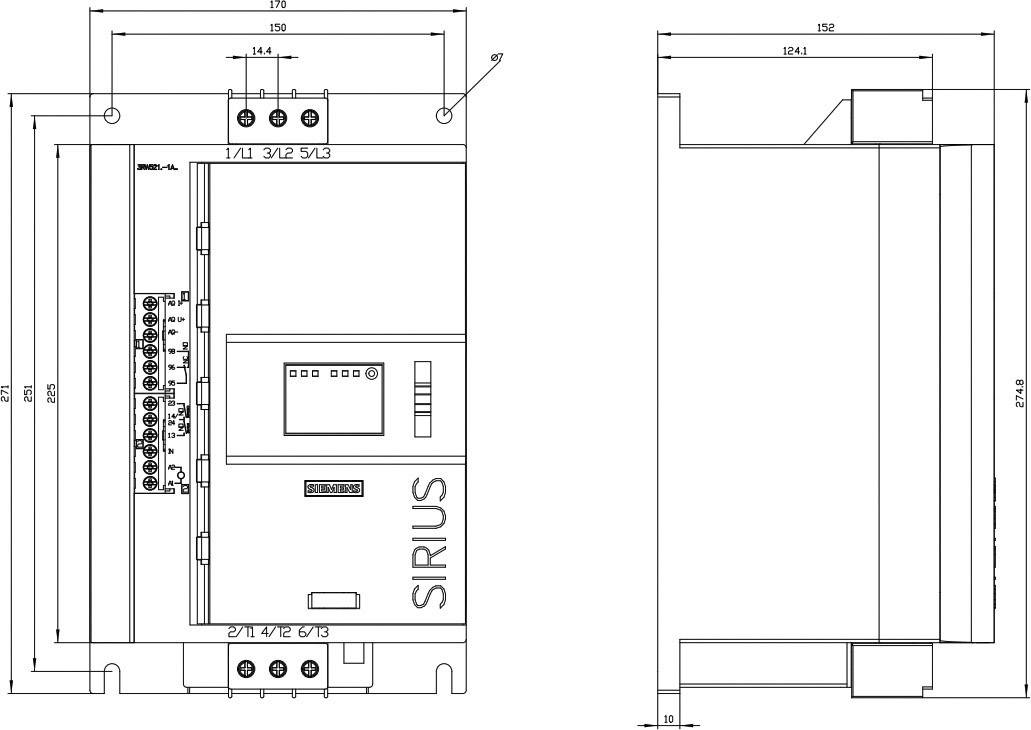

- Dim.
(L x L) 271 mm x 170 mm
- Collegamento
Morsetto a vite
- Larghezza
170 mm
- Lunghezza
271 mm
- Profondità
152 mm
- Temperatura max.
+60 °C
- Min. temperatura
-25 °C
Single direction
IP20
Adjustable
13 A
3 kW
5.5 kW
5.5 kW
11 kW
40 °C
TRUE
AC
TRUE
FALSE
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 2201621 Siemens 3RW5213-1AC14 3RW52131AC14 Avviatore soft starter Potenza motore a 400 V 5.5 kW Potenza motore a 230 V 3 kW 200
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 2201621 Siemens 3RW5213-1AC14 3RW52131AC14 Avviatore soft starter Potenza motore a 400 V 5.5 kW Potenza motore a 230 V 3 kW 200
Descrizione

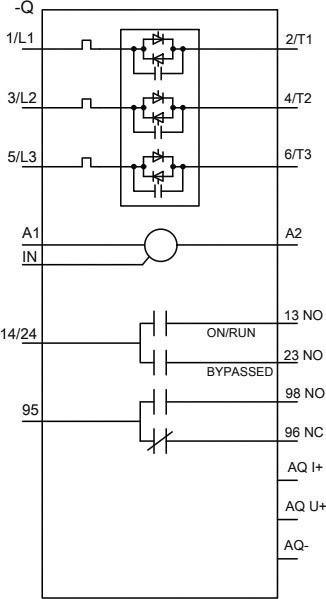

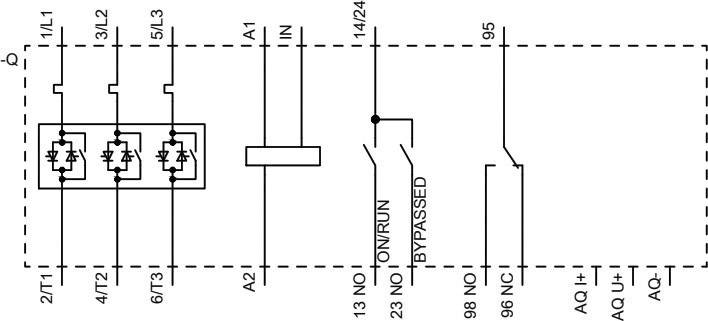

SIRIUS soft starter 200-480 V 13 A, 110-250 V AC Screw terminals Analog output Soft starter SIRIUS 3RW52 General Performance for simple applications for soft starting and stopping of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction, saves energy and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. Thanks to 3-phase control, particularly suitable for high motor outputs and inside-delta circuits. The innovative Soft Torque function ensures that the motor is started gently. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA).
The General Performance 3RW52 soft starters are available for supply systems up to 600 V in a wide performance range up to 560 kW with 24 V or 110-250 V supply voltages and all with both screw and spring-type terminals. Different device versions are available for analog output and thermistor motor protection.

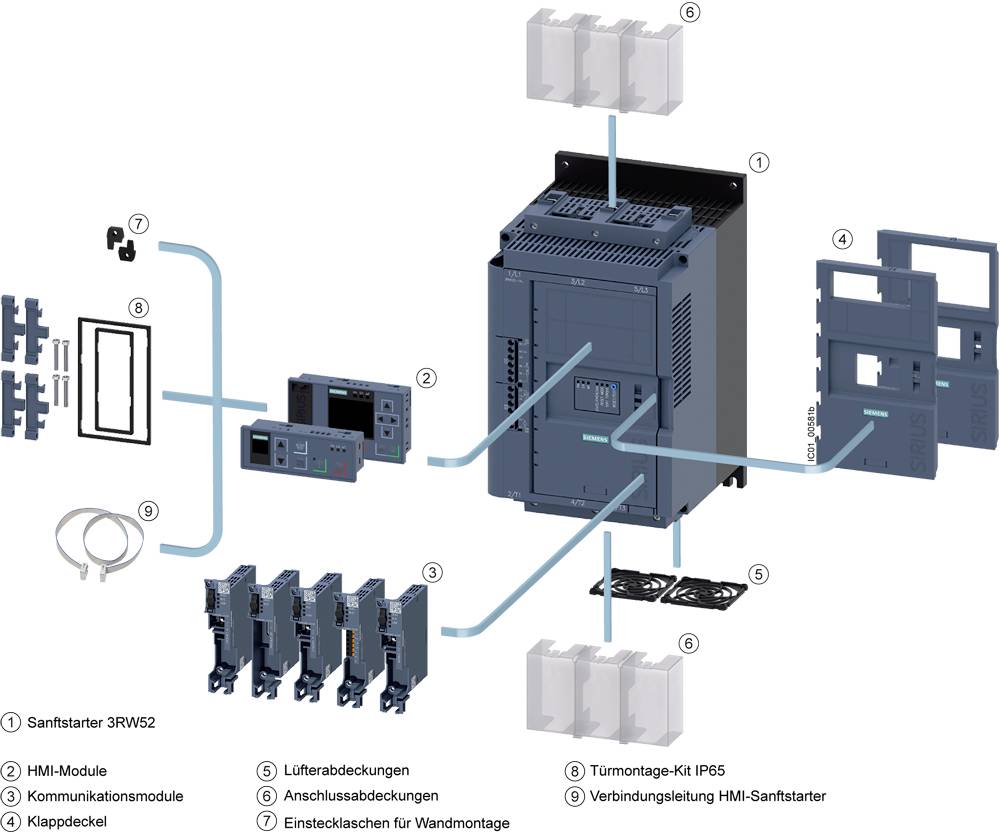

Optional plug-in communication modules allow connection via PROFINET, PROFIBUS and Modbus TCP. Various HMI modules are available for installation in the device or the control cabinet door.
SIRIUS 3RW5 soft starters - As flexible as your tasks.
Testo tradotto automaticamente
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction, saves energy and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. Thanks to 3-phase control, particularly suitable for high motor outputs and inside-delta circuits. The innovative Soft Torque function ensures that the motor is started gently. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA).
The General Performance 3RW52 soft starters are available for supply systems up to 600 V in a wide performance range up to 560 kW with 24 V or 110-250 V supply voltages and all with both screw and spring-type terminals. Different device versions are available for analog output and thermistor motor protection.
Optional plug-in communication modules allow connection via PROFINET, PROFIBUS and Modbus TCP. Various HMI modules are available for installation in the device or the control cabinet door.
SIRIUS 3RW5 soft starters - As flexible as your tasks.
