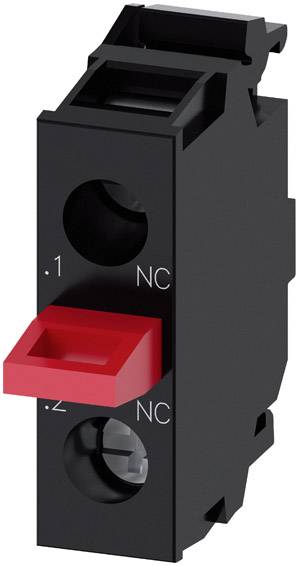

Siemens 3SU1400-2AA10-1CA0 Modulo contatto per il montaggio a terra 1 NC elemento di contatto 500 V 1 pz.
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
24 Pezzo(i)
Vendita e spedizione:
spedizione gratuita a partire da 100,00 € valore dell'ordine con questo fornitore
Numero
Totale
5,90 €
Consegna intracomunitaria (esente da IVA)
7,37 €
Diritto di reso di 14 giorni incluso
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Modulo di contatto con 1 elemento di commutazione, 1NC, connessione a vite, per montaggio a pavimento, quantità minima ordinabile 5 o un suo multiplo
- Tipo prodotto
Modulo contatto
- Caratteristiche
per il montaggio a terra
- Collegamento
A vite
- Modello
Tipo di contatto dei contatti ausiliari: lega di argento
- Profondità di montaggio
27.7 mm
- Funzioni
elemento di contatto
- Tipo contatto
1 NC
- Posizione interruttore
1 NC
- Tensione di commutazione
500 V
- Corrente di commut. max.
10 A
IP40
IP20
- Min. temperatura
-25 °C
- Temperatura max.
+70 °C
- Larghezza
9.8 mm
- Altezza
33.2 mm
- Adatto per
Fissaggio a pavimento
- Durata meccanica
1.0E7
- Durata elettrica
1.0E7
- Metodo di montaggio
A pavimento
- Contenuto
1 pz.

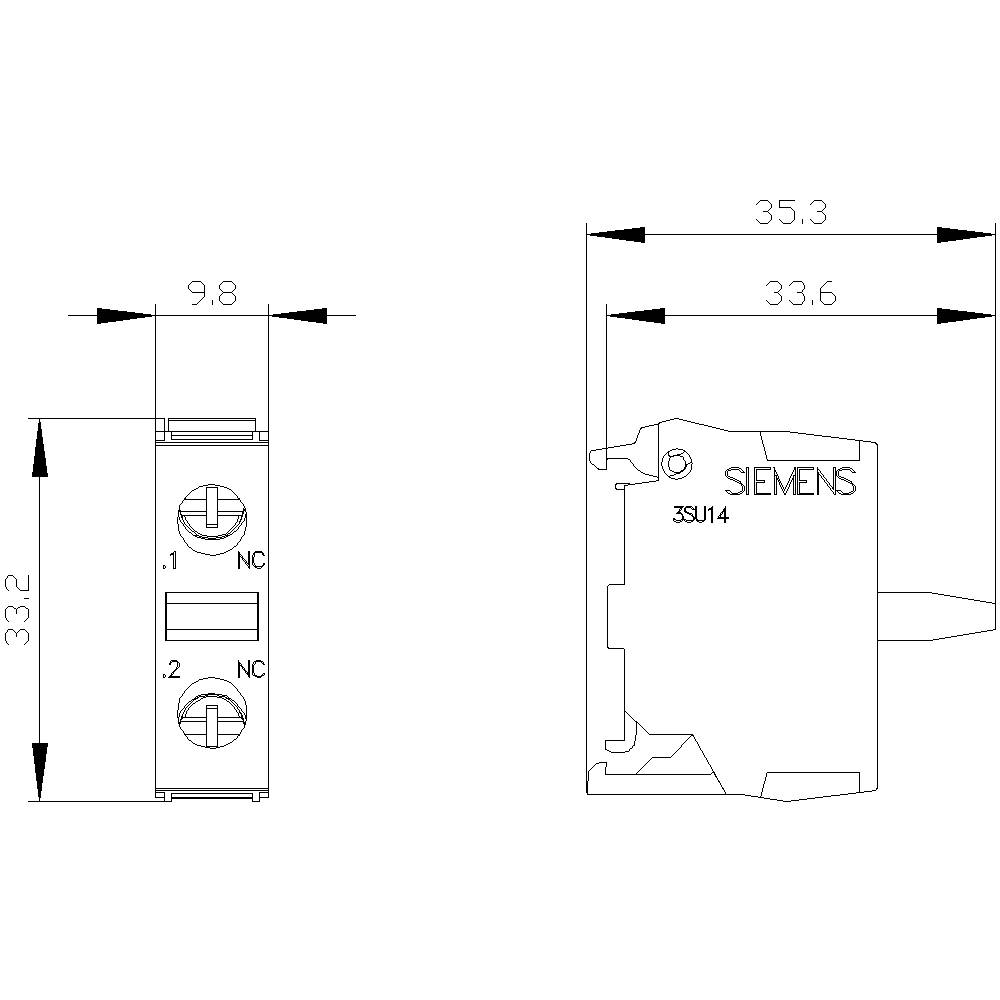

- Dim.
(L x A x P) 9.8 x 33.2 x 27.7 mm
- Compatibile RoHS
Sì
- Peso
0.0100 kg
- Profondità
27.7 mm
- Tipo
3SU1400-2AA10-1CA0
- Colore
Multicolore
Floor fastening
6 A
Screw connection
0
1
0
0
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1379472 Siemens 3SU1400-2AA10-1CA0 Modulo contatto per il montaggio a terra 1 NC elemento di contatto 500 V 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1379472 Siemens 3SU1400-2AA10-1CA0 Modulo contatto per il montaggio a terra 1 NC elemento di contatto 500 V 1 pz.
Informazioni
Informazioni 1379472 Siemens 3SU1400-2AA10-1CA0 Modulo contatto per il montaggio a terra 1 NC elemento di contatto 500 V 1 pz.
Descrizione
Contact module with 1 contact element, 1 NC, screw-type terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof Contact module SIRIUS ACT for switching power circuits.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various switching functions, various types of connection and installation, 1- and 2-pole.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Various switching functions, various types of connection and installation, 1- and 2-pole.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
