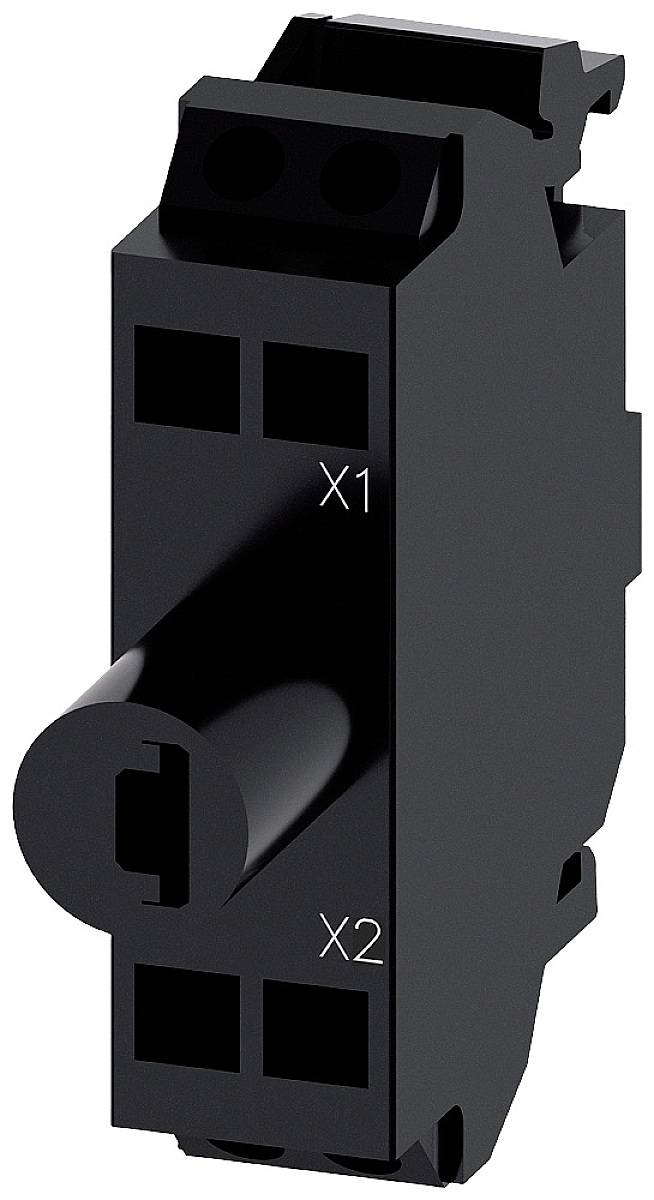

Siemens 3SU1401-2BB20-3AA0 Modulo LED per il montaggio a terra Rosso elemento di contatto 24 V DC/AC 5 pz.
Scheda tecnica (PDF)
EAN:
Codice produttore
Articolo n°:
Numero (Confezione 5 pz.)
Totale (51,99 € / Pezzo)
51,99 €
IVA incl.
Solo 1 Set(s) disponibili
Diritto di reso di 14 giorni incluso
Dati tecnici
- Tipo di lampadina: LED
- Componente del prodotto / diodo: Sì
- Componente del prodotto/lampadina: Sì
- Resistenza all'oscillazione: 10... 500 Hz: 5 g
- Tipo di sezione del conduttore collegabile / per cavi AWG: 2x (24... 16)
- Tipo di sezione del conduttore collegabile / a un filo / senza lavorazione del conduttore: 2x (0,25... 1,5 mm²)
- Tipo di sezione del conduttore collegabile / a filo sottile / con finitura del conduttore: 2x (0,25... 0,75 mm²)
- Tipo di sezione del conduttore collegabile / a filo sottile / senza lavorazione del conduttore: 2x (0,25... 1,5 mm²)
- Corrente di accensione massima: 2 A.
- Tensione di isolamento: 320 V
- Intensità luminosa minima: 450 mcd
- Intensità luminosa massima: 1120 mcd
- Grado di inquinamento: 3
- Tipo prodotto
Modulo LED
- Caratteristiche
per il montaggio a terra
- Collegamento
Collegamento gabbia a molla
- Modello
con LED integrato
- Funzioni
elemento di contatto
- Colore della luce
Rosso
- Tensione di commutazione
24 V DC/AC
- Corrente di commut. max.
25 mA
IP20
IP40
- Resistenza tensione
4 kV
- Min. temperatura
-25 °C
- Temperatura max.
+70 °C
- Larghezza
9.8 mm
- Altezza
36 mm
- Durata elettrica
100000
- Metodo di montaggio
A pavimento
- Contenuto
5 pz.

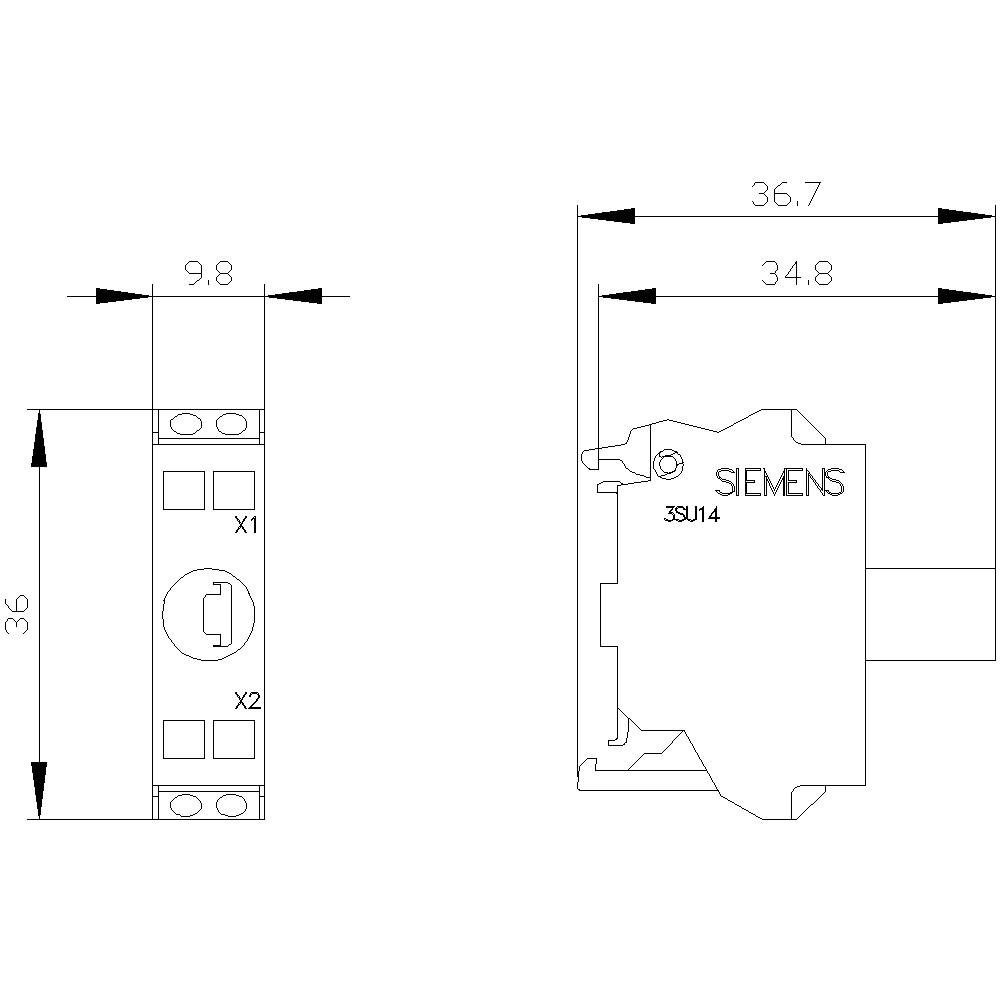

- Dim.
(L x A x P) 9.8 x 36 x 29.4 mm
- Compatibile RoHS
Sì
- Profondità
29.4 mm
- Tipo
3SU1401-2BB20-3AA0
- Illuminante incluso
Sì
None
FALSE
FALSE
TRUE
Red
LED
TRUE
Spring clamp connection
AC/DC
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 2262281 Siemens 3SU1401-2BB20-3AA0 Modulo LED per il montaggio a terra Rosso elemento di contatto 24 V DC/AC 5 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 2262281 Siemens 3SU1401-2BB20-3AA0 Modulo LED per il montaggio a terra Rosso elemento di contatto 24 V DC/AC 5 pz.
Descrizione

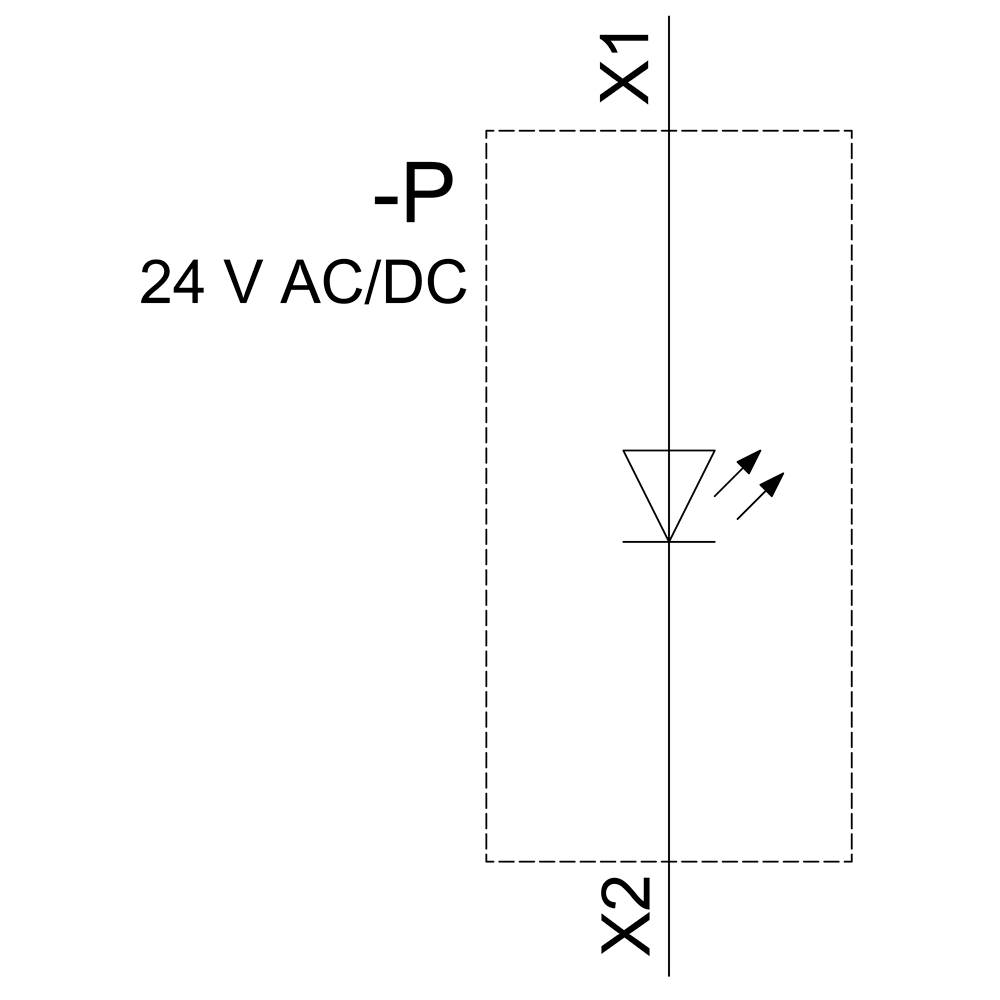

LED module with integrated LED 24 V AC/DC, red, Spring-loaded terminal, for floor mounting, Minimum order quantity 5 or a multiple thereof LED module SIRIUS ACT for illuminating SIRIUS ACT pushbuttons and indicator lights with high luminosity thanks to energy efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

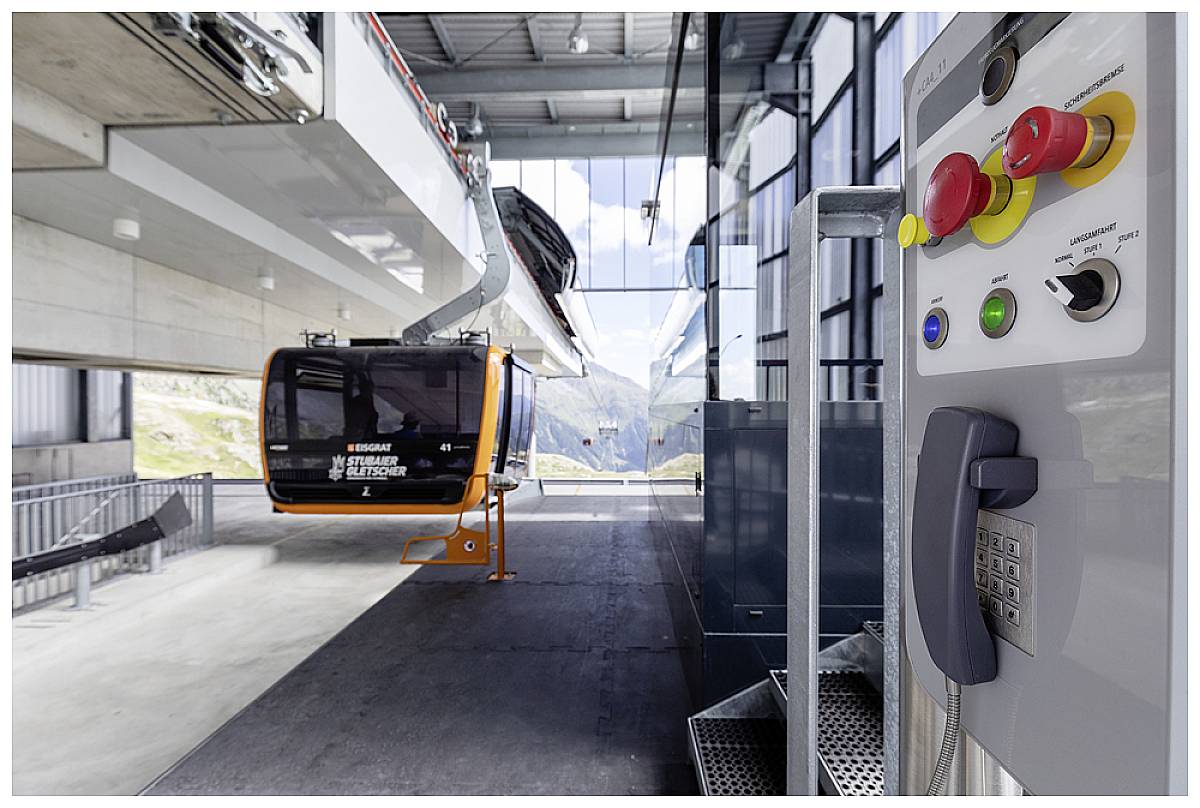

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, various voltage variants, various types of connection and installation.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
