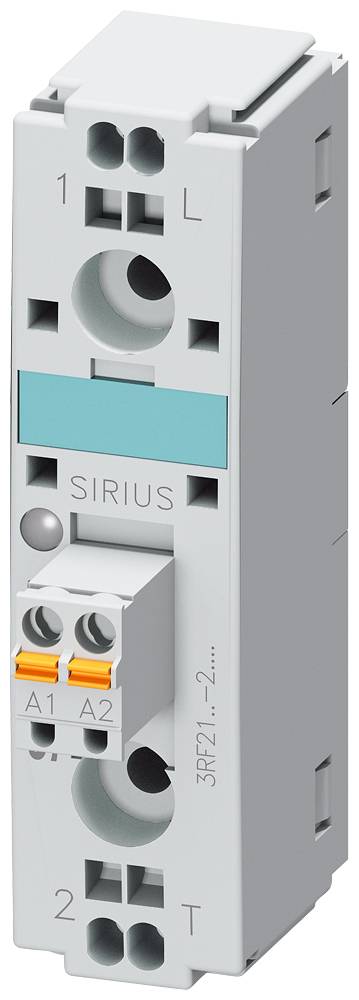

Siemens Relè a semiconduttore 3RF21902AA26 90 A Tens.comm.max: 600 V/AC Commutazione zero crossing 1 pz.
Tipo prodotto
Relè a semiconduttore
Tensione di comando (min.)
110 V/AC
Tensione di comando (max.)
230 V/AC
Tensione di commutazione max
600 V/AC
Corrente di carico max
90 A
Scheda tecnica (PDF)
EAN:
Codice produttore
Articolo n°:
Totale (104,99 € / Pezzo)
104,99 €
IVA incl.
Spedizione gratuita
Diritto di reso di 14 giorni incluso
Dati tecnici
- Tipo di fissaggio: fissaggio a vite
- Numero poli: 1
- Tensione di isolamento: 600 V
- Tipo prodotto
Relè a semiconduttore
- Tipo
3RF2190-2AA26
- Tipo di commutazione
Commutazione zero crossing
- Collegamento
Morsetti a molla
- Tensione di comando (min.)
110 V/AC
- Tensione di comando (max.)
230 V/AC
- Range tensione di controllo
110 - 230 V/AC
- Corrente di comando (max.)
15 mA
- Picco di corrente (max.)
1150 A
- Tensione di commutazione (min.)
48 V/AC
- Tensione di commutazione max
600 V/AC
- Corrente di carico max
90 A
- Tipo contatto
1 NA
- Min. temperatura
-25 °C
- Temperatura max.
+60 °C
IP20
- Larghezza
22.5 mm
- Altezza
85 mm
- Profondità
48 mm
- Peso
73 g
- Compatibile RoHS
Sì
- Contenuto
1 pz.
1
TRUE
90 A
AC
20 A
Documenti & Download
Scheda tecnica
Scheda tecnica 1430816 Siemens Relè a semiconduttore 3RF21902AA26 90 A Tens.comm.max: 600 V/AC Commutazione zero crossing 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1430816 Siemens Relè a semiconduttore 3RF21902AA26 90 A Tens.comm.max: 600 V/AC Commutazione zero crossing 1 pz.
Descrizione
Semiconductor relay, 1-phase 3RF2 Overall width 22.5 mm, 90 A 48-600 V / 110-230 V AC Spring-type terminal solid-state relay SIRIUS 3RF21 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant.
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Testo tradotto automaticamente
The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA).
The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections.
In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories.
Simple, efficient and always up to date - SIRIUS modular system.
Testo tradotto automaticamente
Note
Si prega di notare che questo prodotto è un'edizione speciale e pertanto esclusa dal reso. Ordine speciale, non si accettano resi.
