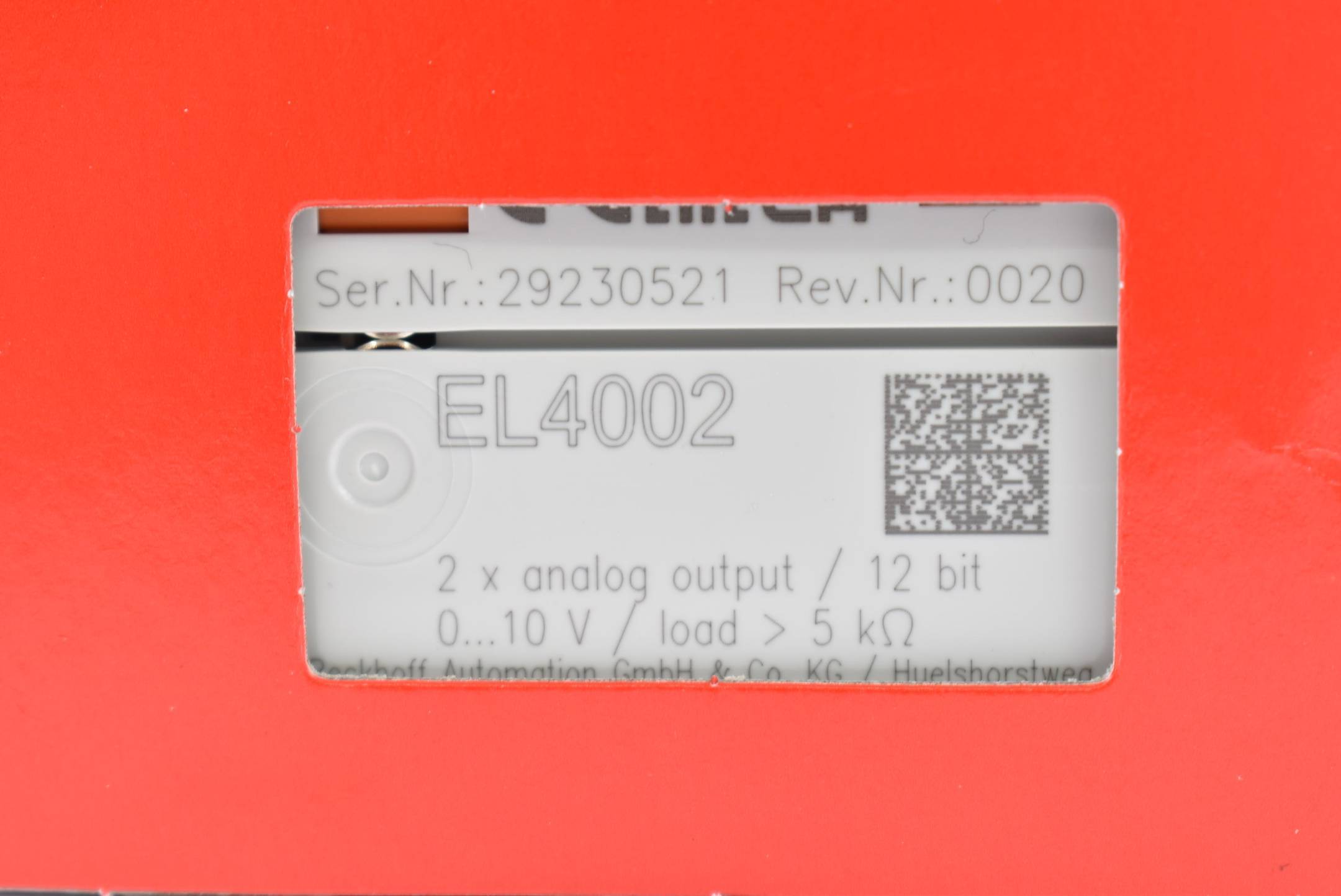

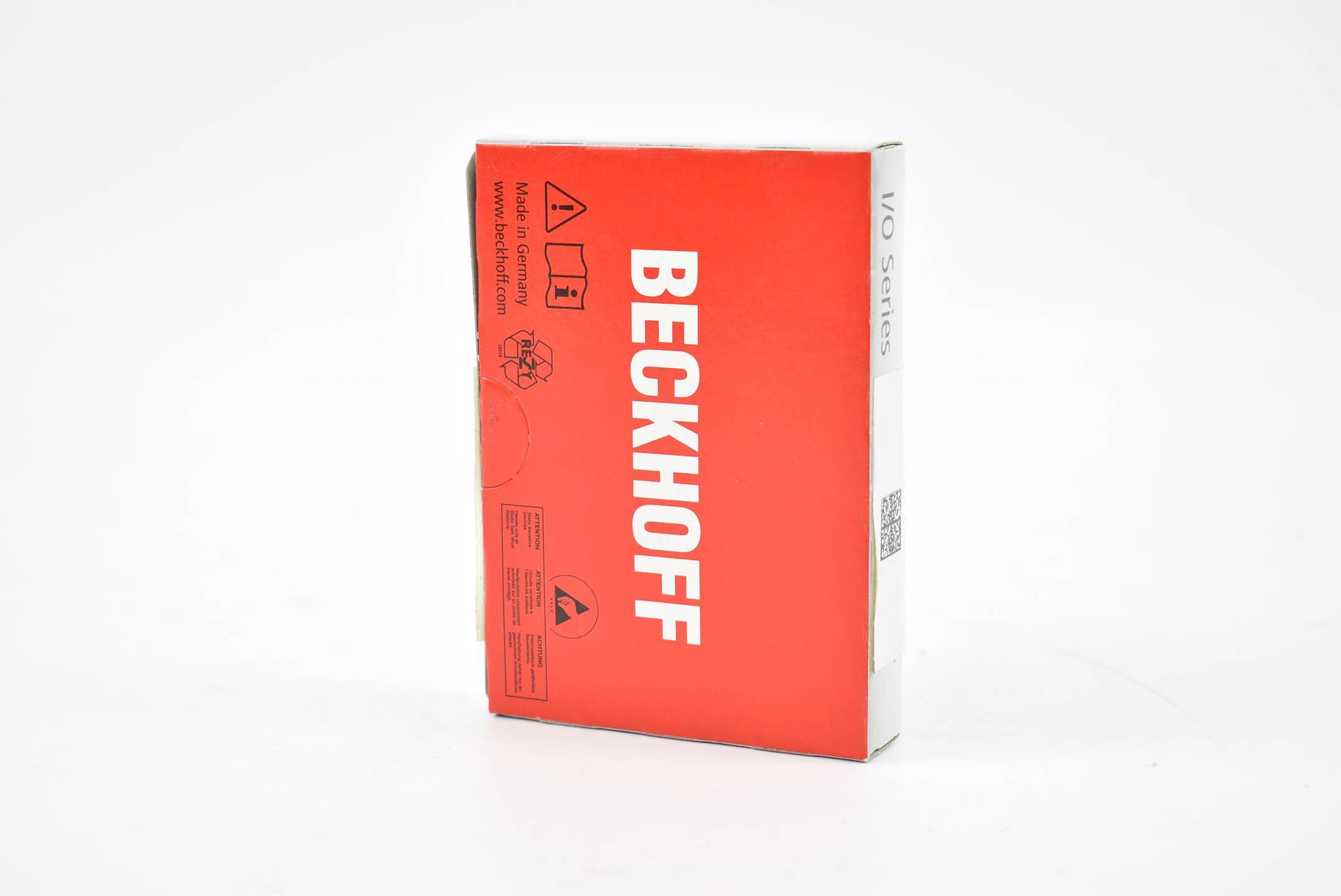

Morsetto EtherCAT Beckhoff a 2 canali con uscita analogica da 0-10 V a 12 bit EL4002 (EL 4002)
Codice produttore
Articolo n°:
Numero
Totale
135,00 €
IVA escl.
20,08 €
Solo 10 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La selezione ottimale per la quantità inserita viene calcolata automaticamente, compresi il prezzo (escl. spedizione) e i tempi di consegna.
Dati tecnici
- Tipo prodotto
Morsetto PLC
- Tipo
EL4002
- Codice articolo produttore
EL4002
- Ingressi max.
2
- Uscite analogiche max.
2
- Configurazione (Registrazione dati ICs)
Reostato
- Tipo di imballaggio
Singolo
- Temperatura di esercizio (max.)
85 °C
- UKCA
Sì
Descrizione
EL4002 | EtherCAT Terminal, 2-channel analog output, voltage, 0…10 V, 12 bit
The EL4002 analog output terminal generates signals in the range between 0 and 10 V. The voltage is supplied to the process level with a resolution of 12 bits and is electrically isolated. The output channels of the EtherCAT Terminal have a common ground potential. The EL4002 combines two channels in one housing. The output stages are powered by the 24 V supply. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Connection technology 2-wire, single-ended
Number of outputs 2
Power supply 24 V DC via power contacts
Signal voltage 0…10 V
Distributed clocks yes
Distributed clock precision << 1 µs
Load > 5 kΩ (short-circuit proof)
Output error < 0.1 % (relative to end value)
Resolution 12 bit
Electrical isolation 500 V (E-bus/signal voltage)
Conversion time ~ 150 µs
Current consumption power contacts typ. 25 mA
Current consumption E-bus typ. 140 mA
Bit width in the process image 2 x 16 bit AO output
Special features Optional watchdog: user-specific output value with ramp; user synchronization can be activated.
Weight approx. 60 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX
Ex marking Design form compact terminal housing with signal LEDs
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm² s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Stripping length 8…9 mm
Current load power contacts Imax: 10 A II 3 G Ex nA IIC T4 Gc
The EL4002 analog output terminal generates signals in the range between 0 and 10 V. The voltage is supplied to the process level with a resolution of 12 bits and is electrically isolated. The output channels of the EtherCAT Terminal have a common ground potential. The EL4002 combines two channels in one housing. The output stages are powered by the 24 V supply. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
Connection technology 2-wire, single-ended
Number of outputs 2
Power supply 24 V DC via power contacts
Signal voltage 0…10 V
Distributed clocks yes
Distributed clock precision << 1 µs
Load > 5 kΩ (short-circuit proof)
Output error < 0.1 % (relative to end value)
Resolution 12 bit
Electrical isolation 500 V (E-bus/signal voltage)
Conversion time ~ 150 µs
Current consumption power contacts typ. 25 mA
Current consumption E-bus typ. 140 mA
Bit width in the process image 2 x 16 bit AO output
Special features Optional watchdog: user-specific output value with ramp; user synchronization can be activated.
Weight approx. 60 g
Operating/storage temperature -25…+60 °C/-40…+85 °C
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX
Ex marking Design form compact terminal housing with signal LEDs
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm² s*: 0.08…1.5 mm²,
st*: 0.08…1.5 mm²,
f*: 0.14…1.5 mm²
Stripping length 8…9 mm
Current load power contacts Imax: 10 A II 3 G Ex nA IIC T4 Gc
