PLC BECKHOFF EL9410 Power Supply Terminal
Codice produttore
Articolo n°:
Numero
Totale
47,40 €
Consegna intracomunitaria (esente da IVA)
19,90 €
Solo 4 Pezzo(i) disponibili
Avete già l'offerta migliore per la vostra quantità.
La selezione ottimale per la quantità inserita viene calcolata automaticamente, compresi il prezzo (escl. spedizione) e i tempi di consegna.
Dati tecnici
- Tipo prodotto
Alimentatore PLC
- Tensione di esercizio
24
IP20
- Tipo
EL9410
- Codice articolo produttore
EL9410
- UKCA
Non rilevante
Descrizione

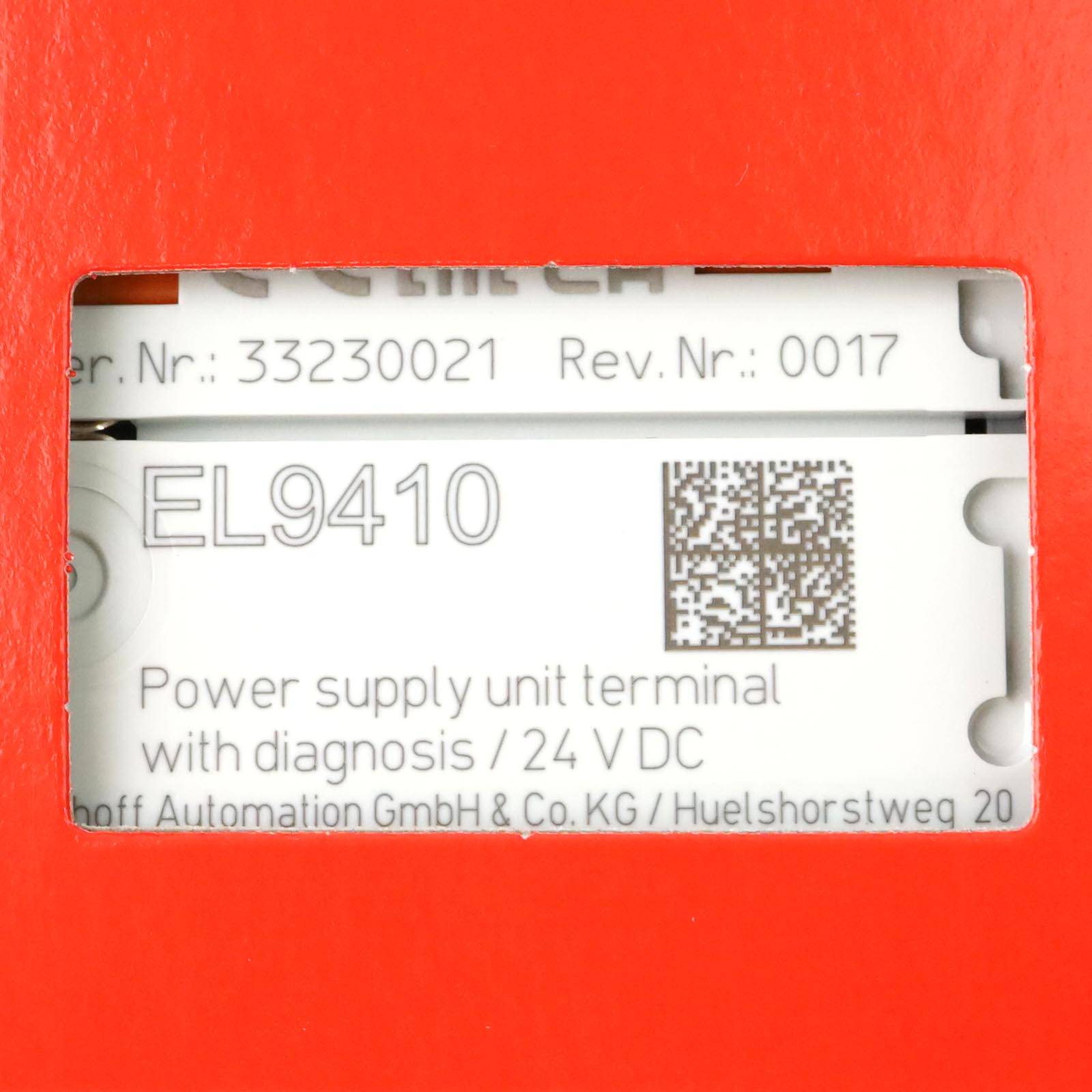

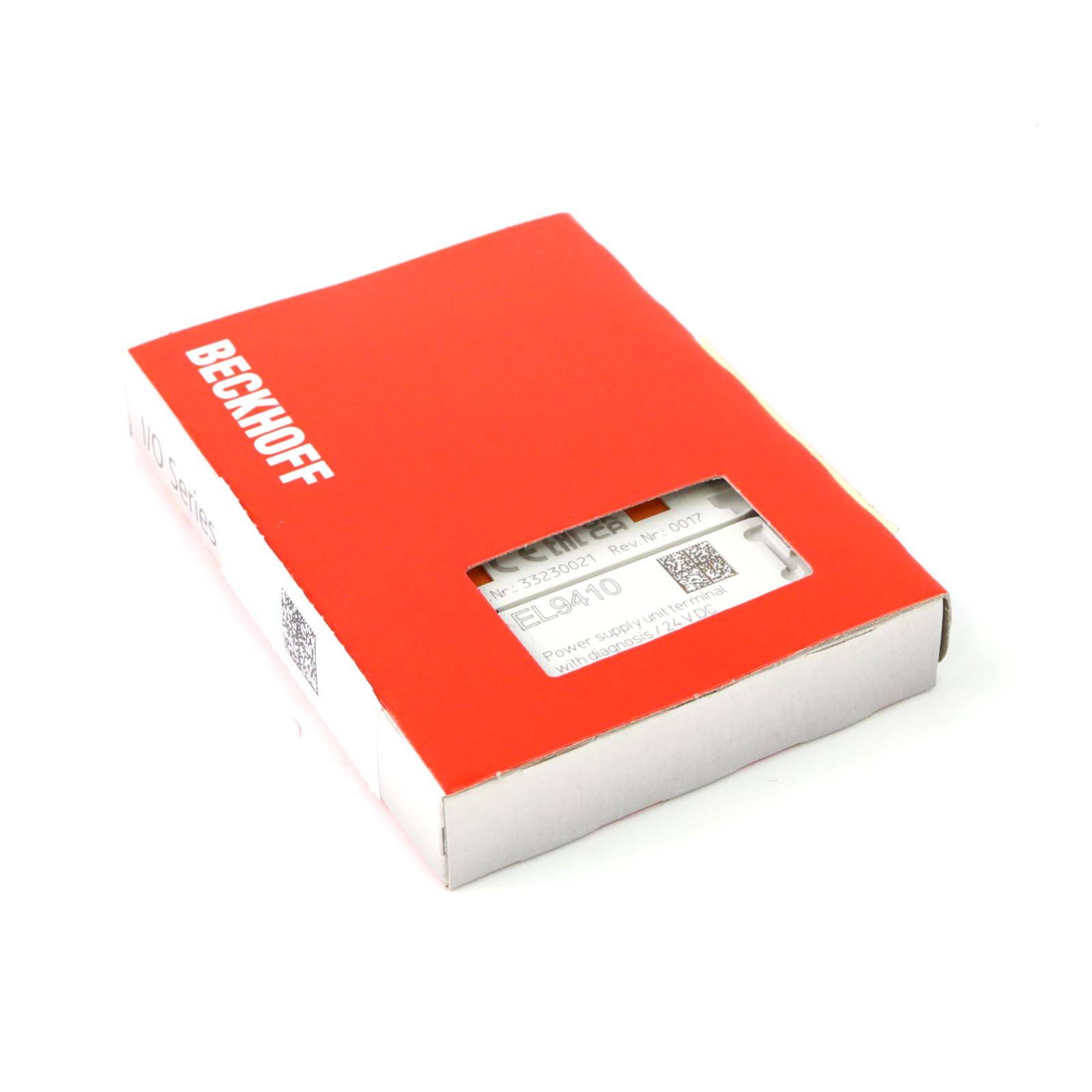

EL9410 | Power supply terminal for E-bus, with diagnostics
The EL9410 power supply terminal is used to refresh the E-bus. Data is exchanged between the coupler and the EtherCAT Terminal over the E-bus. Each terminal draws a certain amount of current from the E-bus (see “current consumption E-bus” in the technical data). This current is fed into the E-bus by the relevant coupler’s power supply unit. In configurations with a large number of terminals it is possible to use the EL9410 in order to supply an extra 2 A to the E-bus. The EL9410 has a diagnostic function which is displayed by LED and on the process image.
echnical data EL9410
Technology power supply terminal
Short-circuit proof yes
Input voltage 24 V DC (-15 %/+20 %)
Input current typ. 70 mA + (E-bus/4)
Output voltage 5 V for E-bus supply
Output current 2 A
Current consumption E-bus –
Electrical isolation 500 V (E-bus/field potential)
Power contacts max. 24 V DC/max. 10 A
Diagnostics in the process image yes
Special features standard EL supply
Weight approx. 65 g
Operating/storage temperature 0…+55 °C/-25…+85 °C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all ESxxxx terminals
Approvals/markings CE, UL, ATEX
Ex marking II 3 G Ex nA IIC T4 Gc
Technical data
Housing data
To top
Housing data EL-12-8pin
Design form compact terminal housing with signal LEDs
Material polycarbonate
Dimensions (W x H x D) 12 mm x 100 mm x 68 mm
Installation on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of double slot and key connection
Marking labeling of the BZxxx series
Wiring solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section
s*: 0.08…2.5 mm²,
st*: 0.08…2.5 mm²,
f*: 0.14…1.5 mm²
Connection cross-section AWG
s*: AWG 28…14,
st*: AWG 28…14,
f*: AWG 26…16
Stripping length 8…9 mm
Current load power contacts Imax: 10 A
*s: solid wire; st: stranded wire; f: with ferrule
