Siemens 3SU1152-6AA40-1AA0 Spia luminosa Lucido Verde 24 V/AC, 24 V/DC 1 pz.
EAN:
Codice produttore
Articolo n°:
Scheda tecnica (PDF)
19 Pezzo(i)
Vendita e spedizione:
spedizione gratuita a partire da 100,00 € valore dell'ordine con questo fornitore
Numero
Totale
15,20 €
Consegna intracomunitaria (esente da IVA)
7,37 €
Diritto di reso di 14 giorni incluso
Avete già l'offerta migliore per la vostra quantità.
La nostra offerta
Dati tecnici
- Materiale dell'elemento di azionamento: plastica
- Tipo prodotto
Spia luminosa
- Modello
Metallo
- Colore
Verde
- Tensione di esercizio
24 V/AC
24 V/DC
- Ø Foro di montaggio
22 mm
n.rel.

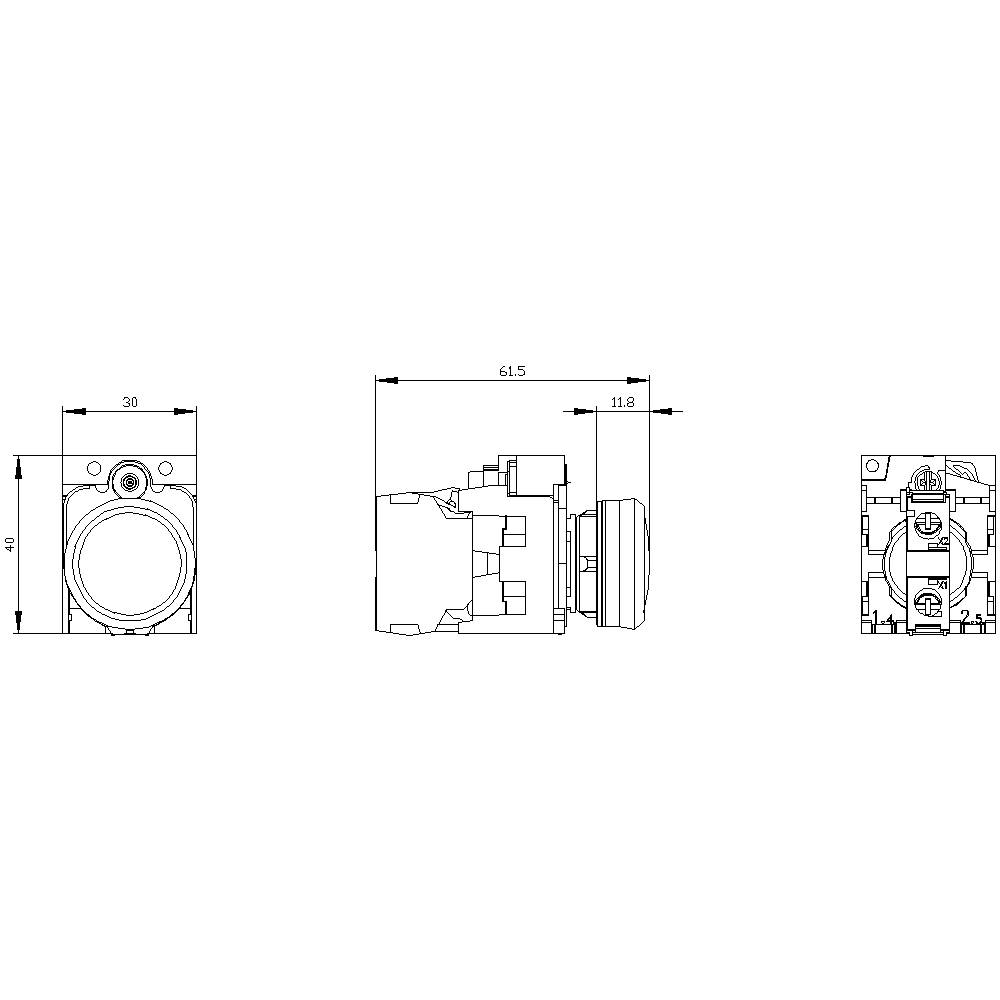

- Dim.
(Ø x A) 29.45 mm x 40 mm
- Collegamento
A vite
- Piastra anteriore max.
22 mm
- Peso
0.0616 kg
- Contenuto
1 pz.
- Larghezza
30 mm
- Altezza
40 mm
- Diametro
29.45 mm
- Compatibile RoHS
Sì
- Caratteristiche
Lucido
IP66
IP67
IP69/IP69K
- Temperatura max.
+70 °C
- Min. temperatura
-25 °C
- Tipo
3SU1152-6AA40-1AA0
- Illuminante incluso
Sì
22.3 mm
AC/DC
1
Other
Other
29.5 mm
11.8 mm
IP67/IP69K
TRUE
Other
FALSE
Other
Other
- UKCA
Sì
Documenti & Download
Scheda tecnica
Scheda tecnica 1379607 Siemens 3SU1152-6AA40-1AA0 Spia luminosa Lucido Verde 24 V/AC, 24 V/DC 1 pz.
Scheda tecnica 1379607 Siemens 3SU1152-6AA40-1AA0 Spia luminosa Lucido Verde 24 V/AC, 24 V/DC 1 pz.
Istruzioni d'uso e di sicurezza
Istruzioni d'uso e di sicurezza 1379607 Siemens 3SU1152-6AA40-1AA0 Spia luminosa Lucido Verde 24 V/AC, 24 V/DC 1 pz.
Informazioni
Informazioni 1379607 Siemens 3SU1152-6AA40-1AA0 Spia luminosa Lucido Verde 24 V/AC, 24 V/DC 1 pz.
Descrizione

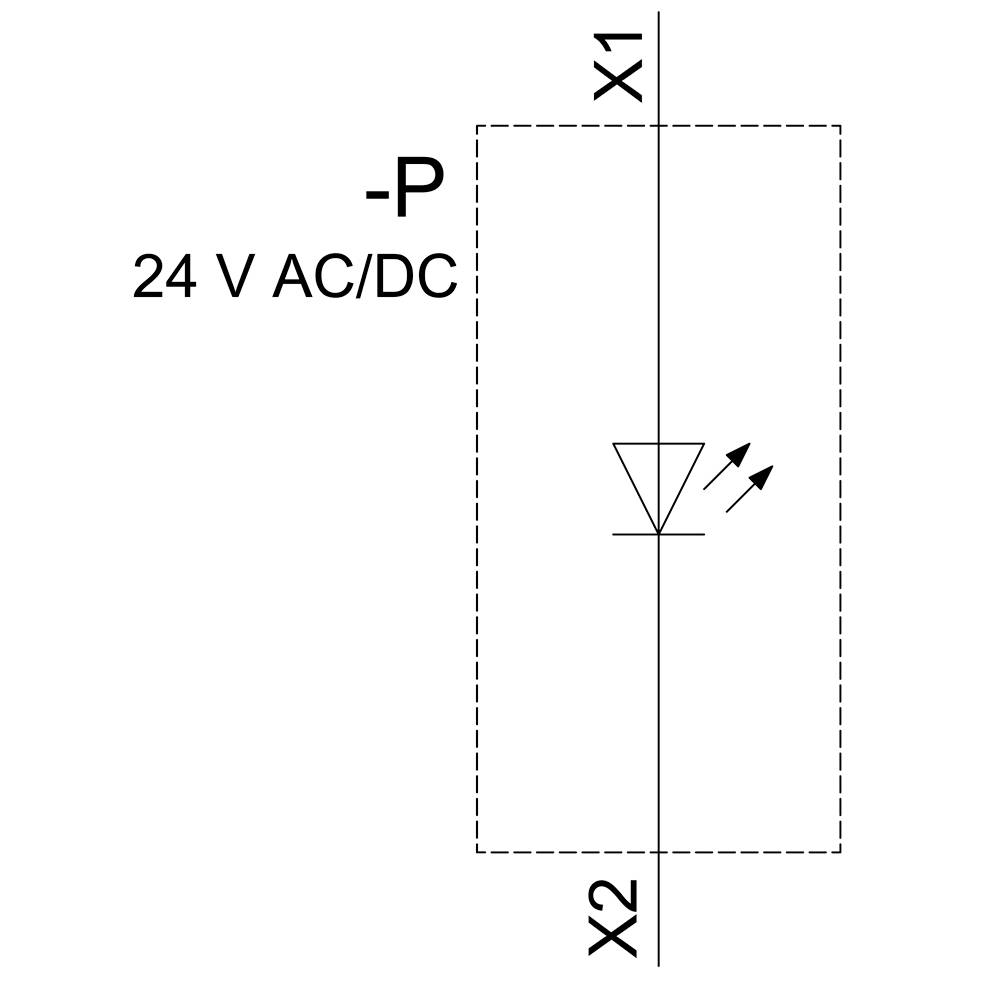

Indicator lights, 22 mm, round, metal, shiny, green, lens, smooth, with holder, LED module with integrated LED 24 V AC/DC, screw terminal Indicator lights SIRIUS ACT for signaling switching states or faults in systems with high luminosity, thanks to energy-efficient LED technology.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.
Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.
Versions available: Several colors, different voltage variants.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Testo tradotto automaticamente
